You need accurate solar street light configuration to ensure reliable performance across different project locations. Lithium battery sizing plays a key role in system longevity and efficiency. Local environmental factors, such as extreme temperatures, can impact battery life and charging ability. Consider these factors:
- Charge cycles, calendar life, and operating temperature all affect battery lifespan.
- Depth of Discharge up to 75% can improve lithium battery performance.
- LiFePO₄ batteries offer long life and strong temperature tolerance, lasting 5 to 15 years.
Key Takeaways
- Define the area and lighting standards to choose the right wattage and brightness for your project.
- Calculate daily energy demand by multiplying fixture wattage by operating hours, adjusting for system losses.
- Select solar panels and batteries based on local sunlight conditions and ensure 3–5 days of autonomy for reliability.
- Use MPPT controllers to improve energy efficiency and ensure consistent lighting in varying weather conditions.
- Verify system performance after installation by checking alignment, monitoring operation, and scheduling regular maintenance.
Part1: Project Requirements
1.1 Area and Lighting Standards
When you plan a solar street light project, you must first define the area and lighting standards. Different applications require different wattages and brightness levels. The table below shows typical recommendations for commercial and municipal projects:
| Application | Recommended Wattage | Typical Lux |
|---|---|---|
| Pavements and Park Paths | 20–40W | 5–10 Lux |
| Community Internal Roads | 40–60W | 10–15 Lux |
| Parking Lots and Commercial Area Roads | 60–100W | 20–30 Lux |
| Main Roads, Highways, Industrial Areas | 100–200W | 30–50 Lux |
Tip: International and national lighting standards, such as those from the Illuminating Engineering Society (IES) and International Electrotechnical Commission (IEC), guide you on safety, energy efficiency, and environmental impact. Meeting these standards is often necessary for project approval and funding.
1.2 Pole Height and Spacing
You need to select the right pole height and spacing to achieve uniform light coverage. The following table outlines typical values for different road types:
| Road Type | Pole Height (m) | Typical Spacing (m) | LED Wattage (W) |
|---|---|---|---|
| Rural Streets | 4 – 6 | 18 – 22 | 30 – 50 |
| Urban Main Roads | 8 – 10 | 26 – 30 | 100 – 200 |
| Highways | 10 – 12 | 30 – 34 | 200 – 300 |
Pole height affects how far the light spreads. Higher poles cover a larger area, but the brightness at ground level drops. If you space poles too far apart, you create dark spots. If you place them too close, you waste resources. You should balance pole height and spacing for optimal performance.
1.3 Brightness and Operation Time
You must match brightness and operation time to the needs of each project location. Urban roads require higher illuminance and longer operation hours than rural roads. The table below shows typical values:
| Road Type / Site | Average Illuminance (Lux) | Approx. Lumens |
|---|---|---|
| Highways / Arterial Roads | 15–25 lux | 18,000–24,000 lm |
| Urban Secondary Roads | 10–15 lux | 12,000–16,000 lm |
| Village / Township Roads | 5–8 lux | 6,000–9,000 lm |
Most solar street light systems operate from dusk to dawn, usually 10–12 hours per night. You should confirm local requirements and adjust operation time to ensure safety and efficiency.
Part2: Power and Energy Calculation
2.1 Fixture Wattage and Usage
You need to select the right fixture wattage for your project. The wattage determines how much energy your Solar Street Light consumes each night. Different applications require different wattages. For example, pathways and walkways often use 30W–50W fixtures, while parking areas need 60W–100W. Open commercial spaces require higher wattage to cover large areas efficiently.
| Application Type | Recommended Wattage | Description |
|---|---|---|
| Open commercial spaces | Higher wattage | Used to cover large areas efficiently, especially in logistics and industrial environments. |
| Pathways and walkways | 30W–50W | Suitable for pedestrian areas, providing sufficient illumination without excessive glare. |
| Parking areas | 60W–100W | Commonly used for parking areas to ensure adequate visibility and safety. |
Golden rule: Always ensure the energy collected by the solar array exceeds the energy spent by the fixture at night. Size your panels based on the shortest day of the year for consistent performance.
2.2 Daily Energy Demand
You must calculate daily energy demand to size your system correctly. Start by multiplying the fixture wattage by the number of operating hours. For example, a 35-watt fixture running for 10 hours uses 350 watt-hours (Wh). Adjust for system losses by multiplying by 1.15.
- Daily energy consumption = Power consumption per light × Operating hours per night
- Example: 35W × 10h = 350Wh; 350Wh × 1.15 = 402.5Wh
Seasonal changes affect sunlight hours. During winter, you may get only 4–4.5 peak sun hours, while summer offers up to 9. You must adjust your calculations for the lowest sunlight period to ensure reliable operation.
| LED rated power | Profile example | Typical daily Wh range |
|---|---|---|
| 30W | Motion dimming 30% base | 100–150Wh |
| 30W | Time dimming 4h 100% + 8h 40% | ~210Wh |
| 60W | Motion dimming 30% base | ~300Wh |
| 60W | Time dimming 4h 100% + 8h 40% | ~420–450Wh |
2.3 Array-to-Load Ratio
You must balance the energy collected by your solar panels with the energy consumed by your fixtures. The array-to-load ratio (ALR) ensures your Solar Street Light operates reliably.
- Size your solar array for the worst sunlight conditions.
- Measure sun hours in your area, especially during winter.
- If your location has cloudy winters, select larger panels to maintain operation.
Accurate calculations guarantee reliable performance and prevent costly oversizing. Focus on energy efficiency and adapt your design to local sunlight conditions.

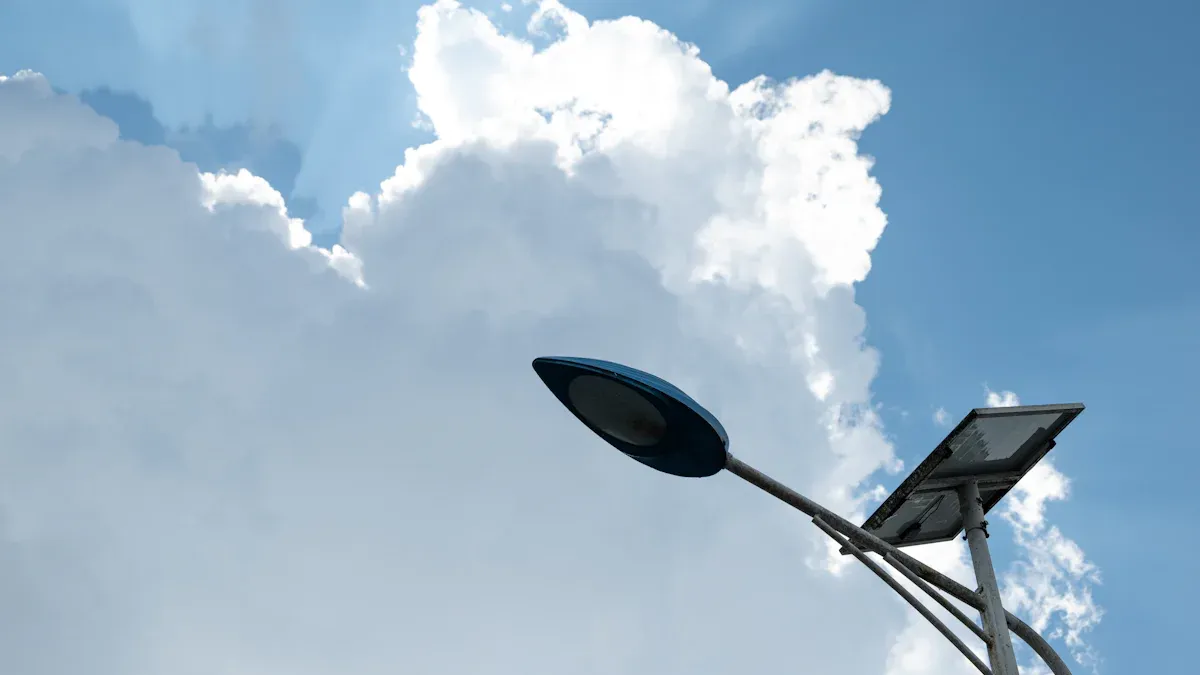

Part3: Solar Street Light Sizing
3.1 Solar Panel Selection
You need to select solar panels that match your project’s location and lighting requirements. The efficiency of a solar panel determines how much sunlight it can convert into electricity, especially during cloudy or low-light days. High-efficiency panels generate more power in less space, which is crucial for urban or space-limited installations. You should also consider the long-term performance of the panels. Over time, all solar panels lose some efficiency. High-quality panels degrade at a rate of about 0.4–0.5% per year, so you must factor this into your calculations to ensure reliable operation for years to come.
| Criteria | Description |
|---|---|
| Solar Panel Efficiency | Determines power generation capacity, especially in low-light conditions. |
| Battery Performance | Affects duration and stability of nighttime operation; includes discharge rate and temperature adaptability. |
| Lighting Output (Lumen) | Measures brightness effectiveness; requires scenario-specific assessments to ensure adequate illumination. |
You should always size your solar panels based on the lowest expected sunlight hours, usually during winter. This approach ensures your system will work reliably year-round. Efficiency testing helps you evaluate the overall performance of your solar street lighting system. For more technical details on solar panel efficiency and degradation, you can refer to Nature’s review on photovoltaic performance.
| Evidence Type | Description |
|---|---|
| Degradation Rate | High-quality solar panels degrade at 0.4–0.5% per year, affecting long-term power generation. |
| Impact Factors | Incorrect energy estimates and undersized batteries can reduce system reliability. |
Tip: Always match your solar panel wattage with your battery capacity to avoid energy shortages or wasted capacity.
3.2 Lithium Battery Sizing
Proper battery sizing is essential for reliable Solar Street Light operation, especially in areas with frequent cloudy or rainy days. You need to ensure your battery can power the lights for several days without sunlight. This period is called “autonomy.” For most urban projects, 1–2 days of autonomy is enough. In remote or off-grid locations, you should plan for 3–5 days to guarantee reliability.
| Location Type | Days of Autonomy Required |
|---|---|
| Urban Areas | 1–2 days |
| Remote Locations | 3–5 days |
| General Requirement | 3–5 days for reliability |
You should use deep cycle lithium batteries because they handle repeated and deep discharges well. Lithium-ion batteries also last longer and perform better in low-light conditions than traditional lead-acid batteries. In regions with frequent rain or clouds, higher capacity batteries are crucial. They store extra energy on sunny days and release it when sunlight is limited. This approach ensures your street lights stay on even during bad weather.
| Practice | Description |
|---|---|
| Accurate Sizing | Ensures the battery can sustain operation for up to 3 rainy or cloudy days. |
| Avoid Oversizing | Prevents issues like sulfation in flooded battery banks. |
| Use Deep Cycle Batteries | Suitable for repeated and deep discharges, essential for solar street lights. |
- Battery autonomy is essential for reliable operation during low sunlight periods.
- A well-designed system typically requires 3 to 5 days of autonomy.
- Insufficient autonomy can lead to system failures, especially in adverse weather.
Note: Incorporating advanced battery storage systems helps maintain consistent lighting performance in all weather conditions. For more on battery autonomy and sizing, see this scientific overview.
3.3 Controller Choice
The controller acts as the brain of your solar street lighting system. It manages the flow of energy between the solar panel, battery, and light fixture. You can choose between two main types: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking).
| Type of Controller | Description | Impact on Efficiency and Safety |
|---|---|---|
| PWM | Simple and cost-effective, switches power on and off quickly. | Helps maintain battery health, ensuring longevity and safety. |
| MPPT | Advanced, optimizes solar panel output for maximum energy capture. | Increases efficiency in varying weather conditions, enhancing overall system performance. |
MPPT controllers can boost energy efficiency by 20–30% compared to PWM controllers. This improvement means your system captures more energy, especially during cloudy or variable weather. MPPT technology also optimizes the charging process, which helps your batteries last longer and ensures your lights stay on all night. Many modern controllers offer remote monitoring features. These features allow you to track system performance and schedule maintenance, which protects your investment and ensures consistent lighting uptime.
- MPPT controllers enhance energy efficiency and daily energy yield.
- Intelligent controllers use MPPT control laws to manage battery storage and supply reliable nighttime illumination.
Tip: For large-scale or critical projects, always choose MPPT controllers with remote monitoring to maximize efficiency and system reliability.
Part4: Solar Street Light Performance
4.1 Fixture and Optics Selection
You must select the right fixture and optics to maximize light distribution and minimize glare in your Solar Street Light projects. The best combinations use full cutoff fixtures, which control light pollution and reduce glare. You should follow IESNA classifications to match the light shape and distribution to your project needs. Batwing distribution optics help you achieve uniform light and avoid hotspots.
- Full cutoff fixtures control light pollution and glare.
- IESNA classifications guide you in selecting the right light distribution.
- Batwing optics create even illumination and reduce bright spots.
Fixture finishes also affect energy efficiency and visual comfort. Specular finishes give sharp control but may cause glare if not positioned well. Matte and satin finishes scatter light, making them ideal for public spaces. Textured lenses and diffusers further improve comfort by shaping the light and reducing glare. You should always balance energy efficiency with visual comfort, following guidelines from the Illuminating Engineering Society and LEED standards.
4.2 Pole Material and Height
You need to choose pole materials and heights that match your project’s environment and safety requirements. Aluminum poles offer lightweight, corrosion resistance, and low maintenance, but cost more and have lower strength. Steel poles provide high strength and durability, but need regular maintenance to prevent rust. Fiberglass reinforced polymer poles are lightweight, strong, and non-conductive, but have higher upfront costs.
| Material | Cost | Lifespan | Corrosion Resistance | Installation Complexity |
|---|---|---|---|---|
| Steel | Most economical | Shorter | Susceptible | Moderate |
| Aluminum | More expensive | Longer | Resistant | Moderate |
| Fiberglass | Most expensive | Longest | Highly resistant | High |
Pole height affects wind resistance and stability. For street lighting, use poles from 12 to 30 feet (3.7 to 9.1 meters). Pathway lighting uses shorter poles, while security installations require taller poles. You must calculate the Effective Projected Area (EPA) to ensure the pole withstands wind loads. Structural engineers validate these calculations and consider local wind speeds and soil conditions.
4.3 Performance Verification
You should verify Solar Street Light performance after installation using several methods:
| Method | Description |
|---|---|
| Pole Erection and Alignment | Check that poles are vertical and fixtures are oriented for best light distribution. |
| System Activation and Commissioning | Activate the system, check voltages, and observe operation at dusk. |
| Performance Benchmarking | Record baseline data and monitor for 30 days to ensure consistency. |
| Routine Maintenance Schedule | Clean panels and inspect cables regularly to maintain efficiency. |
| Troubleshooting Protocols | Diagnose issues with batteries, wiring, and other components as needed. |
You can use simulation tools or photometric software to predict and verify light distribution before and after installation. These steps help you ensure your Solar Street Light system meets project requirements and delivers reliable performance.
You can achieve reliable lighting by following a clear process:
- Collect project data and define lighting standards.
- Select fixtures and calculate power needs.
- Size batteries and solar panels for local conditions.
- Run simulations and refine your design.
To ensure long-term performance:
- Install panels at the right angle and direction.
- Use high-quality batteries and fixtures.
- Clean panels and inspect systems regularly.
For complex projects, use simulation tools or consult experts to adapt your design to site-specific challenges.
FAQ
What factors should you consider when sizing lithium batteries for solar street lights?
You need to check daily energy demand, days of autonomy, and local weather patterns. Deep cycle lithium batteries offer reliable performance. You should match battery capacity to fixture wattage and operation hours.
How do you determine the correct solar panel size for different project locations?
You must calculate the lowest expected sunlight hours in your area. Use the daily energy demand and panel efficiency to select the right size. High-efficiency panels work best in urban or cloudy environments.
Why is the array-to-load ratio important for solar street light projects?
The array-to-load ratio helps you balance energy generation and consumption. You avoid system failures by sizing panels for the worst sunlight conditions. Accurate ratios ensure reliable lighting throughout the year. Need help designing a reliable solar street light system? Share your project location, road width, pole height, lighting hours, and backup-day requirements. Leap Pole can help you size the solar panel, lithium battery, fixture wattage, and pole structure for stable year-round performance.
What is the recommended pole material for industrial solar street light installations?
Steel poles provide high strength and durability. Aluminum poles resist corrosion and require less maintenance. Fiberglass poles offer long lifespan and high resistance but cost more. You should choose based on project budget and environmental conditions.
How can you verify solar street light performance after installation?
You can use photometric software to simulate light distribution. Activate the system and monitor operation at dusk. Schedule routine maintenance and record performance data for at least 30 days.
