You can see lamp pole configurations made of steel, aluminum, wood, and composite on city streets. Each type lasts a different amount of time. They also look different and need different care.
| Type of Light Pole | Characteristics |
|---|---|
| Steel Light Poles | Very strong and tough. They can handle bad weather. They come in many sizes and shapes. |
| Aluminum Light Poles | Not heavy and do not rust. They look nice and are easy to take care of. |
| Wooden Light Poles | They look old-fashioned and fit in with nature. People use them in old parts of the city. |
| Composite Light Poles | They last long and do not rust. They are light and good for wet places. |
Good street lighting helps stop accidents. It makes roads safer for everyone. You should think about safety and saving energy when picking lamp pole configurations.
Key Takeaways
- Pick the best lamp pole material for the place. Steel is very strong and works well in bad weather. Aluminum does not rust, so it is good near the ocean.
- Think about how wide the road is when you pick lamp pole setups. Narrow roads do better with lights on one side. Wide roads need lights on both sides or in the middle for even light.
- It is important to take care of lamp poles often. Check them every year for rust or damage. This keeps them safe and helps them last longer.
- Staggered lighting stops dark spots on medium roads. This setup spreads light everywhere and helps drivers and people walking see better.
- How lamp poles look is important too. Pick designs that make the area look nice and keep people safe.

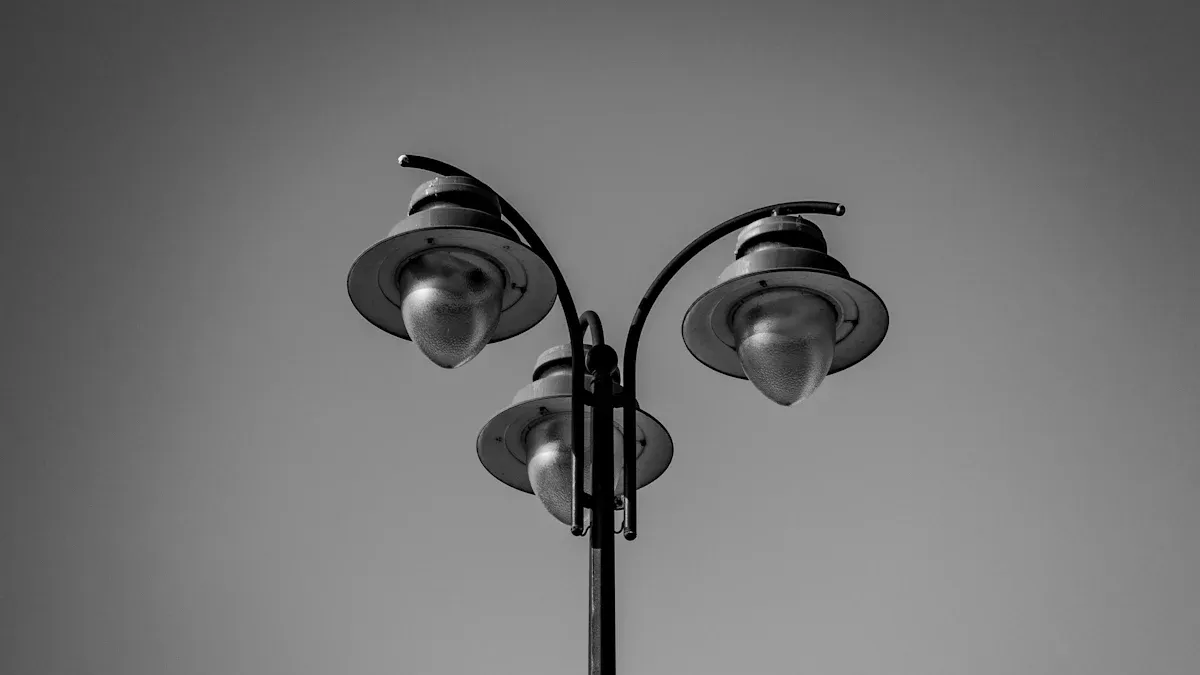

Main lamp pole configurations
One-sided lighting
One-sided lighting is used for narrow city roads. All lamp poles go on one side of the street. This setup helps keep sidewalks open and avoids things in the way. You see this most on streets less than 50 feet wide.
Tip: One-sided lighting saves space and costs less to install.
Here is a table that shows how high and far apart the poles should be:
| Layout Type | Installation Height (m) | Spacing (m) |
|---|---|---|
| One-sided layout | H ≥ Weff | S ≤ 3H |
Most city roads use poles from 30 to 50 feet tall. The poles are spaced about 2.5 to 3 times their height. For example, 30-foot poles should be 75 to 90 feet apart. Poles must be at least 15 feet tall to stop glare. You can change the height if you need more or less light.
Opposite lighting
Opposite lighting puts lamp poles across from each other on both sides. This gives even light and fewer shadows. You use this on wide streets, usually over 65 feet wide.
- City roads use poles from 30 to 50 feet tall.
- Neighborhood streets use shorter poles, about 10 to 15 feet high.
- Highways need taller poles, from 20 to 30 feet.
- Poles are spaced 2.5 to 3 times their height, like one-sided lighting.
Opposite lighting is good for even light and less darkness. You see it on busy city roads and main streets.
Staggered lighting
Staggered lighting puts lamp poles on both sides, but not lined up. The poles are placed in a zigzag pattern. This helps spread light better and stops dark spots. Staggered lighting is good for medium roads where you want good light without taller poles.
Note: Staggered layouts help stop dark spots and make light even. You use them on big roads or where traffic changes a lot.
Here are some rules for staggered lighting:
| Layout Type | Installation Height (m) | Spacing (m) |
|---|---|---|
| Staggered arrangement | H ≥ 0.7 Weff | S ≤ 3H |
Pole heights are like those in one-sided and opposite lighting, from 30 to 50 feet. Spacing is also 2.5 to 3 times the pole height.
Median lighting
Median lighting puts lamp poles in the middle of the road. You use this for very wide roads, highways, or roads with a center divider. Median lighting lights both sides from the middle and can use fewer poles.
- Median lighting uses taller poles, sometimes over 50 feet.
- Spacing depends on road width and how much light you need, but still follows the 2.5 to 3 times pole height rule.
Median lighting is best for roads with wide medians and lots of cars. You see it on expressways and big city roads.
Tip: When picking lamp pole configurations, think about road width, traffic, and safety.
Knowing these main lamp pole configurations helps you pick the best one for your city road. You make roads safer, save energy, and help everyone have a better place to travel.
Common lamp pole types
Round tapered poles
Round tapered poles are common in city lighting today. They look smooth and match modern city styles. The round shape lets wind move around the pole. This makes them better in strong winds than square poles. Round poles do not shake as much, so they last longer. The base spreads out stress, which keeps the pole strong. These poles are good for streets that want a modern look and need strong lights.
Square poles
Square poles are very strong and last a long time. You can put them up easily because of their simple parts. You can add more lights to one pole, which helps at busy corners. The strong shape lets you use taller poles and matches square bases. Square poles help people see better and feel safer. They can cost more than round poles. They do not handle wind as well, so use them where wind is not a big issue.
Steel poles
Steel poles are tough and strong. You can use them where the weather is rough. They come in many shapes and sizes. You need to check them for rust often. If you take care of them, they last a long time. You see steel poles on highways and big roads.
Aluminum poles
Aluminum poles are strong and easy to care for. They do not rust, so you do not worry about corrosion. You can use them near the ocean, in parks, or on school grounds. Aluminum poles look nice and fit many styles. They work well in wet or dirty cities. Special coatings make them even stronger.
Wooden poles
| Advantages | Limitations |
|---|---|
| Look nice in natural places | Need checks and treatments for rot and bugs |
| Good for country and old areas | Not good for big projects |
Wooden poles look classic and pretty. You see them in parks, old towns, or country roads. You must check them for rot and bugs often. They are not good for large jobs.
Composite poles
| Material Type | Longevity (Years) | Maintenance Requirements |
|---|---|---|
| Composite (FRP) | 80+ | Needs little care |
| Wood | 25-40 | Needs lots of care |
| Steel | Varies | Needs rust checks |
Composite poles last a very long time and need little work. You can use them where there is lots of sun, rain, or bugs. These poles help save money on repairs. Composite poles are a smart pick for cities that want strong and easy lamp pole setups.
Applications and advantages
Major roads and highways
You see major roads and highways use strong and tall lamp poles. Steel poles work well because they handle tough weather and last a long time. Aluminum poles are good for coastal areas since they do not rust. Most highways use LED street lights. These lights give even brightness and reduce glare for drivers. You get wide coverage, which keeps both cars and people safe. Many cities use smart technology in these poles to adjust lighting when needed. This saves energy and makes the roads safer.
- LED street lights provide uniform brightness.
- Steel poles offer strength for busy roads.
- Aluminum poles resist corrosion near the ocean.
Residential streets
You want your neighborhood to feel safe and look nice. Residential streets often use shorter poles and softer lights. You see traditional pole-mounted lamps, decorative lamps, and LED street lamps. Each type fits a different need.
| Lamp Type | Height Range (feet) | Description |
|---|---|---|
| Traditional Pole-Mounted | 12 – 20 | Common in neighborhoods, gives good coverage. |
| Decorative Lamps | 8 – 15 | Adds style in parks and historic areas. |
| LED Street Lamps | 10 – 14 | Saves energy and reduces light pollution. |
Shorter poles help keep the area cozy and safe for families.
Pedestrian zones
You need good lighting in places where people walk. Street pole lights make sidewalks and crossings bright at night. This helps you see where you are going and lets drivers spot you easily. Well-lit paths encourage more people to walk and visit local shops.
- Lights improve visibility for everyone.
- Proper lighting lowers the risk of accidents.
- Short poles focus light and reduce dark spots.
- Sidewalks and crossings become safer.
- Busy areas like schools and stores need more lights.
- Good lighting helps you find your way.
Intersections and roundabouts
You find intersections and roundabouts need special attention. Staggered or opposite lamp pole configurations work best here. These setups reduce shadows and make sure you see other cars and people. Square poles can hold more lights, which helps cover every angle. You get better safety and fewer accidents at busy spots.
Tip: Use more lights at crossings to help drivers and walkers see each other.
High mast and semi-high mast lighting
Large areas like stadiums, ports, or big city squares use high mast lighting. These poles stand 40 to 150 feet tall and hold many fixtures. You get bright, even light over a wide space. High mast LED lights save energy and last a long time. They also cut down on maintenance costs.
| Advantage | Description |
|---|---|
| Energy Savings | High mast LEDs use 50% to 80% less energy. |
| Maintenance Cost | LEDs last over 100,000 hours, so you fix them less often. |
| Lighting Performance | LEDs spread light evenly, so you do not get dark or bright spots. |
You should pick high mast lighting for large, open spaces that need strong and steady light.
You can match lamp pole configurations to each area for the best results. This helps you keep roads safe, save energy, and make your city look better.
Mounting and installation methods
Side-mounted poles
Most city streets have side-mounted poles. These poles stand by the road or sidewalk. They light up the street and keep walkways open. People can fix the lights easily. Cars and people both get good light. Side-mounted poles are simple to put in and take care of.
Center-mounted poles
Center-mounted poles go in the middle of the road or on a median. They give the same amount of light on both sides. This works well for wide roads and big parking lots. The table below shows how center-mounted poles help with light and repairs:
| Aspect | Details |
|---|---|
| Pattern type | 360° circular distribution |
| Applications | roadways, center parkway islands, intersections, large parking areas |
| Fixture placement | at or near the center |
| Light distribution | Equal light distribution at all angles |
Center-mounted poles help stop dark spots and make roads safer. You might need to close lanes to fix them, so plan ahead.
Suspended and bracket-mounted
Suspended and bracket-mounted lights hang over roads or sidewalks. You see these in busy city centers and old districts. These lights look nice and spread light well. The table below shows the good and hard parts:
| Benefits | Challenges |
|---|---|
| Aesthetic appeal | Structural support and weight considerations |
| Energy efficiency | Height and placement accuracy |
| Adaptability | Electrical wiring and safety compliance |
| Better light distribution | Light distribution and glare control |
| Stability | Aesthetic integration with interior design |
- Modern offices use pendant lights for even light.
- Old homes need strong ceilings for heavy lights.
Think about wiring and safety when you choose suspended lights.
Foundation and anchoring
Every lamp pole needs a strong base. The right foundation keeps the pole safe and steady. The table below shows common foundation types:
| Foundation Type | Description | Typical Use | Advantages | Limitations |
|---|---|---|---|---|
| Direct Burial | Pole set directly in compacted soil or concrete | Rural/secondary roads | Fast, simple | Weak in soft soil |
| Spread Footing | Concrete pad distributing load | Urban streets | Low cost, easy to form | Needs firm soil |
| CIDH Pile | Drilled and cast-in-place reinforced shaft | High mast / poor soil | Strong, stable | Costly, slow |
| Precast Base | Factory-made block with anchor bolts | Urban retrofit | Fast install | Heavy transport |
- Line up templates before pouring concrete.
- Check alignment again after grouting.
- Use non-shrink grout for the base.
- Make the ground slope away from the pole by at least 2%.
Good foundations and anchoring help lamp poles last a long time. This keeps them standing strong in wind and storms.
Choosing the right lamp pole configuration
When you choose lamp pole configurations for your city, you need to look at several important factors. Each road is different, so you must match the lighting to the road’s needs.
Road width and layout
You should always check the width and layout of the road first. These points help you decide where to place the poles and how many you need:
- Busy highways and main roads need more poles and taller lights.
- Residential streets are shorter and narrower, so you need fewer poles and less light.
- You should look at traffic patterns and where people walk. This helps you place poles along the edges to focus light where it is needed.
- For very wide roads, you may need opposite or median arrangements to cover both sides well.
Lighting requirements
You must think about how much light each area needs. The table below shows which layout works best for different roads:
| Layout Method | Where to Use | Advantages | Disadvantages |
|---|---|---|---|
| Single-Side Arrangement | Roads ≤ 12m wide | Fewer poles, saves money | May not light far side well |
| Staggered Arrangement | Roads 12–24m wide | Even light, fewer dark spots | Needs more poles |
| Opposite Arrangement | Roads ≥ 24m wide | Best for even lighting | Costs more, uses more poles |
| Central Median Arrangement | Main roads with center green belts | Good glare control | Needs strong foundation |
| Catenary Lighting | Narrow, old districts | Looks nice, good for old towns | Can move in wind |
| High Mast Lighting | Large hubs, stadiums | Lights big areas | Needs careful design to avoid glare |
Environmental factors
Environmental factors such as wind load and corrosion risk play a big role in your choice. Wind can make poles sway or even break if they are not strong enough. Corrosion from rain or salty air can damage poles over time. You should check wind maps and local weather to pick the right materials and coatings. Always think about the worst weather your area can get.
Maintenance and aesthetics
You want your street lights to look good and last a long time. Here are some things to keep in mind:
- Choose colors and styles that match the area and make people feel safe.
- Decorative poles can show off local history or culture.
- Regular checks and cleaning keep lights working well.
- Good design makes your city look better and helps people feel proud of their neighborhood.
When you look at road width, lighting needs, the environment, and how the poles look, you can pick the best lamp pole configurations for any urban road.
You have learned about the main lamp pole configurations and where to use them. Always match your choice to the road type, lighting needs, and materials. Check the best installation method for your project. If you want the best results, talk to a lighting expert or look at your city’s standards. Good planning helps you create safe and bright streets for everyone.
FAQ
What is the best lamp pole material for coastal cities?
Aluminum poles work well in coastal cities. You get strong poles that resist rust from salty air. Aluminum needs little maintenance and lasts a long time.
How do you choose the right pole height for a city street?
You should match pole height to road width. Narrow streets use shorter poles, usually 15 to 30 feet. Wide roads need taller poles, up to 50 feet, for better light coverage.
Can you install lamp poles in areas with high wind?
Yes, you can install lamp poles in windy areas. Choose round tapered or steel poles. These poles handle strong winds better. Always check local wind ratings before installation.
How often should you inspect lamp poles for safety?
You should inspect lamp poles every year. Look for rust, loose bolts, and cracks. Regular checks help you find problems early and keep streets safe.
