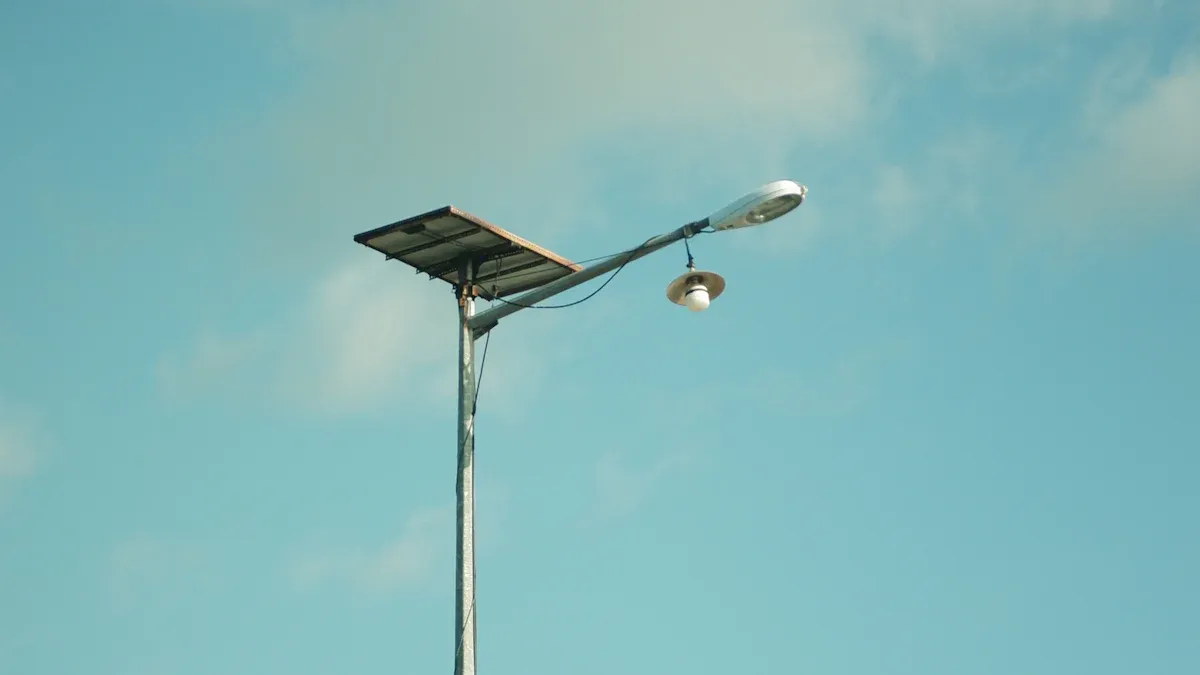

Configuration Parameters of Solar street lamp poles

You need to consider several Configuration Parameters when choosing solar street lamp poles. The most common parameters include wattage, solar panel power, battery capacity, and controller type. The table below shows how each part affects the system:

Studies show that switching mechanisms, battery types, and controller quality have a strong impact on how long your lights work and how reliable they are. Lithium-ion batteries can operate up to three hours longer than lead-acid batteries. Poor charge controllers often cause battery failures.

Key Takeaways

• Choose the right wattage for your solar street lamp to ensure adequate brightness without wasting energy.
• Select high-efficiency solar panels and batteries to maximize energy collection and storage, especially in varying weather conditions.
• Use a reliable controller type, like MPPT, to enhance energy management and prolong battery life.
• Consider local solar conditions and weather patterns when sizing your solar panel and battery to ensure consistent performance.
• Regularly maintain and clean your solar panels to optimize energy output and extend the lifespan of your lighting system.

Why Parameters Matter

Performance

You want your solar street lamp poles to deliver bright and steady light every night. The right Configuration Parameters help you achieve this goal. For example, the LED light source must have the correct color temperature and high luminous efficacy. If you choose a light with a color temperature between 4000K and 5000K and a luminous efficacy of at least 150 lm/W, you get clear and efficient lighting. The photovoltaic panel should use monocrystalline silicon with an efficiency of at least 22%. This ensures the system collects enough energy during the day. You can use the formula for LED power requirement:
PLED = E × A / (η × U × K)
where E is the design illuminance, A is the area, η is luminaire efficiency, U is utilization factor, and K is maintenance factor. This calculation helps you match the lamp’s output to your needs.

Reliability

You need your lights to work every night, even in bad weather. Good Configuration Parameters make your system reliable. The orientation of the solar panel affects how much sunlight it collects. If you set the panel at the right angle, you get more energy for the battery. The battery’s capacity decides how long the lamp stays on, especially during cloudy days. You should also think about local weather. Cold or hot climates can change how well the battery works. If you plan for these factors, your lights will stay on longer and need less maintenance.

Efficiency

Efficient solar street lamps save energy and money. You can boost efficiency by picking the right wattage, solar panel power, battery size, and a stable controller. Each part plays a role:

• Wattage sets the brightness level.
• Solar panel power affects how fast the battery charges.
• Battery capacity keeps the lamp running all night.
• A stable controller manages the system and prevents energy loss.

If you optimize the number of LEDs, you can also reduce maintenance needs. When you select the best Configuration Parameters, you get a system that works well, lasts longer, and uses less energy.

Key Configuration Parameters

When you choose solar street lamp poles, you need to understand the main Configuration Parameters. Each parameter affects how well your lighting system works and how long it lasts. Let’s look at each one.

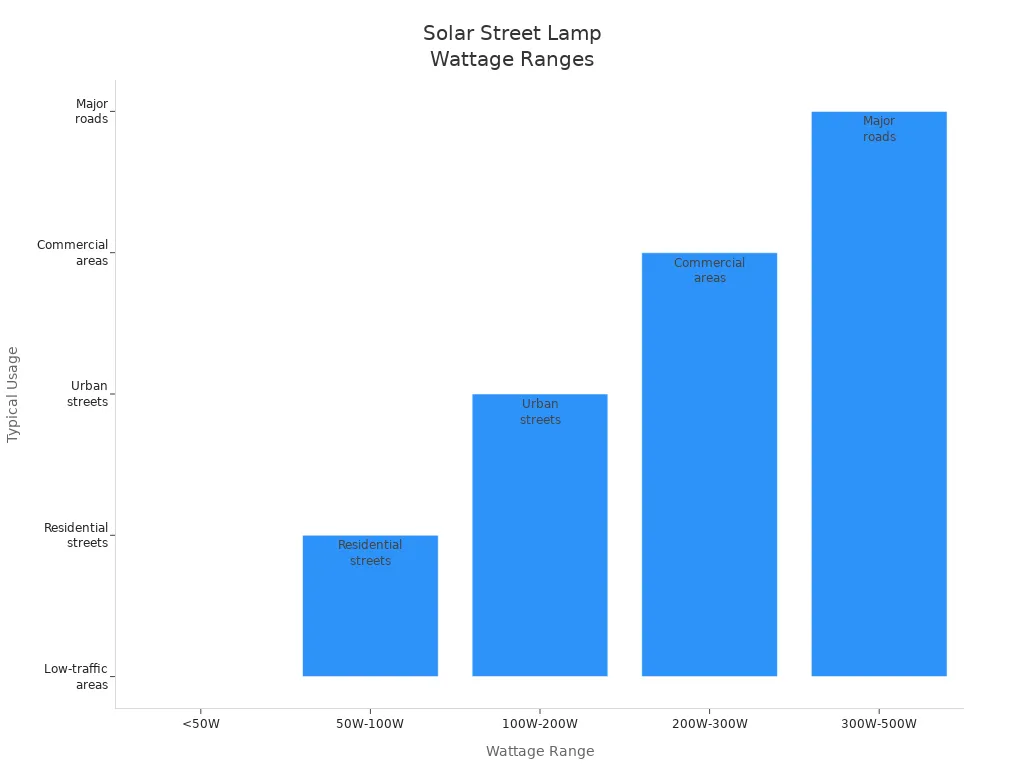

Wattage

Wattage tells you how bright your street lamp will be. Higher wattage means more light, which is important for busy streets and large areas. Lower wattage works for small paths or gardens. You must balance wattage with energy use. If you pick a lamp with too much wattage, you waste energy. If you pick too little, the area stays dark.

• Higher wattage gives you more light for bigger spaces.
• Lower wattage saves energy but may need more lamps for full coverage.
• The wattage you choose affects how much power your solar panel and battery must supply.

Panel Power

Panel power shows how much energy your solar panel can make. You want a panel that matches your lamp’s wattage and battery size. Monocrystalline panels work best because they are efficient and last longer. If you place your panel in direct sunlight for 6 to 8 hours, you get a full charge. Shade or clouds can lower the power and shorten lamp operation at night.

• Larger panels collect more sunlight.
• High-efficiency panels charge batteries faster.
• Good placement keeps your system working even in cloudy weather.

Battery Capacity

Battery capacity decides how long your lamp stays on at night. You need enough capacity to power the lamp until sunrise. You can use a simple formula to find the right size:

• Bigger batteries give you longer lighting, even on cloudy days.
• If your battery is too small, your lamp may turn off before morning.
• Always plan for extra capacity to handle bad weather.

Controller

The controller manages how your solar panel charges the battery and how your lamp turns on and off. You can choose between PWM and MPPT controllers.

• MPPT controllers help you get more energy from your solar panel.
• PWM controllers work well for small setups.
• A good controller protects your battery and makes your system last longer.

Pole Height

Pole height affects how far and how bright your lamp shines. You must pick the right height for your location.

• Residential pathways and gardens: 3 to 7 feet (0.9 to 2.1 meters)
• Street lighting and parking lots: 12 to 30 feet (3.7 to 9.1 meters)
• Commercial outdoor areas: 10 to 20 feet (3 to 6 meters)
• Security lighting: 20 to 30 feet (6 to 9 meters)
• Sports fields: 40 to 100 feet (12 to 30 meters) or more

If you use taller poles, you need stronger lamps to keep the area bright. Shorter poles work well for small spaces and save energy.

Tip: The height you choose changes how light spreads. Taller poles cover bigger areas but need more powerful lamps.

Pole Material

The material of your pole affects how strong and long-lasting your lamp will be. You can pick from steel, aluminum, stainless steel, fiberglass, or concrete.

• Steel and stainless steel last a long time and need little care.
• Aluminum is light and easy to move but may need more upkeep.
• Fiberglass works well in tough weather and needs little maintenance.

Mounting Options

Mounting options decide how you install your lamp pole. You can use anchor bolts, flange plates, or direct burial. Each method has its own benefits.

• Anchor bolts give strong support for heavy poles.
• Flange plates make installation quick and easy.
• Direct burial works for light poles and saves money.

You must pick the right mounting option for your soil type and weather.

Local Solar Conditions

Local solar conditions change how much energy your system can make. You need to check sunlight hours, temperature, dust, and terrain.

• High temperatures can lower solar panel efficiency by 0.4–0.5% for each degree Celsius.
• Dust can cut panel output by up to 60%, especially in deserts.
• Snow and ground reflect sunlight, which can help or hurt energy collection.
• Sunlight hours change by location. Northern areas get less sun in winter. Southern areas get more.
• Weather and terrain affect how you size your system.

Note: Always check your local weather and sunlight before you choose your Configuration Parameters. This helps you build a system that works all year.

LED Power Selection

Recommended Range

You want your solar street lamp to shine bright enough for safety and visibility. The LED power you choose decides how much light your lamp gives. Most solar street lamps use LEDs between 20 watts and 150 watts. You can use this range for different places:

A lower wattage works well for small paths or garden areas. You get enough light without wasting energy. For busy streets or parking lots, you need higher wattage to cover larger spaces. You should check the brightness level, measured in lumens. Most street lamps need at least 3000 lumens for good visibility. If you want to save energy, pick LEDs with high luminous efficacy. These LEDs give more light for each watt used.

Tip: Choose LEDs with a color temperature between 4000K and 5000K. This range gives clear, natural light that helps people see better at night.

Matching Pole Height

You must match the LED power to the height of your pole. The right combination gives you even light coverage and keeps your area safe. If you use a taller pole, you need a stronger LED to reach the ground with enough brightness. Shorter poles work with lower wattage LEDs.

• Proper mounting height helps spread light evenly across the area.
• The pole must hold the weight of the solar panel, battery, and lamp fixture.
• Wind resistance matters. A strong pole keeps your lamp safe during storms.
• Taller poles work best for large spaces or when you use decorative brackets.

If you install a lamp on a 6-meter pole, you should use an LED between 40W and 80W. For a 10-meter pole, pick an LED between 100W and 150W. Always check the pole’s strength before adding heavy fixtures. You want your lamp to last through all kinds of weather.

Note: Matching LED power and pole height helps you avoid dark spots and wasted energy. You get the best results when you balance brightness, coverage, and safety.

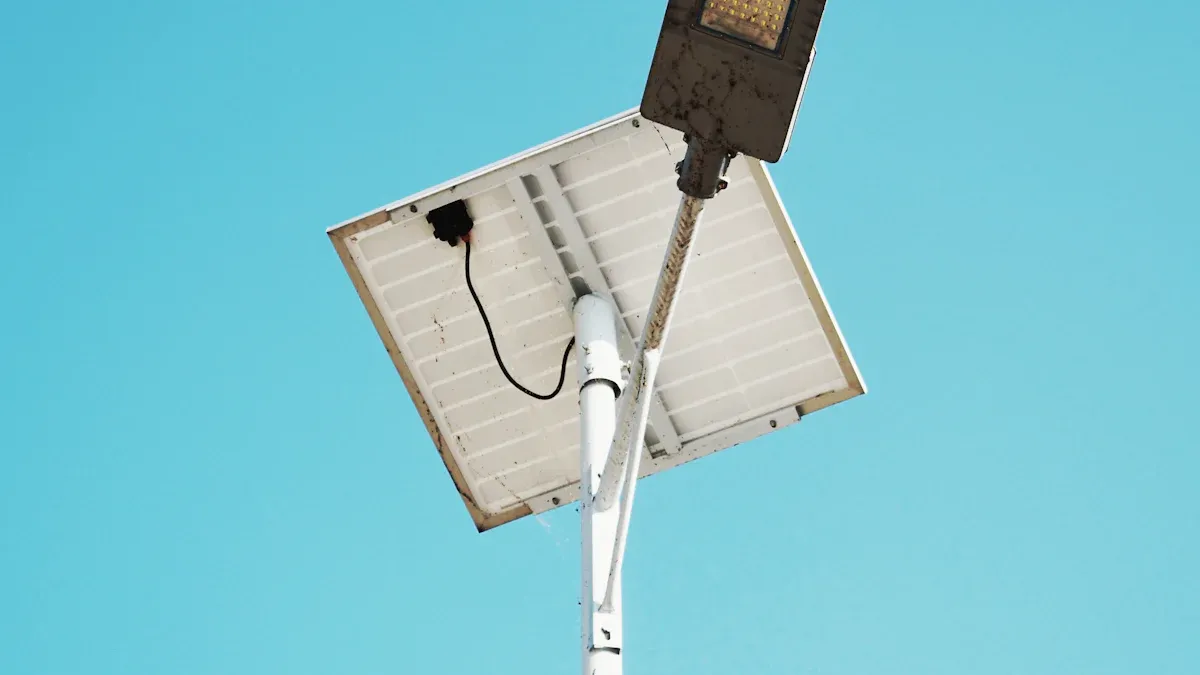

Solar Panel Output

Output Ratio

You need to make sure your solar panel can produce enough energy for your street lamp. The output ratio helps you decide how much power your solar panel should have compared to your light source. Most experts recommend that the output power of your solar panel should be three to five times greater than the wattage of your lamp. This ratio gives your system enough energy to charge the battery during the day and keep the lamp running all night.

• The solar panel output should be at least 3–5 times the power of your lamp.
• A higher ratio helps your system work well during cloudy days or in winter.
• You get better reliability and longer lamp life when you follow this rule.

If your lamp uses 50 watts, you should choose a solar panel with at least 150 to 250 watts. This way, you avoid running out of power and keep your street lamp shining every night.

Sizing Tips

You must size your solar panel based on your location and the amount of sunlight you get. The number of sun hours each day changes how much energy your panel can collect. Areas with lots of sunlight need fewer panels. Regions with less sunlight need bigger panels to make up for the difference.

1. Make sure your solar array collects more energy than your lamp uses at night.
2. Use the shortest day of the year to calculate the sun hours for your location.

• Always check the sun hours for your area before you buy a solar panel.
• Size your solar array for the worst sunlight conditions to keep your lamp reliable.

Tip: If you live in a place with cloudy winters, pick a larger solar panel. This keeps your lamp working even when sunlight is low. 🌞

Battery Sizing

Capacity Calculation

You need to size your battery so your solar street lamp works all night. Start by figuring out how much energy your lamp uses. Multiply the lamp’s wattage by the number of hours you want it to run. For example, if your lamp uses 50 watts and you want it to shine for 10 hours, you need 500 watt-hours. Add a safety margin of 20% to cover cloudy days or battery aging. Divide the total watt-hours by the battery voltage to get the amp-hour (Ah) rating. If you use a 12-volt battery, you need about 42 Ah.

You can choose different wiring setups to match your needs:

• Series wiring boosts voltage. Two 12 V, 100 Ah batteries in series give you 24 V at 100 Ah.
• Parallel wiring increases capacity. Two 12 V, 100 Ah batteries in parallel give you 12 V at 200 Ah.
• Series-parallel wiring lets you scale both voltage and capacity.

Pick a battery type that lasts long and handles deep cycles. Lithium iron phosphate (LiFePO₄) batteries work well because they last longer and resist overcharging.

Backup Planning

You want your lamp to stay on during cloudy weather or long nights. Good backup planning keeps your system reliable. Use historical weather data to size your battery for the worst-case scenario. Design your system so it works even when sunlight is low for several days.

Use historical weather data for system sizing, design for worst-case weather conditions, and include intelligent load management to extend operation during cloudy periods.

Smart battery management practices help you get the most out of your system:

You can set your lamp to dim at night. Start at full brightness, then lower it to save energy. Anti-overdischarge cutoffs protect your battery from damage. These steps help your lamp last longer and work through tough weather.

Tip: Always plan for extra battery capacity. This keeps your lamp shining even when the sun hides behind clouds. 🌧️

Controller Types

Functions

You need a controller to keep your solar street lamp pole working smoothly. The controller acts as the brain of your system. It manages energy flow between the solar panel, battery, and LED light. You get protection for your battery from overcharging and undercharging. The controller decides when to turn the light on at night and off in the morning. It also controls when the battery charges during the day.

Controllers help your system run efficiently. They recharge the battery using solar power and provide stored energy to the LED lights at night. You get a longer battery life and fewer problems with your lamp.

Tip: A good controller keeps your lamp working even during bad weather or power surges.

Controllers also offer important safety features:

• Regulate current to achieve proper discharge
• Protect the battery from excessive discharge
• Provide overload protection
• Offer short circuit protection
• Prevent reverse discharge

These functions help you avoid damage to your battery and lamp. You get a reliable system that needs less maintenance.

Selection Guide

You need to pick the right controller for your solar street lamp pole. You can choose between two main types: PWM (Pulse Width Modulation) and MPPT (Maximum Power Point Tracking). Each type has its own strengths.

PWM controllers work well for small setups. You get simple operation and lower cost. MPPT controllers give you higher efficiency, especially in places with changing sunlight. You get more energy from your solar panel and better battery charging.

When you choose a controller, check these features:

• Battery voltage compatibility
• Overcharge and overdischarge protection
• Timer settings for light operation
• Weather resistance (IP rating)

Pick a controller that matches your system size and local conditions. You get better performance and longer lamp life. If you want the best results, choose a controller with smart features and strong protection.

Pole Configuration Parameters

Height Options

You need to choose the right pole height for your solar street lamp. The height affects how far the light spreads and how bright the area feels. Taller poles cover larger spaces, but you need stronger LEDs. Shorter poles work well for small areas like parks or pathways. The table below shows common height options and how they match different locations:

Tip: Use taller poles for wide roads and shorter poles for walkways. This helps you get even lighting and saves energy.

Material Choices

You have several material options for your lamp poles. Each material has its own strengths and weaknesses. The right choice depends on your budget, location, and weather conditions. Here is a comparison of common materials:

Note: Choose aluminum or fiberglass for coastal areas. These materials resist rust and last longer in salty air.

Design Impact

The design of your pole affects more than just looks. A well-designed pole supports the weight of the solar panel, battery, and lamp. It also stands up to wind and weather. You should pick a design that matches your local climate and the size of your lamp. Decorative poles can add style to parks or city streets. Simple, sturdy designs work best for highways and busy roads.

• Strong designs prevent bending or breaking in storms.
• Sleek shapes reduce wind resistance.
• Good design makes installation easier and safer.

Remember: The right pole design keeps your solar street lamp working safely and looking good for years.

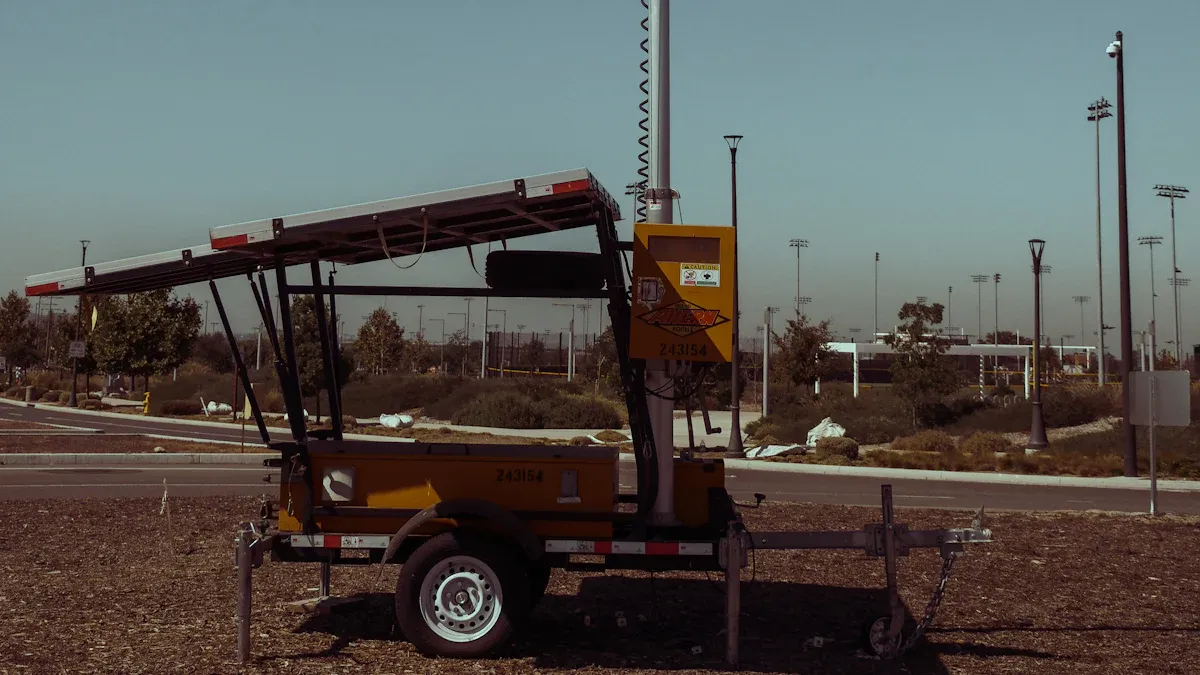

Mounting and Installation

Mounting Methods

You have several ways to mount solar street lamp poles. Each method works best for different locations and soil types. You should know the main options before you start your project.

• Anchor Bolt Mounting: You use anchor bolts to fix the pole to a concrete base. This method gives strong support. You often see it on highways and busy streets.
• Flange Plate Mounting: You attach the pole to a metal plate at the bottom. You then bolt the plate to the ground. This method makes installation quick and easy.
• Direct Burial: You place the pole directly into the ground. You fill the hole with concrete or compacted soil. This method works well for light poles in parks or gardens.

Tip: Choose anchor bolt mounting for tall or heavy poles. Use direct burial for small poles in soft soil.

Installation Tips

You want your solar street lamp pole to last for years. Good installation helps you avoid problems later. Follow these tips to get the best results:

1. Check the Ground: Test the soil before you install the pole. Hard soil gives better support. Soft or sandy soil may need extra concrete.
2. Level the Base: Make sure the base is flat and stable. Use a spirit level to check. A crooked pole can fall or break.
3. Secure All Bolts: Tighten every bolt and nut. Loose parts can cause the pole to shake or lean.
4. Protect Against Water: Seal the base to keep water out. Water can rust metal and weaken concrete.
5. Follow Local Codes: Check city rules before you start. Some places need special permits or safety checks.
6. Test the System: Turn on the lamp after installation. Make sure the solar panel faces the sun and the light works at night.

Note: You should inspect your installation every year. Look for rust, loose bolts, or cracks in the base. Regular checks help your lamp pole stay safe and bright. 🛠️

Weather and Location

Weather Compensation

You need to think about how weather changes affect your solar street lamp poles. Rain, snow, clouds, and dust can lower the amount of sunlight your panels collect. You can use weather compensation methods to keep your lights working well all year.

• Increase solar panel size: If you live in a cloudy area, pick a bigger solar panel. This helps you collect more energy even when the sun hides.
• Choose high-capacity batteries: Large batteries store extra energy for rainy or snowy days. Your lights stay on longer when sunlight is low.
• Install smart controllers: These controllers adjust brightness based on battery level and weather. You save energy and keep your lights running.
• Clean panels often: Dust and snow block sunlight. You should clean your panels every month to keep them working at full power.

Tip: You can check weather data for your area before you buy your system. This helps you pick the right panel and battery size.

Site Assessment

You should assess your site before installing solar street lamp poles. A good site assessment helps you avoid problems and get the best performance.

1. Check sunlight hours: Use a solar map or app to see how much sun your location gets each day.
2. Look for shade: Trees, buildings, and signs can block sunlight. Place your lamp where nothing covers the panel.
3. Test soil strength: Strong soil supports heavy poles. Soft or sandy soil may need extra concrete for stability.
4. Measure wind exposure: Open areas get strong winds. You need sturdy poles and secure mounting in these places.
5. Review local weather records: Find out how often your area gets clouds, rain, or snow. This helps you plan for backup power.

Note: You can ask local experts or use online tools to help with your site assessment. Careful planning gives you reliable lighting and saves money.

You make smart choices when you understand your weather and site. Your solar street lamp poles will shine bright and last longer. 🌞

Example Selection Process

Let’s walk through a real-world example to help you understand how to choose the right solar street lamp pole for a small parking lot. You want to make sure your lamp works every night, even when the weather changes. Here’s how you can select and calculate the Configuration Parameters step by step:

1. Decide the system rated voltage
   Start by picking the battery voltage. Most solar street lamps use 12V or 24V systems. This choice affects the size of your solar panel and battery.
2. Choose the LED lamp head power
   Look at the area you need to light. For a small parking lot, you might pick a 60W LED lamp. This gives enough brightness for safety.
3. Calculate the battery capacity
   Multiply the lamp’s wattage by the number of hours you want the light to stay on. For example, 60W × 10 hours = 600 watt-hours. Add a safety margin of 20%. Divide by the battery voltage to get amp-hours.
4. Plan for rainy days
   Check your local weather. If your area often has three rainy days in a row, make sure your battery can store enough energy for those days.
5. Consider sunny intervals
   Think about how many sunny days you get between rainy periods. This helps you avoid oversizing your system.
6. Check local solar radiation
   Use a solar map or app to find out how much sunlight your area gets. More sunlight means you can use a smaller panel. Less sunlight means you need a bigger one.

Tip: Always match your choices to your local climate and lighting needs. This process helps you avoid waste and keeps your lights shining bright.

You learn that careful planning and checking each step makes your solar street lamp reliable and efficient.

You make smart choices when you focus on the right Configuration Parameters for solar street lamp poles. Careful selection helps your lights work well, last longer, and save money. You can talk to experts, use online calculators, or check your site before you buy. These steps help you build a system that fits your needs and works in any weather. 🌞

FAQ

What is the best battery type for solar street lamp poles?

You should choose lithium iron phosphate (LiFePO₄) batteries. These batteries last longer and work better in different temperatures. They also resist overcharging and deep discharging.

How do you clean solar panels on street lamp poles?

You can use a soft cloth and water to wipe dust or dirt from the panel. Clean the panel once a month for best results. Avoid using harsh chemicals.

How do you know what pole height to pick?

You should match the pole height to your area. Use taller poles for wide roads and shorter poles for walkways or gardens. Check the table below for quick guidance:

Can solar street lamps work during cloudy days?

Yes, solar street lamps can work on cloudy days. You need larger solar panels and bigger batteries to store extra energy. Smart controllers help manage power and keep your lights on.
