You will see five main parts in every solar street lighting system: photovoltaic panels, batteries, controller, lighting fixture, and pole. Each part is important for the system to work well and stay safe. When you learn about these parts, you can pick the right materials. You can also follow safety rules and plan for easy setup and care.
- Knowing each part helps you buy the right things.
- You can plan your money better when you know what changes the price.
- Good knowledge helps you stop expensive fixes and keeps the system working well.
Key Takeaways
- Learn about the five main parts of a solar street lighting system. These are photovoltaic panels, batteries, controller, lighting fixture, and pole. Knowing these parts helps you pick the best materials.
- Pick good batteries like LiFePO4 for a longer life and better work. The right battery can help you save money on new ones.
- Use LED lighting fixtures because they save energy and last long. LEDs can work for up to 100,000 hours. This lowers your energy bills a lot.
- Make sure you install everything the right way by checking angles and making all parts tight. Good installation helps get more sunlight and stops future repairs.
- Take care of your system by cleaning panels and checking connections often. This keeps your solar street lights working well and helps them last longer.
Main Components of the Solar Street Lighting System
Photovoltaic Panels
Photovoltaic panels are also called solar panels. They use sunlight to make electricity. There are two main kinds in most systems:
- Monocrystalline panels are made from one silicon crystal. They work well and are about 15% to 20% efficient. These panels are thin and last many years.
- Polycrystalline panels are made from many silicon crystals. They cost less but do not work as well. Their efficiency is also about 15% to 20%.
Most people pick monocrystalline panels for solar street lights. They give more power in a smaller space.
Batteries
Batteries keep the electricity made by the panels. At night, batteries send power to the lights. You can pick from different battery types. Here is a quick guide:
| Battery Type | Lifespan (Years) | Charge Cycles |
|---|---|---|
| Lithium Iron Phosphate (LiFePO4) | 6-10 | 1500-2000 |
| Lead-Acid Battery | 3-5 | 300-500 |
| Lithium-Ion Battery | 5-7 | 1000-2000 |
LiFePO4 batteries last the longest. They need less care than other types.
Controller
The controller is like the brain of the system. It controls how power moves between panels, batteries, and lights. The controller keeps the system safe from problems. Here are some common features:
| Function/Feature | Description |
|---|---|
| Power management | Controls how much power goes to lights and batteries. |
| Battery management | Keeps batteries safe from too much charge or drain. |
| Light control | Turns lights on at dusk and off at dawn. |
| Fault protection | Stops damage from electrical problems. |
| Remote monitoring | Lets you check and change the system from far away. |
Lighting Fixture

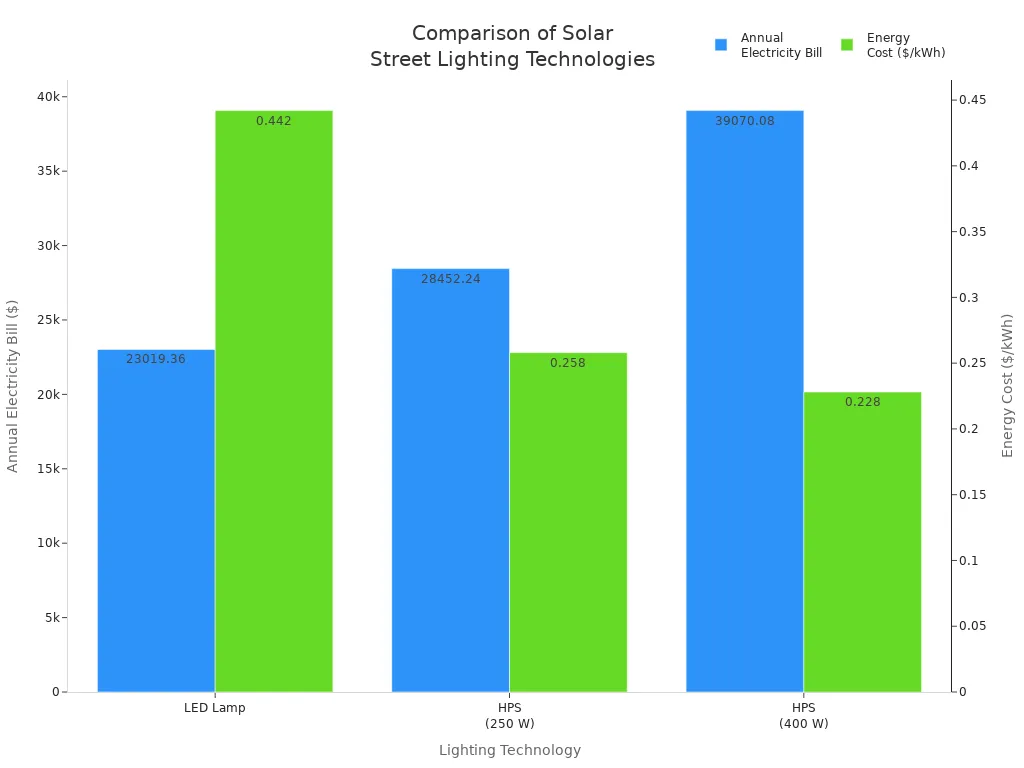

The lighting fixture is the part that shines at night. Most solar street lights use LED lamps. LEDs use less energy and last longer than old HPS lamps.
LEDs help save money and energy.
Pole
The pole holds up the lighting fixture. Sometimes it holds the panels too. You can choose from different materials:
| Material | Advantages | Disadvantages |
|---|---|---|
| Steel | Strong, stable, holds heavy parts, costs less | Can rust, needs care |
| Aluminum | Light, does not rust, easy to shape, eco-friendly | Costs more than steel |
| Fiberglass | Does not conduct electricity, light, resists rust | Not as strong as steel or aluminum |
Pick the pole material based on your weather and needs.
How Each Component Works
Photovoltaic Panels: Energy Conversion
Photovoltaic panels change sunlight into electricity. This happens in a few steps. First, the solar cell takes in sunlight. Photons hit the semiconductor inside the panel. The energy from photons makes electrons move. This creates electron-hole pairs. An electric field pushes electrons to one side. It pushes holes to the other side. When you connect the panel to a circuit, electrons move. This movement makes an electric current. The current and voltage from the panel give power to your solar street lights. Clean panels and bright sunlight help the system work best. Dirt or shade can make the panels work less well.
Batteries: Energy Storage
Batteries keep the electricity made by the panels. At night, batteries give power to the lights. The battery type you pick changes how much energy you store. It also affects how long your system lasts.
| Evidence | Description |
|---|---|
| Battery Type | LiFePO4 batteries hold more energy and have higher capacity. |
| Temperature Impact | In cold weather, LiFePO4 batteries may work at only 50-70% capacity. |
| Cycle Life | LiFePO4 batteries can last over 2,000 cycles, or 5 to 10 years. |
| Battery Management | Battery management systems help batteries last longer by watching and protecting them. |
| Environmental Durability | LiFePO4 batteries work well in hot and cold places. |
How much battery you use before charging matters too. If you use only some energy before charging, batteries last longer. For example:
| Battery Type | Typical DoD | Cycle Life at 10% DoD | Cycle Life at 100% DoD |
|---|---|---|---|
| Lithium-ion | 80-90% | 7000 | 500 |
| Lead-acid | 50% | 7000 | 500 |
| LiFePO4 | Up to 90% | 7000 | 500 |
Pick the right battery and use a good battery management system for best results.

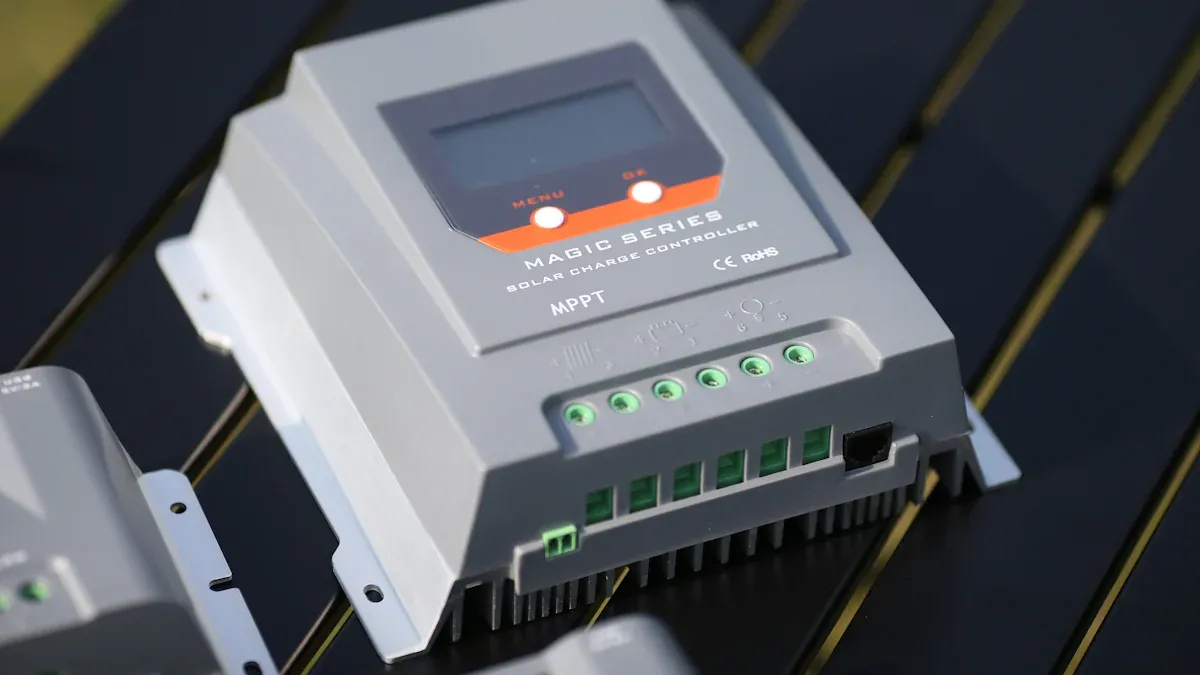

Controller: Power Management
The controller manages your solar street lighting system. It makes sure power moves safely between panels, batteries, and lights.
- The controller watches battery charging and discharging. It stops batteries from charging too much during the day. It stops deep discharging at night.
- It controls the lights. It turns them on at dusk and off at dawn. Some controllers can dim lights when fewer people are around.
- Protection features keep your system safe from problems like over-voltage or short circuits.
There are different controllers. PWM controllers use simple technology and cost less. You must match their voltage to the battery. MPPT controllers work better for solar lighting. They charge faster and turn extra voltage into more current. This makes your system more efficient.
Controllers use smart programs to manage energy. MPPT helps get the most energy from your panels. Power management programs balance the needs of lights and battery charge.
Lighting Fixture: Illumination
The lighting fixture uses stored energy to light the street at night. Most solar street lights use LED lamps. LEDs are efficient and last a long time.
- Luminous efficacy shows how well a light turns electricity into visible light. LEDs often reach 120 to 150 lumens per watt. This means you get more light for less energy.
- The fixture design, like reflectors and lenses, changes how much light you get.
- LEDs can last 50,000 to 100,000 hours. With good care, lights can work for 10 to 20 years.
You save energy and money with high-quality LED fixtures. Cleaning the lens and checking for damage helps your lights last longer.
Pole: Support and Placement
The pole holds the lighting fixture, solar panels, and sometimes the battery. You need a strong pole to keep everything safe.
- The pole puts the panels at the best angle for sunlight. It places the light where you need it.
- Some poles have smart features, like motion sensors. These sensors dim the light when no one is around. They brighten it when people pass by. This saves energy and makes things safer.
- The right pole height and material matter. For example:
| Pole Height (m) | Recommended Material | Thickness (mm) | Upper Diameter (mm) | Lower Diameter (mm) | Load (kg) | Wind Speed (km/h) |
|---|---|---|---|---|---|---|
| 4-6 | Q235B or Stainless Steel | 2.5-3 | 50-60 | 100-120 | 20-30 | 120-140 |
| 6-8 | Q235B | 3-4 | 60-70 | 140-160 | 20-30 | 120-140 |
| 10-12 | Q235B | 4-5 | 70-80 | 180-200 | 40-50 | 120-140 |
A good pole keeps your solar street lights stable, even in strong winds.
Tip: Check your system often for dirt on panels, loose wires, or battery problems. Clean panels and tight connections help your system work better and last longer.
How Components Work Together
All parts work together to give you good lighting.
- The solar panel collects sunlight and makes electricity.
- The battery stores energy for nighttime use.
- The controller manages charging, discharging, and lighting.
- The LED fixture uses stored energy to light the street.
- The pole holds and places all the parts for best results.
If you use good parts and take care of your system, you lower the chance of problems. Cleaning and checking your system helps it run smoothly.
Additional Parts and Their Roles
Mounting Brackets and Miscellaneous Parts
You need more than just the main parts for a strong and reliable solar street lighting system. Mounting brackets and other small parts play a big role in keeping everything stable and working well. These parts help you attach the solar panel, battery, and light fixture to the pole. They also let you adjust the angle and position for the best sunlight and lighting.
| Component | Role |
|---|---|
| Mounting Bracket | Attaches the solar panel to the pole, keeps it stable, and allows for proper positioning. |
| Fixture Mounting Bracket | Holds the light fixture on the pole, lets you adjust length and angle for best coverage. |
Mounting brackets and support parts keep your system safe from wind and weather. They make sure the solar panel faces the right way, usually due south in the northern hemisphere. The light fixture bracket helps you shine light where you need it most. When you use strong and well-fitted brackets, you prevent shaking or falling, which keeps your system working longer.
Importance of Proper Installation
Proper installation is key for your solar street lighting system to work well and last a long time. If you set up the parts the right way, you get the most sunlight and the best lighting at night. You also avoid many common problems.
Tip: Always check that your solar panel faces the sun and your pole stands straight. This helps you get the most energy and keeps your lights steady.
Here are some best practices for installation:
- Conduct a site check to see how much sunlight you get and where to place the lights.
- Pick strong and high-quality parts for every part of the system.
- Place the solar panel and light at the right angle and height.
- Make sure all brackets and bolts are tight and secure.
- Use surge protection to guard against lightning.
- Follow local rules and safety standards.
- Clean and check your system often to catch problems early.
Common mistakes, like poor wiring or weak support, can cause safety risks or make your lights stop working. If you install everything the right way, you spend less time and money on repairs. You also help your system last longer and work better.
It is important to know how each part works in a solar street lighting system. When you learn about panels, batteries, controllers, lights, and other parts, you can find problems early. This helps your system work well for a long time.
- Pick good materials so your system is safer and lasts longer.
- Think about your weather and how much sunlight you get.
- Make a plan to check your system often so it does not break.
Knowing these things saves you money, keeps people safe, and gives your community steady light.
FAQ
What happens if the solar panel gets dirty?
Dirt on your solar panel blocks sunlight. You get less power for your lights. Clean your panel with water and a soft cloth every few months. This helps your system work better.
How long do solar street light batteries last?
Most batteries last 5 to 10 years. LiFePO4 batteries last the longest. You can make your battery last longer by not letting it drain all the way and by keeping it cool.
Can you use solar street lights in cloudy weather?
Yes, you can use them in cloudy weather. The panels still collect some sunlight. You may get less power, so your lights might not stay on as long. Bigger panels and batteries help in cloudy places.
What should you check during maintenance?
You should check:
- Solar panels for dirt or damage
- Battery connections for rust
- Wires for loose ends
- Light fixtures for cracks
Regular checks keep your system safe and bright.
