Detailed Installation Steps for Solar Street Lights Standards

December 1, 2025

You make solar street light projects work well when you follow industry standards from the start. Many projects have problems—almost 25% get delayed or fined—because they do not follow local rules. Good planning, getting the right permits, and checking for rule-following help you stop these problems.

Safety and reliability need a clear process. You must watch every step in the Installation Steps.

Requirement Type	Description
Permits and Approvals	Get all needed permits and approvals to follow local rules.
Site Survey	Do site surveys to pick the best places to install.
Environmental Assessments	Think about how the project affects nature and people nearby.
Standards for Solar Panels	Make sure solar panels meet IEC 61215/61730 rules.
Quality Assurance Standards	Use ISO 9001 to check for good quality.
Luminaire Safety Standards	Make sure you meet IEC 60598 for safety.
Ingress Protection Standards	Follow IP65/IP66 to keep things safe from dust and water.

You build a strong lighting system when you use a smart plan that follows standards.

Key Takeaways

Follow local rules and get the needed permits. This helps you avoid delays and fines.
Pick the best place to install so solar panels get the most sunlight. Make sure nothing blocks the sunlight.
Check everything carefully to meet safety and quality standards for your solar street light system.
Do regular maintenance and inspections. This helps you find problems early and makes your solar street lights last longer.
Plan your installation well. Think about the angle of solar panels and how to manage the battery for the best performance.

Installation Steps Overview

You need to follow a clear process to install solar street lights that meet industry standards. Each step in the Installation Steps helps you build a safe and reliable lighting system. When you follow the right order, you avoid mistakes and keep your project on track.

Here is a summary of the main Installation Steps from start to finish:

Project planning and site assessment
Selecting the right solar street light
Foundation and pole installation
Assembling the solar street light system
Electrical connections and testing
Adjustments and final testing
Safety and maintenance guidelines

Tip: Following each step in order helps you meet safety rules and local laws. You also make sure your lights work well for a long time.

Planning and Permits

You start by planning your project and getting the right permits. This step makes sure your installation follows local rules and building codes. You need to collect and submit several documents:

Building permit: Shows your project meets local building codes and zoning laws.
Electrical permit: Confirms your wiring and electrical parts follow the National Electrical Code (NEC).
Dedicated solar permit: Combines building and electrical needs for solar projects.
Grid connection approval: Needed if your system connects to the power grid.

You should also learn about local standards from groups like OSHA and IESNA. This helps you avoid delays and fines.

Site Selection

Choosing the right place for your solar street lights is very important. You want to make sure the lights get enough sunlight and do not cause problems for people or traffic. Use the table below to help you decide:

Criteria	Description
Roads and Traffic	Space lights based on road width and type.
Peripheral Facilities	Keep safe distances from power lines and check for underground pipes.
Microtopography and Soil	Check the ground level and soil strength for safe installation.
Light Optimization	Make sure nothing blocks sunlight during peak hours.

You should always check for shading from trees or buildings. Good site selection helps your lights work better and last longer.

Compliance Checks

You must check that your installation meets all local and international standards. This step keeps your project safe and legal. Here are some key checks you need to do:

Region	Key Compliance Checks
United States	UL, FCC Part 15, Energy Star, IESNA LM-79 / LM-80
European Union	CE Marking, EN/IEC 60598, ErP Directive, RoHS Directive, REACH
China	CCC, GB Standards, CQC Mark
Japan	PSE Mark, JIS Standards
Australia/New Zealand	RCM, MEPS
Middle East	SASO, G Mark
India	BIS, BEE Star Rating

You also need to follow local rules about where you can put the lights, how tall they can be, and how bright they are. Safety standards like NEC and ANSI help you make sure your wiring and poles are safe. Energy efficiency rules from groups like DOE and IEA help you save power and money.

Note: Always use checklists and follow standard procedures. This helps you catch problems early and keeps your project on schedule.

Pre-Construction Preparation

Assessing Lighting Needs

First, you need to know what your community wants. You check a few things to make sure the project works and follows the rules.

Shading: See if trees or buildings block sunlight from the solar panels.
Lighting Level Requirements: Find out how much light is needed by city rules.
Mounting Requirements: Learn the rules for pole height and wind safety.

You also do these steps:

Find out what your community wants from the lights.
Look at the sun and weather to get the best results.
Check the costs for putting in and taking care of the lights.

Tip: Good planning now helps you avoid problems later.

Selecting Solar Light Models

You pick the best solar street light by looking at features and how each one fits your area. The table below shows two good choices:

Model	Brand	Key Features	Suitability for Environments
Model A	HT SOLAR POWER	High efficiency, advanced solar panel technology, intelligent sensors	Urban areas with varying light conditions
Model B	SolarTech	Cutting-edge battery technology, adjustable arm brackets, motion sensors	Flexible installation in urban and rural areas

You want a model that fits your needs, weather, and budget. You also look for smart things like motion sensors and good batteries.

Layout and Configuration

You plan where to put the lights to get the best results. Good planning helps save energy and keeps people safe.

Check if each light gets enough sun.
Think about which way the street goes to get more sunlight.
Pick the right pole height to light the area and stop too much light.
Put the lights the same distance apart for even light.
Look around to stop glare and keep light paths open.

Note: A good plan helps your solar street lights last longer and work better.

Foundation and Pole Installation

Excavation and Foundation Setup

You start by preparing the ground for your solar street light pole. The right foundation keeps your pole stable and safe. Follow these steps to set up the foundation:

Step	Description
1	Determine excavation size based on pole height (for example, 1.2m x 1.2m x 1.5m for a 12-meter pole).
2	Use graded crushed stone for soil reinforcement if the bearing capacity is less than 150 kPa.
3	Lay a 100mm thick gravel bed and install a PVC drain pipe for drainage.
4	Fabricate a rebar cage with the right size and use anti-corrosion treatment.
5	Position anchor bolts accurately and apply grease to keep them clean.
6	Pour ready-mix concrete and cure it for at least 7 days.

Tip: Always check the soil before you dig. Weak soil needs extra support to hold the pole.

Embedding and Curing the Pole

After you pour the concrete, you need to embed the pole and let it cure. Place the pole in the center of the foundation. Make sure it stands straight. For best results, keep the concrete moist and let it cure for 7 days. This curing phase helps the foundation get strong and stable. Do not rush this step. A strong base keeps your solar street light safe during storms and high winds.

Stability and Alignment

You must check the pole for stability and alignment before moving to the next step. Use a level to make sure the pole stands upright. Tighten all bolts and check that the pole does not move. Look at the pole from different angles to confirm it is straight. Good alignment helps your solar panels get the most sunlight. Careful work here makes the rest of your Installation Steps easier and safer.

Note: A stable and straight pole means your solar street light will last longer and work better.

Electrical Installation Steps

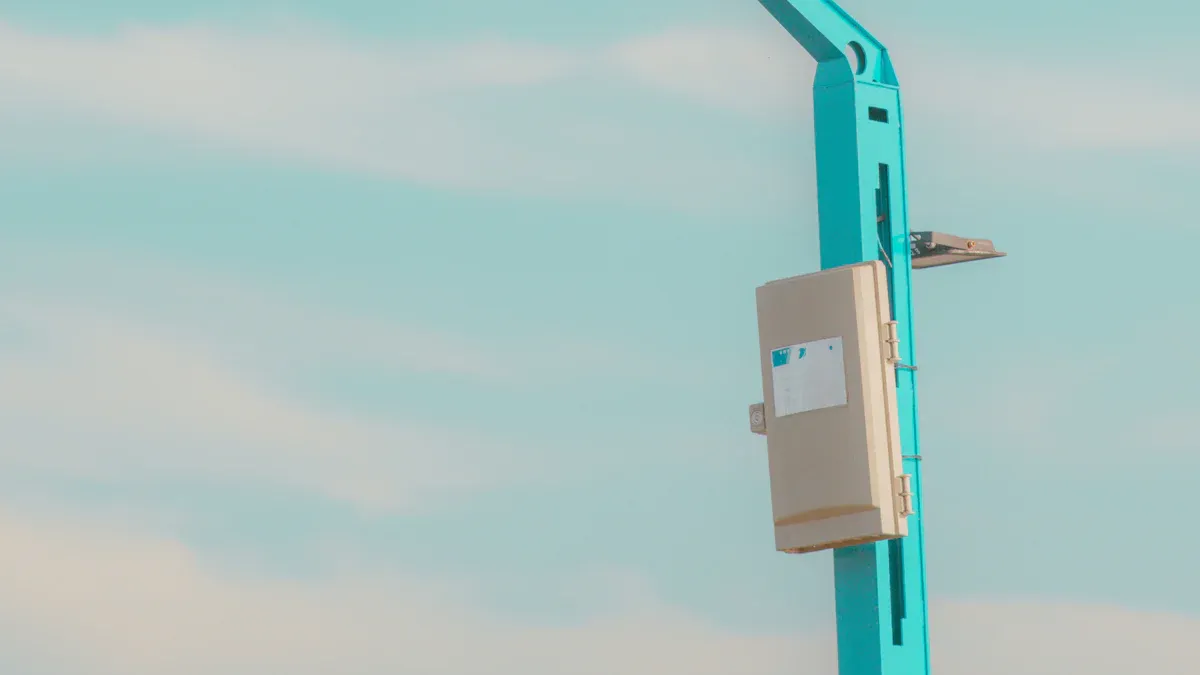

Battery Box and Battery Setup

You need to pick the right battery box for your solar street light. There are two main types. One is hanging-type. The other is buried-type. Each type has good and bad points. The table below helps you see the differences:

Aspect	Hanging-Type	Buried-Type
Installation Method	Mounted on pole	Buried underground
Advantages	Shorter build time, good for tough places	Blends in, keeps batteries cool
Maintenance	Must climb pole to check	Not checked often, must dig to replace

Hanging-type battery boxes go on the pole. You can put them up fast, even if the ground is rocky. You have to climb the pole to check or fix them. Buried-type battery boxes go under the ground. They look nice and keep batteries at a steady temperature. You do not need to check them much, but you must dig them up to change the battery.

When you set up the battery, always do these things: 1. Put the battery box where water will not collect. 2. Use special materials to stop rust. 3. Make all wires tight so they do not come loose. 4. Put labels on the battery ends so you know which is which.

Tip: Always wear gloves and safety glasses when you work with batteries. Batteries can leak acid or make sparks.

Wiring and Cable Management

You need to use the right cables and keep them neat. This keeps your solar street light safe and working well. The table below shows the main cable types and what they do:

Cable Type	Description
Power cables	Carry DC power from solar panels to batteries and lights. TECK90 cables last long and handle bad weather.
Control cables	Send signals for sensors and remote controls. Shielded cables stop signal problems.
Grounding wires	Keep the system safe from shocks and lightning by connecting to the ground.
Cable specifications	Use cables that are strong, block UV, and handle heat. Check them often for damage.

You should follow these tips for cable management: – Use cable ties that block UV or are made of steel to hold cables. – Keep cables short to lower power loss. – Use trays or pipes to protect and organize cables. – Make sure all ground wires are tight to stop shocks.

Note: Good cable management helps stop short circuits and keeps your system safe in storms.

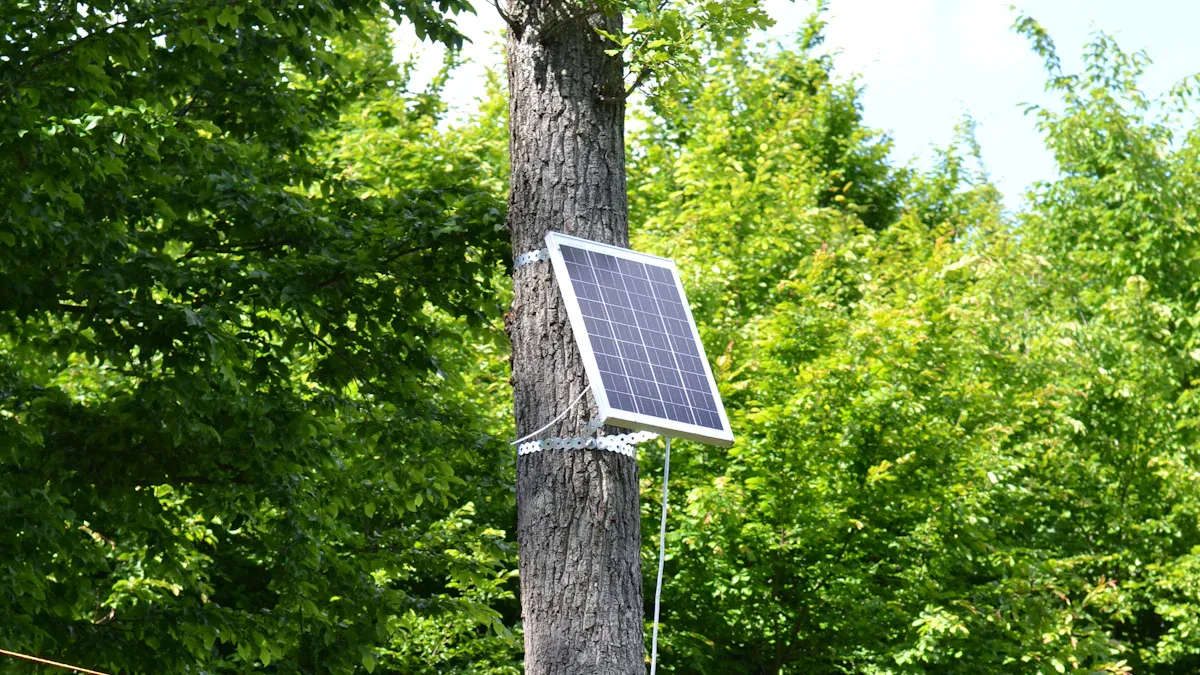

Solar Panel Mounting

You must put the solar panel where it gets the most sun. Pick a spot with lots of sunlight and no shade. The pole base should be at least 1.5 meters deep and filled with concrete. This keeps the pole strong and holds up the solar panel and light.

Put the solar panel and light so the road gets even light. Tilt the panel to stop glare. Think about how wide the road is and how cars move. The table below shows the main things to remember for mounting solar panels:

Key Aspect	Description
Site Selection	Pick places with lots of sun and no shade.
Foundation and Structure	Use a deep, concrete base to keep the pole steady.
Component Configuration	Place panels and lights for even light and no glare, based on road width and traffic.

Callout: After you put up the panel, check all bolts and brackets. Tighten them so the panel does not move in strong winds.

You finish these Installation Steps to make sure your solar street light works well and lasts a long time.

System Assembly and Commissioning

Component Assembly

You need to put together each part of your solar street light system with care. Each component has a special job. If you follow the right order, you make sure the system works well and lasts a long time. The table below shows the main parts and what you should check for each one:

Component	Description
Solar Panel	Mount and angle the panel to catch sunlight.
Fixture	Use good fixtures and wire them in parallel. Check the manual for wiring details.
Energy Management System	Controls power and keeps the battery healthy.
Pole	Pick strong poles. Use protective felt to stop damage during delivery.
Battery	Wire the battery right. Bury it if you want to avoid cold weather problems.
Miscellaneous Parts	Check all extra parts for quality and the right size.
Sizing	Make sure every part fits together. Do not use “one size fits all” solutions.

Tip: Double-check each part before you move to the next step. This helps you avoid mistakes during the Installation Steps.

Connecting Solar Panel Cables

You must connect the solar panel cables the right way to keep your system safe and working. Follow these steps:

Attach the solar panel to the bracket. Place the panel on the bracket and use bolts to hold it tight. Handle the panel gently.
Mount the bracket with the solar panel on top of the pole. Adjust the angle so the panel gets the most sun. Connect the panel cable to the battery package plug.
Install the light fixture on the lamp arm. Use the wiring diagram to connect the fixture cable to the controller inside the battery package. Make sure all connections are tight.

Note: Loose cables can cause the system to fail. Always check that every connection is secure.

Initial Testing

You need to test your solar street light system before you finish the job. Testing helps you find problems early. Use this checklist:

Safety Testing: Make sure the lights are safe for people and cars.
Performance Testing: Check that the lights are bright enough and use energy well.
Durability Testing: See if the system can handle rain, dust, and hot or cold weather.
Cost-Effectiveness Evaluation: Make sure you do not install a system that will cost too much to fix later.

Callout: Careful testing now saves you time and money in the future. Always finish all tests before you leave the site.

Safety and Quality Standards

Protective Measures

You need to keep yourself and your team safe at every step. Safety starts when you wear the right gear and follow safe habits. OSHA rules help you avoid getting hurt.

Personal Protective Equipment (PPE) keeps you safe from shocks. You need gloves that stop electricity, safety glasses, and a hard hat.
Lockout/Tagout steps keep power off while you work. You put tags on switches and lock panels before starting.
Checking the system often helps you find problems early. You write down what you check and look at the equipment a lot.

You need special gear for some jobs:

Head protection: Wear a hard hat that meets ANSI Z89.1.
Fall protection: Use a harness with a shock-absorbing lanyard if you work above 6 feet.
Electrical protection: Wear gloves and boots that meet ASTM rules.
Eye protection: Use goggles that stop things from hitting your eyes. If you weld, wear a helmet that gets dark by itself.

Tip: Always look at your gear before you use it. Get new gear if you see any damage.

Inspection Procedures

You must check your solar street light system to make sure it works well. Careful checks help you find mistakes and keep everyone safe. Use the table below to help you with your checks:

Acceptance Item	Qualification Standard	Test Method
Pole Verticality	≤1‰H (H is pole height)	Dual-axis level
Grounding Resistance	≤4Ω	Ground resistance tester
System Daily Generation	≥90% of design value	Data logger (7-day monitoring)
Luminaire Illuminance	Meets IESNA RP-8 (avg. ≥20lux for main roads)	Lux meter (grid measurement)
Safety Protection	Grounding continuity, insulation resistance ≥10MΩ	Megohmmeter, continuity tester

You do these checks as part of your Installation Steps. Careful checks help you make a safe and strong lighting system.

Note: Write down every check you do. Good notes help you fix problems and show your work meets the rules.

Troubleshooting and Maintenance

Common Installation Issues

You might have some problems when you put in solar street lights. If you know about these problems, you can fix them fast. This helps your lights work well. The table below lists some usual problems and ways to fix them:

Installation Issue	Solution
Reduced Efficiency of Solar Panel	Put panels in the right spot, clean them a lot, and move things that block the sun.
Dim or Flickering LED Lights	Look at the battery, check the LED wires, and change the LED driver if you need to.
Corrosion or Damage to Components	Check parts often, use strong materials, and cover them to stop rust.
Inconsistent Performance in Extreme Weather	Pick a good spot, add shields for wind and rain, and make the design better.
LED Chip Problems	Use the right current, pick good chips, and keep them cool.
Poor Heat Dissipation	Add heat sinks and use good ways to move heat away.
Damage from Power Surges or Lightning	Put in surge protectors, ground the system, and use special transformers.

Tip: You can stop most problems by checking your lights often and using good parts.

Routine Maintenance

You must take care of your solar street lights so they last. Doing regular checks helps you find problems early and fix them before they get worse. Here are some jobs you should do:

Maintenance Task	Description
Battery Inspection	Look for leaks, damage, or rust on the battery.
Battery Cleaning	Clean the battery ends and wires so power flows better.
Bulb Inspection	Change bulbs that are dim or broken.
Fixture Cleaning	Take out dirt and bugs from the light fixtures.
Sealing and Weatherproofing	Check seals to keep out water and dust.
Pole Stability	Make sure poles are straight and not broken.
Painting and Coating	Paint poles again to stop rust.
Performance Monitoring	Watch how bright the lights are and check battery levels.
Lighting Timers and Sensors	Change timers and sensors when the seasons change.

Note: Keep a log of your checks. This helps you remember what you did and plan for next time.

Long-Term Reliability

You want your solar street lights to work for many years. Some things can change how long your system lasts. The table below shows what is important:

Factor	Impact on Reliability
Quality of materials	Good panels and batteries last longer and work better.
Climate conditions	Very hot or cold weather can make batteries wear out faster.
Installation practices	Putting lights in the right way helps them last longer.
Usage patterns	Using lights for a long time each night can wear out batteries. Good energy use helps stop this.

Callout: If you use good parts, install your lights well, and check them often, your solar street lights will help your community for many years.

Case Studies

Successful Installations

Solar street lights help real neighborhoods. When you put solar lights in a park, the park feels safer. People like to visit after dark. Families come together and kids play more. The paths are brighter, so people feel safe walking at night. The community uses the park more because of the lights.

At Phillips Landing, the park is safer and easier to use. Solar lights save money because you do not pay for power each month. The lights go in fast, so people do not wait long. Solar lights do not need much fixing. They also help the earth by making less pollution. This project shows solar lights make parks better and greener.

If you plan well and follow rules, people enjoy these spaces. Solar street lights can work in many places.

Lessons Learned

You learn a lot from old solar street light projects. These lessons help you not make the same mistakes.

You follow the rules so the lights work well.
You make the system strong for bad weather.
You use less power to save money.
You keep people and equipment safe by following safety rules.

Tip: Always check your plans with the rules before you start. Good planning and careful work make the project a success.

Every step is important. When you use the right rules and think about the area, your solar street lights last longer and help everyone.

You build safer and more reliable solar street lights when you follow every step in the Installation Steps and meet all standards. Regular cleaning and inspections help you catch small problems early and keep your system working for years. For best results, remember these tips:
