You can check how bright solar street lamps are. You use things like lumens, candela, and lux. Lumens show all the light from the lamp. Candela tells how strong the light is in one way. Lux shows how much light hits a surface. Here is a simple guide:
| Term | Definition |
|---|---|
| Lumen | All the visible light that comes from a source. |
| Candela | How strong the light is in one direction. |
| Lux | How much light falls on a surface, using lumens for each square meter. |
Figuring out the brightness of solar street lamps helps keep roads safe. It also helps you use less energy. Studies use models and regression analysis to show this.
Key Takeaways
- Learn what lumens, candela, and lux mean. Lumens tell how much light comes out. Candela shows how strong the light is in one way. Lux tells how much light hits a surface.
- Pick solar street lamps by looking at their lumen ratings. More lumens give you better light to see. This helps you pick the best lamp for safety.
- Figure out how many lumens you need with a formula. The formula is: Required Lumens = Lux × Area. This helps you make sure your space is bright enough.
- Think about the size of the area and how tall the pole is. Bigger spaces and taller poles need more lumens. This keeps the area bright and safe.
- Look at luminous efficacy (lm/W) when you choose lamps. Higher efficacy means you get more light with less energy. This makes your solar street lamps work better.
Brightness of Solar Street Lamps: Key Metrics
Lumens, Candela, and Lux Explained
You need to understand three main metrics when you measure the brightness of solar street lamps. These are lumens, candela, and lux. Each one tells you something different about how light works.
| Metric | Definition | Measurement Method |
|---|---|---|
| Lumens | Total amount of light emitted | Integrating sphere |
| Lux | Luminous flux per unit area | Lux meter |
| Candela | Luminous intensity in a specific direction | Photometer or radiometer |
- Lumens show you the total light output from a lamp.
- Candela measures how strong the light is in one direction.
- Lux tells you how much light falls on a surface.
You use these metrics to compare different lamps and see which one gives you the best lighting for your needs.
Why Lumens Are Used for Brightness
You often see lumens used to rate the brightness of solar street lamps. Lumens tell you how much visible light a lamp gives off. This helps you know if a lamp will light up a street well. You do not need to guess by looking at wattage, which only shows energy use. Lumens give you a clear way to compare lamps and pick the right one for safety and visibility. When you look for solar street lamps, you should check the lumen rating first.
Tip: Lumens make it easy to compare the brightness of solar street lamps, so you can choose the best option for your area.

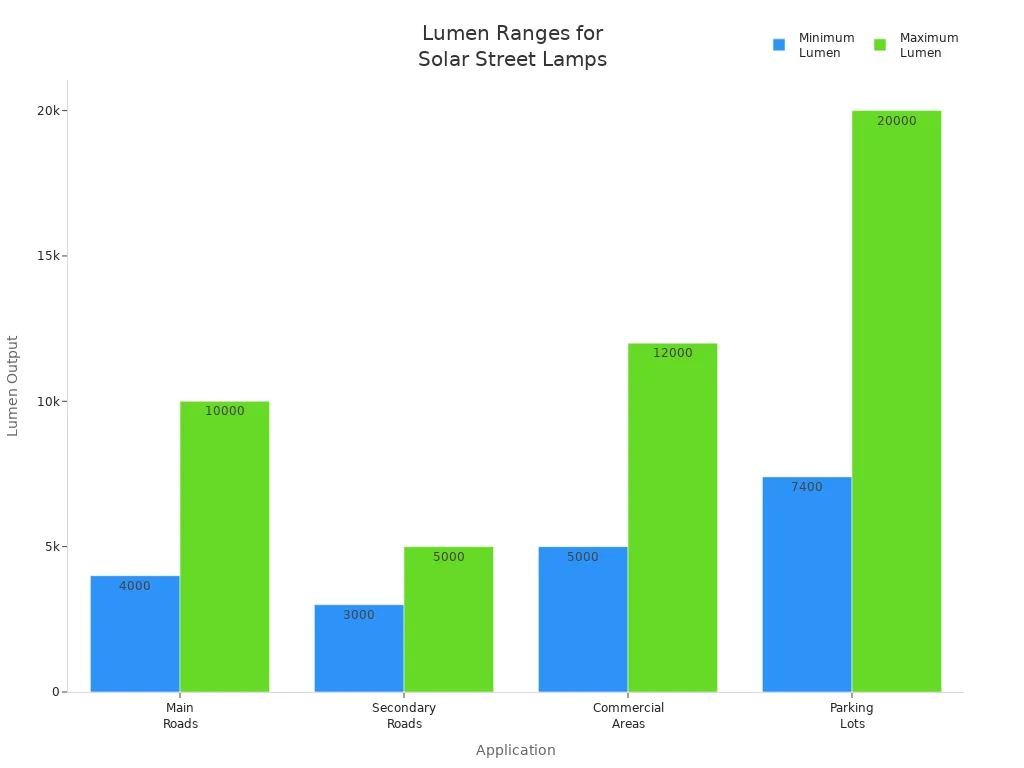

Typical Lumen Ranges for Street Lamps
You will find different lumen ranges for solar street lamps based on where you use them. Here are some common examples:
| Application | Lumen Range |
|---|---|
| Driveways | 1,000–2,000 |
| Sidewalks | 2,000–3,000 |
| Community Roads | 3,000–5,000 |
| Main Roads | 4,000–10,000 |
| Secondary Roads | 3,000–5,000 |
| Commercial Areas | 5,000–12,000 |
| Parking Lots | 7,400–20,000 |
| Highways | 6,400–18,000 |
You should match the lumen range to your location. For example, driveways need less light than highways. This helps you get the right brightness of solar street lamps for each area.
Calculating Required Lumens
Basic Lumen Calculation Formula
You can figure out how many lumens you need for solar street lamps by using a simple formula. Start by finding the recommended lux level for your area. Lux measures how much light falls on a surface. Next, measure the size of the area you want to light. Multiply the lux level by the area to get the total lumens needed.
Here is a step-by-step guide:
| Step | Description | Calculation |
|---|---|---|
| 1 | Determine the Required Lux Level | Check lighting standards for your application |
| 2 | Measure the Area | Find the total square meters or feet |
| 3 | Apply the Formula | Required Lumens = Lux × Area |
| Example | Classroom needing 400 lux | 400 × 50 = 20,000 lumens |
Tip: Always use the right lux level for your space. This helps you get the correct brightness of solar street lamps.
Factors Affecting Lumen Needs (Area, Height, Standards)
You must think about several things when you calculate the lumens for solar street lamps. The size of the area matters. Bigger spaces need more light. The height of the lamp pole also changes how light spreads. Taller poles cover more ground, but you need stronger lamps to keep the area bright. For busy roads, you need more lumens to meet safety rules.
Lighting standards help you decide how much light is enough. These standards set the minimum lux levels for different places. For example, residential streets need less light than highways. The Illuminating Engineering Society (IES) suggests 10 lux for homes and 15 lux for commercial streets. You should follow these standards to make sure your lamps provide safe and even lighting.
| Factor | Description |
|---|---|
| Illumination Levels | Standards set the lux needed for each road type. |
| Road Classification | Different roads have different lighting needs. |
| Reference Standards | Use local or international rules to find the right lumen values. |
Note: If you use a higher pole, you must use a lamp with more lumens to keep the brightness of solar street lamps at the right level.
Foot Candles and Surface Illumination
Foot candles help you measure how much light reaches the ground. One foot candle means the light from a source one foot away covers one square foot. This measurement is important for safety in public spaces.
- A foot candle (FC) shows how much light falls on a surface.
- One FC is the light on a one-square-foot area from a source one foot away.
- You use foot candles to check if your area is bright enough for safety.
Here are the recommended foot candle levels for different places:
| Application Type | Required Foot Candle Level |
|---|---|
| Pedestrian Streets | 0.5 FC |
| Freeway Lights | 0.5 FC |
| Intersection Lights | 1.3 FC |
| Pedestrian Bridges | 0.46 FC |
To convert foot candles to lumens, multiply the foot candles by 10.764. For example, if you need 1 foot candle over 100 square feet, you need about 1,076 lumens.
Tip: Always check the foot candle level for your area. This helps you set the right brightness of solar street lamps.
Adjusting Calculations for Different Environments
You must adjust your calculations for different places. Residential areas need less light than commercial zones. Busy intersections and highways need more lumens for safety. Use the right lux or foot candle level for each space. Measure your area and pole height. Follow local standards to make sure your lamps meet safety rules.
Common mistakes include using too many lumens, which causes glare, or too few, which leaves areas dark. Do not confuse lumens with watts. Watts show energy use, not brightness. The design of the lamp also matters. The beam angle and how the light spreads affect how well the area is lit.
- Over-lighting can cause glare and reduce visibility.
- Under-lighting can make areas unsafe.
- Do not mix up lumens and watts.
- Check the lamp design and beam angle.
By following these steps, you can make sure your solar street lamps give the right amount of light for every space.
Efficiency: Wattage, Lumens, and Luminous Efficacy
Relationship Between Wattage and Lumens
You may wonder how wattage and lumens are related in solar street lamps. Wattage shows how much energy the lamp uses. Lumens tell you how much light comes from the lamp. For solar street lamps, you want the most light with the least energy. This is important because solar lamps can only store a small amount of energy from the sun. If you pick a lamp with high lumens and low wattage, you get bright light and save energy. This helps your lamp stay on all night without losing power.
Tip: Always look at both wattage and lumens when you choose a solar street lamp. High lumens and low wattage mean the lamp works better.
Luminous Efficacy (lm/W) in Solar Street Lamps
Luminous efficacy shows how well a lamp turns energy into visible light. You see this as lumens per watt (lm/W). A higher number means the lamp gives more light for each watt it uses. New LED solar street lamps can reach 50 to 200 lm/W or even more. These lamps are much better than old types of lights.
| Light Source | Luminous Efficacy (lm/W) |
|---|---|
| LED lamps | 50–200+ |
- Luminous efficacy helps you compare different solar street lamps.
- High efficacy means you get more light and use less energy.
- Good efficacy also helps your lamp last longer and keeps the battery strong.
You should always pick lamps with high luminous efficacy. This gives you the best results and saves energy.
Balancing Efficiency and Brightness
You need to balance efficiency and brightness for the best solar street lamps. Designers use different ways to do this:
| Strategy | Description |
|---|---|
| Optimizing Photovoltaic Panel Placement | Panels face the sun and stay out of shade to get the most energy. |
| Selecting High-Efficiency LEDs | LEDs with high efficacy give more light and use less energy. |
| Battery Capacity and Management | The right battery size keeps lamps bright all night. |
| Smart Controls and Sensors | Sensors change brightness when needed, which saves energy. |
You should keep your lamps clean and check them often. Dust on solar panels or weak batteries can make lamps less bright and less efficient. Over time, LED chips can lose some brightness from heat or age. Weather, like clouds or rain, can also change how well your lamp works. If you take care of your lamps and use good parts, your solar street lamps will stay bright and work well for many years.
Examples and Calculations
Sample Calculation for a Residential Street
You can use a simple method to find out how many lumens you need for a residential street. First, measure the area you want to light. Next, check the recommended illuminance level for your space. Multiply the area by the target illuminance to get the required lumens. Here is a table that shows how this works for different residential applications:
| Scenario | Area (m²) | Target Illuminance (lux) | Required Lumens | Recommended Light |
|---|---|---|---|---|
| Driveway | 100 | 10 | 1,000 | 10–15W LED solar light (1,000–1,500 lm) |
| Sidewalk | 200 | 15 | 3,000 | 20–30W LED solar light (2,000–3,000 lm) |
| Community Road | 500 | 25 | 12,500 | 30–40W LED solar lights (3,000–5,000 lm) |
Tip: Always check for shadows and dust on your solar panels. Dust can lower efficiency by up to 20%. Clean your panels often to keep the brightness of solar street lamps at the right level.
You can use lighting simulation tools like DIALux to validate your calculations. Field tests also help you confirm that your street lamps provide enough light.
Adjusting for Different Applications
You need to change your calculations for different places, such as parks, commercial streets, or highways. Follow these steps to get the best results:
- Measure the area and draw a layout, including roads, sidewalks, and medians.
- Check lighting standards for your application, such as EN12464-1 for streets or EN12193 for sports fields.
- Plan the layout of your lamps, including pole height, spacing, and position.
- Choose the right wattage and lens for your lamps based on the area and standards.
- Use lighting software to run calculations and export a report.
| Factor | Description |
|---|---|
| Wattage | Controls how much light your lamp gives. |
| Solar Panel Power | Affects how much energy your lamp can collect. |
| Battery Capacity | Makes sure your lamp works all night. |
| Installation Angle | Helps your solar panel get the most sunlight. |
| Safety and Maintenance | Protects your system and keeps it working well. |
Note: Always consider shadows, safety, and maintenance when you install solar street lamps. These steps help you keep your lamps bright and reliable in any environment.
You can figure out how bright solar street lamps should be by doing a few things. First, choose the right brightness standards for your area. Next, measure the space you want to light up. Then, look at how well the lamp works and how big the solar panel is. Last, pick smart features that help you control the lamp better.
If you follow these steps, your lights will be safe and save energy. Here are some good things about using these methods:
| Benefit | Description |
|---|---|
| Energy Efficiency | You spend less money and waste less energy. |
| Safety | The streets stay bright for all people. |
| Sustainability | You do not need to use grid power. |
FAQ
How do you measure the brightness of a solar street lamp?
You use a lux meter to check how much light falls on the ground. You can also look at the lamp’s lumen rating to know its total light output.
What is the difference between lumens and watts?
Lumens show how much light you get. Watts tell you how much energy the lamp uses. You should pick lamps with high lumens and low watts for better efficiency.
Why does pole height matter for brightness?
Pole height changes how light spreads. Taller poles cover more area, but you need stronger lamps to keep the ground bright. Always match pole height with the right lumen rating.
Can you use solar street lamps in cloudy weather?
Yes, you can use solar street lamps when it is cloudy. Good solar lamps store extra energy in batteries. You still get light even if the sun does not shine every day.
