You figure out lighting distribution for AIO solar street lights by measuring the area first. You decide how much light is needed. You check safety rules. You use tools to make sure the lights work well. Engineers use software to see how the lights spread in the space. They look at things like illuminance levels, uniformity, energy efficiency, and how the lights look in the area.
| Factor | Description |
|---|---|
| Illuminance Levels | Making sure the light is right for each activity. |
| Uniformity | Keeping the light even so there are no dark or bright spots. |
| Energy Efficiency | Picking lights that save energy but still give enough light. |
| Aesthetic Considerations | Making sure the lights match the look of the space. |
Key Takeaways
- Measure the area first. Figure out how much light is needed. This keeps people safe and comfortable. Different places need different brightness levels.
- Pick the right pole height. Space the poles correctly. This helps spread light evenly. Tall poles light up bigger areas. Good spacing stops dark spots.
- Follow safety rules when installing. Wear safety gear. Use electrical safety steps. This keeps everyone safe at work.
- Use simulation software like DIALux. It shows lighting designs before you install them. This helps find problems early. It makes sure you follow safety rules.
- Add energy-saving features like motion sensors. Use adaptive lighting too. These tools save energy. They still keep the area safe.
Project Requirements
Area & Lux Levels
First, you measure the area you want to light. You check if it is a road, street, or walkway. Each place needs a different amount of light. Engineers call this amount the lux level. Lux shows how bright the light should be. It helps keep people safe and comfortable. You can look at the tables below for the best lux levels for each space.

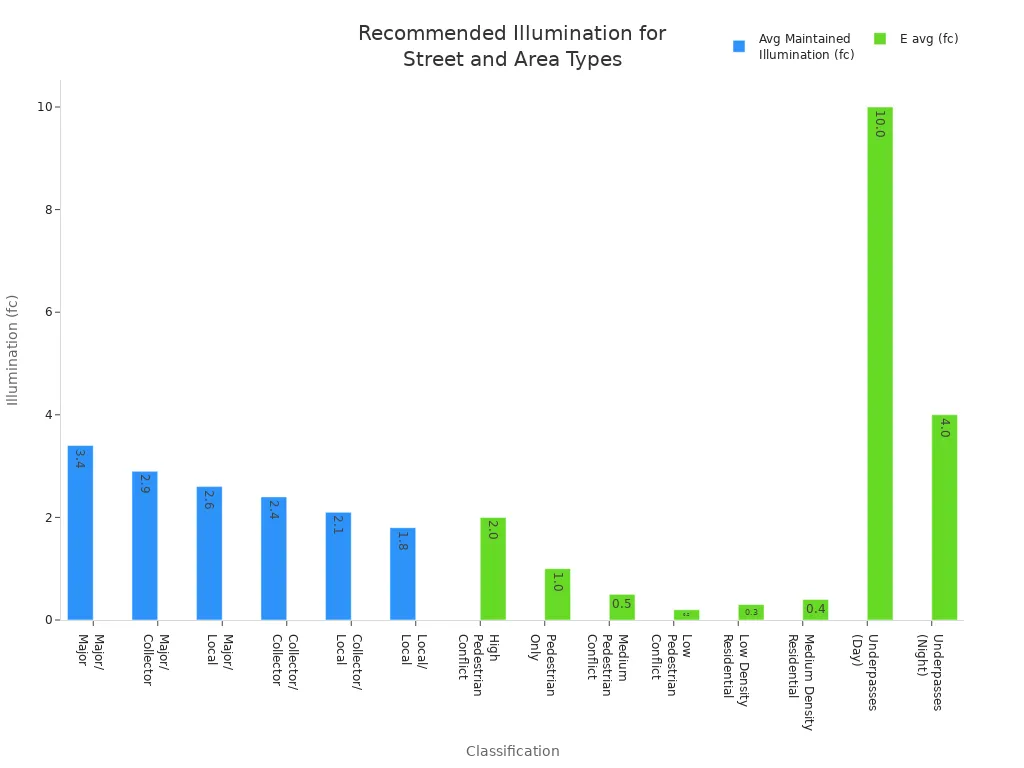

| Functional Classification | Average Maintained Illumination (fc) | Uniformity Eavg/Emin |
|---|---|---|
| Major/Major | 3.4 | 3.0 |
| Major/Collector | 2.9 | 3.0 |
| Major/Local | 2.6 | 3.0 |
| Collector/Collector | 2.4 | 4.0 |
| Collector/Local | 2.1 | 4.0 |
| Local/Local | 1.8 | 6.0 |
| Area Classification | E avg (fc) | EV min (fc) | E avg/Emin |
|---|---|---|---|
| High Pedestrian Conflict Areas | 2.0 | 1.0 | 4.0 |
| Pedestrian Only | 1.0 | 0.5 | 4.0 |
| Medium Pedestrian Conflict Areas | 0.5 | 0.2 | 4.0 |
| Low Pedestrian Conflict Areas | 0.2 | 0.06 | 10.0 |
| Low Density Residential | 0.3 | 0.08 | 6.0 |
| Medium Density Residential | 0.4 | 0.1 | 4.0 |
| Pedestrian Portion of Underpasses (Day) | 10.0 | 5.0 | 4.0 |
| Pedestrian Portion of Underpasses (Night) | 4.0 | 2.0 | 3.0 |
You also think about traffic, car speed, and how many people walk there. These things help you pick the right lux level for your project.
Pole Height & Spacing
You need to choose the best pole height for your lights. Taller poles light up more space. You must space the poles the right way. The space between poles depends on how tall they are. A simple rule is to space poles about three times their height. This helps spread the light evenly and stops dark spots.
| Pole Height (m) | Spacing (m) |
|---|---|
| 8 | 20 – 24 |
| 7 | 20 – 25 |
| 8 | 25 – 30 |
| 12 | 30 – 50 |
If you use an 8-meter pole, space them 20 to 30 meters apart. You look at the area and change the spacing if needed. This makes sure the light covers everything well.
Safety Standards
You must follow safety rules when you put up solar street lights. These rules keep workers safe and make sure the system works right. You wear safety gear like hard hats, harnesses, and gloves. You follow steps for working high up and with electricity. The table below lists some important safety rules.
| Safety Standard Category | Specific Requirements |
|---|---|
| Personal Protective Equipment (PPE) | Head Protection: ANSI Z89.1 certified hard hat; Fall Protection: Full-body harness (ANSI Z359.11); Electrical Protection: Insulated gloves (ASTM D120); Eye Protection: Impact-resistant goggles (ANSI Z87.1). |
| Work at Height Safety | Use mobile elevated work platforms with guardrails; Ladder safety protocols; Hoisting safety measures. |
| Electrical Safety Operating Procedures | Lockout/Tagout procedures; Arc Flash Protection measures; Fire and Explosion Prevention measures. |
Tip: International standards like ETL and CSA help you make sure your solar street lights are safe and work well. These rules also help you follow global trade laws.
You check all these rules before you start your project. This helps you build a safe and good lighting system.
Lighting Distribution Types
Distribution Patterns (Type I-V)
You have to pick the best lighting pattern for your project. Each pattern spreads light in its own way. This choice changes how bright and safe the area feels. The table below shows the main types:
| Type | Description |
|---|---|
| Type I | Lights up narrow places like paths from the middle. |
| Type II | Covers wider areas but keeps light focused, good for lots. |
| Type III | Gives broad light with some direction, great for walkways. |
| Type IV | Sends light in two directions, good for wide spaces. |
| Type V | Makes even, wide light, best for open places like plazas. |
When you pick a pattern, you decide how light covers the ground. Wide patterns are best for big spaces. Narrow beams help small areas and lower glare. The right pattern stops dark spots and keeps people comfortable.
Fixture Selection
You need to choose fixtures that fit your lighting needs. Think about what you want—safety, seeing clearly, or decoration. Check the weather and how much sun the area gets. Pick fixtures with high luminous efficiency, at least 160 lm/W. Use optics like extra lenses to match road width and pole spacing. Make sure fixtures are tough, with IP66+ and IK08 ratings, and have surge protection. The right fixture gives good lighting and helps your system last longer.
| Criteria | Description |
|---|---|
| Lighting Objective | Safety, seeing clearly, or decoration |
| Operating Conditions | Weather, sun, wind, dust, humidity |
| Luminous Efficiency | ≥160 lm/W for strong light |
| Optics | Extra lenses for road width and pole spacing |
| Durability | IP66+, IK08, surge protection |
| Lumen Package | 6,000–24,000 lm for the right brightness |
Mounting & Placement
How you set up your lights changes how light spreads. Tall poles, like 10 to 12 meters, work well for highways and give even light. Shorter poles are better for neighborhoods. Set the angle between 0° and 15° to lower glare. Adjustable fixtures let you tilt the light for better coverage. For community roads, 15 feet gives soft, even light. For highways, 20 feet works better for long distances. Always keep the upward angle under 30° to stop light from spreading too much.
Tip: Good mounting and placement make your lighting work better and lower maintenance. Strong fixtures and solid bases help your solar street lights last longer.
Calculation & Simulation Tools
DIALux Software
You can use DIALux software to help plan solar street lighting. DIALux is a popular tool for lighting calculations. It lets you see how light will spread before you install anything. You can make 3D models of streets or parks. You can put your lights in the model. DIALux shows how bright each spot will be. It helps you avoid dark corners or too much glare.
Here is a table that explains why engineers like DIALux:
| Feature/Benefit | Description |
|---|---|
| Widely Used Tool | DIALux is known for solar street lighting calculations. |
| Simulation Capabilities | It gives 3D simulation effects for better lighting plans. |
| Detailed Reports | It makes detailed calculation reports to improve design. |
| Compliance | It checks if designs meet international standards. |
DIALux does many steps for you. You do not need to do hard math by hand. The software uses your area size, pole height, and fixture type. It calculates the best lighting distribution. You can check if your plan meets safety and brightness rules.
Data Input & Simulation
To get good results, you must enter the right data in DIALux. The software asks for details about your project. You can use simple shapes like cubes or cylinders to model your area. You can also use more detailed 3D models. This helps you see how light works with buildings, trees, or other objects.
| Type of Data Input | Description |
|---|---|
| Simple Geometry | Cuboid or cylinder with set size (length, height, width, or diameter). |
| Generic 3D Model | Shows a basic type with set size (like lamp post with base, pole, and head). |
| Realistic 3D Model | Has geometric, photometric, and mechanical details, with textures and more light exits. |
You also need to enter the light fixture type, its brightness, and its angle. DIALux uses this to run a simulation. The software checks how light bounces off surfaces. It shows how bright each area will be. You can see results in 3D. This helps you know if your plan will work in real life.
Tip: Always use real measurements for your area and fixtures. This makes your simulation more accurate. It helps you avoid problems when you install the lights.
Analyzing Results
After you run your simulation, DIALux gives you detailed reports. These reports show the brightness (lux level) in every part of your area. You can see if your lighting plan meets safety standards. You can check if the light spreads evenly. The software helps you find problems, like glare or dark spots, before you build anything.
| Aspect | Description |
|---|---|
| Lighting Simulation Software | Lets you see lighting designs before installation, making sure they look and work well. |
| Photometric Analysis | Checks how light acts, helping you find glare or not enough light, and making sure you follow rules. |
| Compliance with Standards | Knowing codes and standards is important for safety, saving energy, and making lighting easy to use. |
You should always check the uniformity of your lighting. Uniformity means the light does not change a lot from one spot to another. Good uniformity keeps people safe. It makes the area look nicer. DIALux helps you compare your results to international standards. This way, you know your design is safe and efficient.
Note: Simulation tools like DIALux are very strong, but they cannot predict everything. Real-world things, like weather or reflections from odd surfaces, can change how light acts. You may need to test some parts in the field. This helps make sure your lighting matches your plan.
Recent studies show DIALux simulations often match real-world measurements well. This means you can trust the software for most projects. Using measured reflectance values in your models can make your results even better. This is important in areas with tricky shapes or surfaces.
System Optimization
Array-to-Load Ratio (ALR)
You need to make sure your solar panels can produce enough power for your street lights. The array-to-load ratio (ALR) helps you check this. ALR compares how much energy your solar panels make during the day to how much your lights use at night. A good ALR means your system will work well, even if the weather is not perfect.
| Recommended ALR | Explanation |
|---|---|
| 1.2:1 or greater | The solar array should produce 20% more power during the day than the light fixture consumes at night. |
If you use an ALR of 1.2:1, your solar panels make 20% more energy than your lights need. This extra power helps on cloudy days or in winter. When you size your solar panels and electrical parts, you look at the ALR. A higher ALR can help your lights work better when sunlight is weak. If the ALR is too high, you might waste some energy during very sunny days because the inverter cannot use all the power. You must find the right balance for your project.
Power & Battery Sizing
You want your lights to work every night, even if the sun does not shine for a few days. To do this, you must size your batteries and solar panels correctly. Follow these steps:
- Prepare your data:
- Find the rated power and voltage of your LED light.
- Set the brightness levels for each part of the night.
- Decide how many days you want the lights to work without sun (days of autonomy).
- Choose your battery type and check its depth of discharge (DoD).
- Calculate daily energy use:
- Divide the rated power by the voltage to get the current.
- Multiply the current by the hours the light will run each night.
- Add days of autonomy:
- Multiply the daily energy use by the number of backup days you want.
- Adjust for battery DoD:
- Make your battery bigger if you cannot use all its energy (for example, if you only use 80% of the battery).
You also need to think about the weather. Batteries can lose up to 30% of their power in cold places. If you live in a cold area, you must make your battery even bigger. You should check your site for shade and look at the local climate. This helps you pick the right size for your solar panels and batteries.
- Engineers check the location and look for shade.
- They think about how sunlight changes with the seasons.
- They look at the local weather to make sure the system works all year.
Efficiency Adjustments
You can save energy by adjusting how your lights work during the night. Many AIO solar street lights use smart controls and sensors. These features help you use less power but still keep the area safe.
| Time Period | Brightness | Energy Consumption |
|---|---|---|
| First 2 hours | 50% | 40Wh |
| Next 4 hours | 30% | 48Wh |
| Final 2 hours | 30% (motion-sensing) | 25Wh |
| Total | 113Wh |
You can use these methods to make your system more efficient:
- Adaptive lighting keeps the right brightness all night.
- Motion sensors (like PIR) make the light brighter when someone walks by.
- Dusk-to-dawn sensors turn the lights on at sunset and off at sunrise.
- Lights can dim when no one is around and brighten when needed.
- Smart controls help you balance safety and energy use.
Modern LED solar lights use sensors to change brightness based on light, motion, and weather. In parks, lights can dim when empty and brighten when people walk by. This saves energy and keeps people safe. A good lighting system uses smart controls to keep the area bright but does not waste power.
Tip: Always design your solar street lighting system to match your local weather and usage needs. This helps you get the best performance and longest life from your system.
You can get good lighting for AIO solar street lights by following easy steps: First, gather information about the road, like how wide it is and what it’s made of. Next, look up the lighting rules for your project. Then, use photometric files from the company that makes the lights. After that, make a road model in DIALux. Set up the details and put the luminaires in the right spots. Run the simulation to see how the lights work and make changes to improve your plan. Last, write a full report about your design.
Simulation tools make it easy to get good answers fast. You can try out different setups and types of fixtures.
| Requirement | Description |
|---|---|
| Reliable Results | Works well for tricky places and different materials |
| Calculation Time | Quick enough for you to change your design |
| Short Time Variance | Shows changes for smart lighting systems |
You should always use standards like AS/NZS 1158 for how well the lights work and IEC 61730 for keeping solar panels safe. These good habits help you make solar street lights that are safe, use energy well, and last a long time.
