How to check the alignment and perpendicularity of a rod

When you check the alignment of a rod to ensure it is straight and at a right angle, you help keep things safe and accurate. In jobs like building airplanes, cars, and machines, making sure rods are lined up right helps everything work well and safely. If rods are not lined up, machines can shake too much, parts can break early, and fixing them can cost more money. You might have to stop work and pay a lot to fix things if you do not check the alignment of rods. Many companies lose a lot of work time every year because rods are not lined up right.

Key Takeaways

• Check rod alignment often to keep machines safe and working well. If rods are not lined up, repairs can cost a lot and machines may stop.
• Use tools like height gauges and dial indicators to check alignment and perpendicularity. Each tool works best for certain rod sizes.
• Always write down your measurements and compare them to the set limits. This shows if the rod meets the needed standards.
• Look at rods for bends, twists, or gaps before you put them in. Checking rods often can stop problems and help rods last longer.
• Use a checklist when you inspect rods to make sure you do every step. This helps you find problems early and keep measurements correct.

Alignment and Perpendicularity Basics

Alignment Defined

Checking alignment means making sure the rod is straight. The rod should not bend or twist away from its path. In mechanical engineering, alignment means the part matches its planned spot. There is no single definition for alignment. You use tools like a dial indicator to check how far the rod moves from its line. You measure at different spots to see if the rod stays straight.

Perpendicularity Explained

Perpendicularity shows if a rod stands at a right angle. This is a 90-degree angle to another surface or line. It helps parts fit together without gaps or stress. Perpendicularity tolerance tells how much the angle can change. You use a height gauge or precision square to check this. The tolerance zone is made by two planes at 90 degrees to a surface.

Here is how you measure perpendicularity:

Importance in Practice

You need to check alignment and perpendicularity in many jobs. This includes building machines or making cars. If you skip these checks, rods can break or wear out faster. Studies show poor alignment or wrong angles can cause rod fractures. This is a problem in medical or building uses. Using more rods can lower this risk.

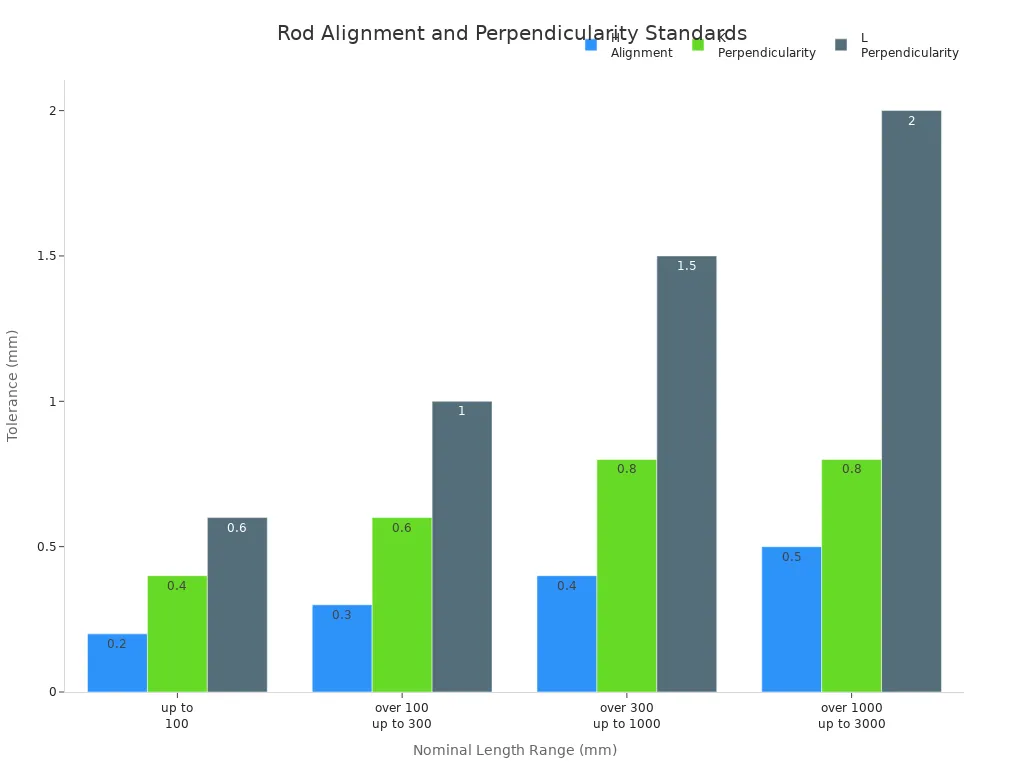

International rules set limits for how much a rod can bend or tilt. These limits depend on the rod’s length. The table below shows some common tolerances:

Tip: Measure at many spots along the rod to check straightness and angle.

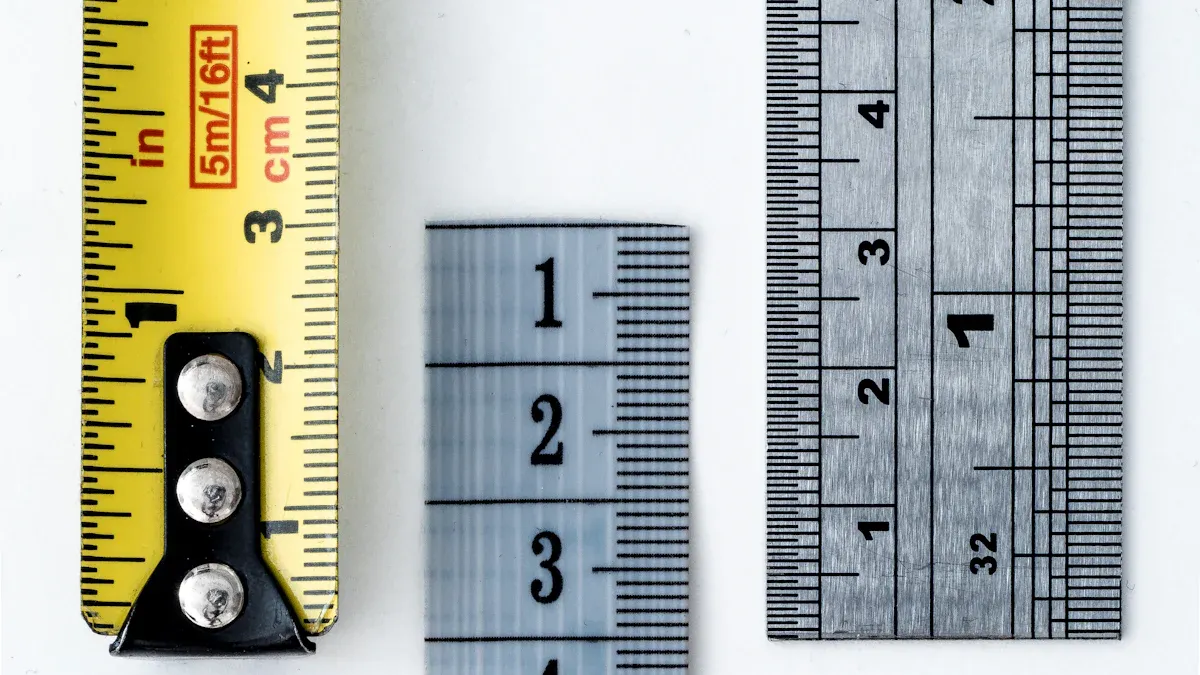

Tools for Measurement

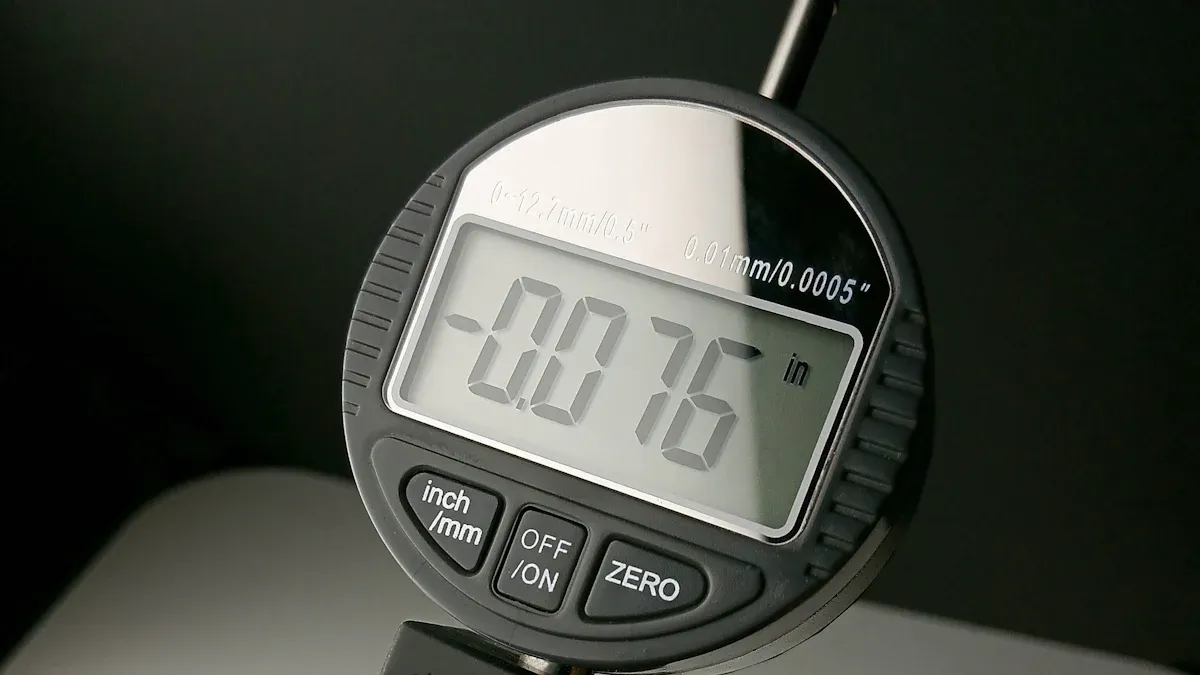

Height Gauge and Dial Indicator

You can check a rod’s alignment with a height gauge or dial indicator. A height gauge measures how straight and tall the rod is on a flat surface. Move the gauge along the rod. Watch if the numbers change. A dial indicator shows small moves when you touch and turn the rod. It helps you find tiny bends or twists. Both tools are accurate. Each tool works best for different jobs.

Tip: Use a dial indicator for quick checks on small rods. Pick a height gauge for bigger rods that need careful measuring.

Precision Square and Feeler Gauge

A precision square checks if a rod stands at a perfect right angle. Put the square next to the rod. Look for gaps. If you see light between them, the rod is not perpendicular. A feeler gauge measures tiny spaces between the rod and the square. Slide thin blades into the gap to find the size. Both tools need regular checks to stay accurate.

Choosing the Right Tool

Pick your tool based on what you need and the rod’s size. Think about how you want to check alignment and what matters most for your project. Here are some things to think about:

• Minimize soft foot
• Control coupling backlash
• Tighten machine feet well
• Check the environment
• Set up equipment the right way

You can use other tools like surface plates and try squares for quick checks. For harder jobs, use coordinate measuring machines or laser tools. These help you get fast and accurate results, especially for tricky rods.

How to Check the Alignment

Step-by-Step Alignment Check

You can check the alignment of a rod using several practical tools. Each tool helps you find out if the rod is straight and in the correct position. Follow these steps to get accurate results:

1. Prepare Your Workspace
   Place the rod on a clean, flat surface. Make sure the area is free from dust and oil. This helps you avoid errors.
2. Select the Right Tool
   Use a height gauge, dial indicator, compound angle block, square ruler, feeler gauge, pin gauge, or machinist’s square. Choose the tool that fits the size and type of rod you want to check.
3. Set Up the Datum
   Lock the rod or gauge to a 90-degree datum.
   • Pick a surface that matches how the rod will work in its assembly.
   • Use large, stable surfaces for your main reference point.
   • Think about how the rod will be installed. If it bolts onto a flat surface, use that as your main datum.
   • Control the most important movements first, then add more constraints for other directions.
4. Measure Along the Rod
   Move your tool along the length of the rod. Take readings at several points.
   • A dial indicator shows small bends or twists.
   • A height gauge helps you see if the rod stays at the same height.
   • A square ruler or machinist’s square checks if the rod is straight against a flat edge.
5. Record Your Results
   Write down each measurement. Compare the numbers to see if the rod stays straight.
   • If you see changes, the rod may not be aligned.

Tip: Always check the alignment at more than one spot. This gives you a better picture of the rod’s condition.

Perpendicularity Measurement Steps

You need to measure perpendicularity to make sure the rod stands at a right angle. Use these steps for a reliable check:

1. Position the Rod
   Place the rod so one end touches your datum surface. Make sure it does not move.
2. Use a Precision Square
   Put the square next to the rod. Look for gaps between the rod and the square.
   • If you see light or space, the rod is not perpendicular.
3. Check with a Feeler Gauge
   Slide thin blades between the rod and the square.
   • Find the smallest blade that fits.
   • Record the size of the gap.
4. Try a Dial Indicator
   Set the dial indicator against the rod. Move it up and down.
   • Watch for changes in the reading.
   • Large changes mean the rod is not at a perfect right angle.
5. Lock to a 90° Datum
   Make sure the rod stays fixed to the datum during measurement.
   • Use clamps or blocks to hold it steady.

Note: Taking measurements at different points along the rod helps you check the alignment and perpendicularity more completely.

Interpreting Results

After you check the alignment and measure perpendicularity, you need to decide if the rod meets the standards. Use tables and charts to help you understand your results.

You should use tools like coordinate measuring machines and dial indicators for the most accurate results. Always take measurements with respect to a defined datum. This keeps your results consistent.

• A dial indicator measures how far the rod moves from its ideal spot.
• Checking at different points along the rod gives you a full view of its alignment and perpendicularity.

If all your measurements fall within the allowed range, the rod passes the test. If you find any readings outside the limit, you need to adjust or replace the rod.

Troubleshooting Tip: If you get strange readings, check your tool for damage or dirt. Make sure the rod is locked tightly to the datum. Repeat the measurement to confirm your results.

You can check the alignment of rods quickly and accurately by following these steps. Using the right tools and locking the rod to a proper datum helps you avoid mistakes. Always record your results and compare them to the standards for your project.

Troubleshooting and Best Practices

Common Issues

You can run into problems when checking rod alignment. Sometimes, rods bend or twist while you handle them. Tools might show wrong numbers if you set them up wrong. Things around you can also cause trouble. For example, heat can make rods get bigger or smaller. Wet air can mess with your tools. Machines nearby can shake your work and make mistakes happen.

Tip: Always look for heat, wet air, or shaking before you measure.

Tips for Accurate Measurement

You can get better results by using good methods and keeping tools clean. Some advanced systems help you measure more exactly. Pentaprism lasers work fast and cost less than gyroscope systems. But they need careful setup. Laser-trackers are very exact for hard jobs, but you need special skills. Gyroscope-based systems are easy to set up and give the same results each time.

You should check your tools at least once a year. If you use them for important jobs or see problems, check them more often. Most makers say to check tools every year, but you might need to do it more if you use them a lot or your workspace changes.

• Check tools every year.
• Check more often for important jobs or if you see problems.
• Change how often you check based on how much you use tools and your workspace.

Quick Inspection Checklist

A checklist helps you remember every step. It lets you find problems early and keep rods working well.

Remember: A checklist helps you find problems before they get worse. It keeps your measurements good and your rods safe.

You can check rod alignment and perpendicularity by following a few clear steps:

1. Align the rod to the centerline using strings or lasers.
2. Make sure the rod stands at a right angle with the 3-4-5 triangle method.
3. Adjust parts so everything stays straight and centered.

To keep rods working well, you should:

• Inspect rods often.
• Lubricate moving parts.
• Fix alignment after repairs.

Regular checks help you spot problems early and keep your work safe and accurate. Always use your checklist for every measurement task.

FAQ

How often should you check rod alignment?

You should check rod alignment before installation and after any repairs. Regular checks help you catch problems early. Most experts recommend inspecting rods at least once a year.

What is the easiest tool for beginners to use?

You can start with a precision square. It is simple and does not need special training. Place the square next to the rod and look for gaps.

Can you measure perpendicularity without expensive equipment?

You can use a feeler gauge and a machinist’s square. These tools cost less and still give you good results.

• Feeler gauge: Measures small gaps
• Machinist’s square: Checks right angles

Why do rods need to be perpendicular?

What should you do if your measurements are not within tolerance?

Clean your tools and check your setup. Repeat the measurement. If the rod still fails, replace or adjust it to meet standards.
