When you choose street lamp poles of different heights, you need to think about where you plan to install them, how much light you need, and what local rules say. Urban areas often use poles between 6 and 15 meters, while suburban and rural locations use shorter poles. Safety matters, so you must check for nearby power lines, airports, and railroads. The table below shows common height ranges for each area type:
| Area Type | Common Height Ranges (meters) |
|---|---|
| Urban | 6, 8, 10, 12, 15 |
| Suburban | 6, 8, 10 |
| Rural | 6, 8 |
Key Takeaways
- Consider the area type when choosing pole height. Urban areas need poles between 6 and 15 meters, while rural areas require shorter poles.
- Match pole height to road width for optimal light distribution. Wider roads need taller poles to ensure even lighting.
- Check local regulations before installation. Compliance with local codes helps avoid fines and ensures safety.
- Select the right material for durability. Aluminum, steel, concrete, and fiberglass each have unique benefits for different environments.
- Plan pole spacing carefully. Space poles 2.5 to 3 times their height to avoid dark spots and ensure even illumination.
Factors Affecting Pole Height
Location Type
When you choose street lamp poles, you must consider the type of area. Residential streets usually need poles between 9 and 14 feet. Commercial zones often use poles up to 20 feet. Highways require much taller poles, ranging from 30 to 40 feet. Village or community roads work best with poles between 20 and 26 feet. The table below shows common recommendations:
| Area Type | Suggested Pole Height (feet) |
|---|---|
| Residential | 9–14 |
| Commercial | Up to 20 |
| Village/Community Roads | 20–26 |
| Highways | 30–40 |
You must also think about the layout of the area. Shopping centers need taller poles for even light. Walkways in neighborhoods need shorter poles to avoid too much brightness.
Tip: Always check local rules. Some cities set minimum pole heights to keep drivers and pedestrians safe.
Illumination Needs
The amount of light you need changes the pole height. If you want more light, you may need taller poles and stronger fixtures. Smaller areas, like parking lots, use shorter poles with lower output. Large spaces, such as highways, need taller poles and higher output for even coverage.
| Area Size | Fixture Output & Pole Height |
|---|---|
| Small Areas | Lower output, shorter poles (~20 ft) |
| Large Areas | Higher output, taller poles (30–50 ft) |
The chart below shows how much light different street types need:
Uniform light helps you avoid dark spots and glare. You should aim for enough brightness without making the light uncomfortable.
Road Width
The width of the road affects how tall the pole should be. Wider roads need taller poles to spread light evenly. The pole height should match the road width for best results. For example, a road that is 30 feet wide works well with a 30-foot pole.
- Proper pole height keeps light directed downward.
- Taller poles need deeper foundations to stay stable in strong winds.
- You must avoid glare by choosing the right height and fixture.
Note: If you use poles that are too short, drivers and pedestrians may see the light source directly. This can cause discomfort and reduce safety.
Pole Spacing and Fixtures
Spacing Guidelines
When you plan street lighting, you must think about how far apart to place each pole. The spacing changes depending on the type of street or path. If you space poles too close, you waste energy and money. If you space them too far, you create dark spots and reduce safety.

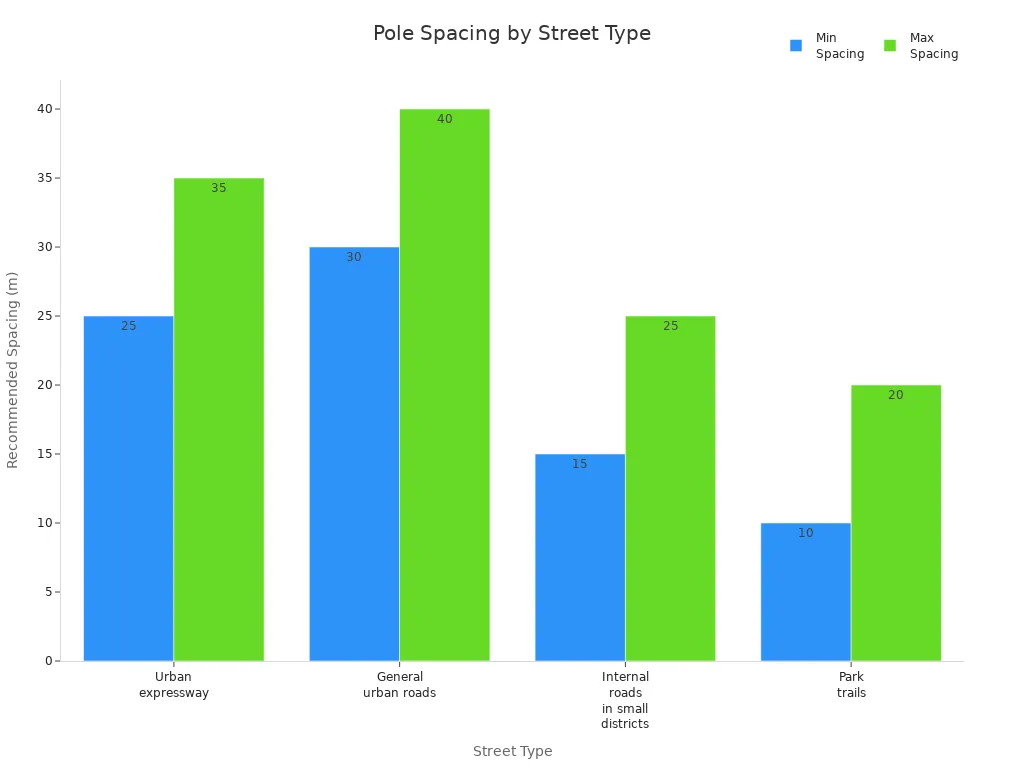

Here is a table showing recommended spacing for different street types:
| Street Type | Recommended Spacing (meters) |
|---|---|
| Urban expressway | 25–35 |
| General urban roads | 30–40 |
| Internal roads in small districts | 15–25 |
| Park trails | 10–20 |
You can see that park trails need poles closer together. Urban expressways use wider spacing because they have taller poles and stronger fixtures. The chart below shows how spacing changes for each street type:
Tip: Always match pole spacing with pole height and fixture output. This helps you create even light and avoid shadows.
Fixture Output
The type of fixture you use affects how tall your poles should be and how far apart you place them. If you use fixtures with high output, you can use taller poles and space them farther apart. For narrow streets, you need shorter poles and lower output fixtures. Parks and walkways often use short poles with gentle light. Large areas like highways or sports fields need tall poles and strong fixtures.
Here is a table that shows how fixture output and pole height work together:
| Area Type | Recommended Pole Height | Fixture Output Considerations |
|---|---|---|
| Residential Streets | 15–20 feet | Lower output, good for narrow streets. |
| Wider Roadways | 25–50 feet | Higher output, needed for center lanes. |
| Parks | Varies | Short poles for paths, tall poles for big spaces. |
| Commercial Areas | Varies | Short for walkways, tall for parking lots. |
| Regulatory Compliance | Minimum 15 feet | Prevents glare, keeps light directed downward. |
When you choose street lamp poles, always think about the fixture type and the area you want to light. This helps you get the best results and keeps people safe.
Regulations and Materials
Local Codes
When you choose street lamp poles, you must follow local codes and standards. Cities and towns set rules for pole height, spacing, and safety. These rules help keep roads safe for drivers and pedestrians. For example, sidewalks and bike paths often use poles between 4.5 and 6 meters. Narrow streets may need poles from 8 to 10 meters, while wider roads use poles up to 12 meters. Always check with your local government before you install new poles.
Note: Following local codes helps you avoid fines and ensures your lighting project meets safety standards.
Material Choice
The material you select for your street lamp poles affects how long they last and how much care they need. You can choose from aluminum, steel, concrete, or fiberglass. Each material has strengths and weaknesses.
- Aluminum: Lightweight, easy to install, and resists rust. Good for humid or coastal areas.
- Steel: Strong and stable. Works well for highways and busy streets. Needs regular painting to prevent rust.
- Concrete: Very durable and does not rust. Handles harsh weather and high winds. Heavier and less flexible in design.
- Fiberglass: Light and resists corrosion. Needs little maintenance and stands up to tough weather.
| Material | Advantages | Disadvantages |
|---|---|---|
| Aluminum | Easy to transport, rust-resistant, sleek look | May cost more than steel |
| Steel | Strong, cost-effective, long life | Needs maintenance for rust |
| Concrete | Durable, customizable, no rust | Heavy, less flexible |
| Fiberglass | UV resistant, low maintenance | Less common for tall poles |
Local climate also matters. In coastal areas, you may need taller poles for better light reflection. Cold regions need frost-resistant materials.
Power Source
You must decide if your street lamp poles will use solar or wired power. Solar poles work well for pathways and gardens, usually with heights from 3 to 7 feet. Wired poles suit parking lots and streets, often ranging from 12 to 30 feet. Commercial areas use poles from 10 to 20 feet, while sports fields need very tall poles—sometimes up to 100 feet.
Tip: Solar poles save energy and work in places without easy access to electricity. Wired poles provide steady power for busy roads and large spaces.
When you choose street lamp poles, think about local codes, material durability, and the right power source for your project. These choices help you create safe, long-lasting lighting for any area.
Decision Guide to Choose Street Lamp Poles
Selection Steps
You can follow a clear process to choose street lamp poles of different heights. Lighting professionals recommend these steps to help you make the best decision for your project:
- Assess the Area
Start by looking at the location. Measure the width of the road or space. Residential streets often need shorter poles, while highways and large parking lots require taller ones. - Conduct a Lighting Survey
Check how much light you need. Use lighting design software to simulate different pole heights and fixture types. This helps you see how light will spread and where shadows might appear. - Determine Pole Height
Select a height that matches the area. For most residential areas, poles between 9 and 14 feet work well. For highways, you may need poles up to 40 feet. Make sure the height provides enough light without causing glare. - Check Wind Resistance
Ask local authorities about wind speed in your area. Taller poles need to withstand strong winds, especially in open spaces. Choose poles with the right size and foundation to prevent vibration and bending. - Consider Environmental Conditions
Think about the climate. In coastal areas, use poles with powder-coated finishes to prevent rust. In cold regions, select frost-resistant materials. - Review Local Regulations
Always check city or state rules before you install new poles. Regulations may set minimum or maximum heights and spacing. - Plan Pole Spacing and Fixture Output
Space poles 2.5 to 3 times their height for even light. For example, if you use 30-foot poles, place them 75 to 90 feet apart. Match fixture output to pole height for the best results. - Avoid Common Mistakes
Plan carefully and use design software to avoid errors. Regular maintenance and inspections help keep your lighting system safe and working well.
Tip: You can save money and energy by choosing the right pole height and spacing for each project.
Practical Examples
Here are some real-world examples to help you understand how to choose street lamp poles for different settings:
| Setting Type | Pole Height Range | Application Description |
|---|---|---|
| Rural/Village Lanes | 4 to 6 meters | Ideal for light traffic, focusing light closer to the ground for visibility without glare. Cost-effective. |
| Urban Roads | 8 to 10 meters | Balances wide light coverage and cost efficiency, reducing maintenance frequency and glare. |
| High-Speed Highways | 10 to 12 meters | Ensures visibility over long distances, reducing fixture count and enhancing safety for drivers. |
- In a rural solar lighting project, you can install 5-meter poles with 40W LED fixtures. This reduces pole count by 15% and saves over $2,000 each year.
- For an urban street, lowering pole height from 10 meters to 9 meters can save $15,000 and cut cleaning time by 20%.
- On a highway, using 11-meter poles with 280W LEDs can save $50,000 in upfront costs and shorten the payback period to 2.5 years.
Checklist
Use this checklist to make sure you choose street lamp poles that fit your needs:
| Factor | Description |
|---|---|
| Application | Shorter poles work best for small spaces. Taller poles light up larger areas. |
| Environment | Urban, commercial, residential, and rural locations need different pole heights. |
| State and local regulations | Always check local rules before planning your installation. |
- The height of a light pole for road lighting depends on several things:
- The width of the area should be about the same as the pole height.
- The amount of light must help drivers see the road safely.
- A minimum pole height of 15 feet helps prevent glare. For large areas, use poles between 25 and 50 feet.
- Make sure the pole height matches the area you want to light.
- Aim for at least 15 feet to avoid glare.
- Use a range of 25-50 feet for big spaces like highways or parking lots.
- Residential street light poles are usually shorter and spaced closer together than those on highways.
- Taller poles need stronger fixtures.
- Lighting design software lets you test different heights and spacing before you install anything.
Note: Careful planning and regular inspections help you avoid mistakes and keep your lighting system safe.
You can choose the right street lamp pole height by following clear steps and checking local rules. Always think about the area, lighting needs, and safety. Use the checklist to guide your decisions. Professional consultations help you meet regulations and improve safety. The table below shows how experts help you select the best pole:
| Factor | Description |
|---|---|
| Local Regulations | Experts help you follow rules to reduce glare and keep people safe. |
| Structural Integrity | They recommend strong poles with deep foundations for tall installations. |
| Wind Resistance | Professionals know wind zones and suggest poles that stand up to strong winds. |
| Lighting Requirements | They match pole height to the needs of each area, like streets or fields. |
Tip: Ask lighting professionals for advice to make your project safer and more reliable.
FAQ
What is the best height for a residential street lamp pole?
You should use poles between 9 and 14 feet for most residential streets. This height gives enough light for safety without causing glare. Always check your local rules before you choose.
How do I know if my pole is too tall or too short?
If your pole is too tall, you may see glare and waste energy. If it is too short, you may get dark spots. Match the pole height to the road width and lighting needs for the best results.
Can I use solar-powered poles for main roads?
You can use solar-powered poles for small roads, parks, or pathways. For main roads or highways, wired poles work better because they give steady power and brighter light.
Do I need to follow local codes when installing street lamp poles?
Yes, you must follow local codes. These rules keep your lighting safe and legal. Always check with your city or town before you start your project.
What material should I choose for my street lamp pole?
You can pick aluminum, steel, concrete, or fiberglass. Aluminum resists rust. Steel is strong. Concrete lasts long. Fiberglass needs little care. Choose the material that fits your weather and budget.
