How to Determine Street Light Layout Based on Lighting Design Requirements

When you plan a street light layout, you need to start by understanding the lighting requirements for the area. You must consider factors like the type of road, pole mounting height, and how much space you need between poles. Safety and visibility depend on meeting standards such as IESNA RP-8, which guide uniformity and glare control. The table below shows some common lighting design parameters you should review before starting your project:

Key Takeaways

• Understand road type and lighting needs before planning the layout.
• Follow standards like IES RP-8 and EN13201 for safety and uniformity.
• Choose pole height and spacing based on road width and traffic flow.
• Use LED fixtures for energy efficiency and better light control.
• Verify compliance with regulations and optimize for maintenance and energy savings.

Part1: Define Lighting Design Requirements

1.1 Set Illumination and Uniformity Criteria

You need to start by identifying the lighting requirements for your project. Road classification plays a key role in this process. Highways, main roads, and residential streets each have different lighting standards. For example, EN13201 and IES RP-8 set guidelines for road lighting and help you decide the right levels of illuminance and uniformity. Uniformity measures how evenly light spreads across the road. You calculate the uniformity ratio by dividing the minimum illuminance by the average illuminance. The table below shows acceptable uniformity ratios for different areas:

You should also check both horizontal and vertical illuminance, especially at crosswalks. This helps drivers see pedestrians clearly.

1.2 Address Safety and Glare Control

Safety is a top priority in street lighting design. Good lighting improves visibility for drivers and pedestrians. You must control glare to prevent discomfort and keep the road safe. Glare can cause pain or reduce vision. You can use several methods to reduce glare:

• Optical control directs light where needed.
• Select fixtures with glare-reducing optics.
• Adjust mounting height for better control.
• Aim lights carefully to match the road layout.
• Follow lighting standards for glare reduction.

For crosswalks, you should provide a vertical illuminance of at least 20 lx at 5 feet above the road. This makes pedestrians more visible.

1.3 Meet Regulatory Standards

You must follow local and international standards when planning your street light layout. In the United States, you should check the NYC DOT Street Lighting Standard Drawings Book, IECC, ASHRAE 90.1, and California Title 24. These documents set rules for safety, energy efficiency, and fixture selection. In Europe, EN 60598 and CE marking are important. Local rules may also require specific lighting levels, fixture types, and spacing. Always consider community needs and environmental goals, such as dark sky compliance, when meeting each requirement.

Part2: Assess Site and Street Light Layout Factors

2.1 Analyze Roadway and Traffic

You must start by studying the road. Road classification affects your street lighting design. Highways, main roads, and residential streets each have different lighting requirements. EN13201 and IES RP-8 help you set the right uniformity and illuminance for each road type. For example, a wide road with heavy traffic needs higher illuminance and better uniformity than a narrow, quiet street. You should check the number of lanes, road width, and traffic flow. These factors guide your choice of pole height, fixture type, and arrangement. Good road lighting improves visibility for drivers and pedestrians.

2.2 Identify Obstacles and Environmental Conditions

You need to look for obstacles along the road. Trees, signs, and overhead utilities can block light and reduce uniformity. You must keep a minimum clearance of 10 feet from overhead wires when placing poles. Environmental conditions also affect your design. Wet roads reflect more light, so you may need to adjust illuminance. In areas with frequent fog, you should increase vertical illuminance to help drivers see pedestrians. You must consider community needs and protect wildlife by following lighting standards.

Tip: Use a table to compare different pole arrangements for your street light layout.

2.3 Ensure Pole Clearance and Accessibility

You must plan for safe and easy access to each pole. Place poles where maintenance crews can reach them without blocking traffic. Keep enough space between poles and the road edge to avoid accidents. For example, if you use 8m poles with 80W LED fixtures on a 12m wide road, you can set the pole spacing at 30m for good uniformity and illuminance. Always check that your street lighting design meets every requirement for safety and accessibility. This approach ensures your lighting supports both visibility and community needs.

Part3: Select Fixtures and Optimize Street Lighting Design

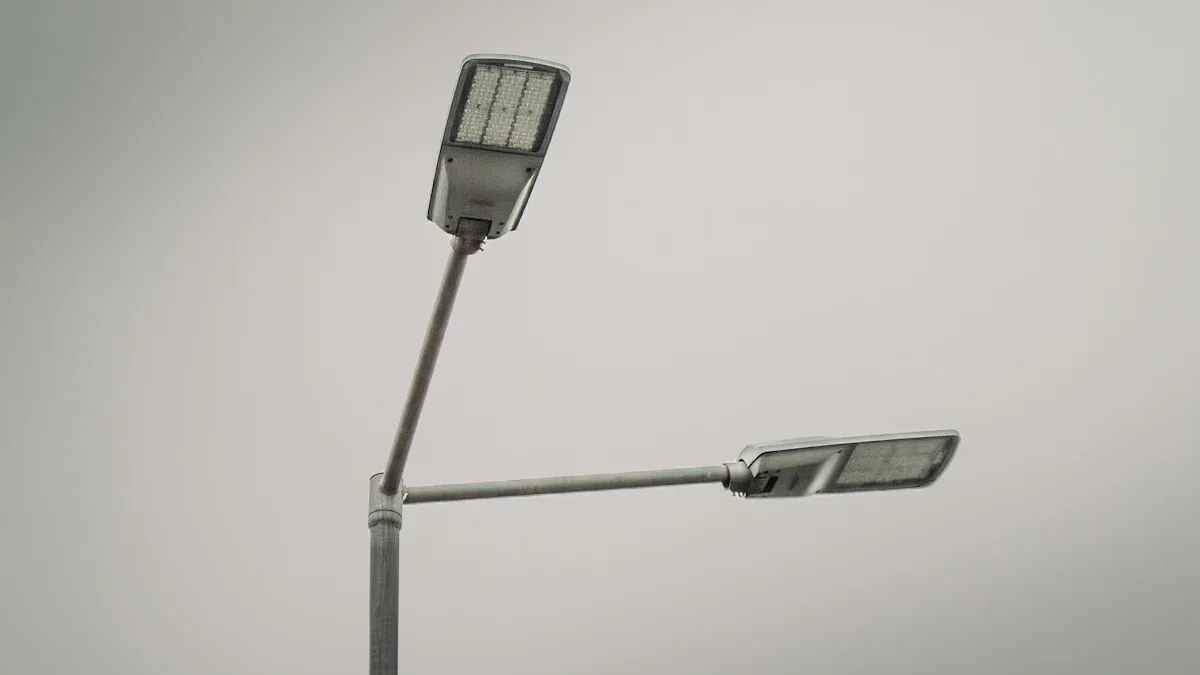

3.1 Choose Luminaires and Mounting Heights

You need to select the right luminaires and mounting heights to meet your lighting requirements. The type of fixture you choose depends on the scale of the road. For broad roads, you should use high-output luminaires with wide light distribution. Narrow roads work best with fixtures that focus light more tightly. The mounting height affects both the spread of light and the level of uniformity. Taller poles provide wider coverage and help reduce glare, but they may require higher wattage to maintain proper illuminance.

When you plan your street lighting design, always match the fixture type and mounting height to the road width and the amount of traffic. For example, a main road with heavy vehicle flow needs taller poles and more powerful luminaires. Residential streets or pedestrian pathways can use shorter poles and lower wattage. You should also consider the needs of pedestrians and cyclists, especially in mixed-use areas.

Tip: Use LED fixtures for better energy efficiency and longer lifespan. LEDs also offer precise optical control, which helps you meet uniformity and glare control requirements.

3.2 Determine Light Distribution and B0 Rating

You must select the correct light distribution pattern for your street lighting. The distribution type controls how light spreads across the road and sidewalks. For wide roads, use Type II or Type III distributions to cover multiple lanes. For narrow roads or walkways, Type I or Type II works best. The right distribution ensures you meet both illuminance and uniformity targets.

The B0 rating is another important parameter. This rating measures the amount of light that escapes above the horizontal plane of the fixture. A B0 rating means zero upward light, which helps prevent light pollution and supports dark sky compliance. You should always choose fixtures with a B0 rating for street lighting design, especially in areas with strict environmental requirements.

Shielding also plays a key role. Proper shielding directs light downward and reduces glare for drivers and pedestrians. This improves safety and helps you meet both regulatory and community requirements.

3.3 Calculate Pole Spacing and Arrangement

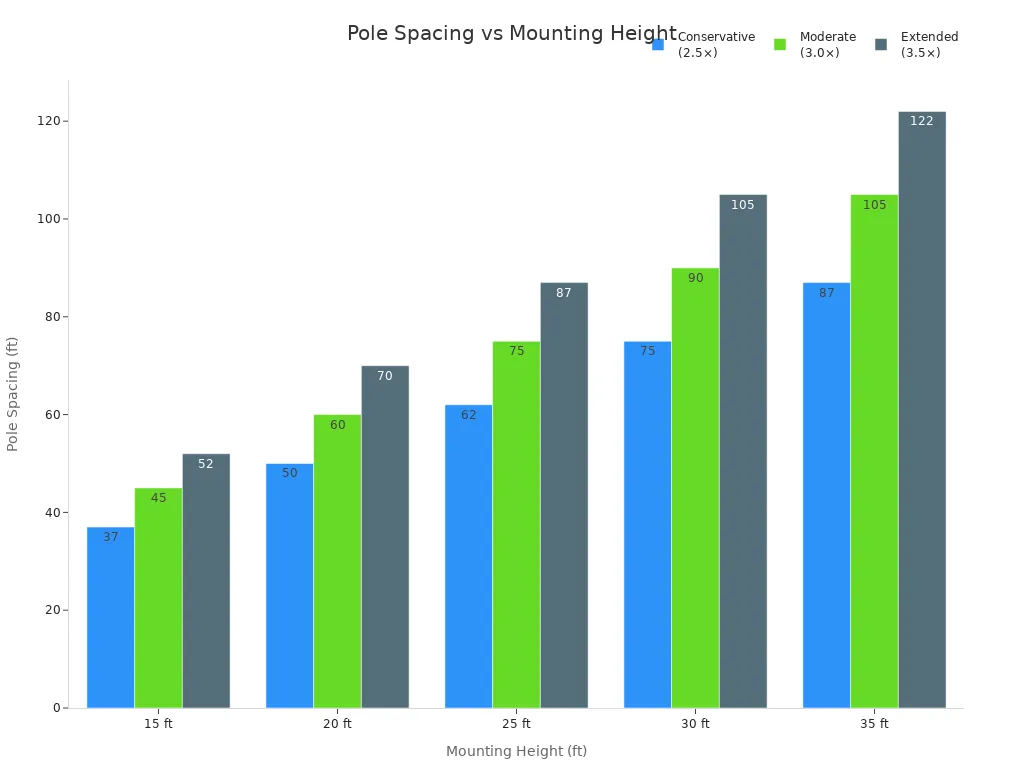

You need to calculate pole spacing and choose the best arrangement to achieve good uniformity and illuminance. The spacing between poles depends on the mounting height, fixture output, and road width. A practical starting point is to use a spacing of 2.5 to 3.5 times the mounting height. This formula gives you a quick estimate before you run detailed photometric simulations.

You should remember these key points when planning pole spacing:

• These estimates work best on flat roads with no large obstacles.
• Poles near the edge of a property may need closer spacing because light only projects in one direction.
• Entrance and exit areas often require tighter pole spacing or extra fixtures for higher illuminance.
• Always confirm your final spacing with a photometric simulation using real fixture data.

You can choose from several common street light arrangements:

Let’s look at a practical example. Suppose you have an 8m pole, an 80W LED fixture, a 12m wide road, and you plan to use a 30m pole spacing. This setup works well for a medium-width road with moderate traffic. The 8m mounting height allows the light to cover the road and sidewalks, while the 80W LED provides enough illuminance for both vehicles and pedestrians. A 30m spacing gives you good uniformity, but you should always check the results with a photometric layout to make sure you meet all lighting requirements.

Note: Uniformity is just as important as illuminance. Good uniformity ensures that drivers and pedestrians do not experience dark spots or sudden changes in lighting, which improves safety and comfort.

By following these steps, you can create a street light layout that meets every requirement for road lighting, supports community needs, and provides safe, efficient illumination for all users.

Part4: Verify Compliance and Efficiency

4.1 Check Standards and Codes

You need to make sure your street light layout meets all local and international standards. Standards like EN13201 and IES RP-8 set clear rules for road lighting, including minimum illuminance, uniformity, and glare control. These standards help you create a safe environment for every road user, including each pedestrian and driver.

To verify compliance, you should perform several types of inspections and tests during project implementation:

• Visual inspection of the installation
• Functionality test for each lighting fixture
• Electrical safety tests to prevent hazards
• Photometric and performance tests to confirm illuminance and uniformity
• Thermal testing to check heat management
• Mechanical and durability tests for pole and fixture strength
• Ingress protection (IP) testing for weather resistance
• EMC/EMI tests to avoid electrical interference
• Endurance and lifespan checks for long-term reliability
• Material and component verification for quality assurance

These steps ensure your lighting system meets all requirements and reduces the risk of safety issues on the road.

4.2 Optimize for Energy and Maintenance

You can improve the efficiency of your road lighting system by using smart strategies and modern technology. Start by choosing LED fixtures, which use less energy and last longer than traditional lights. LEDs also provide better control over illuminance and uniformity, making them ideal for any road.

To further optimize energy use, consider these approaches:

• Install adaptive controls that adjust brightness based on real-time road conditions
• Use motion sensors to dim lights when traffic is low, saving energy during quiet periods
• Set up networked controls for better asset management and faster fault detection
• Select fixtures with good heat dissipation to maintain LED performance and extend lifespan

These strategies help you lower energy costs, reduce maintenance needs, and keep your lighting system reliable. When you design your street light layout with these methods, you support both safety and sustainability for every road and pedestrian area.

You can achieve safe and efficient street lighting by following a systematic approach. Start with clear design requirements, assess the site, and select the right fixtures and arrangements. Studies show that brighter, well-planned layouts can reduce crime and improve community safety. Cities measure effectiveness using uniformity ratios and illuminance levels. Common arrangements, such as single-sided, staggered, and opposite, each have unique benefits and challenges:

Apply best practices to ensure your street lighting supports both safety and community needs.

FAQ

What is road classification and why does it matter for street lighting?

You need to know the road type before you design lighting. Highways, main roads, and residential streets each have different lighting needs. Road classification helps you choose the right illuminance, pole height, and arrangement for safety and visibility.

What are EN13201 and IES RP-8 standards?

EN13201 and IES RP-8 are important lighting standards. You use them to set minimum light levels, uniformity, and glare control for roads. These standards help you create safe and comfortable street lighting.

How do you choose the right pole height and spacing?

You select pole height based on road width and traffic. For example, use 8m poles for medium roads. Pole spacing usually ranges from 2.5 to 3.5 times the pole height. Always check your design with a photometric layout.

What are the differences between single-sided, opposite, and staggered pole arrangements?

Tip: Choose the arrangement that matches your road width and lighting needs.

Can you give a simple calculation example for street lighting layout?

Suppose you have an 8m pole, an 80W LED fixture, and a 12m wide road. You set pole spacing at 30m. This setup gives good uniformity and enough light for both vehicles and pedestrians. Always confirm with a photometric simulation. For a more accurate street lighting layout, contact Leap to discuss your road width, road classification, pole height, fixture power, mounting arrangement, lighting standard, and project location.
