How to Install Street Lamps Safely and Efficiently

September 25, 2025

You help make neighborhoods safer and save energy when you install street lamps the right way.

Cities that use LED street lights can use half as much energy. For example, Los Angeles changed more than 140,000 lights and used 63% less energy.
Good lighting helps people feel safe and can help lower crime in public places.

Key Takeaways

Pick LED street lamps to use less energy and save money. They can lower energy use by up to 63%.
Think about where to put lamps to make light spread evenly. This stops dark areas and makes places safer.
Get the right permits before you start installing lamps. This helps you follow local rules and not get fined.
Look for underground utilities before you dig holes. This keeps people safe and stops damage to important services.
Check street lamps often to keep them working well. Regular checks help keep everyone in the community safe.

Planning Street Lamps

Assessing Lighting Needs

First, figure out how much light your area needs. Check the road type and count cars or people. Busy roads need more light than quiet ones. Think about which light is best. LED lights use less energy and last longer. Warm colors feel cozy in homes. Cool colors help people focus in business areas.

Tip: Try LED bulbs to save money and help nature.

Here are some rules to follow when you plan public lighting:

Illuminance Level: Choose the right brightness for each place. This keeps people safe and stops too much light.
Uniformity: Spread light evenly so there are no dark spots.
Color Temperature: Use warm lights for homes and cool ones for stores.
Energy Efficiency: Pick lights that use less power and cost less.
Maintenance and Durability: Get strong materials and plan to check them often.

Check technical details too. Make sure your lights meet safety rules. Find fixtures that stop glare and lower light pollution. Use weather-proof materials so lamps last longer.

Factor	Description
Understand the Application	Find out the road type and traffic to know how much light you need.
Choose the Right Type of Light Source	Pick LED lights and the right color for each area.
Evaluate Technical Specifications	Make sure your lights follow rules for brightness and evenness.
Consider the Fixture Design	Look at beam angle, glare control, and stopping light pollution.
Assess Energy Efficiency	Use smart controls and low-power lights to save energy.
Prioritize Durability and Maintenance	Pick weather-proof materials and long-lasting fixtures.

Choosing Locations

Pick the best places for street lamps. Measure how far apart each lamp should be. This makes sure light covers everything. Mark where each lamp goes before you start. Use pole spacing math to find the right distance. This stops dark spots and keeps people safe.

Method/Consideration	Description
Performance-based system design	Looks at how well the whole lighting system works, not just one lamp.
Pole spacing calculations	Finds the best space between poles using lighting math.
Adaptive lighting controls	Lets you change light levels by time or traffic.
Environmental impacts and safety hazards	Thinks about how lights affect nature and safety.

Follow local rules too. Many places have codes for building and outdoor lights. These rules help stop light pollution and protect animals. You need permits before you put up street lamps. Inspectors will check your work to make sure you follow the rules.

Regulation Type	Description
Florida Building Code	Sets rules for building and lighting, focusing on saving energy.
Outdoor Lighting Standards	Controls outdoor lights to stop pollution and protect animals.
Energy Efficiency Standards	Wants you to use good fixtures and controls to save energy.
Lighting Permitting and Inspections	Needs permits and checks to make sure you follow the rules.

Note: Always measure and mark lamp spots before you install. This helps you get good light and follow safety rules.

Permits and Compliance

Getting Permits

You need permits before you put up street lamps. The city or local government gives these permits. Permits make sure you follow safety rules and city codes. Most cities want you to get special permits for work near streets or sidewalks. You might need an “E” Permit for jobs close to public roads. Sometimes, a Revocable Permit is needed for temporary work in public spaces.

Permit Type	Description
E Permit	Needed for work in or near public streets, including street lamp installation and relocation.
Revocable Permit	Allows temporary use of public space, but you must follow all city rules.

When you ask for a permit, you must show papers that prove you own the land or can work there. You also need to say who will pay for putting in the lamps, fixing them, and paying for electricity. Cities often want you to use their website to start your permit request. You pick the reason, like “Design/Construction,” and fill out the forms.

Property owners pay for putting in the lamps.
Owners also pay for yearly fixes and energy costs.

Steps to apply for a permit:

Go to your city’s permit website.
Find the street lighting permit section.
Start a new permit request.
Pick the reason, like new building.
Send in your papers and wait for approval.

Tip: Always check with your city for the newest permit rules before you start.

Regulatory Checks

You must follow city rules and safety standards before you put up street lamps. First, learn about your city’s lighting codes. Get the right permits from the city or utility company. Check what bulbs and fixtures you can use.

Learn your city’s rules.
Get all needed permits before starting.
Ask utility companies for extra approvals.
Make sure your street lamps meet technical rules.

Regulatory review steps:

Fill out a Streetlight Review Request.
Work with city engineers to pick lamp spots.
Ask for new or old electrical service.
Get your streetlight plans approved.
Set up inspections for lamp bases and wiring.

If you do not follow the rules, you can get fined. Cities may charge $500 each day if you miss rules or permits. Fines can go up to $10,000 if you keep breaking the rules.

Violation Type	Daily Fine	Maximum Cumulative Fine
Non-compliance with specifications	$500.00	$10,000
Failure to obtain a Utility Permit	$500.00	$10,000

Note: Following all permit and rule steps helps you avoid big fines and keeps your project safe.

Site Prep

Marking Locations

Start by marking where each lamp will go. Putting lamps in the right spot gives good light and keeps people safe. Use tools to measure how far and what angle you need. This helps every lamp stand in the right place and light up the area.

Equipment Type	Description
Chains and Tapes	Use these to measure short or long distances. Pocket tapes work for small spots. Measuring wheels help with big spaces.
Compasses and Clinometers	These tools measure angles and directions. They are useful if the ground has hills or curves.
Transits and Theodolites	These help you get exact angles for perfect lamp alignment.
Levels	Use levels to check height differences. This keeps lamp heights the same.

Walk around the site and use your tools to mark each lamp spot. Put stakes or paint marks where you will dig. Check your measurements again so you do not make mistakes. Planning well now saves time and stops problems later.

Tip: Measure two times before you mark the ground. This helps you avoid mistakes that cost money.

Underground Utility Check

Check for underground utilities before you dig. Hitting a gas or water line can be very dangerous. You keep everyone safe by doing these steps:

Call 811 or your local utility locator. They help you find cables and pipes under the ground.
Look at GIS records to see where utilities might be.
Use hydro excavation to uncover utilities safely. This uses water and vacuum to dig without breaking things.
Try test holing. Dig small holes to find the exact spot and depth of lines.
Make sure your team knows the risks. Train everyone to use safety gear and check the site often.

Use locators to find lines and check the soil.
Scan the area with a utility scanner. Mark places with lines.
Study the marks so you know where not to dig.
Set up safety steps to stop accidents.
Mark all danger zones before you start digging.

It is important to know the dangers of digging without checking for utilities. Breaking a line can cause explosions, floods, or power loss. These problems can hurt people and stop important services.

Note: Always check for utilities before you dig. Safety is the most important thing.

Foundation Work

A strong foundation keeps street lamps standing for a long time. Dig deep enough and use good materials. Most foundations go at least 48 inches below the ground. If the soil is soft or windy, dig even deeper.

Requirement	Specification
Minimum Depth	48 inches below grade
Concrete Type	Air entrained Class SI, Portland cement concrete
Compressive Strength	At least 3500 psi after 14 days
Top of Foundation	6 inches above finished grade
Foundation Curing Time	14 days before installing the pole

Add steel bars to make the foundation stronger. This helps the base last longer. Here are some materials used for reinforcement:

Material	Features	Applications	Pros	Cons
Hot-Dip Galvanized Steel	Strong, does not rust, low cost	Used for most street lamp foundations	Lasts long, proven, not expensive	Heavy, needs checks often
Aluminum Alloy	Light, does not rust	Good for wet or coastal areas	Easy to move, good for wet places	Costs more, not as strong for tall poles
Stainless Steel (304/316)	Best at stopping rust	Used in high-end or coastal places	Needs little care, looks nice	Expensive, heavy
Composite Materials (FRP)	Does not conduct electricity, resists chemicals	Used where electrical isolation is needed	Light, safe, hard to steal	Costs more, not as strong as steel
Concrete	Strong, stable, low cost	Used with metal poles for tall lamps	Lasts long, stands up to weather	Heavy, can break if hit hard

Let the concrete dry for at least 14 days after pouring. This makes sure the foundation is strong enough for the pole. Always check local rules or ask an expert if you are not sure about depth or materials.

Safety Alert: Do not rush the drying process. A weak foundation can make the lamp fall and hurt someone.

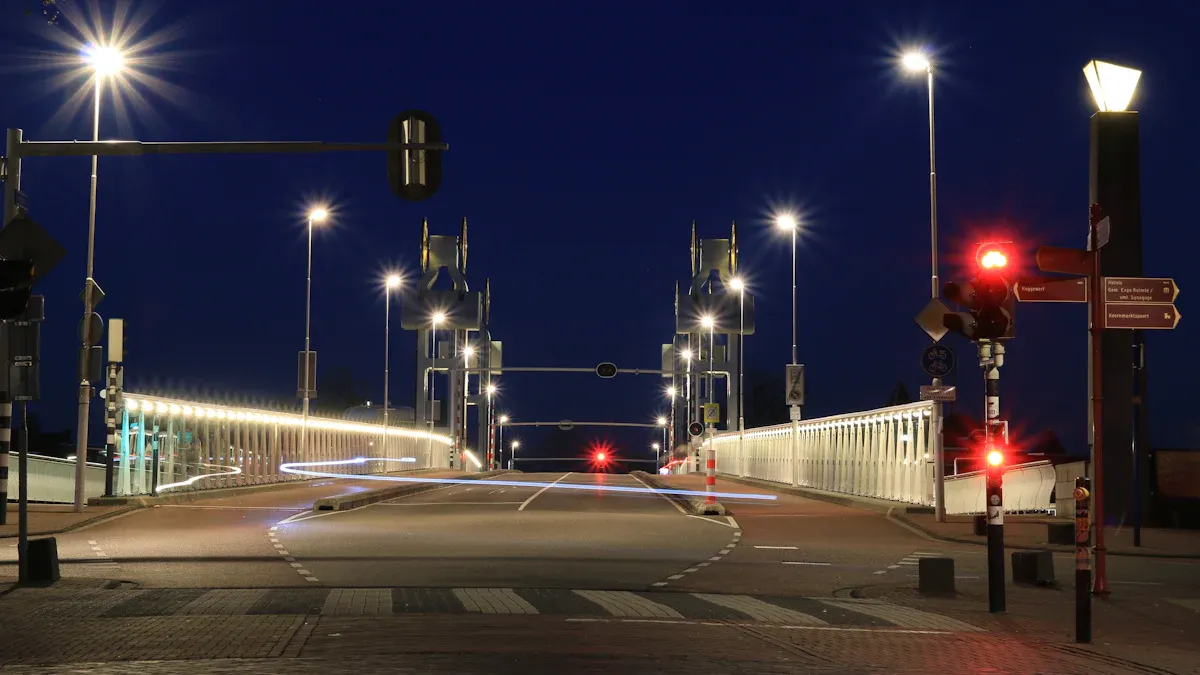

Installing Street Lamps

Mounting Poles

You need to follow a clear process to mount poles for street lamps. This helps you keep the installation safe and strong. Here is a step-by-step guide:

Prepare the Site: Pick a spot with good visibility and easy access.
Excavate the Hole: Dig a hole with the right depth and width for the foundation.
Install the Foundation: Pour concrete to make a stable base.
Assemble the Pole: Put the pole together as the manufacturer says.
Place the Pole: Set the pole on the foundation. Use anchor bolts to hold it steady. Check that the pole stands straight.
Connect the Wiring: Attach the wires to the power source. Test the system to make sure it works.
Finish Up: Adjust the lamp for the best lighting.

Tip: Always double-check the pole alignment before the concrete sets. This keeps the lamp upright and safe.

You should also know the standard pole heights for different areas. The table below shows common heights:

Area Type	Common Pole Heights (feet)
Residential Streets	15-20
Wider Roadways	25-50
Commercial Areas	10-40

Most street lamps in neighborhoods use poles between 15 and 20 feet tall. This height gives good light and keeps the area safe.

Wiring

Wiring street lamps needs careful steps to prevent electrical hazards. You must always put safety first. Follow these important rules:

Turn off the power at the breaker box before you start any work.
Use a voltage tester to make sure the power is off.
Only use insulated tools. This lowers the risk of electric shock.
Make sure all wire connections are tight and covered. This stops short circuits.
Never work on wiring if it is wet or damp.
Use the right tools and check that they are not damaged.

Safety Alert: Always check the power is off before you touch any wires. This simple step can save your life.

You should also use waterproof connectors and weatherproof boxes. These protect the wiring from rain and dust. After you finish, test the lamp to see if it turns on and off as it should.

Safety Gear

You must wear the right safety gear when you install street lamps. This protects you from falls, cuts, and electric shock. Here is a list of essential tools and equipment:

Ladder or lift for reaching tall poles
Power drill for making holes
Wrenches and screwdrivers for tightening bolts and screws
Insulated gloves to protect from electricity
Hard hat to guard your head
Safety glasses to shield your eyes
High-visibility vest so others can see you
Steel-toed boots for foot protection

Note: Never skip safety gear, even for quick jobs. Accidents can happen fast.

You should also keep a first aid kit nearby. Make sure your team knows how to use all tools and gear. Good training and the right equipment help you finish the job safely and efficiently.

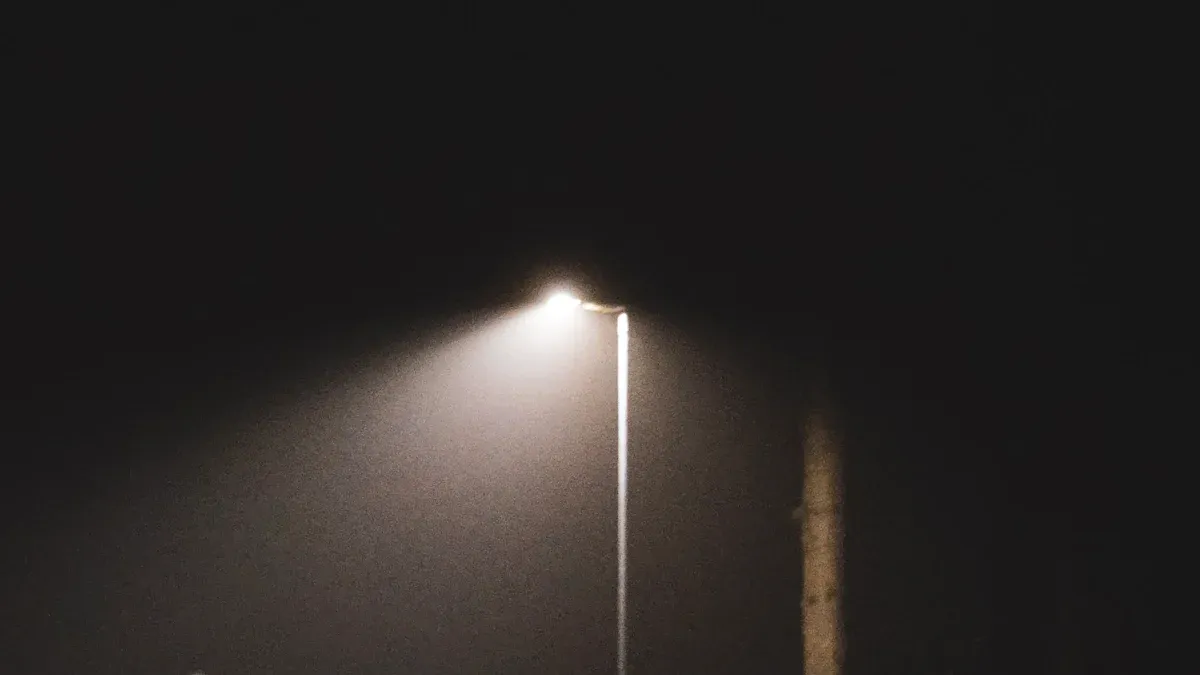

Testing and Maintenance

System Testing

You need to test every street lamp system before you call the job complete. Testing helps you catch problems early and keeps the lights working well. Start by checking the power supply and making sure the lamp turns on and off without trouble. You should also look for flickering or dim spots.

Use these common tests to check new street lamps:

Test Type	Description
Aging and Impact Test	Checks how the power supply handles stress and time.
Light Attenuation Test	Measures how much the LED light fades over time.
Stability and Service Life Test	Runs the lamp for 24 hours to see if it stays bright and stable.
Routine Testing	Includes a full set of checks and a 6-12 hour aging test for new lamps.

During testing, you may find issues like poor heat design, uneven lighting, or power failures. Watch for these common problems:

Wrong labels or settings.
Fake chips that lower performance.
Copper wire instead of gold wire, which causes reliability issues.
Bad light distribution that leaves dark spots.
Weak heat dissipation that shortens lamp life.
Power failures, blinking, or lights going out.
Safety failures from poor parts.
Harmful substances in the lamp.

Tip: Always test lamps for at least 24 hours before final approval. This helps you spot hidden problems.

Routine Checks

You keep street lamps working well by doing regular maintenance. Clean lamp surfaces to stop dirt from blocking light. Inspect wires and connectors to prevent electrical issues. Check the lamp housing for waterproofing and collision protection. Replace faulty LED drivers when needed. Surge protection devices need regular checks to guard against power spikes.

Here are some tasks you should do:

Inspect the lamp’s appearance and wiring for damage.
Look for discoloration, corrosion, or peeling paint.
Make sure the lamp structure is solid and screws are tight.
Verify the input line and internal wiring.

You should also trim trees near solar lamps and clean solar panels. Respond quickly to outage reports and fix problems fast. Preventative maintenance, like re-lamping older lights, keeps the system reliable.

Regular maintenance saves money and energy. You help your city stay safe and reduce accidents. Good lighting also makes public spaces look better and shows you care about the environment.

Note: Routine checks protect your investment and keep your community bright and safe.

You can put in street lamps safely if you follow each step. Always wear safety gear to protect yourself. Use your tools the right way every time. Check for underground utilities before you dig. This helps you avoid danger. Keep lamps working by doing regular checks and fixes. Good planning and new technology help save money and stop accidents. Projects in Kenya and Nigeria prove this works well.

Project Location	Key Results
Kenya	Power bills went down by 35%. Accidents dropped by 19%.
Nigeria	Diesel use fell by 25%. Night business grew by 18%.

Keep learning about the best ways to do the job. Ask experts for help if the work is hard.

FAQ

How do you choose the right street lamp for your area?

You look at the road type, how many people use it, and what color light fits best. LED lamps save energy and last longer. You check local rules before you buy.

What safety gear do you need for installation?

You wear a hard hat, safety glasses, insulated gloves, and steel-toed boots. Use a ladder or lift for tall poles. Keep a first aid kit nearby.

How often should you check street lamps after installation?

You inspect lamps every six months. Clean the surfaces, check wires, and look for damage. Replace broken parts quickly to keep the area safe.

What should you do before digging for lamp foundations?

You call 811 or your local utility locator. Mark all underground cables and pipes. Use a scanner to find danger zones. Never dig until you finish these checks.
