You can easily repair scratched poles on-site quickly and safely. Scratches and rust can weaken utility poles, leading to potential safety issues, so it’s important to address them promptly. By choosing to repair scratched poles instead of replacing them, you not only save money but also contribute positively to the environment. Check out the table below for some key benefits:
| Benefit | Description |
|---|---|
| Minimized Waste | Makes poles last longer, so less goes to landfills. |
| Conservation of Resources | Uses less new wood, saves forests, and lowers carbon footprint. |
Want more reasons to restore?
- Save trees and help forests stay healthy
- Use fewer chemicals and less fuel oil
- Lower your carbon footprint
- Put less waste in landfills
You will find easy steps and new materials that make it simple to repair scratched poles effectively.
Key Takeaways
- Check utility poles often to find scratches and rust. Finding problems early stops safety risks and expensive fixes.
- Get the surface ready before fixing it. Clean it, take off rust, and make sure it is dry. This helps repairs last longer.
- Pick the right things to fix the pole. Use good fillers and rust blockers that work with the pole’s material. This makes the repair work well.
- Write down what you fix and check. Keeping good records helps you plan for future work and follow safety rules.
- Put safety first when fixing poles. Always wear safety gear and follow safety rules to keep everyone safe.
Damage Assessment
You need to look at the pole before fixing it. Check the damage closely. This helps you find scratches and deeper problems. Some issues can make the pole weak or unsafe. Here are the steps you should follow.
Inspect Scratches and Rust
Look at the pole carefully. Search for scratches, rust, and other signs of wear. Some problems are easy to see. Others might be hidden. You may notice things like:
- Broken cross arms or attachments
- Broken bolts, screws, or insulators
- Broken anchors that hold the pole steady
- Natural problems like wood rot, decay, or cracks
Compare what you see with industry standards. These rules help you know how bad the damage is:
| Standard | Description |
|---|---|
| ASTM A 109-91 | Standard Specification for Steel, Strip, Carbon, Cold-Rolled |
| ASTM A 153-82 | Standard Specification for Zinc Coating (Hot-Dip) on Iron and Steel Hardware |
| ASTM D 610-85 | Standard Test Method for Evaluating Degree of Rusting on Painted Steel |
| ASTM D 1654-92 | Standard Test Method for Evaluation of Painted or Coated Specimens |
Check Structural Integrity
Make sure the pole is still strong. Use these tools and ways to find hidden problems:
| Tool/Technique | Description |
|---|---|
| Ground Penetrating Radar | Finds weak spots or decay inside the pole |
| Thermographic Imaging | Shows temperature changes that mean moisture or damage |
| Visual Inspection Techniques | Helps you see cracks, rot, or pest damage outside |
Secure Work Area
Safety is very important! Before repairs, set up your work area. This keeps everyone safe. Follow these rules:
| Regulation | Description |
|---|---|
| 1910.268(n)(4) | Tag unsafe poles and do not climb until safe |
| 1910.268(n)(5) | Test cable suspension strands before using |
| 1910.268(n)(7) | Use safety straps and belts on platforms unless there are railings |
| 1910.268(n)(10) | Stay away from power lines when using machines |
| 1926.964(a)(2) | Check if the pole can hold extra weight before climbing |
| 1926.964(d)(4) | Stop work in bad weather unless it is an emergency |
Remember your personal protective equipment (PPE)! You should wear:
- Hard hats
- Safety glasses or goggles
- Earplugs or earmuffs
- Hi-vis safety clothing
- Flame-resistant clothing
- Gloves for electrical work
- Safety boots
- Harnesses and lanyards for heights
- Masks or respirators for dust or chemicals
A good damage check keeps you safe. It helps you plan the best way to fix scratched poles.
Surface Preparation
Getting the surface ready is the most important step before you repair scratched poles. If you skip this part or rush through it, you might see problems later. Paint can peel off, rust can come back, or the pole can get weak. Let’s walk through each step so you get the best results.
Clean Affected Area
Start by cleaning the area around the scratch. You want to remove dirt, dust, and anything that might stop your repair from sticking. Use a wire brush or a scraper to get rid of loose debris. For tougher spots, grab some sandpaper. If you see oil or grease, use a mild detergent and water. Don’t forget to rinse and let it dry.
Here’s a quick look at the tools and materials you might need:
| Tools and Materials Needed for Surface Repairs |
|---|
| Sandpaper (various grits) |
| Putty knife or scraper |
| Wood filler or epoxy putty (for wood repairs) |
| Metal filler (for metal repairs) |
| Glass repair kit (for glass repairs) |
| Plastic filler (for plastic repairs) |
| Concrete repair kit (for concrete repairs) |
| Marble or granite repair kit (for stone repairs) |
| Paint and paintbrush (for surface finishing) |
Tip: Always use clean tools. Dirty brushes or reused rags can leave behind oil or salt, which makes repairs fail faster.
Remove Rust and Debris
Rust can ruin your hard work if you don’t get rid of it. Here’s a step-by-step way to tackle rust and debris:
- Scrub the area with a wire brush or sandpaper to remove loose rust and dirt.
- Use a commercial rust remover for stubborn spots.
- Apply a rust converter to neutralize any leftover rust.
- Smooth the surface with fine sandpaper.
- Wipe away dust with a clean cloth.
If you skip these steps, you might see paint blistering, peeling, or even more rust. That means you’ll have to repair scratched poles again much sooner.
Dry Surface
Before you move on, make sure the surface is dry. Water or moisture can mess up your repair. Use a clean towel or let the pole air dry. If you’re working in wet weather, wait for a dry day. Moisture can cause coatings to bubble or peel, so don’t rush this step.
Note: One common mistake is letting the surface sit too long after cleaning. Try to apply your repair materials soon after the surface dries to get the best bond.
Now you’re ready for the next step. Good surface preparation helps your repairs last longer and keeps the pole safe.

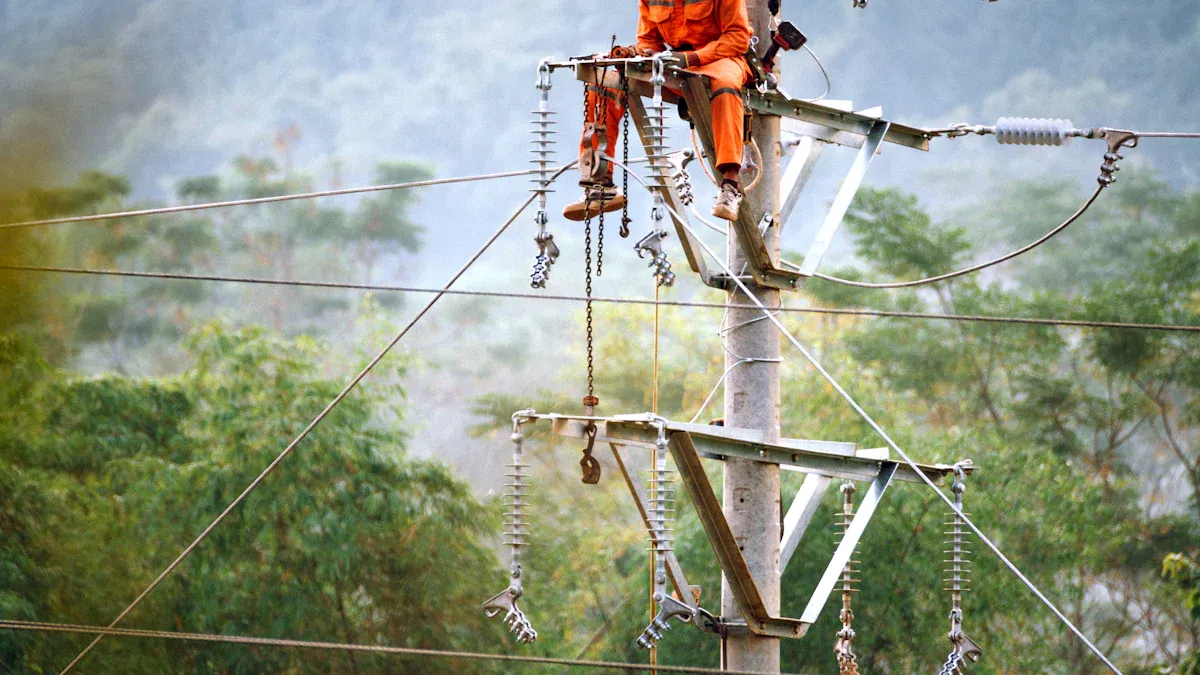

Repair Scratched Poles On-Site
Now the pole is clean and ready. You can start fixing the scratches. There are a few main steps to follow. These steps help make the repair strong and last a long time. You will use paint, stop rust, and fill deep scratches with new materials.
Apply Touch-Up Paint
Paint does more than make the pole look nice. It helps protect the pole from rain and sun. It also stops rust and decay. You need to pick the right paint for the pole. Here is a simple guide:
| Material | Suitable Paint Options |
|---|---|
| Wood | Acrylic, Latex |
| Metal | Rust-resistant, Enamel |
Follow these steps for painting:
- Sand the scratch with 320-grit sandpaper.
- Clean the area with a solvent and a rag.
- Put on the finish coat. Try to match the old paint.
Use a small brush for neat work. Brush gently into the scratch. Do not use too much paint.
- Ask your supplier which paint is best.
- Use the same paint as before for better protection.
- Check for shine differences between baked-on and air-dry paints.
If you use the right paint and steps, the pole will stand up to weather for years.
Use Rust Inhibitors
Rust can damage your repair, especially in wet places. You need a strong rust inhibitor for steel poles. Here are some good choices:
| Product Name | Description | Effectiveness in Humidity/Coastal Areas |
|---|---|---|
| Polesaver Rot-Guard™ | Eco-friendly barrier that protects steel utility poles from corrosion. | Reduces moisture and prevents corrosion, increasing lifespan and reducing maintenance costs. |
| Axxanol™ 34CD-HF | Solvent-based rust preventative coating that forms a light, oily film. | Provides powerful corrosion protection against salt air and humidity. |
| Axxanol™ A35-30 | Oil-based, non-staining rust preventative with excellent water-barrier properties. | Offers strong corrosion protection in aggressive environments like salt air and humidity. |
| Axxanol™ A35-8030 | Long-term rust preventative oil that forms a thin, oily film. | Effective against corrosion in high-humidity and coastal regions. |
Put on rust inhibitors after cleaning and before painting. This step helps the pole last longer, even in bad weather.
Fill and Seal Scratches
Deep scratches need more than paint. You need a filler or sealant that matches the pole’s material. Here are some good products:
| Product Name | Description |
|---|---|
| Polywater® UPR™ Wood Utility Pole Repair | Designed for repairing wood utility poles, effective for woodpecker damage and irregular cavities. |
| Polywater® UPR-PRKIT3 Utility Wood Pole Repair | Two-part formula that expands in the pole cavity for superior adhesion to wood. |
| Pecker Patch® | Polyurethane compound for repairing wood utility poles, focusing on ease of application and safety. |
Polyurethane products are easy to use. They work well for woodpecker holes and rot. These fillers dry hard and keep animals out. RSP™ is good for quick fixes. It works in bad weather and keeps the pole strong.
- Polyurethane fillers are easy and last a long time.
- They stand up to rain, sun, and cold better than old fillers.
- Heat sleeves like Polesaver keep wood poles dry and safe from fungi.
If you use new materials, you spend less money on repairs. The fix lasts longer. You can fix many poles for the price of one new pole. This means safer poles and fewer problems.
Tip: Always use the right filler for the pole. Wood needs wood fillers. Steel needs rust-resistant fillers. This keeps your repair safe and strong.
You now know how to fix scratched poles with paint, rust inhibitors, and fillers. These steps save money, help the environment, and keep poles working for many years.
Repair Inspection and Documentation
After you finish fixing the pole, you need to check your work. Good checks and notes help keep utility poles safe for a long time. Here is what you should do next.
Inspect Repair Quality
You want your repairs to last. Start by looking at the pole. Check for missed spots or new damage. Use a probe to test for weak places. Tap the pole and listen for hollow sounds. Hollow sounds can mean hidden problems. If needed, take a small core sample to look inside. Sometimes, you may need to scrape a bit more to see better.
Here’s a table to help you remember what to check:
| Criteria | Description |
|---|---|
| Structural Integrity | Check bolts, brackets, and attachments for rust or wear. Tighten anything loose. |
| Load-Bearing Capacity | Make sure the pole can hold all its equipment. Look for bending or warping. |
| Electrical System | Look for hazards or anything that could fail. Make sure everything meets safety standards. |
| Documentation | Write down what you see and any recommendations for future work. |
Tip: Bring the right tools for checking. You might need a flashlight, probe, and sound tester.
Ensure Safety Compliance
Safety is always first. Look for poles that lean or seem wobbly. Check all electrical parts for trouble. Make sure your repairs follow the National Electrical Safety Code and other rules.
| Safety Compliance Issue | Description |
|---|---|
| Structural Integrity Concerns | Watch for leaning or unstable poles, especially after storms. |
| Electrical Malfunctions | Check for fire hazards or risks of electric shock. |
| Regulatory Standards Adherence | Make sure your repairs meet all safety codes and regulations. |
Remember: If you find a problem, fix it now or mark the pole for later repair.
Record and Schedule Maintenance
Keep good records of your work. Write down what you did and what you found. Note the date you checked the pole. Use a checklist or an app to help. Good records help you plan future work and stop surprises.
| Documentation Practice | Description |
|---|---|
| Compliance Automation | Use tools that update records and remind you about rules. |
| Data Accuracy | Double-check your notes so you don’t miss anything important. |
| Reporting Efficiency | Make reports easy to read and share with your team. |
| Workflow Management | Set up a schedule for inspections and repairs. |
How often should you check poles? Here is a quick guide:
| Inspection Method | Recommended Inspection Cycle |
|---|---|
| Sound and Bore | Every 2-4 years |
| Partial Excavation and Treatment | Every 4-6 years |
| Full Inspection and Remedial Treatment | Every 8-12 years |
If you check poles often, you can fix scratches before they get worse.
You can keep utility poles safe and strong by following a few simple steps. Here’s a quick recap:
- Spot the damage, like scratches or holes from woodpeckers.
- Pick the right repair product, such as urethane-based fillers.
- Mix and apply the product so it fills the damaged area.
- Make sure the repair holds up and stops future problems.
Regular inspections and good materials help poles last longer. Check out this table:
| Why Inspect and Use Proper Materials? | What Happens? |
|---|---|
| Early checks catch weak spots | Poles stay safe and strong |
| Accurate records guide repairs | Fewer surprises and lower costs |
| Smart choices boost safety | Longer service life |
Keep good notes and schedule routine checks. You’ll prevent big issues and keep your team safe. 👍
FAQ
How often should you inspect utility poles for scratches?
You should check utility poles every year. If you live in a place with lots of storms or heavy traffic, inspect them more often. Regular checks help you catch problems early.
What tools do you need for on-site repairs?
You need sandpaper, wire brushes, rust remover, paint, and fillers. Safety gear like gloves and goggles keeps you safe. A checklist helps you remember each step.
Can you repair a pole during rainy weather?
It’s best to wait for dry weather. Wet surfaces make repairs fail. If you must work in rain, use quick-dry products and cover the area with a tarp.
What’s the fastest way to fix a deep scratch?
Use a polyurethane filler. Clean the scratch, apply the filler, and let it dry. Paint over it for extra protection. You can finish most repairs in under an hour.
