- The global market for Solar Street Lights continues to grow rapidly, with industry value projected to reach $22.5 billion by 2030.
- You see governments investing heavily in clean energy, offering financial support for solar lighting systems in both urban and rural areas.
- These lights operate reliably year-round, withstand harsh weather, and help reduce carbon emissions, making them ideal for sustainable infrastructure projects.
- Technological advancements, such as high-efficiency solar panels and smart controllers, improve performance and simplify installation, especially for lamp poles and fixtures.
Key Takeaways
- Integrated solar street lights offer quick installation and low maintenance, making them ideal for small projects and urban areas.
- Split solar street lights provide flexibility in component placement and higher efficiency, suitable for large-scale or complex installations.
- Consider your project’s size and location when choosing between integrated and split systems to ensure optimal performance and cost-effectiveness.
- Evaluate the total cost of ownership, including installation and maintenance, rather than just the initial purchase price.
- Assess environmental factors like sunlight exposure and weather conditions to select the best solar street light system for your needs.
Part1: Solar Street Lights Quick Comparison
1.1 Integrated vs Split: Summary Table

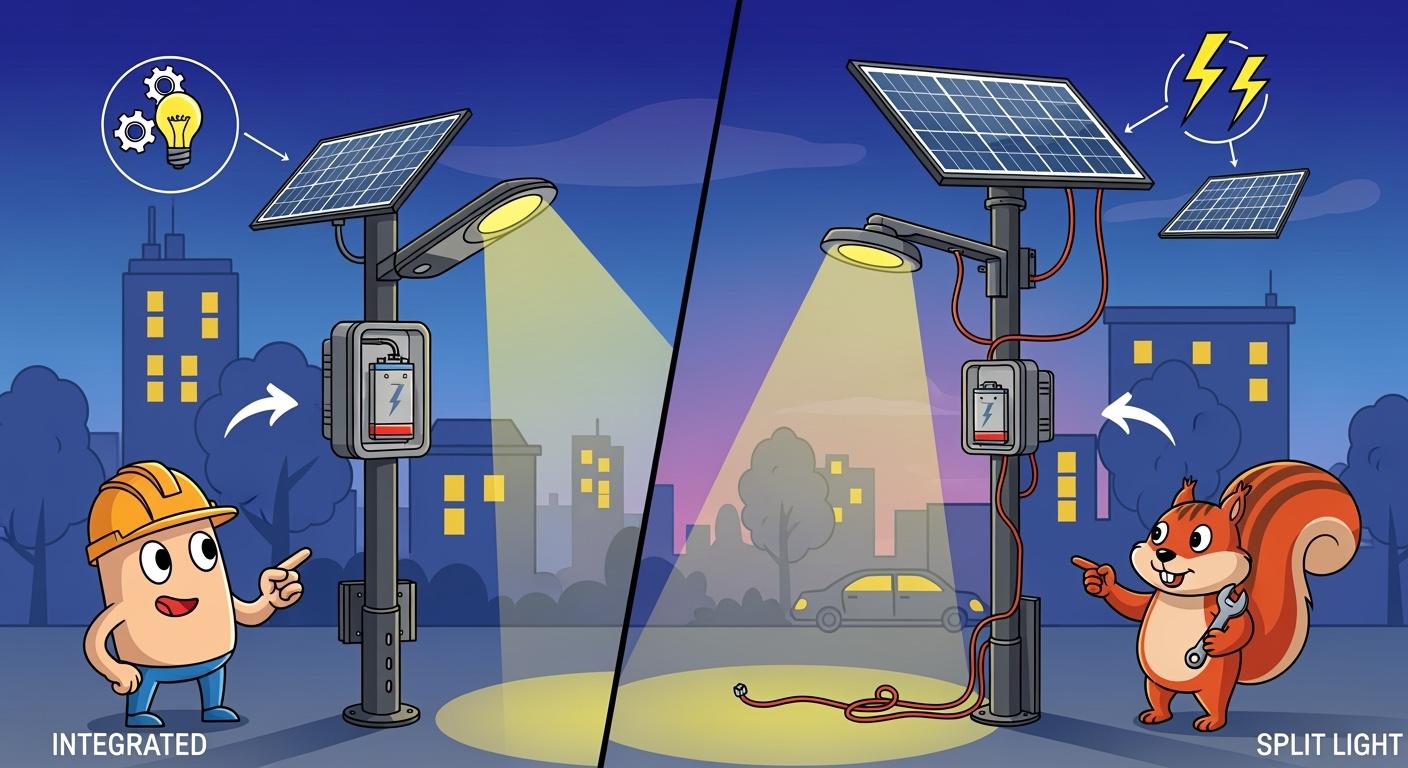

When you evaluate Solar Street Lights for your project, understanding the core differences between integrated and split designs helps you make informed decisions. The following table summarizes the most important technical and operational distinctions:
| Feature | Integrated Solar Street Lights | Split Solar Street Lights |
|---|---|---|
| Design and Structure | All components in a single, compact unit | Solar panel, battery, and light fixture separate |
| Installation | Fast, simple setup; fewer parts | More complex; requires precise panel placement |
| Maintenance | Minimal; enclosed design protects components | Easier to service; modular parts replaceable |
| Efficiency & Flexibility | Fixed panel angle limits energy capture | Adjustable panel increases solar absorption |
| Brightness & Runtime | 5,000–8,000 lumens; 6–8 hours in cloudy weather | 8,000–20,000+ lumens; 10–14 hours runtime |
| Durability & Environmental Resistance | Higher wind load risk; less heat dissipation | Better heat dissipation; longer battery life |
| Cost | Higher upfront cost | Lower initial cost; scalable for large projects |
Tip: For large-scale installations on highways or industrial parks, split solar street lights often deliver higher brightness and longer operational hours. You can adjust the solar panel angle for maximum energy absorption, which is especially useful when lamp poles face different directions.
Integrated solar street lights work best for projects where you need quick installation and minimal maintenance. Their compact design suits urban pathways or parking lots with standard pole fixtures. However, the fixed solar panel angle may limit energy efficiency, especially in areas with variable sunlight.
Split solar street lights offer greater flexibility for pole placement and orientation. You can achieve higher energy efficiency and longer lifespan due to better heat dissipation and modular components. This makes them ideal for demanding environments and projects that require scalable lighting solutions.
Part2: Integrated Solar Street Lights Overview
2.1 Structure and Features
You benefit from integrated solar street lights because they combine all essential components into a single, compact unit. This highly integrated all-in-one design reduces installation complexity and minimizes failure points. You find the following features valuable for your project:
- All-in-one design includes solar panel, battery, charge controller, and LED light fixture.
- Intelligent power management uses advanced controllers to optimize energy harvesting and automate operation.
- Durable construction withstands outdoor conditions with waterproof and corrosion-resistant materials.
- Sealed design protects against weather damage, though internal access can be challenging.
- LED technology delivers significant energy savings and reliable performance.
- Smart features such as motion sensors and remote monitoring enhance efficiency.
- Simplicity and aesthetics eliminate external wiring, creating a cleaner installation.
- Quick mounting on existing lamp poles reduces excavation and labor costs.
- Energy efficiency lowers reliance on grid electricity and reduces carbon emissions.
- Cost-effectiveness offers long-term savings in energy and maintenance.
You select integrated solar street lights when you need a reliable, low-maintenance solution for outdoor lighting. The sealed structure ensures minimal upkeep, and the advanced power management system maximizes performance in various weather conditions.
2.2 Applications for Poles and Fixtures
Integrated solar street lights adapt to a wide range of installation scenarios. You can mount them on standard lamp poles and fixtures, making them suitable for many environments. The table below shows how these lights fit different project needs:
| Installation Scenario | Benefits of Integrated Solar Street Lights |
|---|---|
| Urban | Eco-friendly lighting solutions, reduced energy bills |
| Industrial | Long-term investment with ROI under 7 years |
| Residential | Enhanced safety and security without grid connectivity |
| Campuses | Flexibility in installation and management options |
| Shopping Malls | Sustainable solutions for public and private spaces |
| Parks | Reliable lighting for safety and aesthetics |
You achieve efficient lighting for streets, parking lots, and pathways by choosing integrated solar street lights. Their compatibility with existing poles and fixtures streamlines installation and supports sustainable infrastructure goals.
Part3: Split Solar Street Lights Overview
3.1 Structure and Features
You gain significant flexibility when you choose split solar street lights for your project. This system separates the main components, which allows you to arrange each part based on the installation environment. The modular design supports a wide range of pole heights and fixture types, making it ideal for complex infrastructure needs.
Here is a table that outlines the core components and their functions:
| Component | Description |
|---|---|
| Solar Photovoltaic Panels | Capture solar energy for the system. |
| Lithium Iron Phosphate Batteries | Provide energy storage for the light. |
| Lighting Fixtures | The actual light source used in the street light. |
| Controllers | Regulate the operation of the solar street light based on energy availability. |
| Light Pole | Supports the structure and houses wiring and battery connections. |
You can adjust the solar panel angle to maximize sunlight capture, which is essential in regions with low winter sun or frequent cloudy weather. The batteries often sit underground or inside the pole, which protects them from temperature extremes and vandalism. The modular approach also means you can scale power capacity to meet higher lighting demands.
Key features include:
- Flexible arrangement of components for different site conditions.
- High adaptability to environmental factors such as sunlight angle and obstructions.
- Greater power capacity compared to integrated designs.
3.2 Applications for Poles and Fixtures
Split solar street lights adapt well to a variety of pole and fixture requirements. You can use them with poles ranging from 3 to 12 meters, which suits both small community streets and large outdoor plazas. The independent adjustment of each component allows you to optimize performance for each location.
The following table compares adaptability features:
| Feature | Split Solar Street Lights | Integrated Solar Street Lights |
|---|---|---|
| Flexibility | High | Low |
| Scalability | Yes | No |
| Independent Component Adjustment | Yes | No |
| Adaptability to Environment | Excellent | Limited |
You benefit from better photoelectric conversion and longer lighting durations, especially in challenging environments. The design supports projects that require custom pole heights, unique fixture types, or installations in areas with variable sunlight. This makes split solar street lights a preferred choice for large-scale infrastructure and municipal projects.
Part4: Integrated vs Split Solar Street Lights: Key Differences
4.1 Design and Integration
You need to understand how the design and integration of each system affect your project. Integrated solar street lights combine all components—solar panel, battery, controller, and LED fixture—into a single enclosure. This design creates a modern look and reduces wiring. Split solar street lights mount each component separately on the pole or nearby, which gives you more flexibility for large-scale projects.
Here is a comparison table to help you see the main differences:
| Feature | Integrated Solar Street Lights | Split Solar Street Lights |
|---|---|---|
| Shell Integration | All components in one enclosure | Components mounted separately |
| Wiring Requirements | Minimal wiring needed | Requires multiple cables for connections |
| Aesthetics | Cleaner, modern look | More traditional appearance |
| Project Suitability | Ideal for small to medium projects | Flexible for large-scale projects |
| Maintenance | Easier due to single unit design | Easier to replace individual components |
You will find that integrated designs work best for projects where you want a clean appearance and fast deployment. Split designs let you adjust each part for unique pole heights or fixture types, which is important for complex infrastructure.
4.2 Installation and Wind Resistance
Installation speed and wind resistance matter for your project timeline and safety. Integrated solar street lights mount directly to the pole with no extra cabling. You can finish installation in 30 to 60 minutes per unit. Split solar street lights require more steps, such as mounting the panel bracket, battery box, and running cables. This process takes 2 to 4 hours per unit.
The following table highlights these differences:
| Feature | Integrated Solar Street Light | Split Solar Street Light |
|---|---|---|
| Installation | Simple – single pole mount, no cabling | Complex – panel bracket + battery box + cabling |
| Installation Time | 30–60 minutes per unit | 2–4 hours per unit |
| Wind Resistance | Excellent – low-profile, IK10 rated models available | Panel adds wind load; requires engineering check |
You benefit from the low-profile design of integrated units, which improves wind resistance. This is important for tall poles or open areas. Split systems add wind load because the solar panel sits above the fixture. You may need an engineering check for pole strength, especially in windy regions.
Tip: For projects in coastal or high-wind zones, consider wind resistance ratings when selecting your lighting system.
4.3 Maintenance and Serviceability
You want a system that is easy to maintain and service. Integrated solar street lights have a sealed design, which protects components but makes internal repairs more difficult. You may need to replace the entire unit if a major part fails. Split solar street lights use a modular approach. You can replace the battery, panel, or fixture separately, which reduces downtime and service costs.
- Integrated: Quick visual checks, but full replacement needed for major issues.
- Split: Replace individual components, which is ideal for large installations with many poles.
You should consider your maintenance team’s skills and the availability of spare parts. For B2B clients managing hundreds of poles, the ability to swap out parts quickly can save time and money.
4.4 Efficiency and Heat Dissipation
Efficiency and heat management affect the lifespan and performance of your lighting system. Integrated solar street lights have a fixed panel angle, which may limit energy capture if the pole does not face the sun directly. Split solar street lights let you adjust the panel angle for maximum sunlight, which increases efficiency.
Heat dissipation is also better in split systems. The separate mounting allows air to flow around each component, which helps batteries and electronics last longer. Integrated units may trap heat, especially in hot climates, which can shorten battery life.
Note: For projects in regions with high temperatures or variable sunlight, split systems offer better energy performance and longer service life.
4.5 Cost and Budget
Cost plays a major role in your project planning. Integrated solar street lights usually cost less per unit and require less labor for installation. You can expect to pay $100–$500 per integrated unit, with installation costs between $50–$300. Split systems range from $300–$1,000 per unit, plus extra costs for mounting hardware and smart features.
Here is a cost comparison table:
| Cost Factor | Integrated Solar Street Lamps | Split-Type Solar Street Lamps |
|---|---|---|
| Initial Cost | $100 – $500 | $300 – $1,000 |
| Maintenance Costs | $50 – $300 (every 5-7 years) | $50 – $300 (every 5-7 years) |
| Installation Costs | $50 – $300 | $50 – $300 |
| Battery Replacement Cost | $50 – $300 | $50 – $300 |
| Pole and Mounting Hardware | N/A | $120 – $420 |
| Smart Features Cost Increase | N/A | 10-20% increase |
You save 15–25% on unit cost with integrated systems compared to split types. Installation takes half the time and does not require specialized skills. On a 100-unit project, you can save 20–30% on total installed cost with integrated models. Over 10 years, integrated systems have a lower total cost of ownership for standard street lighting (12–40W). Split systems become more cost-effective for high-power applications above 60W.
Alert: For large-scale municipal or industrial projects, calculate the total cost of ownership, not just the initial price. Factor in installation, maintenance, and replacement costs for all poles and fixtures.
You need to match your project’s size, location, and technical requirements with the right system. Integrated solar street lights offer speed, simplicity, and lower costs for standard applications. Split solar street lights provide flexibility, higher efficiency, and easier maintenance for complex or large-scale projects. Your choice will impact installation time, long-term service, and overall budget.
Part5: Pros and Cons of Each Type
5.1 Integrated Solar Street Lights: Advantages
You gain several advantages when you choose integrated solar street lights for your project. The following table summarizes the main benefits:
| Advantage | Description |
|---|---|
| Energy Efficiency | Powered by renewable solar energy, eliminating the need for grid electricity. |
| Cost Savings | No ongoing electricity costs and lower maintenance due to durable design. |
| Independence and Reliability | Operates independently of the grid, ensuring functionality during outages. |
| Easy Installation and Flexibility | Minimal wiring required, suitable for various locations, and easy to relocate. |
| Environmental Benefits | Reduces carbon emissions and dependence on fossil fuels. |
You also benefit from consistent and reliable lighting. This improves visibility on roads and walkways, which enhances safety for both vehicles and pedestrians. Integrated solar street lights continue to operate during power outages, supporting emergency response and public safety.
5.2 Integrated Solar Street Lights: Disadvantages
You should consider some limitations before selecting integrated solar street lights. The table below outlines common disadvantages:
| Disadvantage | Description |
|---|---|
| Elevated Upfront Capital Cost | Initial costs are higher than traditional lighting due to advanced components. |
| Variability of Solar Irradiance | Performance drops in areas with low sunlight or frequent cloudy weather. |
| Restriction of Battery Reserve Capacity | Limited battery size can reduce lighting hours after poor solar capture. |
| Vulnerability to Inclement Weather | Extreme weather can affect durability and function over time. |
| Exposure to Theft and Vandalism | Valuable components may attract theft or vandalism. |
| Required Upkeep of Energy Storage and Surfaces | Regular cleaning and battery checks are necessary for best performance. |
| Diminished Harvesting in Shadowed Areas | Shade from buildings or trees can lower energy collection. |
| Output Brightness Lower than Mains-Powered Lights | May not match the brightness of traditional electric lights in high-visibility zones. |
Tip: You should assess the installation site for sunlight exposure and security risks before choosing integrated models.
5.3 Split Solar Street Lights: Advantages
Split solar street lights offer unique strengths for large-scale or complex projects. The table below highlights their main advantages:
| Advantage | Description |
|---|---|
| Flexibility in Component Placement | Place solar panels in sunny spots and batteries in shaded areas. |
| Ease of Maintenance | Replace individual parts, reducing downtime and costs. |
| Scalability and Upgradability | Add or upgrade components without replacing the entire system. |
| Heat Management | Separate components improve battery temperature control and efficiency. |
You can adjust each part to fit different pole heights and fixture types. This flexibility supports custom lighting layouts for highways, industrial parks, or municipal streets.
5.4 Split Solar Street Lights: Disadvantages
You may face some challenges with split solar street lights. The following table compares key drawbacks:
| Aspect | Split Solar Street Lights | Integrated Solar Street Lights |
|---|---|---|
| Cost | 40-60% more expensive than integrated options | Less expensive |
| Installation | Requires digging pits for pole foundation and battery box, multiple steps | Simple installation in three steps |
| Maintenance | Needs technical personnel for repairs, can be time-consuming and costly | Easier maintenance by sending unit to factory |
You should plan for higher installation costs and longer setup times. Maintenance may require skilled technicians, especially for large pole networks.
Note: For projects with limited technical staff or tight budgets, integrated models may offer a simpler solution.
Part6: Choosing the Right Solar Street Lights for Your Project
6.1 Project Size and Scope
You need to match the lighting solution to your project’s size and operational needs. For smaller municipal installations, integrated solar street lights offer quick setup and minimal maintenance. You can finish installation rapidly and reduce labor costs. Larger projects, such as industrial parks or city-wide upgrades, require higher power and longer autonomy. Split solar street lights serve these needs better, allowing you to scale up brightness and runtime.
Project managers and city planners must balance installation speed, maintenance resources, and site requirements. The growing market for solar lighting pushes you to evaluate these factors carefully.
6.2 Location and Environmental Factors
You must consider local climate and weather when selecting a system. Both integrated and split designs withstand storms and harsh conditions. Solar panels capture energy even during cloudy or rainy days, though efficiency drops. Modern systems use high-efficiency panels and batteries sized for multiple nights without sunlight. Intelligent controllers optimize battery use, ensuring reliable lighting.
- Solar panels work in diffused light.
- Batteries support operation during poor weather.
- Systems adapt to local climate for best performance.
You should assess sunlight exposure and environmental risks for each pole location.
6.3 Budget and Maintenance
Budget and maintenance capacity shape your choice. Integrated solar street lights require higher upfront investment but lower long-term maintenance. Split systems cost less initially but need more frequent servicing. If your project has limited funds and less focus on aesthetics, split models may fit better. For long-term infrastructure, integrated lights deliver better cost efficiency.
- Integrated: Higher initial cost, lower maintenance.
- Split: Lower initial cost, higher maintenance.
You must plan for maintenance staff and spare parts, especially for large pole networks.
6.4 Other Considerations for Poles and Fixtures
You need to evaluate pole and fixture requirements. Structural support is crucial for both LED lights and solar panels. Materials like galvanized steel or aluminum resist corrosion and provide strength. Pole height ranges from 4 to 12 meters, with mounting options for solar panels. Features such as motion sensors and remote monitoring improve adaptability. Secure base construction ensures stability in all environments.
| Consideration | Description |
|---|---|
| Structural Support | Poles must support LED lights and solar panels for optimal performance. |
| Materials Used | Galvanized steel or aluminum offer strength and corrosion resistance. |
| Height Options | Adjustable pole heights (4-12 meters) suit different project needs. |
| Additional Features | Motion sensors and remote monitoring enhance functionality. |
| Base Construction | Secure attachment to ground withstands environmental factors. |
| Urban vs. Rural | Urban poles may include security cameras; rural poles focus on easy setup. |
Semi-integrated solar street lights combine features of both types. You assemble the solar panel and battery separately, which offers flexibility and easier maintenance than split systems. Installation is more complex than integrated models but less demanding than split designs.
You should review criteria such as solar panel output, battery capacity, LED brightness, smart controls, durability, and climate compatibility. This ensures your lighting system meets project goals and supports sustainable infrastructure.
You see rapid growth in the solar street light market, driven by advances in LED technology and government support. Projects using integrated or split models deliver cost savings, lower maintenance, and longer lifespans for lamp poles and fixtures.
| Benefit | Description |
|---|---|
| Cost Savings | No monthly electricity bills, lower repair costs. |
| Maintenance | Less upkeep with integrated designs. |
| Lifespan | Longer LED and battery life. |
| Installation Cost | Up to 50% reduction. |
- Solar street lights install quickly and reduce maintenance costs by 30%.
- You gain reliable lighting and sustainable infrastructure for business projects.
FAQ
What is the main difference between integrated and split solar street lights?
You see integrated solar street lights combine all components in one unit. Split solar street lights separate the solar panel, battery, and fixture. This affects installation, maintenance, and flexibility for your lamp pole projects.
Can you upgrade the brightness or battery capacity later?
You can upgrade split solar street lights easily. Replace or add components as your project grows. Integrated models offer less flexibility, so you may need to replace the entire unit for major upgrades.
How do you choose the right pole height for solar street lights?
You should match pole height to the area’s lighting needs. For wide roads or industrial parks, use taller poles (8–12 meters). For pathways or parking lots, shorter poles (4–6 meters) work best. Always check fixture and panel weight limits.
Are solar street lights reliable during cloudy or rainy weather?
You benefit from advanced batteries and smart controllers. These features store extra energy and manage output. Your lights will operate for several days without sunlight, ensuring consistent performance for your business or municipal project.
What maintenance do solar street lights require?
You need to clean solar panels and check fixtures regularly. For split systems, inspect wiring and battery boxes. Integrated units require less frequent checks. Schedule routine maintenance to maximize lifespan and reliability for your lamp pole network.
