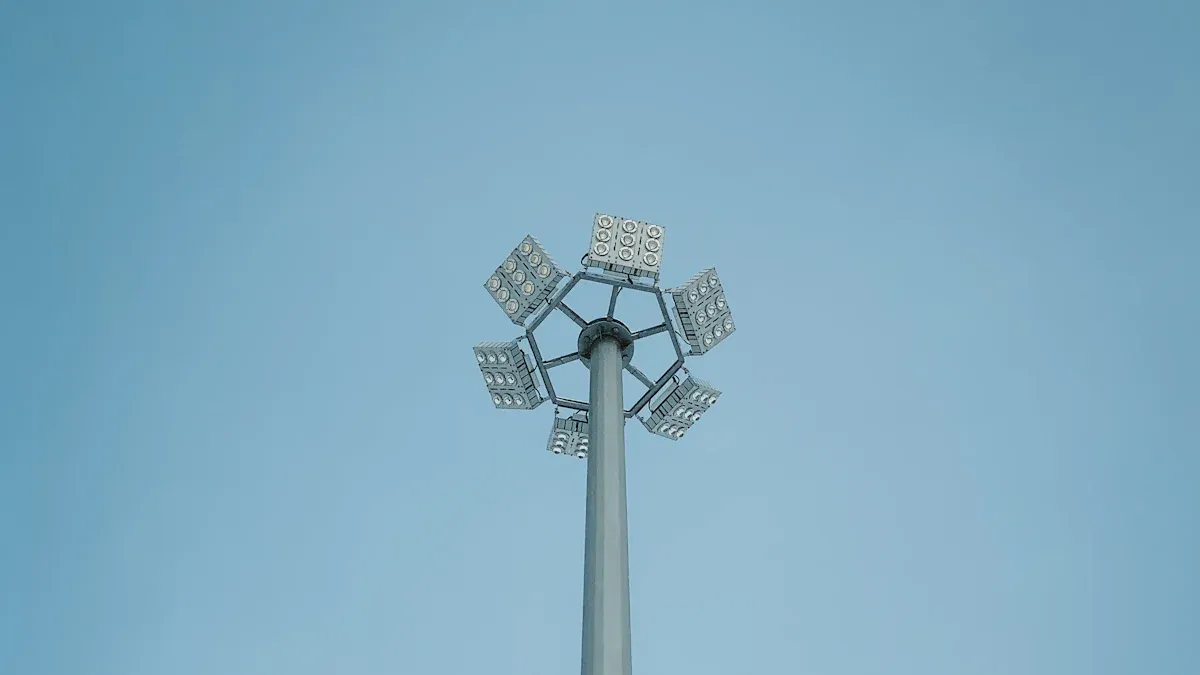

Imagine a strong wind blowing through your street. Light poles can bend, shake, or fall if they are not built for strong winds. You should know how wind load affects the safety of light poles. Engineers use wind speed ratings and EPA to test each pole’s strength. The table below shows how these things help keep poles safe:
| Factor | Description |
|---|---|
| EPA Calculation | Total EPA adds up the EPA of lights, brackets, and other parts for all pieces. |
| Wind Speed Impact | Higher wind speeds need a lower EPA, so smaller lights and parts are used. |
| Vibration Types | Sudden winds cause first-mode vibrations. Steady winds can make Aeolian vibrations. |
- Effective Projected Area helps you see how wind pushes on poles.
- You find EPA by using the drag coefficient and the area facing the wind.
Key Takeaways
- Learn about wind load to keep light poles safe in storms. Wind load is the push from wind on the poles.
- Figure out the Effective Projected Area (EPA) to see how much of the pole faces the wind. If the EPA is higher, the wind pushes harder.
- Pick light poles that match your area’s wind speed ratings. Make sure the poles can handle the wind where you live.
- Do static load tests to check how strong the light poles are. These tests help find weak spots before you put the poles up.
- Follow local rules and safety standards when you install the poles. Good installation stops problems and keeps the poles steady.
Wind Load Basics
What Is Wind Load
You may wonder what wind load means for light poles. Wind load is the force that wind applies to a structure, like a light pole, when wind blows against it. You need to know this force to keep poles safe and standing.
- The pole wind load calculator helps you figure out how much force the wind puts on a pole.
- You use the Effective Projected Area (EPA) to measure how much of the pole and its fixtures face the wind.
- Wind load helps you decide if a pole will stay strong during storms or high winds.
Wind Load Rating
You see wind load rating listed on pole specifications. This rating tells you the highest wind speed a pole can handle before it gets damaged.
- Wind load rating depends on EPA, which combines the size and shape of the pole and its fixtures.
- You calculate EPA by multiplying the area facing the wind by the drag factor.
- Manufacturers give you EPA ratings so you can pick the right pole for your area.
- Local wind speeds and past wind pressure records help set the maximum loading for each pole.
- The drag coefficient changes with the shape of the fixture, which affects wind resistance.
| Factor | Description |
|---|---|
| EPA | Area facing wind × drag factor |
| Wind Speed Rating | Maximum wind speed pole can withstand |
| Manufacturer EPA | Provided for safe pole selection |
Why Wind Load Matters
You must pay attention to wind load when you choose and install light poles. If you ignore wind load, you risk damage and safety problems.
- The August 2020 Midwest Derecho showed how buildings and poles not designed for high wind loads suffered major damage.
- One building lost its non-engineered section, but the engineered part stayed safe.
- Proper wind load design keeps poles standing and protects people and property.
Tip: Always check wind load ratings and EPA before you install a light pole. This step helps you avoid costly repairs and keeps your project safe.
Wind Load Calculation
Effective Projected Area (EPA)
You need to know how much of your light pole and its fixtures face the wind. This measurement is called the Effective Projected Area, or EPA. You can find EPA by looking at the shadow or outline of each part when wind hits it. You measure the area in square feet or square meters. The drag coefficient tells you how much air pushes against each shape. You also use a gust factor to account for strong wind bursts.
| Component | Description |
|---|---|
| Projected Area | The silhouette or shadow of the fixture when viewed from the wind direction, measured in sq. ft. or sq. m. |

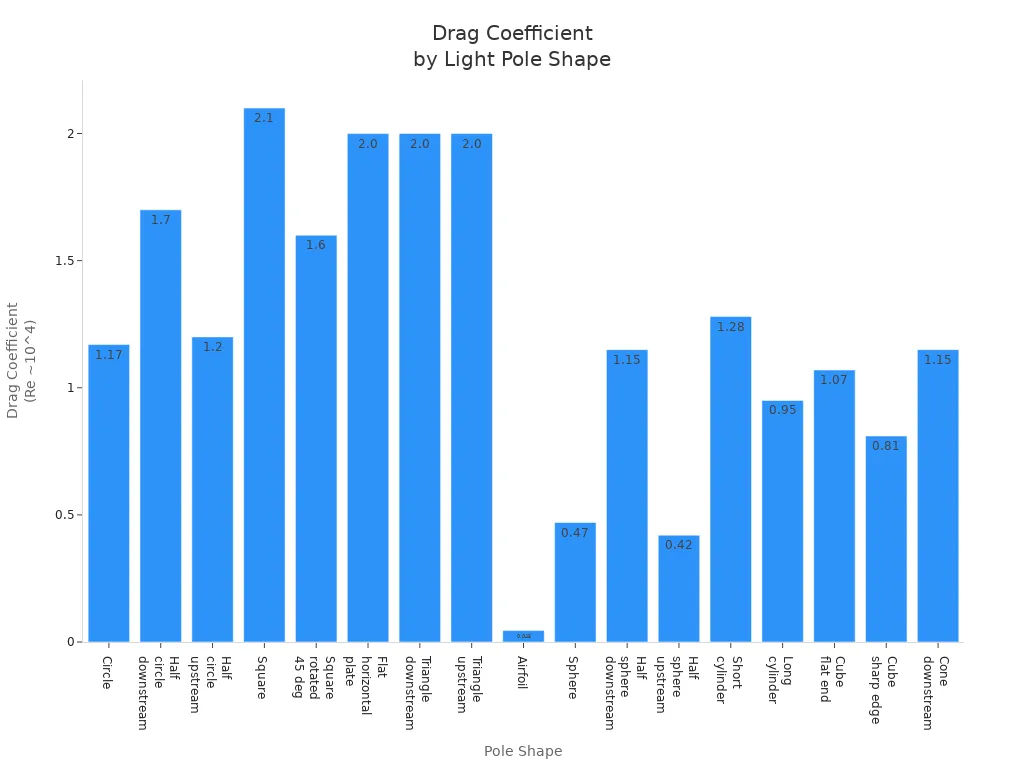

| Drag Coefficient (Cd) | A dimensionless number quantifying the drag of an object in air, varying based on shape and properties. |
| Gust Factor | A dimensionless number accounting for increased wind pressure due to gusting conditions, provided in codes. |
To calculate EPA for your light pole:
- Measure the projected area of each fixture and attachment.
- Find the drag coefficient for each part. Manufacturers or engineering tables provide these values.
- Check the gust factor in your local building codes.
- Multiply the projected area by the drag coefficient and gust factor for each component.
- Add up the EPA values for all fixtures to get the total EPA for your pole.
Tip: Always combine the EPA for every light, bracket, and sign attached to your pole. This total helps you size your pole for safety.
Wind Load Formula
You use a wind load formula to figure out how much force the wind puts on your light pole. Different standards use different formulas. Here are two common ones:
| Standard | Wind Load Formula |
|---|---|
| AASHTO | (½ x circumference x wind pressure) x (pole height^2)/2 |
| NESC | Wind pressure x (Pole Height^2) x ((Diameter @ ground + 2x diameter @ top)/72) x overload capacity factor |
You need to know the wind pressure, which depends on local wind speed. You also use the pole’s height and diameter. The overload capacity factor helps you account for extra safety. The drag coefficient changes with the shape of your pole and fixtures. For example, a circle has a drag coefficient of 1.17, while a square has 2.1. Streamlined shapes like airfoils have much lower drag.
Note: The drag coefficient affects how much wind force your pole must resist. Round poles handle wind better than flat or square ones.
Sizing for Wind Speed
You must size your light pole for the wind speed in your area. Wind speed ratings tell you how strong the wind can get. Inland regions usually need poles rated for 90-110 mph. Coastal areas need stronger poles, rated for 120-140 mph. Hurricane-prone zones require ratings above 140 mph.
| Region Type | Wind Speed Rating (mph) | Description |
|---|---|---|
| Inland | 90-110 | Standard rating for inland areas. |
| Moderate Coastal | 120-140 | Reinforced structures for moderate exposure. |
| Hurricane-Prone | 140+ | Required for areas prone to hurricanes. |
You must also think about dynamic and static loads. Static loads come from steady winds. Dynamic loads happen during gusts or storms. High wind speeds can cause your pole to fail if you do not size it correctly. EPA plays a big role in this process. If you live in a coastal state, you need corrosion-resistant materials and strong anchors. Mountainous areas need reinforced poles for snow and rocky ground. Plains states need stable soil and deep anchors.
Alert: Always check your local climate and wind speed records before choosing a light pole. Proper sizing keeps your pole safe and standing for years.
Strength Testing Standards
Static Load Test
You need to know how strong a light pole is before you install it. Engineers use static load tests to check this strength. In a static load test, you apply a steady and controlled force to the pole. The load stays constant for about 10 minutes. During this time, you watch for any bending, stress, or permanent changes in the pole. This test helps you see if the pole can handle real-life conditions like wind, rain, or snow. Static load testing gives you confidence that your pole will not fail when the weather gets rough.
Tip: Always use static load tests to check for hidden weaknesses in new or repaired poles.
Compliance Requirements
You must follow strict rules when you install light poles outdoors. These rules come from national and international standards. One important standard is ANSI C136.36C. This standard gives you clear instructions for building and testing steel poles used for street and area lighting.
| Standard | Description |
|---|---|
| ANSI C136.36C | Provides construction and performance guidance for steel poles used in roadway and area lighting applications, relevant to structural strength testing. |
To meet compliance, you should:
- Get all the needed permits before starting your project.
- Follow local building codes and zoning laws.
- Check for underground utilities before digging.
- Hire licensed contractors for installation.
- Schedule inspections to make sure your work meets safety standards.
Engineers also use wind tunnel tests to see how poles react to different wind speeds. They calculate wind load using math formulas. These formulas use the shape, size, and height of the pole, as well as the wind speed and the land around it. By following these steps, you make sure your pole will stand strong and safe.
Note: New technology like ultrasonic testing lets you find hidden cracks or weak spots inside the pole. Some companies even use drones or robots to do these tests faster and safer. Data analytics and machine learning help predict when a pole might need repairs.
Interpreting Results
After you finish a static load test, you need to look at the results carefully. Two key numbers help you decide if your pole is safe:
| Metric | Description |
|---|---|
| Loading Capacity Ratio | The ratio of the applied load to the pole strength for specific load cases. |
| Utilization Percentage | Shows if a pole meets the National Electric Safety Code (NESC) requirements. |
If the loading capacity ratio is too high, your pole may not be safe. The utilization percentage tells you if your pole passes or fails the safety code. You want both numbers to stay within safe limits. If they do not, you must choose a stronger pole or change your design.
Alert: Always review test results with a qualified engineer. This step helps you avoid costly mistakes and keeps your project safe.
Application and Assessment
Pole Selection
You must choose the right light pole for your project. Start by checking the wind speed rating for your area. Engineers use wind tunnel tests and formulas to measure how much force a pole can handle. They look at the Effective Projected Area, wind speed, and pole size. The maximum wind speed rating comes from tests that show how much the pole bends or stretches. These results help you pick a model that will stay strong in your location.
- Wind speed ratings come from tests that simulate real wind conditions.
- Engineers use formulas to make sure the pole can handle expected forces.
- You select a pole model based on how much it bends and the stress it can take.
Tip: Always match the pole’s rating to your local weather. This step keeps your project safe.
Installation Practices
You need to follow good installation practices to keep your light pole secure. Begin by checking local rules for pole placement and fixture height. Use the right foundation for your site. Soil compaction works for homes, while concrete is better for businesses. Make sure your pole can handle more than the expected wind load. For direct burial, check the soil and adjust the pole length. For anchor systems, place bolts exactly where needed.
- Research local regulations before you start.
- Choose the right foundation for your site.
- Make sure your pole exceeds wind load needs.
- Adjust pole length for soil type.
- Position bolts carefully for anchor systems.
Note: Good installation prevents problems like cracked lamps or pole failure.
Project Verification
You must check that your installed pole meets all safety standards. Always specify wind resistance that is 15-20% higher than the local maximum. Use structural analysis software or ask an engineer to confirm your pole’s specs. Calculate wind loads using pole height, surface area, and local wind speed. Regular checks help you spot damage early and keep your pole working for years.
| Tool Name | Description |
|---|---|
| Wind Load Calculator | Helps you check if your pole meets safety rules. |
| Wind Tunnel Testing | Shows how your pole reacts to strong winds. |
| ASCE 7 Wind Load Analysis Guide | Helps you figure out wind forces for safe design. |
Callout: Regular assessments reveal damage from wind and help your pole last longer. Over time, wind can cause small cracks or bending. Checking your pole often helps you fix problems before they get worse.
You help make sure light poles are safe. Wind load tests show how much wind pushes on a pole. Structural strength tests find weak spots before they cause trouble. If you follow local rules and check EPA ratings, your project stays safe.
You need to look at your city’s rules. Check your site before you start. Use trusted companies like United Lighting Standards or WindLoad.Solutions for help. Regular checks and expert advice keep your light poles strong for a long time.
FAQ
What is EPA and why does it matter for light poles?
EPA stands for Effective Projected Area. You use EPA to measure how much of your pole and fixtures face the wind. A higher EPA means more wind force. You need to know EPA to choose a safe pole.
How do you calculate wind load on a light pole?
You multiply the EPA by the wind pressure and the drag coefficient. This gives you the total wind force. You use this number to check if your pole can handle strong winds.
Why do you need to test light poles for strength?
You test light poles to make sure they will not bend or break in strong winds. Testing helps you find weak spots before you install the pole. This keeps people and property safe.
How often should you check your light poles?
You should check your light poles at least once a year. Look for cracks, rust, or bending. Regular checks help you find problems early and keep your poles strong.
