Effective outdoor lighting improves safety, visibility, and operational efficiency across logistics warehouses, loading bays, truck yards, and distribution centers. These facilities operate around large vehicles, loading equipment, pedestrians, and time-sensitive workflows, so each functional zone requires a lighting design matched to its specific risks and activities.
Access roads and internal traffic lanes may use LED street lights, while loading aprons, trailer parking areas, and large open yards may require floodlights or high mast lighting systems. Pole locations, mounting heights, optics, and controls should be coordinated with vehicle routes, loading equipment, CCTV coverage, and future site expansion.
| Benefit | Description |
|---|---|
| Energy Savings | LED lighting reduces energy consumption significantly over traditional systems. |
| Cost Reduction | Lower energy use cuts utility bills. |
| Improved Lighting Quality | Modern lighting delivers better color rendering and consistent illumination. |
| Longer Lifespan | Energy-efficient options last longer, reducing maintenance costs. |
| Estimated Energy Savings | U.S. DOE estimates LED lighting could save 569 TWh annually by 2035. |
| Business Bill Reduction | Businesses may see energy bill reductions of 30-50% or more. |
Lighting performance and potential savings depend on the existing system, operating hours, selected luminaires, control strategy, and local energy costs. Project teams should therefore use photometric calculations and lifecycle cost analysis instead of relying on general percentage claims.
A coordinated solution combining durable street light poles, efficient LED luminaires, appropriate optics, and smart controls helps logistics operators meet safety requirements while controlling long-term energy and maintenance costs.
Key Takeaways
- Effective lighting design enhances safety and productivity in warehouses, reducing workplace injuries and errors.
- LED lighting offers significant energy savings and longer lifespans, leading to lower maintenance costs and reduced utility bills.
- Proper illuminance levels are crucial for different warehouse zones, ensuring safety and efficiency during operations.
- Integrating smart controls and sensors can optimize energy use, further lowering operational costs in loading dock areas.
- Compliance with lighting standards is essential for safety and efficiency, ensuring all areas meet required illuminance levels.

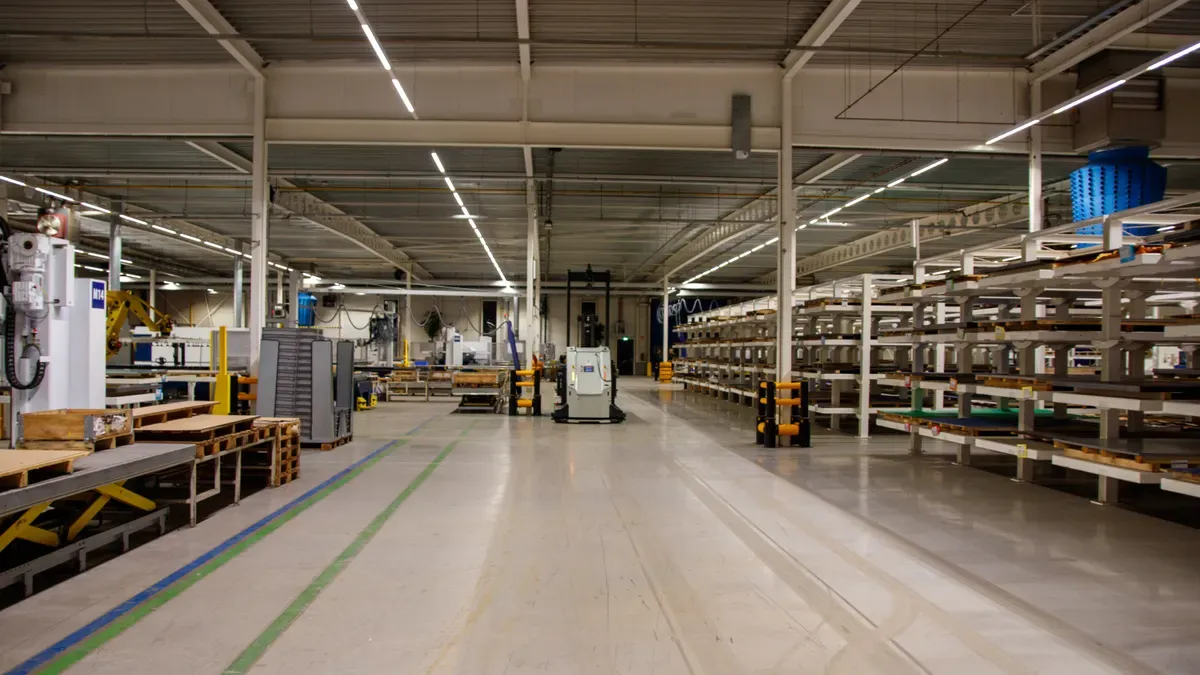

Part1: Application Zones and Lighting Needs
1.1 Warehouse Areas and Lighting
You must approach lighting for each warehouse zone with careful planning. Every area supports different operations, so you need to match lighting levels to the specific tasks. For example, general storage, picking, packing, and receiving all require different lux levels and uniformity ratios. The following table summarizes industry standards for warehouse lighting:

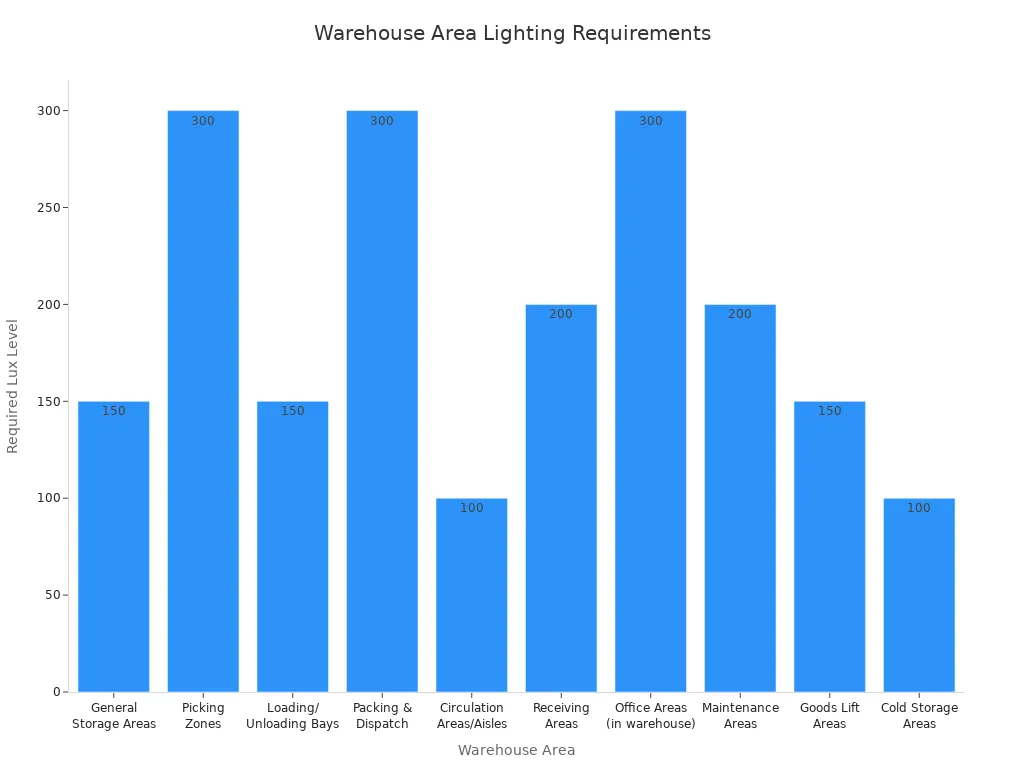

| Warehouse Area/Operation | Required Lux Level | Standard Reference | Application Notes | Uniformity Ratio |
|---|---|---|---|---|
| General Storage Areas | 150 lux | BS EN 12464-1:2021 | Bulk storage, racking areas, automated systems | ≥ 0.4 |
| Picking Zones | 300 lux | BS EN 12464-1:2021 | Order picking, barcode scanning, quality control | ≥ 0.6 |
| Loading/Unloading Bays | 150 lux | BS EN 12464-1:2021 | Vehicle loading, goods handling, dock operations | ≥ 0.4 |
| Packing & Dispatch | 300 lux | BS EN 12464-1:2021 | Packing operations, labelling, dispatch prep | ≥ 0.6 |
| Circulation Areas/Aisles | 100 lux | BS EN 12464-1:2021 | Walkways, forklift routes, main circulation | ≥ 0.4 |
| Receiving Areas | 200 lux | BS EN 12464-1:2021 | Goods inward, inspection, documentation | ≥ 0.5 |
| Office Areas (in warehouse) | 300 lux | BS EN 12464-1:2021 | Supervisory offices, control rooms | ≥ 0.7 |
| Maintenance Areas | 200 lux | BS EN 12464-1:2021 | Equipment maintenance, repair workshops | ≥ 0.5 |
| Goods Lift Areas | 150 lux | BS EN 12464-1:2021 | Lift lobbies, vertical transport areas | ≥ 0.4 |
| Cold Storage Areas | 100 lux | BS EN 12464-1:2021 | Refrigerated storage, frozen goods areas | ≥ 0.4 |
You improve safety and efficiency by providing the right lighting for each warehouse loading dock area. Proper lighting reduces the risk of trips and falls, supports clear visibility, and helps workers identify obstacles during loading and unloading operations. You must plan for both daylight and nighttime conditions to maintain consistent lighting dock performance.
1.2 Loading Docks and Safety
You face unique safety challenges at every loading dock. Dim or uneven lighting increases the risk of slips, falls, and damaged goods. Low visibility leads to collisions, missed steps, and operator error. Common hazards include dim dock interiors, poorly marked dock edges, and shadowed trailer interiors. You can address these risks by installing dock lighting systems, using high-visibility markings, and maintaining all lighting dock equipment.
- Adequate lighting dock design reduces accidents during loading and unloading.
- Full-time communication systems and forklift light systems enhance safety features.
- Light communication systems use red and green signals to guide loading dock operations and prevent accidents.
You must prioritize loading dock safety and integrate safety features into every loading dock area. This approach supports efficient loading and unloading operations and improves overall warehouse loading dock safety.
1.3 Logistics Yards and Security
You must address security risks in logistics yards through effective lighting planning. Poorly lit areas provide cover for unauthorized access and theft. Strategic lighting layout exposes potential threats and deters criminal activity. The table below highlights how lighting design improves security:
| Risk | Solution |
|---|---|
| Poorly lit or shadowy areas provide criminals with the perfect cover to move around without raising suspicion. | Strong consideration should be given to the layout and design of lighting fixtures in the immediate area of the warehouse. Effective lighting acts as a strong deterrent to opportunistic criminals because they are forced out into full view. |
Studies show that higher street light density reduces crime victimization and improves safety perception. For example, temporary streetlights can reduce nighttime outdoor crime by up to 36%. You enhance logistics yard safety and protect assets by planning lighting for all loading and unloading zones.
1.4 Integration with Traffic Facilities
Driving in tunnel areas depends more heavily on light conditions than that on open roadways. Traditional lighting systems in highway tunnels adjust lighting parameters only caring about outside light luminance, and focus is usually on energy conservation; however, little concern is about drivers’ actual physical and psychological needs. An intelligent lighting control system designed with multiple influence factors are systematically considered. This system helps a lot with optimizing tunnel lighting quality and improving drivers’ visual performance; as a result, it contributes to lower the fluctuation of drivers’ workload and get a smooth traffic flow, and ultimately this technically ensures physical and mental health of drivers in a tunnel area.
You must integrate lighting with traffic facilities to support safe and efficient loading and unloading operations. Intelligent lighting controls help you manage transitions between warehouse loading dock areas, logistics yards, and roadways. This integration improves visibility, reduces driver workload, and ensures smooth traffic flow during all operations.
Part2: Lighting Design and Performance
2.1 Illuminance and Uniformity
You must prioritize illuminance and uniformity when planning lighting design for warehouse loading dock projects. Proper illuminance levels ensure safe and efficient loading operations. International standards recommend specific lux levels for different zones:
- Modern warehouses require diverse lighting solutions tailored to each area, including loading docks and cold storage zones.
- Specific illuminance levels are essential for various zones, ensuring safety and efficiency in operations.
- Loading area lighting systems are designed for docking and logistics movement zones. These systems include layout planning, fixture selection, and installation, ensuring optimal illuminance for safety and productivity.
You need to conduct detailed site assessments and use photometric software to simulate fixture types and placements. Tools like DIALux EVO and AGi32 allow you to optimize fixture placement by considering ceiling height and surface reflectance. This process is crucial for achieving uniform lighting in complex environments.
To ensure uniformity in large industrial spaces:
- Mounting height influences light spread; higher heights require tighter control.
- Fixture layout must align with characteristics and application requirements.
- Optical distribution affects how light is emitted and spread, requiring careful selection of beam angles and reflector designs.
- Photometric analysis is essential for validating uniformity and adjusting layouts before installation.
You should follow these steps:
- Conduct a detailed site assessment.
- Use photometric software to simulate fixture types and placements.
- Identify areas needing improvement in uniformity and light distribution.
Technical parameters such as power, pole height, spacing, foundation size, battery capacity, and solar panel wattage must be determined based on site conditions, lighting calculations, wind load, soil, climate, and local standards. You should avoid using fixed values for all projects.
2.2 Glare Control and Visual Comfort
Glare control is a critical aspect of lighting design for warehouse loading dock areas. You must select LED fixtures with diffusers, lenses, or louvers to control glare. Position fixtures to minimize direct line-of-sight exposure to the light source. Angle fixtures to direct light where it is needed most, avoiding direct exposure to workers’ eyes.
Visual comfort directly impacts worker productivity and safety. A field study in six factories revealed that appropriate lighting conditions significantly reduced eye strain and headaches among workers, enhancing their ability to concentrate. Lighting levels below 140 lux were linked to visual fatigue and increased occupational errors. Research indicates that visual discomfort in workplace settings leads to increased errors and injuries. You must prioritize visual comfort in loading dock design to regulate physiological functions and enhance employee performance.
Tip: You improve safety features and reduce operational errors by maintaining proper lighting levels and minimizing glare in all loading dock and warehouse zones.
2.3 Energy Efficiency and Sensors
Energy efficiency is essential for lighting design in warehouse loading dock and logistics yard projects. You achieve significant energy savings by using LED high bay lights with motion sensors. For example, a 200W LED high bay light operating for 12 hours a day at $0.12 per kWh costs around $105 per year. With a motion sensor reducing active time to 6 hours, the annual cost drops to $52.50, resulting in $52.50 savings per fixture each year. In a warehouse with 50 fixtures, this translates to over $2,600 in annual savings solely from motion sensors.
You should integrate the following sensor types for maximum efficiency:
- Motion sensors are effective for energy savings in unoccupied areas.
- For cold storage and loading docks, vapor-tight LED fixtures with motion sensors are recommended.
- Outdoor spaces benefit from LED shoebox lights with motion detection.
- Integrating smart controls with motion sensors enhances energy efficiency through daylight harvesting and automated schedules.
You must plan sensor placement and control strategies based on operational patterns, occupancy rates, and environmental conditions. This approach maximizes efficiency and supports sustainable loading dock design.
2.4 Compliance and Standards
You must comply with regional and international standards when planning lighting design for warehouse loading dock and logistics yard projects. Standards specify required illuminance levels for different areas:
| Standard | Area Type | Required Lux Level |
|---|---|---|
| GB50034 | Large parts warehouse | 50 lux |
| GB50034 | General parts warehouse | 100 lux |
| GB50034 | Semi-finished product warehouse | 150 lux |
| GB50034 | Fine parts warehouse | 200 lux |
| ISO/CIE 8995 | Store and stockrooms (continuously occupied) | 200 lux |
| ISO/CIE 8995 | Dispatch packing handling areas | 300 lux |
| EN12464-1 | Gangways: unmanned | 20 lux |
| EN12464-1 | Gangways: manned | 150 lux |
| EN12464-1 | Storage rack face | >200 lux |
You must reference only authoritative sources for standards and technical facts. All technical data should be reliable or clearly marked as project-specific. You need to determine technical parameters based on site conditions, lighting calculations, wind load, soil, climate, and local standards. This ensures compliance and supports safe, efficient loading operations.
Note: You enhance safety features and operational efficiency by adhering to lighting standards and integrating advanced lighting controls in all warehouse loading dock and logistics yard projects.
Part3: Product Selection for Warehouse Loading Dock Projects
3.1 Light Poles and Street Light Poles
You must select light poles for warehouse loading dock projects with careful planning. Local regulations determine pole height to minimize glare and direct light for safe loading operations. You need to evaluate aluminum and steel options. Aluminum poles offer over 50 years of durability with minimal maintenance, while steel poles last 25-50 years but require periodic inspection and recoating. The table below compares these materials for your planning:
| Material | Durability (Years) | Maintenance Requirements |
|---|---|---|
| Steel | 25-50 | Inspect every 3-5 years, touch-up, full recoating every 10-15 years |
| Aluminum | 50+ | Minimal, mostly cleaning |
You should consider structural demands, installation methods, and cost when planning for high-load environments. LeapPole provides engineering support for pole selection, technical drawings, and compliance documentation to streamline your project.
3.2 LED Street Lights and High-Bays
You improve loading dock safety and warehouse efficiency by choosing LED street lights and high-bay fixtures. LEDs deliver better visibility for narrow aisles and busy loading zones, reducing accidents during operations. You benefit from:
- Improved visibility for all loading and dock activities
- Energy savings up to 75% compared to older lighting
- Longer lifespans, reducing maintenance and replacement costs
- Instant-on capability for immediate illumination during critical operations
A logistics company reported a 40% reduction in energy use and annual savings of $8,484 after switching to LEDs. LEDs typically last 50,000-100,000 hours, supporting continuous warehouse and dock operations. LeapPole offers product customization, quality control, and technical support for LED lighting integration.
3.3 Solar Street Lights
You can enhance loading dock and logistics yard sustainability by integrating solar street lights. These fixtures provide consistent white light, reduce dark spots, and improve safety for vehicle circulation. Solar solutions lower long-term operating costs and reduce the need for extensive electrical work. However, you must assess site suitability, as performance depends on solar exposure and local permits may be required.
| Benefits | Limitations |
|---|---|
| Consistent white light | High initial fixture price |
| Reduces dark spots, improves visibility | May require permits |
| Enhances safety for vehicle circulation | Not suitable for all locations |
| Lowers long-term operating costs | Performance varies with solar exposure |
| Reduces electrical work | Maintenance may still be required |
LeapPole supports solar street light projects with engineering consultation, drawing support, and tailored packaging for safe transportation.
3.4 Smart Poles and Controls
You optimize loading dock and warehouse lighting by deploying smart poles and advanced controls. Smart poles feature adaptive brightness, remote monitoring, and integration with city networks. These systems adjust lighting based on occupancy, time, and ambient light, reducing energy consumption and extending fixture life. You can save up to 80% in energy costs and recover investments in under four years. LeapPole provides smart pole solutions with IoT integration, environmental sensors, and project-specific engineering support for seamless implementation.
Tip: You maximize operational flexibility and energy efficiency by combining smart controls with LED and solar lighting in your warehouse and loading dock planning.
Part4: Engineering Configuration and Installation
4.1 Power, Height, and Spacing
You must address power, height, and spacing early in your planning for warehouse and loading dock lighting. Proper configuration ensures efficiency and safety for all operations. Review the table below for recommended parameters:
| Configuration Type | Recommendation |
|---|---|
| Power Capacity | Ensure the building can support current and future electrical load requirements for automation. |
| Clear Height | Aim for clear heights of 36-40 feet for optimal storage efficiency compared to older standards. |
| Column Spacing | Design column spacing to match racking plans for flexibility in storage and access efficiency. |
You should confirm that your power supply supports both present and future automation needs. Select pole heights and fixture mounting that deliver uniform coverage across all loading and dock zones. Match column spacing to your racking and storage layout to maximize efficiency and safe movement during operations.
4.2 Lighting Calculations
Accurate lighting calculations are essential for effective warehouse and loading dock projects. Use the following table to guide your calculations:
| Calculation Aspect | Formula/Example |
|---|---|
| Total Lumens Required | Total Lumens Required = 400 lux × 100 m² = 40,000 lumens |
| Fixture Spacing Calculation | Spacing = (Fixture Lumen Output × Room Width) / (Desired Illuminance Level × Room Height) |
| Total Wattage | Total Wattage = Number of Fixtures × Wattage per Fixture |
| Lighting Power Density (LPD) | LPD = Total Wattage / Area (m²) |
| Energy Savings from Occupancy Sensors | Energy Savings (kWh) = Total Wattage × Reduction in Hours / 1000 |
| Daylight Factor | Assessing the daylight factor helps determine how much artificial lighting can be reduced during daylight. |
You should use photometric software to simulate fixture placement and verify that all loading and dock areas meet required illuminance and efficiency targets. Calculate total wattage and lighting power density to ensure compliance with project specifications.
4.3 Environmental and Site Factors
You must consider environmental and site factors during planning and installation. These factors impact the durability and efficiency of your lighting systems for loading and dock operations. Key considerations include:
- Dust
- Chemical exposure
- Heat
- Moisture
- Corrosion
- Vibration
- Soil conditions
- Topography
- Seismic activity
- Flood risk
- Proximity to key infrastructure (roads, utilities, water sources)
Select fixtures and poles rated for harsh environments to maintain efficiency and safety in all loading and dock zones. Assess soil and topography before installation to ensure stable foundations for light poles and equipment.
4.4 Safety and Electrical Compliance
You must meet all safety and electrical compliance requirements for warehouse, loading, and dock lighting. Reference the following minimum foot-candle levels:
| Area | Minimum Foot-Candles (fc) |
|---|---|
| General Work Areas | 5 fc |
| Stairways & Passageways | 2 fc |
| Warehouses | 20–30 fc |
| Loading Areas | 20 fc minimum |
Electrical engineers must follow local building codes and regulations for lighting in commercial and industrial settings. These codes ensure safety, efficiency, and accessibility for all loading and dock operations.
OSHA applies the General Duty Clause when a specific regulation does not exist, but a hazard is clearly present. This includes unprotected dock edges, unsecured trailers, and defective dock equipment.
You should document all compliance checks and maintain records for future inspections. This approach supports safe, efficient, and reliable loading and dock operations throughout the warehouse.
Part5: Procurement, Maintenance, and Cost
5.1 Supplier Evaluation
You need to evaluate suppliers for every loading dock and logistics yard lighting project with a structured approach. Reliable suppliers help you meet project deadlines and maintain compliance. Use the following criteria to assess potential partners:
| Criteria | Details |
|---|---|
| Certifications & Compliance | Confirm international certifications like CE, RoHS, ETL, UL, and ISO9001 for safety. |
| OEM/ODM Customization Capability | Look for flexible product design and fast prototyping to support unique loading dock needs. |
| Product Quality and Testing Process | Ensure rigorous testing for lumen output, color rendering, and flicker rates. |
| Production Scale and Delivery Stability | Assess production capacity and lead times for large loading projects. |
| After-Sales Service and Warranty | Check for technical support and spare parts for long-term loading dock operations. |
Tip: Always request test reports and compliance documents before finalizing your supplier for any loading dock or logistics yard project.
For more on product selection, see LED street lights and high-bays for warehouses.
5.2 Maintenance Planning
You must plan maintenance for loading dock and warehouse lighting systems to ensure safety and efficiency. Two main strategies exist:
| Maintenance Type | Advantages | Disadvantages |
|---|---|---|
| Routine Maintenance | Reduces unexpected downtime, extends asset life | May cause unnecessary maintenance on fixed schedules |
| Predictive Maintenance | Uses real-time data, lowers costs, reduces downtime | Needs advanced technology and initial investment |
- Predictive maintenance can lower maintenance costs by 10–40%.
- It can reduce unplanned downtime by 30–50%.
You should select a maintenance strategy based on your loading dock environment and operational needs. For more on installation and configuration, visit engineering configuration and installation.
5.3 Lifecycle Cost Control
You control lifecycle costs by considering all expenses from procurement to disposal. Factor in initial purchase, installation, energy use, maintenance, and replacement. LED and solar lighting for loading dock areas often provide the best long-term value due to lower energy and maintenance costs. Use lighting controls and sensors to further reduce operational expenses. For sustainable options, review solar street lights for logistics yards.
Note: Lifecycle cost analysis helps you justify investments in advanced lighting systems for loading dock and logistics yard projects.
5.4 Documentation and Handover
You must document every step of your loading dock lighting project. Keep records of supplier certifications, test reports, installation drawings, and maintenance logs. Proper documentation ensures smooth handover to facility managers and supports future audits or upgrades. Always provide clear manuals and as-built drawings for all loading dock and logistics yard lighting systems.
Good documentation reduces confusion and supports long-term reliability for your loading dock operations.
Part6: Implementation Tips and Common Mistakes
6.1 Project Execution Tips
You improve project outcomes by following proven strategies during loading and dock lighting implementation. Start with a detailed site survey to identify all loading zones, dock areas, and traffic routes. Use photometric analysis to plan fixture placement for each loading dock. Coordinate with electrical engineers to confirm power supply and control system compatibility. Schedule installation during low-traffic periods to minimize disruption to loading operations. Always test each dock lighting system before handover to ensure proper illuminance and uniformity.
Checklist for loading and dock lighting execution:
- Verify all loading and dock zones on site plans.
- Confirm pole heights and fixture types for each loading area.
- Test lighting controls and sensors for each dock.
- Document all installation steps for future reference.
6.2 Avoiding Design Errors
You prevent costly mistakes by addressing common design errors in loading and dock lighting projects. Avoid underestimating the number of fixtures needed for large loading zones. Do not overlook glare control in dock areas, as excessive glare can reduce safety. Ensure all loading dock fixtures meet local standards for ingress protection and impact resistance. Use only certified products for each dock and loading area.
Tip: Always review lighting calculations for each loading dock and verify compliance with project specifications.
| Common Error | Impact on Project | Prevention Method |
|---|---|---|
| Insufficient loading area coverage | Poor visibility, safety risks | Use photometric software |
| Incorrect dock pole spacing | Uneven lighting, dark spots | Follow engineering guidelines |
| Ignoring loading control systems | Higher energy costs, inefficiency | Integrate smart controls |
6.3 Acceptance and Handover
You ensure a smooth acceptance and handover process by preparing clear documentation for all loading and dock lighting systems. Conduct a final inspection of each loading dock with the client. Demonstrate lighting controls and emergency features for every dock and loading area. Provide as-built drawings, maintenance manuals, and compliance certificates for all loading and dock installations.
Note: A thorough handover process reduces future maintenance issues and supports safe, efficient loading dock operations.
You optimize lighting design for every warehouse, loading bay, and logistics yard by following a structured approach. Start with a technical evaluation of each loading zone and dock area. Assess the requirements for light poles, LED street lights, solar street lights, and smart poles. Review the integration of lighting controls and traffic facilities for each loading and dock project. Select products that meet compliance standards and support energy efficiency in all loading and dock environments. Use photometric analysis to confirm uniformity and illuminance for every loading and dock zone. Plan for maintenance and lifecycle cost control in each loading and dock area. Document all loading and dock installation steps and ensure proper handover. Consult experienced suppliers for tailored loading and dock solutions that address your project’s unique needs.
You improve safety, efficiency, and compliance by making informed decisions for every loading and dock lighting project.
- Evaluate each loading and dock zone for technical requirements.
- Select compliant lighting products for every loading and dock application.
- Integrate advanced controls in all loading and dock systems.
- Plan maintenance for each loading and dock installation.
- Document every loading and dock step for future reference.
FAQ
How do you select the right light pole for a logistics yard project?
Assess the installation location, mounting height, luminaire and bracket loads, design wind speed, soil conditions, corrosion exposure, vehicle clearance, and maintenance access. Steel poles are commonly used where structural strength and customization are priorities, while aluminum may be considered for specific corrosion and weight requirements. Explore LeapPole’s street light poles for project-based configurations.
What factors influence LED street light configuration in warehouse loading bays?
Consider the activities performed in each zone, required horizontal and vertical illumination, mounting height, pole spacing, luminaire output, optical distribution, glare, uniformity, and interaction with CCTV systems. Loading bays also require careful control of shadows around trailers, dock doors, and pedestrian routes. Photometric calculations should be used to configure the appropriate LED street lights.
How do you ensure compliance with lighting standards in outdoor projects?
Identify the standards specified by the project jurisdiction, contracting authority, and facility operator. For European outdoor workplaces, EN 12464-2 may provide relevant lighting criteria; other regions may apply different road, workplace, electrical, and structural standards. Document photometric calculations, product data, structural design, installation inspections, and final on-site measurements as part of the acceptance process.
Can you customize lighting solutions for unique project needs?
Yes. LeapPole can customize pole height, arm and bracket design, surface treatment, luminaire optics, mounting arrangements, and integrated smart controls. Large truck yards and open storage areas can also be evaluated for high mast lighting systems.
What maintenance strategies work best for large-scale lighting installations?
Create an asset register and establish inspection intervals according to operating hours, environmental exposure, and equipment criticality. Maintenance should cover luminaires, poles, foundations, anchor bolts, electrical connections, controls, and corrosion protection. Remote monitoring can help detect electrical or control faults, while inspection records support warranty management and lifecycle planning.
How do you start a technical evaluation or request a quote from LeapPole?
Submit your site layout, functional zones, target lighting requirements, mounting restrictions, design wind speed, soil information, quantities, and tender specifications. LeapPole can evaluate the project and coordinate suitable poles, luminaires, optics, controls, and large-area lighting options. Begin through our project consultation page.
