You can make your all-in-one solar street lights work well with easy care. Clean them often and check them to get more energy. Mount them right and check them often to stop problems. If you use a Maintenance Guide, your lights will be bright every night.
- Cleaning, checking, and taking care of the battery help save energy.
- Watching the light and checking wires keep them working well.
Key Takeaways
- Clean solar panels often to get more energy. Clean them every two months if it is dusty. Clean them once or twice a year if it is not dusty.
- Look at the battery and wires every month. Check for rust and loose wires. Make sure the battery is charged so the lights stay bright.
- Change the angle of solar panels two times a year. This helps the panels get more sunlight. A good tilt can make them work much better.
- Keep a record of all the work you do. This helps you see how well the lights work. It also helps you plan for future care so the lights last longer.
- Call an expert for hard problems. If the battery does not work well or wires are broken, a professional can fix it safely.
Maintenance Guide: Cleaning & Inspection
Cleaning Solar Panels
You need to keep your solar panels clean to get the most energy from your all-in-one solar street lights. Dust, bird droppings, and debris can block sunlight and lower the power your lights produce. Most outdoor contaminants, like dust and dirt, do not pose a serious risk to the environment. Research from 2023 shows that heavy metals in solar panels, such as cadmium and lead, stay safely inside the panels and do not leak into the soil.
Tip: Clean your solar panels every two months if you live in a moderately dusty area. If you live in a clean environment, you can clean them once or twice every two years. In highly polluted places, you may need to clean them every month.
| Environment Type | Recommended Cleaning Frequency |
|---|---|
| Clean environments | Once or twice every two years |
| Moderately dusty areas | Every three to six months |
| Highly polluted locations | Monthly cleaning may be needed |
You can follow these steps for safe and effective cleaning:
- Use a soft, non-abrasive brush or a microfiber cloth to avoid scratching the panels.
- Mix mild soapy water for cleaning. Avoid harsh chemicals.
- Rinse the panels with a garden hose before scrubbing to loosen dirt.
- Use a squeegee to remove stubborn dirt and streaks.
- For deeper cleaning, you can use deionized water with a rolling brush. This helps prevent soap residue.
- If your panels are hard to reach, consider hiring a professional to ensure safety.
Note: Regular cleaning is especially important in dry or windy areas where dust builds up quickly.
The angle and height of your solar panels also affect how much sunlight they capture. Panels that tilt at the right angle get more energy from the sun. The best tilt angle usually matches the latitude of your location. For example, in Phoenix, AZ, a 30-degree tilt can increase energy output by up to 15% compared to flat panels.
Panels set at the wrong angle or height may not get enough sunlight, which lowers their performance. Adjust the tilt as needed to match seasonal changes and avoid shading.
Inspecting Fixtures & Structure
You should inspect the fixtures and structure of your solar street lights as part of your Maintenance Guide. Regular checks help you find problems early and keep your lights working well. Follow these steps for a complete inspection:
- Check the solar panel: Make sure it is clean and facing the sun. Remove any leaves or debris that may block sunlight.
- Check the battery: Look for signs of misalignment or shading. Make sure nothing blocks the battery from working properly.
- Check the lighting fixture: Test if the light turns on and off automatically. Check the brightness and color of the light.
- Check the pole: Make sure the pole stands straight and does not wobble. Look for rust, cracks, or other damage.
- Check the wiring: Inspect wires for wear, damage, or exposed parts. Tighten any loose connections.
- Check the light intensity: Use a light meter to measure how bright the light is. This helps you spot problems with the panel or battery.
Maintenance Guide Reminder: Write down your inspection results in a log. This helps you track changes and plan future maintenance.
By following this Maintenance Guide, you keep your solar street lights clean, safe, and working at their best.

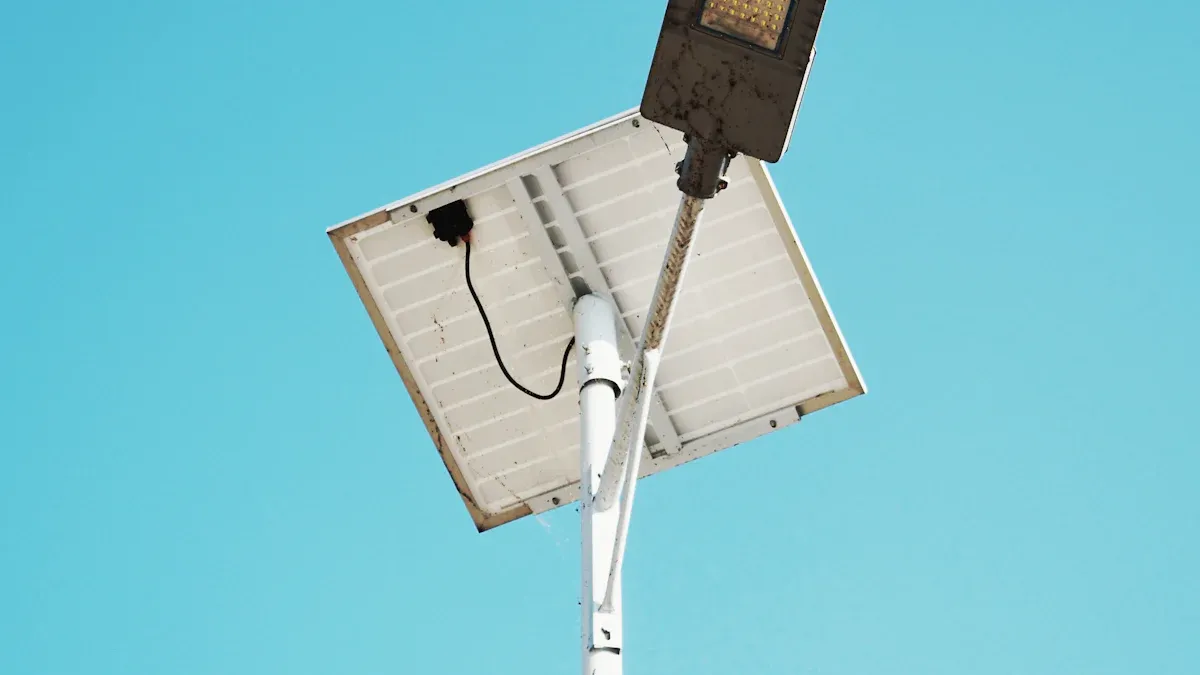

Battery Care
Taking care of your solar street light battery helps your system work well. You should know what kind of battery you have. You also need to check if it is healthy. Most all-in-one solar street lights use batteries like Lead Acid, GEL, Lithium-Ion, or Lithium Iron Phosphate (LiFePO4). Each battery type needs different care and lasts for different years.

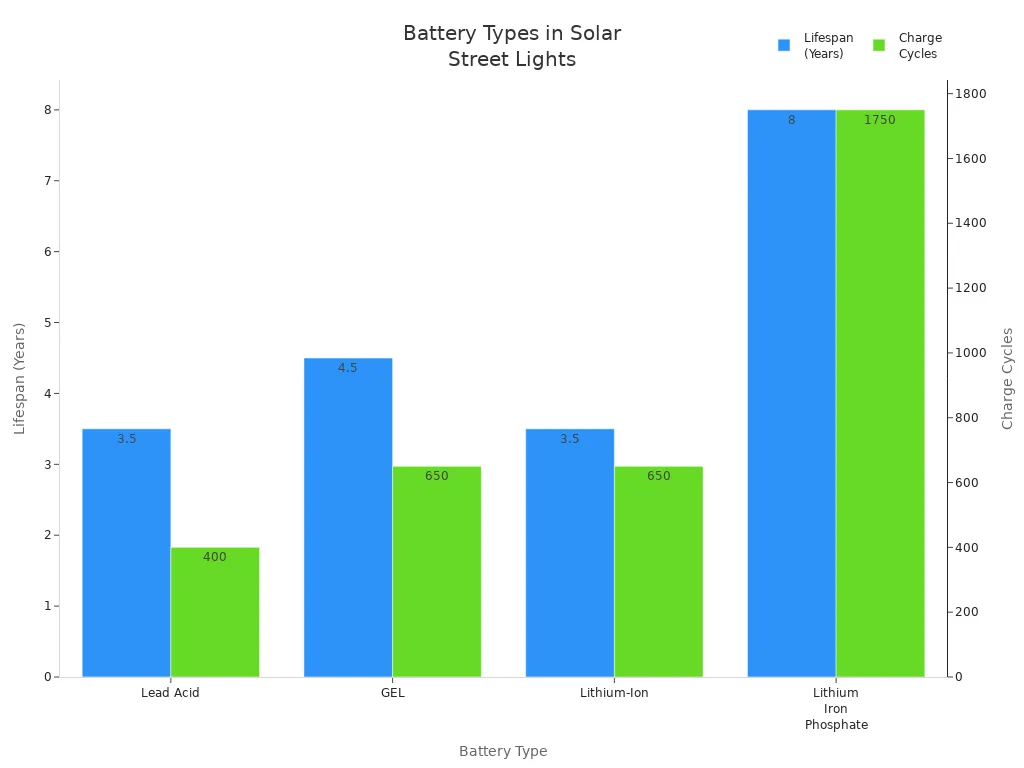

| Battery Type | Maintenance Requirements | Lifespan (Years) | Charge Cycles |
|---|---|---|---|
| Lead Acid | Low maintenance; lasts 3-4 years | 3-4 | 300-500 |
| GEL | Maintenance-free; excellent performance in various temps | 3-6 | 500-800 |
| Lithium-Ion | Minimal maintenance; compact size | 2-5 | 500-800 |
| Lithium Iron Phosphate (LiFePO4) | No maintenance; high safety and stability | 6-10 | 1500-2000 |
| Flow | Complex; not commonly used in solar street lighting | N/A | N/A |
Checking Battery Levels
Check your battery levels every month. This helps you find problems early. Watch for dim lights or lights that do not last long at night. Many solar street lights have a battery management system (BMS). The BMS shows battery voltage and health. If your system has a display, look at the voltage number. If it does not, use a multimeter to check voltage. Write down what you find in your Maintenance Guide log.
Tip: If the battery voltage is lower than normal, you may need to charge or replace the battery.
Preventing Overcharge & Discharge
Overcharging and deep discharge can hurt your battery. Most solar street lights use a BMS to keep the battery safe. Here are some signs and features to look for:
| Sign Type | Description |
|---|---|
| Voltage Monitoring | The BMS checks battery voltage and stops charging at a set level. |
| Temperature Indicators | High heat from overcharging shows up on temperature sensors. |
| Charge Termination | Charging stops when the battery is full. |
| Discharge Limit | The BMS prevents the battery from dropping below safe levels. |
| Low-Voltage Cut-off | The system stops using the battery if voltage gets too low. |
To keep your battery healthy, follow these tips:
- Keep your battery cool and let air flow around it.
- Use the right charge controller for your system.
- Check battery charge levels and condition often.
- Watch battery performance with a BMS or display.
- Use energy-saving settings on your lights.
- Upgrade to lithium batteries for longer life.
- Inspect your battery often as part of your Maintenance Guide.
Doing these things helps your solar street lights last longer. Your lights will work better every night.
Wiring Checks
Checking the wiring helps keep your all-in-one solar street lights safe. Good wiring makes sure your lights shine every night. If you check wires often, you can find problems early.
Inspecting for Corrosion
Corrosion can make your solar street lights stop working well. Water, rain, and wet air can make metal parts rust. Look for signs of corrosion on all electrical connections. If you see green or white powder, there may be corrosion. Rusty or strange-colored wires can also mean trouble.
Some wiring problems you might see after installation are:
- Bad wiring connections
- Connectors not sealed well
- Wires that do not match in size
- Loose wires
- Wet connections that get corroded
- Power that flickers because of bad wiring
Use a flashlight to look inside the fixture. Check for wires that are showing or insulation that is broken. If you find corrosion, clean it with a dry cloth or a small wire brush. Always turn off the power before touching any wires.
Tip: You can stop corrosion by using waterproof connectors. Seal all joints with insulating tape.
Tightening Connections
Loose connections can make your lights flicker or go out. Check all electrical connections for loose or broken parts. Use a screwdriver or pliers to tighten loose screws or terminals. Make sure each wire fits tightly in its connector.
Here are some steps you can follow:
- Look at all electrical connections for rust or looseness.
- Clean and tighten connections to keep the circuit strong.
- Wrap wire connections with insulating tape for safety.
- Make sure all connections are tight and not weak.
Good connections help your solar street lights last longer. Keep a small toolkit with screwdrivers, pliers, and tape for quick fixes.
Note: Plan to check wiring often as part of your maintenance. This helps you stop bigger problems before they start.
System Optimization

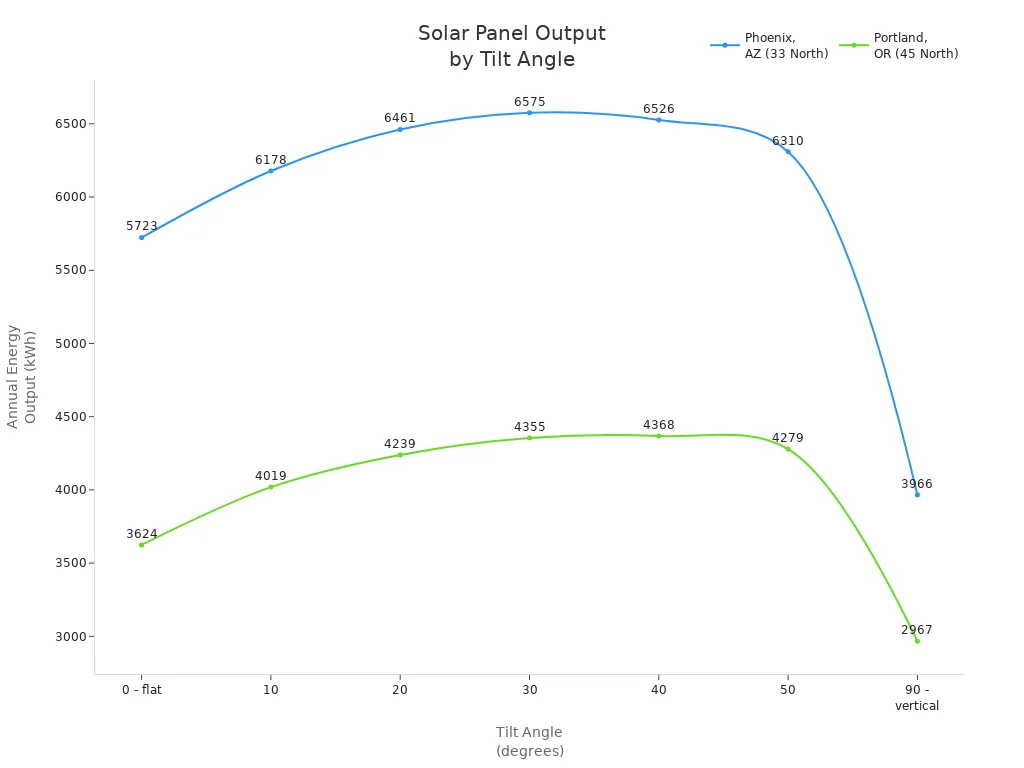

Adjusting Panel Angle
You can boost the energy your solar street lights collect by adjusting the panel angle. When you set the panel at the right tilt, you help the system get more sunlight. If you do not optimize the angle, your lights can lose 20% to 40% of their efficiency. Even a small change matters. For every 5° the panel tilts away from the best angle, energy output drops by 3% to 5%. In places with cold winters, like high-latitude regions, changing the angle for winter can raise power generation by over 35%. A city project in California adjusted the tilt and saw an 18% jump in yearly solar power.
- If you keep the panel at a fixed 40° tilt, you might get 1.2 kWh per day in winter.
- If you adjust the tilt to 55° in winter and 25° in summer, you can get up to 1.7 kWh per day in winter. This change can also help your lights last longer during cloudy or rainy days.
Tip: Check the panel angle at least twice a year as part of your Maintenance Guide. Adjust it for summer and winter to get the most energy.
Sensor Alignment
Sensors help your solar street lights turn on when needed. You need to align them well for the best results. Follow these steps to make sure your sensors work right:
- Pick a spot where the sensor gets enough sunlight.
- Set the sensor at a height between 6 and 10 feet for good coverage.
- Adjust the angle of the panel and light to cover the area you want.
- Test the motion sensor to see if it turns on when someone walks by.
- Mount the light firmly so wind or bumps do not move it.
- Clean the panel and check the sensor often to keep it working.
Note: Good sensor alignment helps your lights save energy and work only when needed. Add sensor checks to your Maintenance Guide for better performance.
Troubleshooting
Dim or Flickering Lights
You may notice your solar street lights look dim or flicker at night. This problem often means something is wrong with the battery or wiring. You can fix most issues by checking a few key areas.
- Low battery voltage can cause dim or flickering lights. Make sure your battery is charged.
- Loose or damaged wiring may interrupt power. Inspect all LED connections for broken wires.
- Old rechargeable batteries lose power over time. Replace dying batteries to keep your lights bright.
- Corroded battery compartments block electricity. Clean any white or green powder from terminals.
- Moisture and oxidation in connectors can lead to flickering. Check for wet spots and clean with contact cleaner.
- Loose screws or connectors may break the circuit. Tighten all screws and connections.
Tip: Always remove the pull tab from new batteries before installing them. This helps the battery work right away.
Regular inspections help you catch these problems early. Clean and tighten connections every time you check your lights. If you see flickering, act quickly to prevent bigger issues.
Battery or Sensor Issues
Battery and sensor problems can stop your solar street lights from working well. You can use simple tests to find out what is wrong.
| Symptom | What It Means | What To Do |
|---|---|---|
| White powder | Corroded terminals | Clean and protect |
| Dim lights | Poor battery connection | Check and clean terminals |
| No charging | Severe corrosion | Replace battery if needed |
You can use a digital multimeter to test battery voltage. For a 12V battery, a healthy reading should be between 12.6V and 13.7V. If the voltage is low, charge or replace the battery.
Check battery terminals for white or greenish powder. This shows corrosion. Clean the terminals to restore power. Look at the sensor and make sure nothing blocks it. Dust or dirt can stop the sensor from working.
Note: Clean sensors and battery terminals often. This keeps your solar street lights working every night.
Maintenance Schedule
Task Frequency
You need to follow a regular schedule to keep your all-in-one solar street lights working well. Each task has its own best time. If you stick to a routine, you help your lights last longer and work better. Regular care lowers the chance of failure and keeps your system reliable.
Here is a simple table to help you remember when to do each task:
| Interval | Maintenance Task |
|---|---|
| Every Week | Check if all lights work. Repair any broken lights. |
| Every Two Months | Clean and inspect solar panels for dust, sand, or debris. |
| Every Month | Inspect batteries for leaks, corrosion, or damage. Check battery voltage. |
| Every Five to Seven Years | Replace batteries if voltage drops below normal. |
Tip: More frequent maintenance means fewer problems. When you check your lights often, you catch small issues before they become big ones.
You should also check electrical connections and clean battery terminals every few months. If you live in a dusty or rainy area, you may need to clean panels more often. Regular inspections help you spot changes in light output or battery charge.
Maintenance Log
Keeping a maintenance log helps you track all the work you do. You can use a notebook or a simple chart. Write down the date, the task, and what you found. This record helps you see patterns and fix problems early.
- You can spot changes in light output or battery health.
- You can see if energy use changes over time.
- You can plan when to replace parts, like batteries.
Here is a sample log you can use:
| Date | Task Performed | Notes/Findings |
|---|---|---|
| 2024-06-01 | Cleaned solar panels | Removed dust, panels clear |
| 2024-06-01 | Checked battery voltage | 12.8V, no corrosion found |
| 2024-06-01 | Inspected wiring | All connections tight |
Note: A good log helps you keep your solar street lights bright and safe. You can also use it to show when you did maintenance if you need warranty support.
Regular documentation and safety checks protect your investment. When you follow a schedule and keep good records, your solar street lights will shine every night.
Professional Help
When to Call an Expert
Sometimes, you may face problems with your solar street lights that you cannot fix alone. You should know when to call a professional for help. Experts can solve issues quickly and safely. Look for these signs that show you need expert support:
| Indicator | Description |
|---|---|
| Battery Performance | Check battery power often. If you see low power or slow charging, the battery may be old or damaged. |
| Wiring and Connections | Look at the wires. If you find worn or broken wires, or if connections feel loose, call an expert. |
| Software Updates | Some solar street lights use software. If you cannot update the software or the system acts strange, ask for help. |
Tip: If you see sparks, smell burning, or notice the light does not turn on after you check the basics, stop and call a professional right away.
You should not try to fix electrical problems if you do not have training. Experts have the right tools and know how to keep you safe.
Warranty & Support
Most all-in-one solar street lights come with a warranty. This warranty protects you if something breaks or stops working. Many brands offer a five-year warranty that covers all parts of the light.
| Warranty Duration | Components Covered |
|---|---|
| 5 Years | All components |
You also get after-sale service with your purchase. This means you can ask for help if you have questions or need repairs.
| Warranty Duration | After-Sale Service |
|---|---|
| 5 Years | Yes |
Note: Keep your maintenance log and receipts. These records help you get support faster if you need to use your warranty.
If you follow the maintenance guide and use your warranty, your solar street lights will last longer and work better.
You can make your solar street lights stay bright with easy care. Clean the panels often. Check the batteries to make sure they work. Look at the wiring to stop problems before they start. If you follow a regular schedule, your lights will last longer. You will also save money as time goes on.
If you clean and check your lights every few months, they can work up to 40% better. They can also stay on more than 98% of the time.
| Benefit | Solar Street Lights | Conventional Lighting |
|---|---|---|
| Energy Source | Renewable (solar) | Fossil fuels |
| Carbon Footprint | Low | High |
Write down your maintenance in a log. This helps you protect your lights. It also helps keep the environment clean.
FAQ
How often should you clean solar street light panels?
You should clean the panels every two months in dusty areas. In clean places, clean them once or twice a year. If you see dirt or bird droppings, clean them right away for best results.
What should you do if your solar street light does not turn on?
First, check the battery and wiring. Make sure the panel gets sunlight. Clean the sensor and panel. If the light still does not work, write down your steps in your log and call a professional.
Can you replace the battery yourself?
Yes, you can replace the battery if you follow the manual. Always turn off the power first. Use the same battery type. If you feel unsure, ask an expert for help.
How do you know when to replace the battery?
Look for dim lights or short lighting time at night. Check the battery voltage with a multimeter. If the voltage stays low after charging, you need to replace the battery.
