Outdoor lighting supports safety, security, maintenance, and continuous operations across power plants and electrical substations. Access roads, transformer yards, switchgear areas, maintenance zones, security checkpoints, and site perimeters each require a lighting configuration matched to their operational risks and visibility requirements.
LED street lights can serve internal roads and circulation areas, while large equipment yards may require coordinated floodlights or high mast lighting systems. The design should address horizontal and vertical illumination, glare control, shadowing around equipment, CCTV performance, emergency access, and safe maintenance near electrical infrastructure.
Energy savings depend on the existing system, operating hours, luminaire performance, and control strategy. Scheduled dimming, zoning, remote monitoring, and fault alerts can reduce unnecessary operation while maintaining essential security and safety lighting.
Photometric calculations should be coordinated with pole locations, electrical clearances, cable routes, earthing requirements, wind loads, corrosion exposure, and maintenance access. By combining suitable luminaires, engineered street light poles, structural supports, and smart controls, project teams can create a durable lighting system for demanding power-generation and substation environments.
Key Takeaways
- Outdoor lighting enhances safety and operational efficiency in power plants and substations. Use LED fixtures to cut energy use by up to 80%.
- Conduct thorough site assessments to determine lighting needs. Custom lighting plans ensure optimal coverage and compliance with safety standards.
- Regular maintenance and inspections of lighting systems are crucial. This practice reduces downtime and supports long-term asset management.

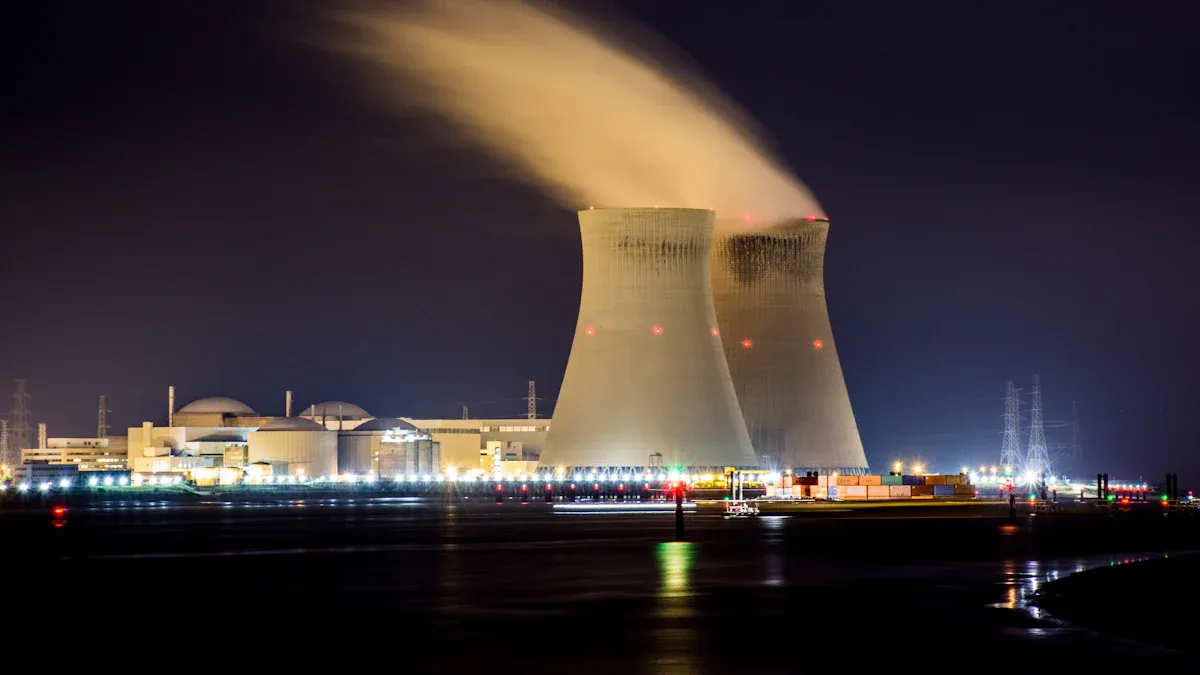

Part1: Application Areas
1.1 Perimeter Security
You need robust Outdoor Lighting along the perimeter to deter unauthorized access and support surveillance. Power plants and substations often cover large, remote areas, making monitoring challenging. The table below highlights key perimeter security challenges:
| Challenge | Explanation |
|---|---|
| Large Remote Areas | Facilities span wide zones, complicating visual coverage. |
| Poor Visibility at Night | Insufficient lighting creates hiding spots for intruders. |
| Enhanced Security Needs | Effective lighting reduces theft and vandalism, supporting safe operations. |
High-intensity LED street lights or floodlights on durable light poles help eliminate dark zones and improve camera footage. You should select pole height, spacing, and foundation size based on site layout, wind load, and local standards. Maintenance planning ensures reliable operation in harsh environments.
1.2 Entry Points
Entry points require focused lighting to enhance safety and support access control. Uniform illumination reduces shadows and improves visibility for CCTV and personnel. Consider integrating motion sensors or alarm-based lighting with electric fencing for immediate response. Floodlights and smart poles with lighting controls can further strengthen security. Always determine illuminance levels and product selection through site-specific lighting calculations.
1.3 Transformer Yards
Transformer yards demand consistent, glare-free lighting to support inspection and maintenance. LED floodlights or solar street lights mounted on corrosion-resistant poles offer energy efficiency and durability. You must confirm technical specifications—such as power and pole height—based on yard size, equipment layout, and local regulations. Regular inspection and cleaning of luminaires help maintain performance.
1.4 Access Roads
Access roads benefit from continuous, well-spaced LED street lights or solar street lights. Proper lighting improves vehicle and personnel safety, especially during night operations or adverse weather. You should select pole spacing and foundation design according to road width, soil conditions, and wind exposure. Smart poles with integrated controls can optimize energy use and maintenance.
1.5 Control Buildings
Control buildings require reliable lighting for operational efficiency and safety. Connected lighting systems enhance visibility in high-risk areas and allow centralized management. Predictive maintenance features reduce emergency repairs and support resource planning. Choose luminaires and controls that meet project standards and facilitate easy integration with building management systems.
Part2: Outdoor Lighting Needs
2.1 Safety and Visibility
You must prioritize safety and visibility when designing Outdoor Lighting for power plants and substations. Reliable illumination reduces accidents and supports efficient operations. LED street lights, solar street lights, and floodlights provide consistent coverage for critical work zones, access roads, and inspection areas. You should select fixture types and mounting heights based on site layout and local standards. The table below summarizes key industry recommendations for technical evaluation:
| Aspect | Details |
|---|---|
| Lumens per square foot | 50+ lumens for critical work areas |
| Total lumens for a substation | 50,000-100,000 total lumens for 100′ x 100′ |
| Fixture types | LED flood lights with Type III or V distributions |
| Color temperature | 4000K to 5000K for optimal visibility |
| Lifespan of fixtures | 50,000+ hours, translating to 15-20 years |
| Fixture spacing | 2 to 4 times the mounting height |
| Custom lighting plan | Recommended for unique layouts and safety |
You must confirm all technical parameters according to project requirements and standards. Proper lighting improves visibility for personnel and vehicles, especially during night operations or adverse weather. You should use corrosion-resistant light poles and smart poles with integrated controls to enhance reliability and simplify maintenance.
2.2 Security Lighting
Security lighting protects your facility from unauthorized access and supports surveillance systems. You need to install high-intensity LED floodlights at entry points, perimeter fences, and transformer yards. Uniform illumination reduces shadows and improves camera performance. You can integrate motion sensors and lighting controls to trigger alerts and optimize energy use. You must evaluate the placement and spacing of fixtures to eliminate blind spots and ensure compliance with safety standards. Solar street lights and smart poles offer energy savings and backup during power outages.
Tip: You should conduct regular inspections and maintenance to ensure all luminaires operate at peak performance. This practice reduces downtime and supports long-term asset management.
2.3 Photometric Planning
Photometric planning helps you achieve optimal coverage and uniform light distribution. You must map the physical layout of your facility and strategically position fixtures to minimize shadows around high-voltage equipment. Photometric calculations ensure you meet industry-recommended light levels for inspections and maintenance. You should use specialized software to simulate lighting scenarios and adjust fixture types, mounting heights, and spacing. This approach supports custom lighting plans for unique layouts and safety requirements.
- Photometric planning ensures proper visibility for inspections and maintenance.
- It minimizes shadows around high-voltage equipment.
- The planning helps meet industry-recommended light levels.
- A comprehensive design maps the physical layout and strategically positions fixtures for uniform light distribution.
You must confirm all technical specifications based on site conditions, regulatory standards, and operational needs. You should consult with lighting engineers and project consultants to develop a tailored Outdoor Lighting solution for each area.
Part3: Lighting Standards
3.1 Industry Compliance
You must follow strict standards when designing Outdoor Lighting for power plants and substations. Industry compliance ensures safety and reliability for personnel and equipment. Lighting requirements address visibility, security, and operational needs. You should select fixture types and mounting heights based on site conditions and regulatory guidelines. Technical specifications must be confirmed for each project.
| Lighting Requirement | Description |
|---|---|
| High-intensity flood lighting | Discourages unauthorized entry and improves surveillance camera visibility. |
| Area lighting for substation grounds | Supports safe navigation for personnel and vehicles. |
| Wall packs for equipment sheds | Provides localized lighting, reducing blind spots. |
| Motion-activated security lights | Alerts security teams by brightening lights when movement is detected. |
| Emergency backup lighting | Maintains visibility during grid failures or emergencies. |
| Compliance with OSHA standards | Fixtures must be at least 7 feet above work surfaces or have shatterproof shields. |
| Protection against damage | Fixtures must be guarded and not have exposed live parts. |
| Regular inspections | Ensures compliance and proper illumination levels. |
Note: You must confirm all lighting standards with local regulations and project requirements. Technical parameters vary by site layout and operational needs.
3.2 Environmental Considerations
You need to address environmental factors when selecting lighting solutions. Durable fixtures withstand harsh weather and moisture. Energy-efficient products reduce operational costs and support sustainability goals. Proper lighting improves safety during nighttime maintenance and emergency repairs.
| Environmental Consideration | Description |
|---|---|
| Energy Efficiency | Minimizes energy consumption while providing adequate illumination. |
| Durability | Withstands moisture, extreme temperatures, and outdoor conditions. |
| Safety and Security | Supports visibility for maintenance and emergency operations. |
You should evaluate LED street lights, solar street lights, and smart poles for their performance in challenging environments. Lighting controls optimize energy use and maintenance schedules. Always confirm technical specifications based on project standards and site conditions.

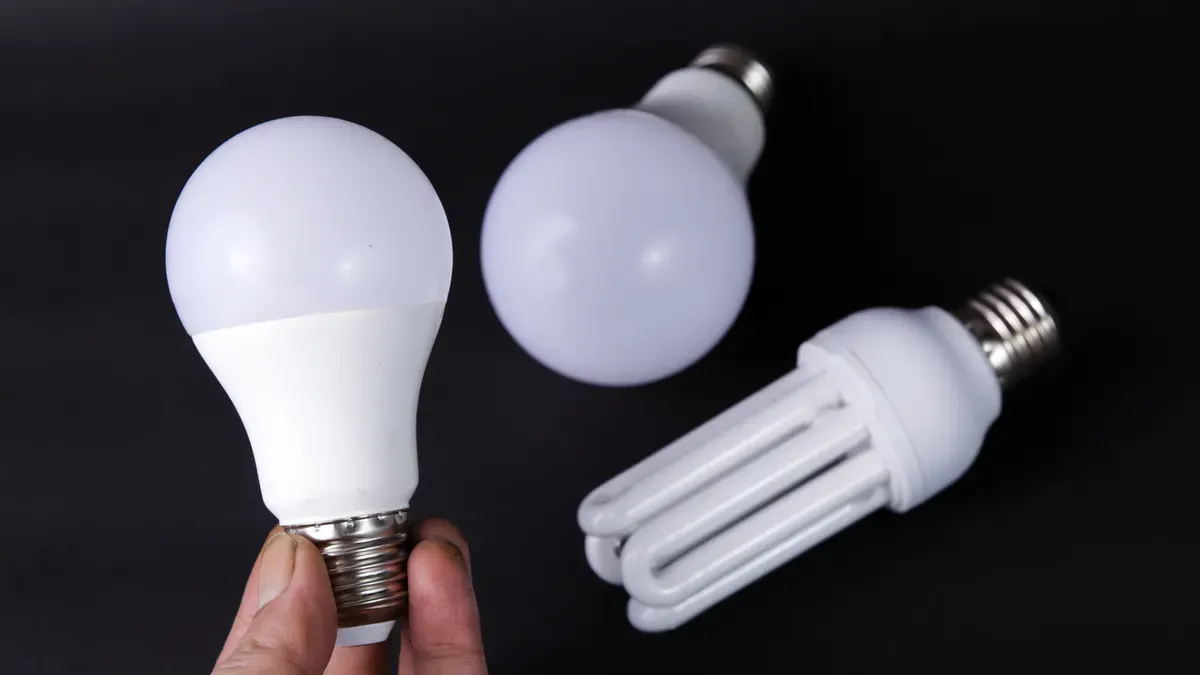

Part4: Product Selection
4.1 LED Outdoor Lighting
You select LED outdoor lighting for power plants and substations to achieve high energy efficiency and long-term reliability. LED luminaires deliver up to 80% energy savings compared to traditional fixtures. You benefit from reduced maintenance costs because LED sources last over 50,000 hours. You can choose from a range of optical distributions, such as Type III or Type V, to match site layouts and minimize glare. LED fixtures withstand harsh weather and resist corrosion, making them suitable for demanding electrical environments.
Tip: You should confirm mounting height, lumen output, and beam angle based on site-specific photometric analysis and local standards.
LED luminaires integrate easily with smart controls. You can automate lighting schedules, monitor fixture status, and optimize energy use. You improve operational safety and visibility for personnel and vehicles. You must evaluate technical parameters for each project, including color temperature, ingress protection (IP), and mechanical strength.
4.2 Solar Street Lights
Solar street lights offer a sustainable solution for outdoor lighting in remote or off-grid areas. You reduce operational costs and support environmental goals by using solar-powered fixtures. Solar street lights feature automatic controls, battery backup, and weather resilience. You install these lights quickly, with minimal trenching or wiring.
| Advantages | Limitations |
|---|---|
| Energy efficiency & cost savings | Weather & sunlight dependency |
| Environmentally friendly | Higher initial investment |
| Easy installation & low maintenance | Limited brightness & coverage |
| Automatic & smart features | Battery replacement & e-waste |
| Safety & reliability | Space & placement requirements |
| Battery & weather resilience | Slow charging in extreme conditions |
You must assess site conditions, sunlight availability, and placement requirements before selecting solar street lights. You confirm battery capacity, pole height, and fixture spacing based on project standards. You plan for battery replacement and e-waste management as part of your maintenance strategy.
4.3 Light Poles and Smart Poles
You rely on durable light poles and smart poles to support outdoor lighting in electrical substations. Manufacturers use advanced materials, such as fiberglass-reinforced polymers, to enhance strength and corrosion resistance. These materials withstand moisture, extreme temperatures, and mechanical stress. You select pole height, foundation design, and wind load rating according to site layout and environmental conditions.
Smart poles integrate sensors and communication modules. You monitor structural integrity and environmental factors in real time. You improve maintenance strategies and extend pole lifespan. Energy-efficient LED lighting reduces mechanical stress on poles. You must confirm technical specifications for each project, including material grade, coating, and load capacity.
Note: You should coordinate pole selection with lighting engineers and civil consultants to ensure compliance with local standards and operational requirements.
4.4 Flood Lights for Substations
Flood lights provide high-intensity illumination for transformer yards, inspection zones, and security areas. You select flood lights with robust construction and advanced optical design to ensure reliable performance.
| Specification | Details |
|---|---|
| Durability | IP66, die-cast, impact-resistant. |
| Luminous Efficiency | Up to 120 lm/W, reducing power consumption by over 50%. |
| Outdoor Protection | Engineered for rain, dust, and impact with sealed optical chambers. |
| Beam Distribution | Options of 30°, 60°, and 90° to limit spill and glare. |
| Lifetime | LED source up to 100,000 hours with temperature-compensation technology. |
You confirm beam angle, mounting height, and luminous output based on photometric planning and site requirements. You select flood lights with sealed optical chambers to protect against rain and dust. You ensure compliance with ingress protection (IP) and impact resistance standards. You plan for regular inspection and cleaning to maintain optimal performance.
Alert: You must determine all technical specifications according to project conditions, regulatory standards, and operational needs. You should consult with lighting engineers and project managers for tailored product selection.
Part5: Installation Standards
5.1 Site Assessment
You start every lighting project with a thorough site assessment. You evaluate terrain, access points, and environmental risks. You map out transformer yards, control buildings, and access roads. You identify areas needing LED street lights, solar street lights, or smart poles. You check for obstacles like overhead lines or underground utilities. You document wind exposure, soil conditions, and traffic patterns. You use this information to create a custom lighting plan.
5.2 Foundation and Soil
You must confirm soil stability before installing light poles or smart poles. You test soil for bearing capacity and moisture content. You select foundation types based on pole height, wind load, and local standards. You use reinforced concrete or specialized anchors for unstable ground. You ensure foundations resist corrosion and mechanical stress. You coordinate with civil engineers to meet project requirements.
Tip: You should always verify foundation design with geotechnical reports and site-specific data.
5.3 Electrical Infrastructure
You design electrical infrastructure to support reliable lighting operation. You plan cable routes, power sources, and control systems. You select wiring and connectors rated for outdoor use. You integrate lighting controls for energy management and remote monitoring. You confirm compatibility with solar street lights and smart poles. You follow safety standards to protect personnel and equipment.
5.4 Quality Control
You implement quality control at every stage of installation. You inspect materials and workmanship. You check alignment, mounting height, and electrical connections. You verify compliance with technical standards and project specifications. You document acceptance criteria in a table for easy reference.
| Acceptance Requirement | Description |
|---|---|
| Pole alignment | Vertical and stable |
| Foundation integrity | No cracks or corrosion |
| Electrical connections | Secure and weatherproof |
| Lighting controls | Functional and calibrated |
| Compliance documentation | Meets project and regulatory standards |
Note: You must confirm all installation standards with local codes and engineering guidelines. Technical specifications depend on site conditions and project requirements.
Part6: Procurement and Maintenance
6.1 Product Quality
You must select outdoor lighting products that meet strict quality standards. High-quality LED street lights, solar street lights, and smart poles improve reliability and reduce maintenance needs. You check for corrosion resistance, weatherproofing, and mechanical strength. You confirm that light poles use durable materials like steel or aluminum. You review certifications and technical documentation before procurement. You coordinate with suppliers to verify compliance with project requirements.
6.2 Maintenance Costs
You manage maintenance costs by choosing products with long lifespans and robust construction. LED luminaires often last over 50,000 hours, which reduces replacement frequency. Smart poles and solar street lights feature integrated controls for remote monitoring. You schedule regular inspections to maintain performance and safety. You plan for battery replacement and cleaning of optical chambers. You track maintenance records to support asset management and budgeting.
6.3 LeapPole Support
LeapPole provides engineering customization and project support for outdoor lighting installations. You benefit from tailored solutions for brackets, foundation cages, and wiring interfaces. LeapPole assists during installation and delivers essential project documentation. You receive technical drawings and quality control guidance for each phase.
| Support Service Type | Description |
|---|---|
| Engineering Customization | Custom brackets, foundation cages, wiring interfaces, and drawings |
| Installation Support | Assistance during installation of outdoor lighting projects |
| Project Documentation | Delivery of necessary documents related to the project |
6.4 Procurement Tips
You improve procurement decisions by following key recommendations:
- Choose strong materials like steel or aluminum for light poles to withstand outdoor conditions.
- Opt for LED lighting solutions to reduce energy consumption and enhance safety.
- Assess specific lighting needs for utility operations, including color temperature for visibility.
Tip: You must confirm all technical specifications based on project standards and site conditions. You consult with engineers and suppliers to ensure products meet operational requirements.
You achieve effective outdoor lighting by following these steps:
- Assess lighting needs
- Select appropriate lighting technologies
- Ensure compliance with safety standards
| Aspect | Importance |
|---|---|
| Energy Efficiency | Reduces operating costs, especially with LED and solar street lights. |
| Compliance | Ensures safety and reliability in high-voltage environments. |
| Custom Solutions | Addresses unique site challenges and improves functionality. |
For tailored lighting plans and expert support, consult with LeapPole.
FAQ
How do you select the right light pole for a power plant or substation project?
Evaluate the site layout, mounting location, luminaire and bracket loads, design wind speed, soil conditions, corrosion exposure, electrical clearances, earthing requirements, and maintenance access. Pole height, material grade, wall thickness, surface treatment, and foundation design must be confirmed through project-specific structural calculations. LeapPole supplies customized street light poles for different structural and environmental requirements.
What factors influence LED street light configuration for transformer yards?
Consider the yard dimensions, equipment arrangement, access routes, switching and maintenance activities, security requirements, and potential shadows created by transformers and other structures. Photometric calculations should determine luminaire output, optics, mounting height, spacing, uniformity, glare control, and vertical illumination. Suitable LED street lights can be coordinated with floodlights for different functional zones.
When should high mast lighting be considered for a power facility?
High mast lighting systems may be suitable for large generation yards, coal-handling areas, storage zones, parking facilities, and other open spaces requiring broad coverage. Their use should be evaluated against electrical clearances, maintenance access, aviation restrictions, wind loads, foundation conditions, and the consequences of a large-area lighting failure.
How do you ensure compliance with installation standards?
Follow the electrical, structural, workplace-safety, lightning-protection, earthing, and outdoor-lighting standards required by the project jurisdiction and facility operator. Inspect foundations, anchor bolts, pole alignment, structural connections, cable entries, electrical connections, protective devices, and control operation. Acceptance documentation should include drawings, calculations, material records, product test reports, installation inspections, and on-site lighting measurements.
Can standard outdoor luminaires be used in hazardous areas?
Not automatically. Areas containing combustible gases, vapors, dust, fuel, or chemicals may require luminaires and electrical equipment certified for the applicable hazardous-area classification. Confirm the zone classification, gas or dust group, temperature class, and certification requirements with the project’s electrical and safety engineers before selecting any fixture.
Can LeapPole provide customized solutions for complex power-facility projects?
Yes. Submit the site plan, equipment layout, electrical-clearance requirements, lighting criteria, design wind speed, soil information, corrosion category, quantities, and tender specifications. LeapPole can coordinate poles, luminaires, high mast structures, mounting arrangements, and control options according to the project requirements. Start through our project consultation page.
