Quick Answer
Outdoor lighting for sports complexes and stadiums should be designed separately for playing fields, spectator entrances, parking lots, internal roads, pedestrian routes, loading areas, and emergency access points. Each zone requires different illumination, uniformity, glare control, pole height, and control strategies. Project-specific photometric and structural calculations are essential for safety, compliance, and long-term performance.
Outdoor lighting creates safe, functional, and efficient environments around stadiums and sports complexes. A complete lighting plan must support athletes, spectators, employees, vehicles, security systems, and event operations before, during, and after events.
Playing fields and other large open areas may require high mast lighting systems to deliver broad and uniform coverage. Internal roads, entrances, and parking areas can use LED street lights with suitable optical distributions, while customized street light poles can accommodate luminaires, cameras, signs, and control equipment.
LED technology provides precise optical control, instant switching, dimming, and lower energy consumption than many conventional lighting technologies. Smart controls can further adjust lighting according to event schedules, occupancy, daylight, and security requirements.
For engineering and procurement teams, the design should consider:
- Target illumination and uniformity for each functional zone
- Glare control for athletes, drivers, spectators, and nearby properties
- Pole height, spacing, wind load, and foundation requirements
- Emergency and evacuation lighting
- Camera coverage and security-system integration
- Lighting controls and energy-management strategies
- Maintenance access and lowering mechanisms
- Applicable sports, road, electrical, and structural standards
A zone-based design provides better performance and cost control than applying one lighting configuration throughout the entire facility.
Key Takeaways
- Identify specific lighting needs for each area of a sports complex to enhance safety and visibility.
- Choose LED lighting for energy efficiency, longer lifespan, and reduced glare compared to traditional options.
- Follow local and international standards for illuminance and uniformity to ensure compliance and safety.
- Utilize smart controls to adjust lighting based on real-time needs, improving energy efficiency and user experience.
- Plan regular maintenance and inspections to prolong the lifespan of lighting systems and ensure optimal performance.

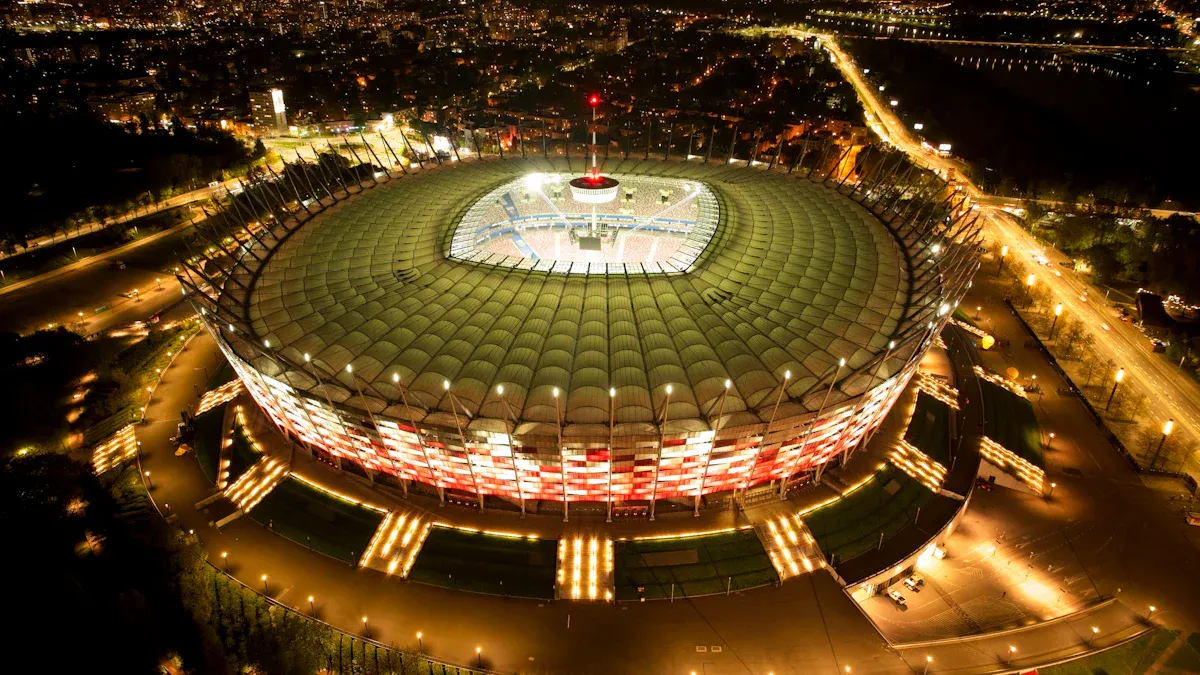

Part1: Application Areas
When you plan Outdoor Lighting for a sports complex or stadium, you must first identify the different functional areas. Each area serves a unique purpose and requires a tailored lighting approach. Addressing lighting needs for each zone separately helps you achieve better safety, visibility, and energy efficiency. Avoid using a single lighting solution across all spaces, as this often leads to poor performance and higher costs.
1.1 Sports Fields

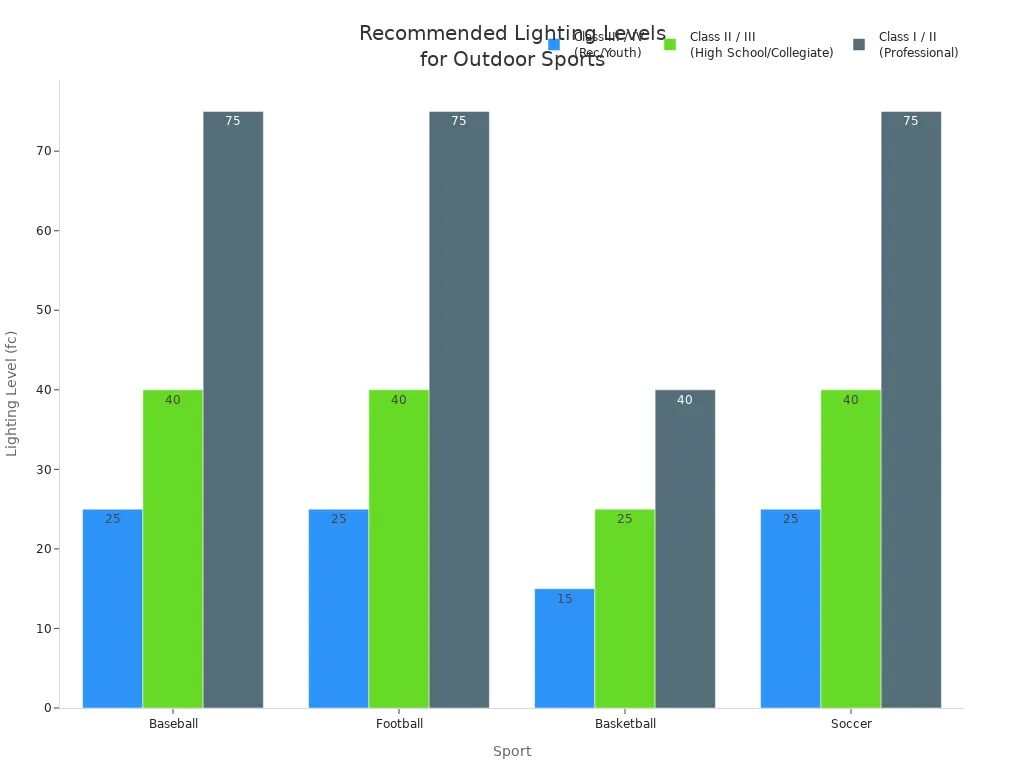

Sports fields demand precise lighting to support both athletes and spectators. You need to consider the type of sport, level of play, and layout of the field. The positioning of light poles and the aiming of fixtures transform a dark field into a professional arena. Proper layouts, such as four-corner towers or roof rim arrangements, help you avoid dark spots and reduce glare. The table below shows recommended lighting levels for common outdoor sports:
| Sport | Environment | Class III / IV (Rec/Youth) | Class II / III (High School/Collegiate) | Class I / II (Professional) |
|---|---|---|---|---|
| Baseball | Outdoor | 20 – 30 fc | 30 – 50 fc | 50 – 100 fc |
| Football | Outdoor | 20 – 30 fc | 30 – 50 fc | 50 – 100 fc |
| Basketball | Outdoor | 10 – 20 fc | 20 – 30 fc | 30 – 50 fc |
| Soccer | Outdoor | 20 – 30 fc | 30 – 50 fc | 50 – 100 fc |
You should always confirm the exact requirements through lighting calculations and local standards.
1.2 Stadium Perimeter
The stadium perimeter needs high-density Outdoor Lighting to ensure safety and security. You must focus on minimizing light spill and providing effective coverage for all access points. Unlike sports fields, perimeter lighting often uses different fixture types and mounting heights. Smart poles and LED street lights can help you achieve uniform illumination and support surveillance systems.
1.3 Parking Lots
Parking lots require reliable and uniform lighting to support vehicle and pedestrian safety. You should select pole heights and fixture spacing based on the lot size and layout. Solar street lights and LED fixtures offer energy savings and easy maintenance. Proper lighting reduces accidents and deters crime.
1.4 Walkways & Entrances
Walkways and entrances connect different parts of the complex. You need to provide consistent lighting to guide visitors and prevent trips or falls. Use lower pole heights and glare-free fixtures for comfort. Smart controls can adjust brightness based on foot traffic, improving efficiency.
1.5 Service Zones
Service zones include loading docks, maintenance areas, and emergency access routes. These areas need focused lighting for operational safety. Choose fixtures with high durability and proper ingress protection. Ensure that lighting supports both routine work and emergency situations.
Tip: Always base your product selection and configuration on site-specific conditions, such as wind load, soil type, and climate. Consult local standards and use lighting simulations to confirm your design.

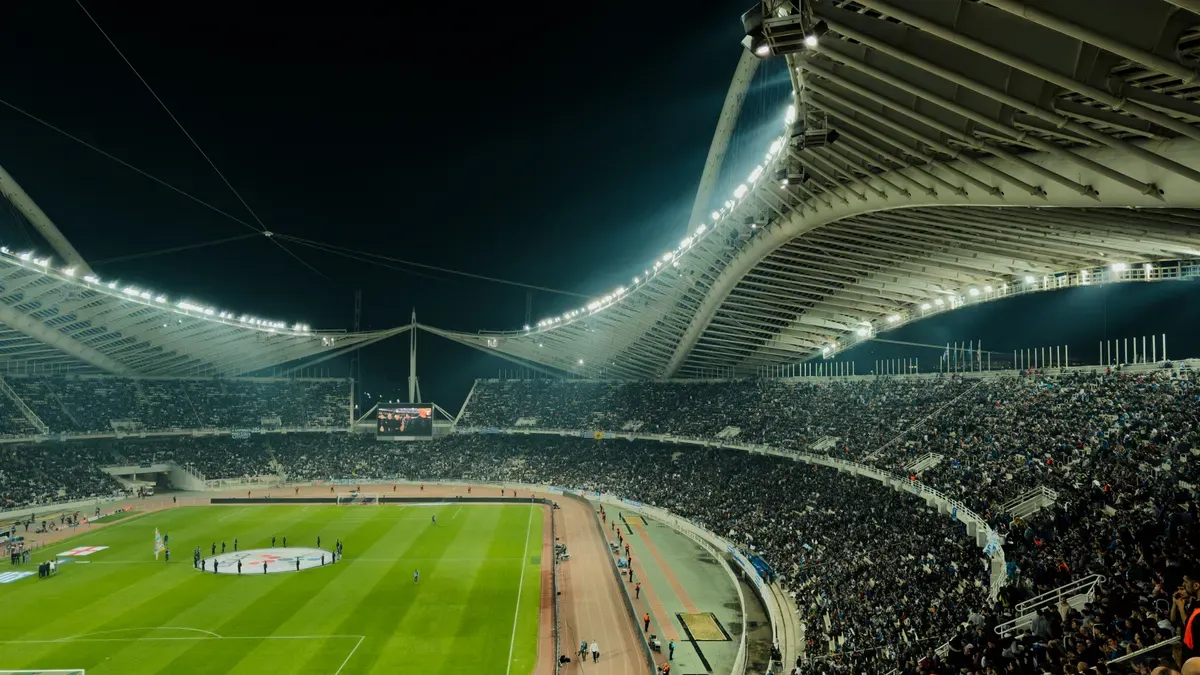

Part2: Outdoor Lighting Requirements
2.1 Illuminance & Uniformity
You need to set proper illuminance levels and uniformity ratios for each area of your sports complex. Illuminance measures how much light reaches the surface, usually in foot-candles (fc) or lux. Uniformity describes how evenly light spreads across the field or zone. High uniformity prevents shadows and dark spots, improving performance and safety.

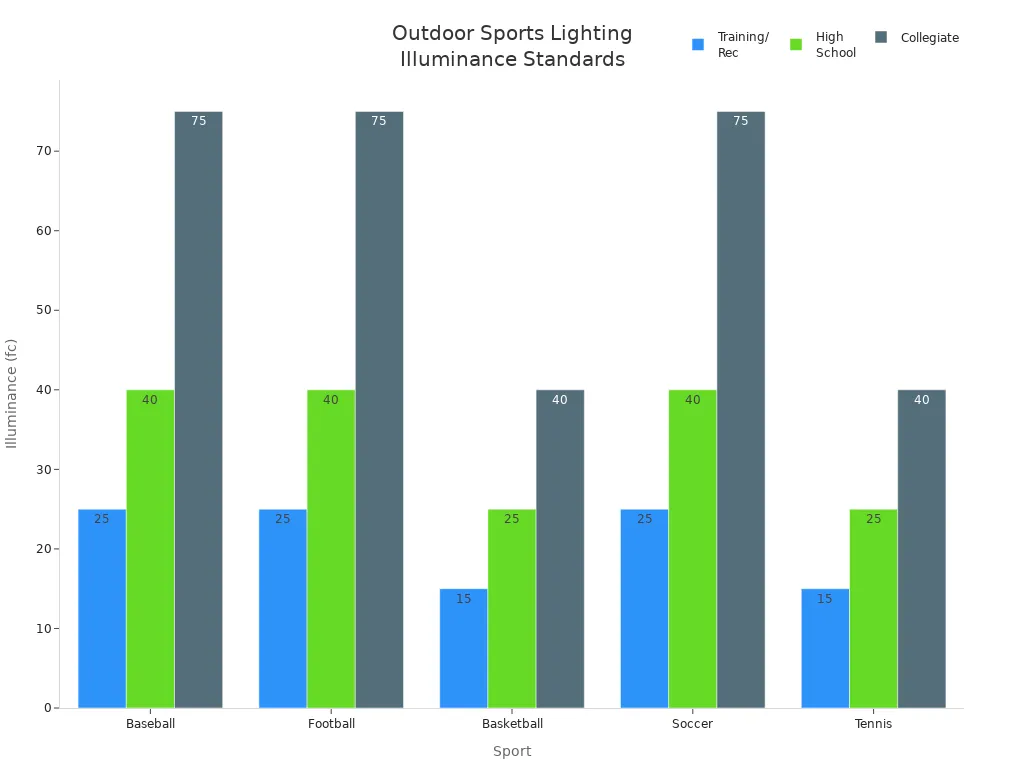

The Illuminating Engineering Society (IES) and International Commission on Illumination (CIE) recommend specific illuminance levels for different sports and activities. You can see the standards in the table below:
| Sport / Venue | Setting | Training/Rec | High School | Collegiate |
|---|---|---|---|---|
| Baseball | Outdoor | 20 – 30 fc | 30 – 50 fc | 50 – 100 fc |
| Football | Outdoor | 20 – 30 fc | 30 – 50 fc | 50 – 100 fc |
| Basketball | Outdoor | 10 – 20 fc | 20 – 30 fc | 30 – 50 fc |
| Soccer | Outdoor | 20 – 30 fc | 30 – 50 fc | 50 – 100 fc |
| Tennis | Outdoor | 10 – 20 fc | 20 – 30 fc | 30 – 50 fc |
Uniformity ratios help you maintain consistent light distribution. A ratio of 2:1 means the brightest spot is twice as bright as the dimmest. You should aim for lower ratios, like 1.5:1, to achieve better uniformity. Lighting calculations and simulations confirm these values for your site.
Note: Always use lighting simulation tools and consult local standards before finalizing your design. Specifications depend on site conditions, wind load, soil, and climate.
2.2 Safety & Visibility
You must prioritize safety and visibility in every lighting project. Consistent light distribution and glare control protect athletes, staff, and visitors. Excessive glare can reduce reaction time by up to 29%, making sports more dangerous. Poor lighting, including high glare and uneven shadows, can increase injury rates by 60%. LED sports lighting systems reduce glare and shadows by an average of 90% compared to traditional fixtures.
| Evidence Type | Description |
|---|---|
| Glare Impact | Excessive glare can decrease reaction time by up to 29%, affecting athletes’ responsiveness in dynamic sports. |
| Injury Rates | Poor lighting conditions, including high glare and uneven shadows, can lead to a 60% increase in injury rates during sports activities. |
| Glare Reduction | LED sports lighting systems can achieve an average reduction of 90% in glare and shadows compared to traditional lighting sources. |
You should select fixtures with proper optical control and shielding. Smart poles and LED street lights help you manage brightness and minimize glare. Lighting controls allow you to adjust levels for different events and times, improving both safety and energy efficiency.
Tip: Use glare-free fixtures and smart controls to enhance visibility and reduce risks.
2.3 Compliance & Standards
You must follow international and local standards for Outdoor Lighting in stadiums and sports complexes. Standards like EN 12193, IES guidelines, and CIE recommendations set requirements for illuminance, uniformity, glare control, and energy efficiency. For example, FIFA requires an average of 100 foot-candles for general broadcasts and 200 foot-candles for high-definition broadcasts. UEFA mandates a minimum of 140 foot-candles for international matches, with strict uniformity and glare reduction.
LED technology meets these compliance standards and offers energy savings. You should conduct a site assessment, choose fixtures that comply with EN 12193 and other standards, design for uniformity, test and adjust illuminance and glare, and document compliance with records of design and testing. Local regulations may add requirements for safety and environmental protection.
Note: Always reference authoritative standards from organizations like IES, CIE, EN 12193, and FIFA for technical guidance.
2.4 Environmental Impact
You need to consider environmental regulations when planning Outdoor Lighting installations. Local authorities enforce restrictions on light pollution, energy consumption, and safety. You must collaborate with local agencies to ensure compliance. Light pollution controls protect wildlife and nearby communities. Energy guidelines promote efficient systems, such as LED and solar street lights. Safety standards address fixture ratings, pole stability, and emergency lighting.
- Light pollution restrictions
- Energy consumption guidelines
- Safety standards
You should select products with proper ingress protection, use smart controls to limit unnecessary lighting, and design layouts that minimize spill light. Site-specific conditions, such as wind load and climate, affect product selection and configuration.
Callout: Environmental compliance improves sustainability and community relations. Always check local regulations before starting your project.
Part3: Product Selection
3.1 LED Sports Lighting
You should select LED sports lighting for stadiums and sports complexes because it offers several advantages over traditional lighting. LED fixtures consume up to 75% less power, converting almost all energy into light. You benefit from a longer lifespan, which reduces maintenance costs and minimizes bulb replacements. LEDs provide brighter and more uniform illumination, eliminating shadows and improving visibility for players and spectators. These lights lower carbon footprints and contain no toxic elements, making disposal safer. Many LED systems include smart controls, such as dimming and motion sensing, which enhance energy efficiency. Bright and uniform lighting improves safety and security throughout the facility.
Tip: LeapPole supports engineering customization and product supply for LED sports lighting, ensuring you meet project-specific requirements and local standards.
3.2 Solar Street Lights
Solar street lights play a key role in energy savings around stadium surroundings. Photovoltaic panels convert sunlight into electricity, which is stored in batteries for later use. This reduces reliance on traditional power sources and leads to significant cost savings on electricity bills and maintenance. Smart technology integration allows dynamic lighting adjustments based on real-time needs, optimizing energy consumption. You can use solar street lights in parking lots, walkways, and perimeter zones to improve sustainability and reduce operational costs.
3.3 Light Poles & Smart Poles
You need to evaluate light poles and smart poles based on structural integrity and project requirements. Consider diameter, wall thickness, and taper rate to ensure stability. Choose materials like fiberglass, steel, or aluminum, each offering unique benefits. The height of poles must match the level of play and environmental conditions, providing stability against wind loads. LED lights are recommended for efficiency and longevity, with attention to color temperature and glare reduction. Poles should minimize hazards for players and spectators, featuring anti-glare designs and robust construction. Installation techniques must adapt to local soil and climate. Maintenance accessibility and protective coatings, such as powder and UV-resistant treatments, enhance durability.
Note: LeapPole offers drawing support, documentation, and packaging solutions for light poles and smart poles, streamlining project consulting and implementation.
3.4 Traffic & Support Products
You should use LED floodlights for stadium lighting projects. These lights deliver broad beams and exceptional brightness, ensuring uniform light distribution across large areas. Mount floodlights on tall poles or stadium roofs to maximize coverage. Uniform illumination is crucial for gameplay fairness and spectator visibility. LED floodlights are engineered to light up extensive areas, making every part of the playing field well-lit. Traffic and support products also include lighting controls, mounting accessories, and safety components that enhance overall system performance.
Callout: Confirm product specifications through lighting calculations and site assessments. LeapPole can assist with quality control and project documentation for traffic and support products.
Part4: Engineering Configuration
4.1 Power & Distribution
You must design a reliable power and distribution system for outdoor lighting in sports complexes. Begin by assessing the total load and distribution points for each functional area. Use dedicated circuits for sports fields, parking lots, and walkways. This approach helps you isolate faults and maintain system stability. Consider backup power sources, such as generators or battery storage, to ensure uninterrupted operation during events. Smart controls and monitoring systems allow you to manage energy use efficiently and respond quickly to faults.
4.2 Pole Height & Spacing
Pole height and spacing play a critical role in achieving uniform light distribution. Taller poles spread light over a wider area, so you can space them further apart. For example, if you use a 30-foot pole, the recommended spacing is 75 to 90 feet. If you place poles too far apart, you create dark spots. If you place them too close, you get bright spots and uneven lighting. Always use a minimum pole height of 15 feet to reduce glare. Most projects benefit from poles between 25 and 50 feet tall. You should confirm all values through lighting calculations and site analysis.
4.3 Fixture Ratings
You need to select fixtures with the right ingress protection (IP) ratings to ensure durability and performance in outdoor environments. Most LED fixtures for sports complexes have an IP65 rating or higher. This means they are dust-tight and can withstand powerful water jets. Higher ratings, such as IP66 or IP67, offer extra protection in areas with heavy rain or risk of immersion.
| IP Rating | Description |
|---|---|
| IP65 | Dust-tight, protected against water jets |
| IP66 | Enhanced water jet protection |
| IP67 | Protected against immersion in water |
Choose the rating based on your local climate and installation area.
4.4 Site Adaptation
You must adapt your lighting configuration to the unique conditions of each site. Smart lighting systems let you adjust brightness and timing based on event schedules and crowd movement. Proper layout of poles and fixtures helps define routes and transitions, making navigation easier for visitors. Advanced controls support real-time monitoring and adjustments, so you can respond to peak demand and operational needs.
- Tailor lighting to site usage for safety and crowd management
- Use optimal layouts to guide visitors and reduce confusion
- Implement controls for efficient, adaptive lighting
4.5 Lighting Simulation
Lighting simulation tools help you visualize and optimize your design before installation. You can model different pole heights, fixture types, and layouts to predict light levels and uniformity. Simulations allow you to identify potential issues, such as glare or dark spots, and make adjustments early. Always use simulation results to confirm compliance with standards and to support procurement and installation decisions.
Tip: Work with professional engineers and use simulation software to ensure your lighting system meets all technical and regulatory requirements.
Part5: Installation & Standards
5.1 Installation Methods
You need to select installation methods that balance technical requirements with budget and operational needs. Professional installation ensures compliance with local codes and regulations. You must place lights carefully to avoid shadows and achieve even illumination across each playing field. Strategic positioning of poles and fixtures enhances both safety and the visual integration of lighting into the landscape. LeapPole provides engineering support for pole placement, fixture mounting, and electrical connections, helping you meet project-specific requirements.
- Professional installation guarantees code compliance.
- Proper placement prevents shadows and uneven lighting.
- Strategic positioning improves aesthetics and safety.
Tip: Always confirm installation conditions through site analysis, lighting calculations, and local standards.
5.2 Acceptance & Quality Control
You must follow strict quality control measures during the acceptance phase of stadium lighting projects. The table below outlines key steps:
| Quality Control Measure | Description |
|---|---|
| Equipment Verification | Confirm approved equipment arrives in good order at the jobsite. |
| Installation Verification | Ensure equipment is installed according to approved drawings and plans. |
| System Activation | Program, calibrate, and adjust controls to match specifications and site conditions. |
| Functional Testing | Verify installed equipment operates according to design intent and meets acceptance criteria. |
| Punch List Assignment | Document deficiencies for resolution by the contractor. |
| Owner Notification and Acceptance of Test Reports | Inform the owner of all test results for final acceptance. |
LeapPole supports quality control by providing documentation, technical guidance, and on-site inspection services.
5.3 LeapPole Support
LeapPole enhances installation and maintenance with structured strategies. You schedule routine inspections twice a year to ensure all fixtures function properly. You examine each high mast lighting fixture for wear and tear. You test lights and electrical components for operational reliability. Cleaning fixtures with soft cloths and mild detergents maintains performance. Quick replacement of faulty parts ensures safety and functionality.
| Maintenance Strategy | Description |
|---|---|
| Routine Inspections | Schedule inspections twice a year to ensure all fixtures are functioning. |
| Fixture Examination | Check each high mast lighting fixture for signs of wear and tear. |
| Testing Components | Test all lights and electrical components to ensure they are operational. |
| Cleaning Fixtures | Clean fixtures with soft cloths and mild detergents to maintain performance. |
| Quick Replacement | Replace faulty parts promptly to ensure safety and functionality. |
5.4 Documentation
You must maintain comprehensive documentation for compliance and ongoing maintenance. Essential documents include installation manuals, wiring diagrams, product specifications, labeling requirements, testing protocols, and maintenance strategies. You also need records for cleaning light fixtures, inspecting wiring and connectors, and replacing components as needed. Proper documentation supports regulatory compliance and simplifies future maintenance.
- Installation manuals
- Wiring diagrams
- Product specifications
- Labeling requirements
- Testing protocols
- Maintenance strategies
Note: Accurate documentation streamlines project acceptance and supports long-term reliability.
Part6: Procurement & Maintenance
6.1 Selection Tips
You need to evaluate lighting products carefully before procurement. Focus on lumens for brightness, not just wattage. Assess beam spread to ensure even coverage across sports fields and stadium surroundings. Determine mounting height to minimize glare and maximize coverage.
Recommended selection criteria for outdoor sports lighting projects appear in the table below:
| Selection Criteria | Details |
|---|---|
| Color Temperature | 4000K or 5000K enhances visibility and experience in stadium applications. |
| Weather Resistance | Minimum IP65 rating ensures reliable operation in all weather conditions. |
| Color Rendering Index (CRI) | Minimum CRI of 70 provides natural appearance and visibility for professional use. |
| Quality Assurance | UL or ETL certification and a minimum 5-year warranty support reliability. |
You should also consider energy efficiency for cost-effective operation. Uniform illumination depends on proper beam spread and mounting height.
Tip: Always confirm specifications through site analysis, lighting calculations, and local standards. Avoid fixed parameters; adapt to wind load, soil, and climate.
6.2 Maintenance Planning
You must plan maintenance to maximize the lifespan and performance of your lighting system. Schedule quarterly cleanings to remove dirt and debris. Conduct monthly inspections for loose connections and signs of overheating. Address physical damage or corrosion promptly, especially in moisture-prone areas. Replace dimming bulbs quickly to maintain consistent lighting.
Professional assessments twice a year ensure compliance with safety standards and identify potential issues. Managing ambient temperature and humidity helps prolong fixture life. For detailed strategies, see lighting maintenance strategies.
- Regular cleaning maintains clarity and performance.
- Monthly inspections catch issues early.
- Timely repairs prevent further damage and maintain safety.
6.3 Warranty & Service
You should review warranty and service options before finalizing procurement. Comprehensive warranties last up to 10 years and cover manufacturing defects and performance issues. Many suppliers, such as Shinetoo Lighting USA, offer 5–7 year warranties.
The table below summarizes typical warranty coverage:
| Warranty Type | Duration | Coverage Details |
|---|---|---|
| Comprehensive | Up to 10 years | Manufacturing defects and performance issues |
| Shinetoo Lighting USA | 5–7 years | Refer to product specifications for details |
Establish a maintenance plan to ensure longevity and efficiency. Reliable service support reduces downtime and protects your investment.
6.4 Cost & Value
You need to analyze costs to assess the value of lighting solutions. Life-cycle cost savings, operational expenses, and energy efficiency are critical factors. Compare total ownership costs, including initial investment, maintenance, and energy use. Automated control systems can enhance energy savings by up to 10% and reduce labor costs.
A recent analysis in Robeson County showed that energy-efficient systems reduced fixture numbers by 40%, leading to substantial savings. Long-term warranties help mitigate maintenance costs and ensure reliability.
Note: Cost analysis supports informed procurement decisions and long-term project success. Always tailor your evaluation to site-specific conditions and standards.
To select and configure outdoor lighting for sports complexes and stadium surroundings, you should:
- Define lux levels for each sport and area.
- Ensure compliance with FIFA, UEFA, EN 12193, or local standards.
- Evaluate uniformity, glare, CRI, and advanced controls.
- Compare LED, solar, and smart pole options for energy and maintenance benefits.
- Select reliable suppliers with strong documentation and support.
Professional engineering support ensures safe installation, accurate aiming, and efficient maintenance. Always tailor your solution to site conditions and project needs. For expert advice or a custom lighting configuration, contact our team for a consultation.
FAQ
What factors should you consider when selecting outdoor lighting for sports complexes?
Evaluate the function of each area, target illumination, uniformity, glare limits, operating schedules, camera requirements, climate, wind exposure, soil conditions, and maintenance access. Product specifications such as luminaire output, optical distribution, IP rating, surge protection, pole material, and mounting configuration should be verified through project-specific calculations.
How do you configure pole height and spacing for different functional areas?
Pole height and spacing should be determined through photometric simulation rather than fixed rules. Engineers must consider the dimensions of each area, luminaire optics, target uniformity, glare control, obstructions, and camera coverage. Structural calculations should then confirm pole strength, wind resistance, foundation design, and mounting capacity.
When should high mast lighting be used at sports facilities?
High mast lighting systems are suitable for large parking areas, stadium surroundings, training grounds, service yards, and other open spaces requiring broad coverage. The appropriate mast height, floodlight quantity, aiming arrangement, and lowering mechanism depend on photometric calculations and maintenance requirements.
What are the key installation and acceptance requirements?
Installation teams should follow approved drawings and verify foundations, anchor bolts, pole alignment, luminaire mounting, electrical connections, grounding, control systems, and protective devices. Acceptance testing should cover illumination, uniformity, glare, system operation, emergency modes, and control functions. Applicable requirements may include EN 12193, local electrical codes, structural standards, and project-specific specifications.
Can lighting systems be customized for different sports-complex zones?
Yes. LeapPole can customize LED street lights, high mast systems, pole heights, brackets, finishes, floodlight platforms, camera mounts, and control interfaces. Solar lighting may also be considered for remote walkways, secondary parking areas, or expansion zones where grid access is limited.
How should you plan maintenance and project delivery?
Establish inspection and cleaning schedules based on operating hours and environmental conditions. Check luminaires, poles, anchor bolts, wiring, surge-protection devices, control equipment, and lowering mechanisms. Procurement teams should also confirm production lead time, packing, shipping, installation sequence, spare parts, warranty scope, and technical-document delivery.
For a project-specific evaluation, submit the site drawings, functional zones, lighting requirements, quantities, wind data, soil conditions, control requirements, and tender specifications. Contact LeapPole for technical recommendations and a tailored quotation.
