Railway freight yards and intermodal terminals often operate around the clock, requiring reliable outdoor lighting for train movements, container handling, vehicle circulation, inspections, loading areas, and security zones. Their lighting systems must perform under demanding conditions such as severe weather, vibration, dust, corrosion, restricted maintenance access, and deep shadows between railcars or container stacks.
Lighting design must also protect the visibility of railway signals. Poorly positioned or incorrectly selected luminaires can produce glare, reflections, or colors that distract train operators and interfere with signal recognition. Fixture optics, mounting positions, aiming angles, and control strategies should therefore be coordinated with the railway operator and the project’s signaling requirements.
This guide helps terminal operators, engineering contractors, and procurement teams evaluate high-mast lighting systems, heavy-duty poles, industrial LED luminaires, solar lighting, and smart controls for different functional areas. The final configuration should be based on terminal geometry, operational tasks, environmental conditions, photometric calculations, structural design, and applicable local standards.
Key Takeaways
- Upgrading to industrial LED lights cuts terminal energy use by 70% while improving nighttime worker safety.
- High-mast towers and short light poles provide clear visibility across tracks without creating dark shadows.
- Precision optics block dangerous light glare to help train engineers clearly see visual track signals.
- Smart light pole networks and solar fixtures reduce utility costs and improve total facility security.
Part 1: Application Scenarios and Facility Lighting Demands

Modern rail terminals operate around the clock. Upgrading from legacy High-Intensity Discharge (HID) fixtures to industrial LED Outdoor Lighting systems cuts facility energy consumption by up to 70%. High-efficiency LED luminaires deliver superior light quality with a Color Rendering Index (CRI) of 70 or higher. This optical clarity helps crew members read container placards accurately and spot hazards quickly.
Key Takeaway: Upgrading your terminal fixtures from legacy HID to high-performance LED luminaires significantly reduces utility costs while increasing site visibility and operational safety.
Different functional zones across your terminal demand specific mounting heights, luminaire configurations, and optical distributions.
1.1 Rail Track and Yard Outdoor Lighting Demands
Rail classification yards cover vast linear distances. You must select light pole structures based on the specific operational tasks in each track zone.
- High-Mast Towers: Tall high-mast light pole systems (ranging from 80 to 150 feet) provide broad, uniform visibility across wide track arrays. They reduce the total number of physical poles needed in operational pathways.
- Low-Height Light Poles: Shorter light poles (15 to 30 feet) illuminate localized train crew maneuvers. Switchmen require focused light near ground level when coupling cars, throw switches, and inspecting air hoses.
Switching tracks requires custom optical distributions. Wide asymmetric beam patterns project light evenly along long, narrow rail corridors. Precision optics shield oncoming train engineers from hazardous glare, maintaining clear visibility for track signals and switches.

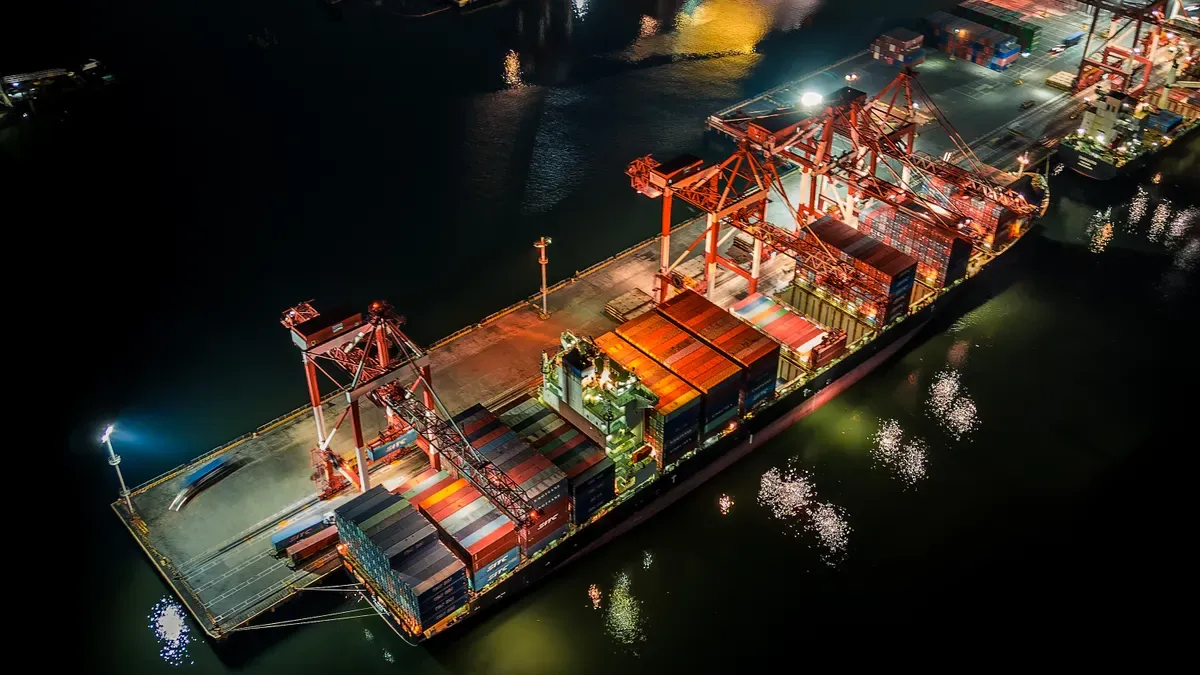

1.2 Intermodal Stacks and Gantry Crane Zones
Tall container stacks create deep vertical shadows. Ship-to-shore and rubber-tyred gantry (RTG) cranes operate within these tight corridors. Inadequate lighting between container rows increases collision risks and slows down stacker operations.
To ensure safety and efficiency, your lighting configuration must meet specific photometric standards across all handling areas:
| Application / Port Machinery Area | Recommended Illuminance Level | Minimum Color Rendering Index (CRI) |
|---|---|---|
| Container Yard Operational Areas | Average ≥ 20 lx (20 – 50 lx range) | CRI ≥ 70 (Ra ≥ 70) |
| Large Equipment / Gantry Cranes | 150 – 200 lx (local vertical) | CRI ≥ 80 |
| Port Machinery & Precision Work Areas | ≥ 50 lx | CRI ≥ 80 |
| Safety Sign & Container Number Identification | Standard Operational Lux | CRI ≥ 70 |
High CRI lighting allows crane operators and ground inspectors to read container identification numbers, hazard labels, and color-coded seal tags without visual fatigue.
1.3 Transfer Bays, Loading Docks, and Ramps
Transfer bays and intermodal ramps experience non-stop vehicular traffic. Heavy-duty yard tractors, chassis trucks, and forklifts constantly move freight between railcars and staging areas.
Work crews require uniform horizontal and vertical illuminance on loading docks. Dark spots inside container trailers or underneath truck chassis lead to loading errors and trip hazards. Mounting specialized LED luminaires on perimeter light poles creates overlapping light patterns. This approach eliminates harsh shadows created by open trailer doors and elevated loading ramps.
1.4 Gate Houses, Weigh Stations, and Perimeters
Gate houses and weigh stations serve as your facility’s primary security checkpoints. Truck drivers, gate clerks, and automated optical character recognition (OCR) systems process shipping documents and inspect container seals at these locations.
- Checkpoints and Scale Platforms: Mounting glare-free luminaires at driver eye-level improves safety during physical document exchanges and weight checks.
- Perimeter Fences: Installing intelligent LED fixtures on perimeter poles secures the terminal boundary.
Engineers should design perimeter lighting systems according to standards established by the Illuminating Engineering Society (IES) and international guidelines from the International Electrotechnical Commission (IEC). Proper optical positioning keeps perimeter light contained within facility borders, preventing light trespass into neighboring commercial areas.
Part 2: Product Selection for Facility Outdoor Lighting

Selecting rugged industrial hardware ensures long-term operational performance across harsh railway environments. You must match physical terminal layouts with purpose-built lighting infrastructure to maximize safety and uptime.
2.1 High-Mast Light Pole Systems for Wide Coverage
Large classification yards demand high-mast light pole structures to project light over broad track arrays. Standard off-the-shelf poles cannot handle severe yard conditions. Engineering teams must calculate pole height, structural wall thickness, and foundation design based on localized wind loads, soil mechanics, and site-specific photometric demands. Experienced manufacturers like LeapPole engineer custom high-mast poles with motorized lowering systems. These specialized lowering mechanisms allow maintenance crews to service elevated luminaires safely at ground level.
2.2 Heavy-Duty Industrial LED Luminaires
Severe physical vibration from heavy freight trains quickly destroys standard light fixtures. Heavy-duty industrial LED luminaires feature die-cast aluminum housings, vibration-dampening mounts, and shatterproof lenses. Precision optical distributions direct light precisely where switchmen work, preventing spill light into oncoming train cabs. Upgrading to high-efficiency LED technology reduces power consumption while delivering reliable illumination in extreme hot or freezing weather.
2.3 Smart Light Poles with Integrated Security
Modern intermodal terminals install intelligent light pole networks to combine modern security with energy-efficient Outdoor Lighting management. Smart light poles integrate HD security cameras, environmental sensors, and wireless IoT nodes onto a single structural pole.
- Operational System Integration: Connecting smart poles directly to facility management software synchronizes lighting schedules with train arrivals and gate operations.
- Adaptive Traffic Dimming: Real-time monitoring of vehicle movements enables automated dimming, generating overall energy savings of 40% to 60% compared to traditional static setups.
- Dynamic Standby Dimming: AI motion sensors detect inactivity in secondary yard zones and instantly drop luminaire output to standby levels.
- Enhanced Energy Savings: Automated brightness adjustments deliver up to a 40% reduction in electricity use compared to standard LED installations.
2.4 Solar Street Light Solutions for Remote Sidings
Trenching electrical wiring to isolated rail sidings and boundary tracks often costs too much money. Standalone solar street light systems solve grid connection challenges in distant terminal zones. Installing an integrated solar street light unit provides reliable solar-powered security lighting without expensive utility infrastructure.
Part 3: Engineering Configurations and Technical Calculations
Designing a high-performance terminal installation requires precise engineering calculations. You cannot guess luminaire counts or light pole heights. Every structural decision depends on site dimensions, thermal conditions, and specific operational needs. Engineering teams must calculate exact photometric layouts to ensure worker safety and regulatory compliance.
3.1 Mounting Heights and Pole Spacing Ratios
You must establish the correct relationship between pole height and spacing to achieve uniform illuminance across wide tracks. Selecting the proper mounting height eliminates dark zones between tracks and container rows. High-mast towers deliver wide, continuous beam patterns across extensive classification yards.
| Parameter | Recommended Specification | Application Context |
|---|---|---|
| Optimal Height-to-Spacing Ratio | Spacing should be 3 to 4 times the tower height | Ensures light overlap and maintains minimum-to-average lux uniformity across overlapping coverage circles. |
| Recommended Tower Height | 25 – 30 meters | Standard height selection for rail depots and transport interchanges. |
| Coverage Radius | 2 – 2.5 times the tower height | Sizing guideline to cover operational zones from available mast positions. |
When you position high-mast structures, you must evaluate the shadow angles created by stacked freight containers. Higher mounting elevations project light over tall container walls. This structural placement delivers vital light into narrow crane aisles and truck lanes.
3.2 Photometric Calculations and Target Foot-Candles
Engineers calculate light distribution using computer modeling software like AGi32. You must establish specific target foot-candle (fc) or lux levels for every zone based on guidelines from the Illuminating Engineering Society (IES) and the International Commission on Illumination (CIE).
- Active Rail Sidings: Target 2 to 5 foot-candles (20 to 50 lux) on horizontal track surfaces.
- Intermodal Container Stacks: Require 3 to 5 foot-candles of vertical illuminance to make container codes visible.
- High-Risk Transfer Bays: Mandate 10 to 15 foot-candles (100 to 150 lux) for precision crane maneuvers and truck loading.
Photometric software maps every luminaire optical curve across your site grid. You evaluate the minimum-to-average uniformity ratio to prevent blinding glare spots next to dark shadow zones. Accurate computer modeling confirms your physical layout meets international safety standards before you purchase equipment.
3.3 Precision Optics to Prevent Signal Glare
Improper light placement creates dangerous glare for locomotive engineers. Direct glare blinds train operators and hides visual track signals. You must specify modern LED luminaires equipped with custom asymmetric optics and sharp cutoff shields.
Lighting designers evaluate the Backlight, Uplight, and Glare (BUG) rating system established by the IES. High-performance LED street light optics direct luminaire output downward onto target tracks. Precision lenses keep backlight away from adjacent mainline tracks. Furthermore, choosing a neutral color temperature (4000K to 5000K) prevents visual confusion with red, green, and yellow railway signals.
3.4 Foundation Design, Soil Mechanics, and Wind Loads
High-mast structures experience massive wind forces and continuous rail traffic vibration. You must engineer every light pole foundation based on local soil bearing capacity and regional wind velocity charts.
Total Structural Load = Dead Weight + Wind EPA Load + Dynamic Train Vibration
Engineers compute the Effective Projected Area (EPA) of all mounted luminaires, crossarms, and security hardware. Severe coastal storms and gusting wind conditions increase stress on upper pole shafts.
Structural engineers evaluate soil core samples before pouring concrete foundations:
- Cohesive Clay Soils: Require deeper augered piers to resist lateral soil movement.
- Granular Sandy Soils: Demand wider concrete spread footings to distribute overturning moments.
- Anchor Bolt Engineering: Requires high-strength steel anchor bolts embedded deep within reinforced concrete cages.
LeapPole provides complete structural engineering support for high-mast light pole designs. Engineering teams calculate specific wall thicknesses, steel plate grades, and foundation specs to match your local site geography. Proper structural design guarantees stable Outdoor Lighting operation during extreme weather events.
Part 4: Industry Standards and Installation Safety
You must design rail yard infrastructure to withstand harsh environmental forces and extreme mechanical stress. Adhering to international safety codes guarantees long-term operational performance and protects site personnel.
4.1 Compliance with IES RP-7 and Railway Standards
Your outdoor lighting configuration must comply with established safety codes. Standards like IES RP-7 define light level recommendations for industrial facilities and rail transport areas. Furthermore, you must follow strict railway signal visibility mandates. Precision optics shield oncoming locomotive cabs from dangerous direct glare. Careful aiming ensures your luminaire placements never obstruct or distort visual track signals.
4.2 Structural Protection Against Train Vibration
Heavy freight trains generate severe, continuous ground vibrations across classification yards. Standard commercial hardware quickly fails under these harmonic forces.
- Vibration Dampeners: You must install internal vibration dampening systems inside every steel light pole to absorb constant shocks.
- Secured Fasteners: Locking hardware and heavy-gauge mounting brackets prevent hardware detachment.
- Reinforced Steel Structures: Selecting heavy-duty pole shafts protects internal electronics from structural fatigue.
4.3 Anti-Corrosion Treatments for Coastal Terminals
Coastal intermodal terminals subject lighting equipment to aggressive salt spray, humidity, and chemical pollution. Unprotected steel poles rust rapidly and create structural hazards.
| Protective Layer | Engineering Standard | Operational Benefit |
|---|---|---|
| Hot-Dip Galvanizing | ISO 1461 / ASTM A123 | Provides full interior and exterior zinc coating against rust. |
| Architectural Powder Coating | ISO 12944 (C5 Marine) | Adds a durable outer barrier against UV damage and salt spray. |
4.4 Surge Protection and Thermal Management
Grid fluctuations and lightning strikes endanger sensitive electronic components across broad track networks.
Technical Tip: You must equip every light pole base with heavy-duty surge protection devices (SPDs) rated for at least 10kV/20kA to prevent sudden component failure.
In addition, advanced die-cast aluminum heat sinks conduct thermal energy away from LED chips. Effective heat dissipation maintains driver stability during prolonged high-temperature operation.
Part 5: Procurement, Lifecycle Costs, and Project Support
Upgrading terminal infrastructure requires a clear balance between initial capital expenditures and long-term operating costs. You must evaluate complete lifecycle values rather than just initial purchase prices.
5.1 Evaluating Initial CapEx vs. Long-Term TCO
High-quality LED equipment demands higher upfront capital than legacy HID units. However, lower energy bills and minimal maintenance yield rapid payback. You achieve a significantly lower Total Cost of Ownership (TCO) over a 10-year operational period.
| Financial & Operational Metric | Legacy HID Systems | Advanced LED Systems |
|---|---|---|
| Energy Consumption | High (400W – 1000W+) | Low (150W – 600W) |
| Maintenance Cycle | Every 12 to 24 months | Beyond 50,000 to 100,000 hours |
| System Payload & Efficiency | Rapid lumen depreciation | Stable output with smart controls |
5.2 Simplifying Maintenance with Motorized Lowering Systems
Servicing high-mast towers elevated at 100 feet creates severe safety risks and requires costly crane rentals. Motorized lowering systems solve this challenge effortlessly. Internal winches lower the luminaire ring safely down to ground level. Your maintenance crew services each luminaire, driver box, and cable harness without climbing towers or blocking rail tracks.
Operational Safety Alert: Ground-level maintenance eliminates hazardous high-altitude work, protects technicians, and keeps busy rail yards fully operational.
5.3 Engineering Support and Customization with LeapPole
Every freight yard presents unique physical layouts, soil mechanics, and severe wind challenges. You cannot rely on standardized, off-the-shelf products. Project parameters—such as luminaire wattage, light pole height, spacing, and foundation depth—depend entirely on site-specific photometric calculations and local weather loads.
As a trusted engineering partner, LeapPole provides complete structural and optical support for complex Outdoor Lighting deployments. Their technical team delivers custom CAD drawings, wind load calculations, and precise photometric layouts tailored to your terminal. LeapPole ensures strict quality control and heavy-duty packaging for safe international delivery. You can contact LeapPole engineering experts to receive custom project designs and comprehensive procurement consulting today.
Optimizing your terminal requires precise zonal optics, structural durability, energy efficiency, and strict regulatory compliance. You must evaluate specific site conditions before purchasing equipment.
| Phase | Checklist Focus | Technical Validation |
|---|---|---|
| 1. Photometrics | Optical Coverage | Verify lux uniformity and signal glare control |
| 2. Engineering | Structural Integrity | Calculate wind loads, train vibration, and soil specs |
| 3. Lifecycle | Maintenance Planning | Specify motorized lowering systems for high-masts |
Contact the engineering team at LeapPole today. Our experts deliver custom pole calculations and tailored photometrics for your Outdoor Lighting project.
FAQ
How do you prevent LED luminaires from interfering with railway signals?
Use controlled optical distributions, appropriate shielding, careful aiming, and mounting positions that keep luminaires outside critical signal sightlines. Designers should evaluate glare from locomotive-cab viewing positions and avoid light sources that could be confused with railway signal colors. ANSI/IES RP-7-21 may inform industrial-area lighting, but signal visibility must also be reviewed against the railway authority’s requirements and applicable local standards.
Why should light pole specifications be customized for railway freight yards?
Pole height, spacing, wall thickness, mounting arrangement, foundation design, and surface protection depend on local wind conditions, soil data, luminaire loads, terminal geometry, corrosion exposure, and maintenance access. Photometric and structural calculations should be completed before specifications are finalized. LeapPole’s high-mast lighting systems can be configured around project-specific structural and lighting requirements.
Are solar street lights suitable for isolated railway sidings?
Solar street lights may be suitable for remote access roads, perimeter zones, parking areas, and isolated sidings where trenching or grid connection is difficult. Suitability depends on solar resources, shading, operating hours, required illumination, battery autonomy, climate, and safety classification. Review LeapPole’s solar lighting solutions for project-specific configurations. Safety-critical areas should receive a detailed reliability and risk assessment before an off-grid system is selected.
How do lowering systems simplify high-mast maintenance?
A lowering system brings the luminaire carriage to ground level for inspection, cleaning, and component replacement. This can reduce dependence on elevated work platforms or crane trucks and limit disruption in active operating areas. The winch, cables, locking mechanism, electrical connections, and safety devices must still be inspected and maintained according to the approved maintenance procedure.
How are wind loads and foundations determined for high-mast poles?
Structural engineers calculate design loads using the applicable code, local design wind speed, terrain category, mast geometry, luminaire quantity, effective projected area, and equipment weight. Foundation dimensions also depend on geotechnical data, groundwater conditions, overturning forces, anchor-bolt design, and installation constraints. Train-induced vibration or fatigue should be evaluated when relevant to the mounting location.
Submit your terminal layout, geotechnical information, design wind speed, target lighting requirements, equipment schedule, and tender specifications through the LeapPole contact page. LeapPole can help prepare a project-specific high-mast, pole, and lighting configuration.
