Outdoor Lighting Solutions for Data Center Campuses and Utility Compounds

Outdoor lighting for data center campuses and utility compounds must support perimeter security, vehicle circulation, personnel access, CCTV monitoring, emergency response, and continuous facility operation. At the same time, the lighting design should control glare, light trespass, sky glow, and unnecessary energy consumption.

Different functional zones require different solutions. Access roads and parking areas need uniform roadway illumination, while gates, substations, loading areas, equipment yards, and perimeter fences may require more controlled vertical and horizontal illumination for personnel and cameras.

Properly selected LED street lights, engineered street light poles, shielding, adaptive controls, and project-specific photometric calculations help balance security with environmental requirements. Motion sensors and scheduled dimming can reduce unnecessary operating hours, but energy savings should be calculated from the actual baseline, control strategy, occupancy pattern, and required security mode.

Key Takeaways

• Advanced LED lights give clear video for security cameras while cutting energy costs by up to 50%.
• DarkSky rules require full-cutoff lights and warm colors to protect nature and reduce light pollution.
• Smart light poles hold cameras, sensors, and lights in one single strong unit.
• Off-grid solar lights keep distant fences bright and secure even during power outages.
• Custom engineering calculations ensure light poles stay strong during severe weather and high winds.

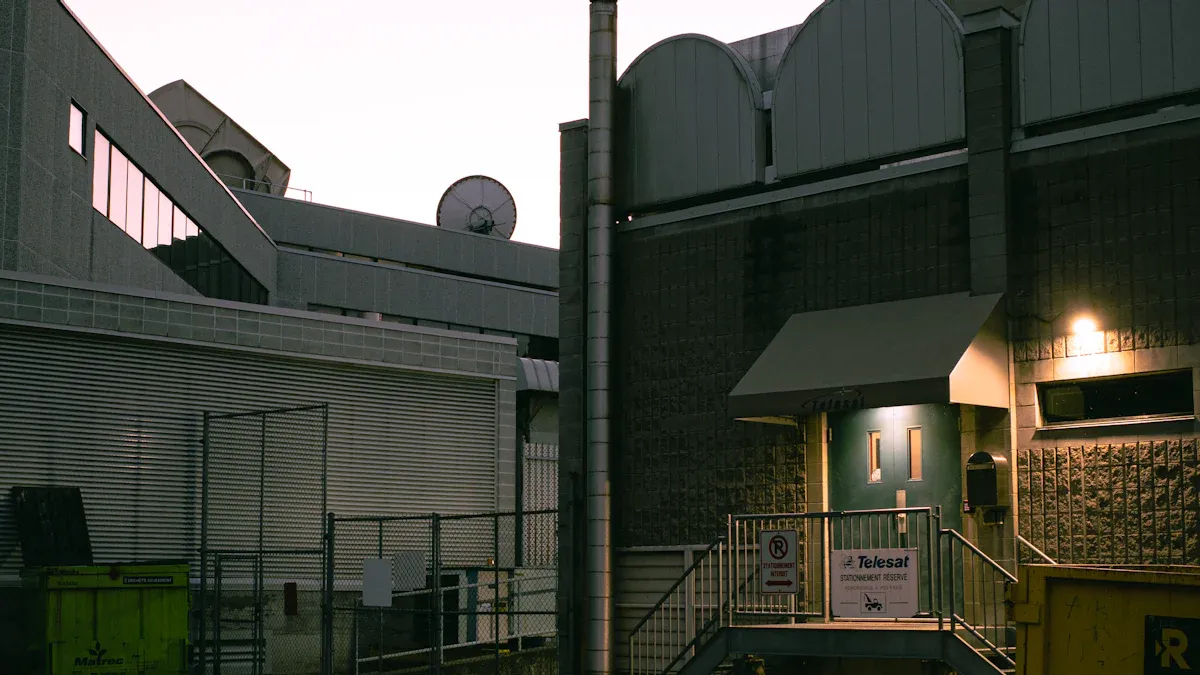

Part 1: Functional Zones on Data Center Campuses and Utility Grounds

You cannot apply a single fixture type across your entire facility. Security teams need target-specific illumination profiles for perimeters, entry gates, equipment yards, and parking lots on Data Center Campuses and utility compounds. Centralized control integration connects these exterior site luminaires directly to your main security console. This unified system gives operators instant control over light levels during critical alerts.

1.1 Perimeter Fencing and Surveillance Zones

Perimeter fences demand targeted optical distribution. You must illuminate boundary walls without blinding camera sensors or spilling light onto adjacent properties. Narrow optical distributions direct clear light along the fence line. This precise control enhances CCTV dynamic range and stops intruders from hiding in deep shadows.

1.2 Access Gates and Vehicle Inspection Points

Vehicle entry points require instant visual clarity. Guards need high vertical illuminance to inspect undercarriages, driver cabs, and transport documents quickly. High-CRI LED fixtures deliver true color rendering at checkpoints. This clear lighting speeds up visual verification and prevents dangerous bottlenecks at your facility gate.

1.3 High-Voltage Substations and Mechanical Yards

Substations contain dangerous high-voltage equipment and complex mechanical assets. Technicians require glare-free lighting for night maintenance and emergency repairs. Robust, full-cutoff luminaires eliminate upward spill and harsh shadows around transformers and switchgear. These heavy-duty fixtures keep maintenance crews safe around hazardous electrical components.

1.4 Facilities Parking Lots and Building Envelopes

Facility parking areas demand uniform illumination to ensure driver safety and clear surveillance footage. According to IESNA standards, commercial parking facilities generally maintain a maximum-to-minimum illumination ratio benchmark of 15:1 to ensure even light distribution, though a tighter ratio of 10:1 is frequently implemented in practice.

Balancing these distinct zones keeps your facility secure, compliant, and easy to monitor from one central hub.

Part 2: DarkSky Standards and Light Pollution Control

Securing critical data center compounds requires strict compliance with modern environmental standards. DarkSky International sets guidelines to curb light pollution while maintaining optimal site visibility. You must integrate engineered optical controls into your facility luminaires to meet both municipal mandates and strict security protocols.

2.1 The Five Principles of Responsible Outdoor Lighting

Responsible illumination starts with target-specific luminaire selection. You need to apply structured guidelines to limit artificial skyglow and glare across facility grounds. DarkSky International establishes clear expectations for outdoor lighting design in industrial complexes.

Industrial sites must balance these core principles with operational safety. Engineering teams specify hardware based on strict technical and location limits:

• Core Design Principles: Outdoor luminaires must adhere to the Five Principles—ensuring light is Useful, Targeted, kept at a Low level, Controlled, and Warm-colored (color temperature ≤3000K).
• Photometric & Technical Limits: Industrial facilities are subject to an 80-degree minimum cutoff angle, a maximum illuminance limit of 2 lux post-curfew for parking areas, and fully shielded motion-sensing security fixtures.
• Siting & Environmental Controls: Facilities must avoid construction within or adjacent to designated International Dark Sky Places to protect ecosystems and minimize overall light trespass and skyglow.

2.2 BUG Ratings and Zero Uplight Compliance

Luminaire optic performance relies on the Backlight, Uplight, and Glare (BUG) rating system defined by IES TM-15-11. You must select fixtures that strictly manage light distribution to protect nearby properties and eliminate atmospheric spill.

To satisfy DarkSky standards and ensure zero direct uplight, luminaire specifications must meet a strict Uplight threshold rating of U0.

Selecting fixtures with low BUG ratings prevents light trespass while protecting neighboring properties from direct spillover:

Installing fully shielded fixtures with U0 ratings ensures your LED street lights project lumens only downward onto target perimeter zones.

2.3 CCT Limits and Spectral Distribution

Correlated Color Temperature (CCT) directly influences atmospheric scattering and nocturnal environments. DarkSky standards restrict color temperatures to 3000K or lower on critical infrastructure campuses.

• Health and Environmental Impacts: Outdoor lighting with a correlated color temperature (CCT) above 3000K emits high levels of blue light, which disrupts human sleep patterns (increasing risks of obesity, depression, and diabetes) and creates disability glare.
• Astronomical and Atmospheric Degradation: CCTs higher than 3000K increase light scattering in the atmosphere, causing sky graying and severely reducing visibility of the stars at night.

Shorter blue light wavelengths (400nm to 480nm) present in higher CCT fixtures undergo increased atmospheric scattering—known as Rayleigh Scattering—when interacting with air molecules. Consequently, a 5000K fixture produces up to 2.5 times more atmospheric light scatter and urban sky glow compared to a 3000K fixture emitting the identical amount of lumens.

The spectral distribution of your LED luminaires affects surrounding wildlife populations around rural utility compounds:

• Impact of Spectral Colors: Intense blue and white LED hues are the most damaging, affecting species up to three times more than yellow, amber, or green wavelengths designed to be less intrusive.
• Sea Turtles: Loggerhead hatchlings get disoriented by artificial blue/white lights, moving inland toward danger rather than heading to the sea.
• Aquatic Life: Juvenile salmon migrating at night are drawn to artificial lights, significantly increasing their vulnerability to predators.
• Insects: Light pollution from high-impact spectral emissions directly contributes to global insect population declines.

Selecting warm-spectrum fixtures or off-grid solar street lights for industrial parks allows utility operators to secure remote borders while maintaining ecological compliance.

2.4 Photometric Uniformity for CCTV Optics

DarkSky compliance directly improves surveillance camera performance. High glare from poorly controlled lighting washes out camera sensors, creating blind spots in high-security security zones. Full-cutoff optics prevent bright hotspots and keep illumination levels smooth along the fence line.

You must maintain tight photometric uniformity ratios to keep dynamic range balanced on digital camera sensors. High peak-to-min illuminance ratios force camera irises to adjust continuously, which reduces image detail in darker background areas. Proper positioning on every light pole prevents visual clutter, delivering clear video coverage across all access paths and site envelopes.

Part 3: Industrial Fixture and Light Pole Selection

Facility managers must select robust equipment to maintain perimeter integrity and visual security. Upgrading outdated halogen or high-pressure sodium systems reduces operational costs. Modern industrial luminaires deliver high lumen output while keeping thermal emissions exceptionally low. Choosing the right hardware ensures seamless compatibility with centralized control management systems.

3.1 LED Street Lights for Data Center Campuses and Utility Roads

Utility access roads demand uniform, high-efficiency illumination. Modern LED roadway fixtures deliver superior optical performance compared to traditional discharge lamps. These luminaires direct lumens downward precisely where security drivers and automated cameras need clarity. Selecting industrial-grade fixtures reduces thermal stress, extending internal component life and cutting routine maintenance overhead.

Integrating intelligent control architecture further optimizes energy output across facility internal roadways. Networked control nodes allow security operators to manage site lighting dynamic profiles instantly:

• Automated and Networked Controls: Deploying automated schedules and networked lighting controls significantly minimizes unnecessary power usage, lowering overall operational costs and carbon emissions.
• Scalable Architecture Integration: Utilizing scalable platforms like HARVESTER enables centralized, intelligent management across industrial campus roadways, dynamically boosting operational lighting efficiency.
• Remote Control Capabilities: Features such as scheduled dimming, targeted flashing, and adaptive on/off switching ensure lighting levels respond directly to real-time needs, driving down energy waste.

Specifying high-efficacy LED street lights guarantees steady operational performance along outer transport routes on Data Center Campuses.

3.2 Off-Grid Solar Street Lights for Remote Perimeters

Extending underground electrical ducting along several miles of distant perimeter fence lines significantly inflates installation budgets. Off-grid solar systems solve this challenge by supplying independent, reliable power directly at the pole location. These systems eliminate costly trenching, heavy conduit runs, and complex ground wiring.

Remote perimeter installations require highly durable energy storage hardware to survive tough outdoor climates. Modern solar units utilize advanced battery chemistries to maintain continuous operation during prolonged overcast conditions.

Deploying reliable off-grid solar street lights for industrial parks ensures your facility boundaries stay continuously illuminated during unexpected grid disruptions.

3.3 Smart Light Poles for Integrated Security Hardware

Modern industrial facilities require unified structural poles to streamline physical security equipment. Mounting cameras, sensors, and luminaires on separate poles creates unnecessary ground clutter and complicates site wiring.

LeapPole smart poles serve as unified infrastructure hubs. These heavy-duty structural poles house multiple physical security devices, communication radios, and intelligent lighting controls within a single streamlined pole assembly.

Smart poles unify several core technology layers to enhance site surveillance:

• Centralized Architecture: Combines Extra Low Voltage (ELV) and IoT systems into a unified street pole platform, allowing security, communication, and lighting to be managed remotely via an IoT Gateway.
• Integrated Hardware Components:
  • CCTV Cameras: Embedded to perform security surveillance and automated incident tracking using AI analytics.
  • Cellular Equipment (4G/5G Small Cells): Mounted directly on the pole to densify wireless coverage for telecommunication operators.
  • Environmental IoT Sensors: Connected to collect live environmental data, such as humidity, noise levels, air quality, and temperature.

Engineering teams must calculate strict mechanical and electrical parameters during the specification stage:

Specifying engineered smart poles streamlines device integration while keeping your physical security infrastructure secure, scalable, and fully connected.

3.4 Full-Cutoff Area Luminaires and Wall Packs

Building envelopes and mechanical yards require tight visual boundary control. Standard wall packs often direct unshielded glare horizontally, causing visual disruption for site guards and blinding adjacent surveillance cameras. Full-cutoff area luminaires direct all generated light downward, protecting visual clarity around building perimeters.

• Strict Angle Control: Cutoff classifications regulate light emission above the horizontal plane to mitigate light pollution and glare.
• Downward Light Focus: Full-cutoff fixtures represent the most stringent standard by aiming all illumination downward toward the intended target area.

Installing full-cutoff units protects neighboring sites while satisfying environmental regulations:

• Boundary Protection: Full-cutoff units block light trespass past property lines, minimizing glare concerns from adjacent neighbors.
• Zero-Uplight Standard: Certified installations adhering to International Dark-Sky Association standards must produce zero lumens above a 90-degree angle.

Selecting precise full-cutoff luminaires and wall packs secures building entry points while fully eliminating light spill beyond site boundaries.

Part 4: Structural Engineering and Photometric Calculations

Industrial facilities demand precise engineering calculations before installation. You must verify illumination levels, pole strength, and foundation stability using dynamic site data and established international standards.

4.1 Photometric Modeling for Height and Spacing

Engineers use specialized software to model site illumination before installing hardware. Industry-standard desktop applications like AGi32 perform point-by-point radiosity calculations to evaluate light distribution across complex layouts. Similarly, software like Visual Lighting leverages advanced radiosity methods to predict precise lux levels and uniform coverage. These 3D simulations help you determine exact pole heights and fixture spacing, eliminating dark spots across critical perimeter zones.

4.2 Light Pole Wind Load Calculations

Structural engineers calculate extreme wind dynamics to prevent pole failure during storms. You must evaluate the Total Effective Projected Area (EPA) by combining the surface area of luminaires, structural arms, and security hardware on each light pole. Design teams calculate maximum wind velocity pressure using AASHTO standards. This calculation verifies wall thickness and material yield strength for high-wind industrial compounds.

4.3 Foundation Design and Soil Dynamics

Solid foundation design keeps structural poles upright during severe weather. Geotechnical engineers analyze local soil load capacities to determine concrete footing depth and bolt anchor patterns. Heavy soil loads demand deeper reinforced concrete shafts. Engineered foundations stabilize heavy smart poles and prevent structural tilting over time.

4.4 Sizing Solar Capacity for Continuous Reliability

Off-grid solar street lights require accurate battery sizing to guarantee continuous perimeter security during dark weather. You can calculate system autonomy using three essential steps:

1. Determine the total power consumed by the system each day in ampere-hours (Ah).
2. Determine the total energy capacity of the battery backup system in ampere-hours (Ah).
3. Divide the total battery backup capacity by the daily energy consumption to calculate the total days of autonomy.

Engineering Tip: Ensure your off-grid system maintains at least 3 to 5 autonomy days to survive extended cloudy weather without power interruptions.

Engineering teams at LeapPole provide site-specific photometric studies and structural calculations to simplify your procurement process.

Part 5: Environmental Compliance and Quality Control

Securing your utility compound requires strict environmental compliance and hardware durability. You must select equipment that meets municipal standards and withstands severe environmental weathering.

5.1 Navigating Municipal Light Ordinances

Local zoning laws regulate industrial exterior illumination to prevent spill and glare. Municipal performance standards for industrial exterior lighting typically regulate high-intensity light-emitting processes, such as:

• Arc welding operations
• Acetylene torch-cutting activities
• Other similar high-glare industrial thermal processes

Selecting fully shielded luminaires helps your facility satisfy strict local boundary codes during active operations.

5.2 Corrosion Resistance in Coastal and Industrial Environments

Coastal humidity and chemical atmospheric exposure cause rapid metal degradation. You must protect structural steel poles using specialized industrial barrier coatings to ensure long-term structural integrity.

According to ISO 12944 (C5-M Standard), multi-layer protective coating systems deliver over 15 years of operational life in aggressive marine environments. Thermal zinc metallizing with a sealed topcoat prevents rust on complex welded fabrications.

5.3 Electrical Surge Protection for Utility Zones

High-voltage switching and lightning strikes trigger severe electrical surges along utility compounds. You need robust surge protection devices (SPDs) to protect sensitive LED drivers and smart controllers. Specifying 10kV to 20kV surge protection units prevents unexpected hardware failures and maintains continuous perimeter security.

5.4 Pre-Shipment Photometric and Quality Testing

Factory testing guarantees high performance before site delivery. Manufacturing teams at LeapPole perform rigorous pre-shipment quality checks on every production batch. Engineers run integrating sphere tests, goniophotometric evaluations, and IP66 waterproof testing. These factory quality controls verify that your fixtures hit exact photometric requirements before installation.

Part 6: Total Cost of Ownership and Procurement

Evaluating long-term expenses ensures maximum value for your infrastructure investment. You must analyze initial equipment costs, energy efficiency, and lifetime maintenance requirements across your Data Center Campuses.

6.1 Energy Savings and Maintenance Reduction Analysis

Upgrading outdated campus fixtures to modern solid-state lighting drastically lowers operational overhead. Modern luminaires cut wattage consumption while delivering superior visual clarity.

• Standard Return Period: Industrial LED upgrades generally achieve full cost recovery within 12 to 24 months through combined reduction in energy usage and ongoing maintenance expenses.
• Accelerated Return Period: Utilizing utility rebates and financial incentives can compress the payback timeline to less than 12 months.

6.2 Modular Fixtures and Component Accessibility

Smart fixture architecture simplifies routine field servicing. Modular luminaires feature accessible designs that keep maintenance crews safe and speed up repair tasks:

• Tool-Free Click-In Modules: Enables rapid insertion and removal of LED module optics without needing specialized hand tools.
• Quick-Disconnect Drivers: Allows electrical drivers to be safely detached and swapped instantly using simple connector interfaces.
• Removable Driver and Sensor Bays: Dedicated compartments designed for straightforward access to critical electronic components.
• Safety-Lock Release Mechanisms: Features built-in locking mechanisms that secure components during operation while allowing easy manual disengagement during servicing.

6.3 Technical Support and Engineering Services

You should never rely on generic rule-of-thumb estimates for industrial sites. Pole foundation dimensions, wall thicknesses, and solar battery sizing must be custom-calculated based on exact site conditions, local soil dynamics, AASHTO wind maps, and photometric studies.

LeapPole supports contractors and procurement buyers with complete engineering documentation, certified structural calculations, and site-specific photometric layouts.

6.4 Factory Warranties and Spare Parts Supply

Securing critical utility compounds requires uninterrupted fixture performance over decades of operation. Direct manufacturer partnerships ensure your project receives long-term technical backing and steady material supply. LeapPole enforces strict factory-direct quality control and maintains a ready inventory of matched spare parts to protect your total cost of ownership.

Combining DarkSky-compliant luminaires, heavy-duty light poles, and smart controls creates secure, energy-efficient Data Center Campuses. You must base your site plans on precise photometric calculations and structural engineering rather than generic rules of thumb. Standard estimates often fail during severe weather events and create non-compliant light trespass.

💡 Ready for Site-Specific Engineering? Consult LeapPole today. Our engineering team provides custom photometric models, structural wind calculations, and tailored hardware designs for project managers, EPC contractors, and procurement officers.

FAQ

How do you control light pollution without compromising perimeter security?

Use luminaires with controlled optical distributions, appropriate shielding, limited uplight, and carefully selected mounting positions. A U0 uplight rating may be appropriate where required, but compliance depends on the complete project design and applicable local ordinance rather than the fixture classification alone.

Lighting simulations should evaluate horizontal and vertical illuminance, uniformity, glare, boundary spill, and camera viewing directions. CCTV testing should also be completed after installation because excessive contrast, reflections, or direct glare can reduce image quality even when the measured illuminance is adequate.

Why are project-specific structural calculations required for light poles?

Design wind speed, terrain exposure, pole height, luminaire quantity, bracket geometry, camera equipment, solar panels, and total effective projected area vary between sites. Foundation design also depends on soil conditions, groundwater, anchor-bolt loads, and installation constraints.

The applicable structural standard should be identified by the project engineer. Custom calculations help verify pole geometry, wall thickness, base plate, anchor bolts, and foundation interface for the specified loads. For severe-weather projects, review LeapPole’s guidance on reinforcing street light poles in typhoon-prone areas.

Can solar street lights support data center perimeter lighting during cloudy weather?

Solar lighting may be suitable for remote access roads, secondary perimeter zones, parking areas, and locations where extending grid power is difficult. Battery capacity, panel wattage, operating hours, dimming profiles, temperature, shading, and required autonomy must be calculated from project-specific data.

Fixed autonomy claims should be avoided unless the underlying energy calculation and test conditions are provided. Where lighting is part of a critical security system, the design team should evaluate redundancy, backup power, remote monitoring, and failure-response requirements. Explore LeapPole’s solar lighting systems for configurable off-grid options.

Can CCTV cameras and IoT sensors be mounted on standard light poles?

Only when the pole has been verified for the combined mechanical, wind, electrical, and equipment loads. Adding cameras, antennas, cabinets, sensors, or communication equipment increases the effective projected area and may change vibration, deflection, foundation, grounding, and maintenance requirements.

For multi-device installations, an engineered smart pole generally provides more suitable equipment interfaces, internal cable routing, access panels, power distribution, and communications provisions. Learn more about smart pole functions and integrated equipment.

What information is needed for a data center lighting proposal?

Provide the campus layout, security zones, road and fence geometry, CCTV locations, target lighting criteria, environmental restrictions, design wind speed, geotechnical information, equipment loads, control requirements, quantities, and tender specifications.

Submit these details through the LeapPole contact page for a project-specific evaluation covering luminaires, poles, photometric layouts, structural interfaces, controls, and off-grid lighting options.
