Outdoor Lighting Design and Standards for Water Treatment Plants and Pumping Stations

Water and wastewater treatment plants depend on reliable outdoor lighting to support continuous operation, personnel safety, security, inspections, and emergency response. Different functional zones, including access roads, process basins, chemical handling areas, pumping stations, loading points, and perimeter areas, require different lighting and equipment specifications.

Moisture, corrosive gases, chemical exposure, flooding risk, and restricted maintenance access can accelerate the deterioration of conventional electrical equipment. Certain wastewater processes may also create hazardous classified locations where luminaires, wiring, seals, and other electrical components must be approved for the identified gas group, temperature class, and area classification.

Engineering teams should coordinate lighting design with the applicable edition of NFPA 820, NFPA 70 or local electrical codes, environmental requirements, and relevant industrial-lighting guidance such as ANSI/IES RP-7. This guide explains how to evaluate luminaires, street light poles, solar systems, structural requirements, and maintenance strategies for water treatment facilities.

Key Takeaways

• Water treatment plants require specialized outdoor lighting to guarantee safety and 24/7 continuous operation.
• NFPA 820 and NEC standards mandate explosion-proof light fixtures in hazardous chemical zones.
• High CRI LEDs around 4000K help operators inspect fluid clarity and spot pipe corrosion easily.
• Hinged light poles make maintenance safe and simple on narrow walkways around process basins.
• Custom wind load and soil calculations prevent light pole failure during severe weather conditions.

Part 1: Functional Zones in Water Treatment Plants

Water Treatment Plants contain distinct operational environments. Each process area requires customized illumination parameters to maximize structural safety and visual precision. Across all active process zones, lighting systems must maintain high color accuracy with a minimum Color Rendering Index (CRI) of 80 and approximately 4000K Correlated Color Temperature (CCT). This high visual clarity enables operators to inspect fluid levels, detect subtle chemical discoloration, and evaluate mechanical equipment safely during night shifts.

1.1 Facility Perimeters and Primary Access Roads

Facility boundary lines require secure perimeter illumination to prevent unauthorized access. Heavy delivery vehicles navigate primary access roads continuously. Facilities install high-efficiency LED street lights mounted on rugged street light poles to deliver uniform light levels and eliminate visual shadow zones along main roadways.

1.2 Chemical Handling and Storage Areas

Chemical feed rooms and storage vaults contain corrosive gases and volatile vapors. Engineering standards require specialized explosion-proof fixtures in these hazardous zones. Hermetically sealed luminaire enclosures prevent internal electrical sparks from contacting flammable gaseous atmospheres.

Operational Tip: High-CRI luminaires (~4000K CCT) in chemical dosing rooms allow technicians to verify reagent fluid clarity and identify pipe corrosion immediately.

1.3 Clarification Basins and Aeration Tank Walkways

Open clarifiers and aeration basins feature wet, narrow walkways above deep fluid tanks. Operators conduct visual checks on mechanical scum scrapers and sludge blankets. Designers specify glare-free task lighting angled downward toward process surfaces to prevent blind spots and surface reflections.

1.4 Raw Water Intakes and Remote Pumping Stations

Remote raw water intake structures operate in isolated outdoor locations. These sites require rugged, continuous illumination to support emergency repairs and deter trespassing.

Part 2: Lighting Standards and Compliance

Compliance with regulatory safety standards dictates every aspect of industrial outdoor illumination. Municipal engineering teams must design systems that mitigate explosive risks, protect worker safety, and minimize environmental light pollution.

2.1 NFPA 820 Standard for Wastewater Facilities

The National Fire Protection Association outlines strict fire and explosion prevention protocols in the NFPA 820 standard. This standard classifies liquid treatment areas based on methane gas generation and organic chemical volatility. Pre-treatment structures, grit chambers, and anaerobic digesters accumulate flammable gases continuously. Engineering teams evaluate local atmospheric ventilation rates to determine exact safety distances for outdoor electrical equipment. Installing compliant luminaires and sealed wiring systems prevents electrical arcs from igniting ambient gas accumulations in these volatile processing units.

2.2 NEC Classifications for Hazardous Locations

The National Electrical Code (NEC/NFPA 70) defines hazardous zone categories where ignitable concentrations of flammable gases, vapors, or combustible dust exist. Chemical feed buildings and sludge handling spaces require Class I, Division 1 or Division 2 fixtures. Engineers select luminaires based on rigorous thermal performance and enclosure durability.

Hazardous location fixtures rely on specialized structural physics to contain thermal hazards and maintain physical integrity over long operating cycles:

• Flame Path Gap Mechanics: Enclosures require engineered flame paths with precise gaps that force escaping hot gases through a tight channel to reduce their temperature prior to reaching the surrounding atmosphere.
• Post-Coating Integrity: Fixtures undergoing protective coatings must undergo post-application testing to ensure the flame path remains unobstructed.

2.3 IESNA Illumination Levels and Glare Control

The Illuminating Engineering Society of North America (IESNA) publishes recommended lighting practices for industrial facilities. Walkways, open tank perimeters, and equipment platforms require precise light level targets and high uniformity ratios. Poorly aimed fixtures produce harsh direct glare across wet basin surfaces, creating visual impairment for facility operators. Engineers calculate specific tilt angles and select optics with sharp cutoff distributions to prevent optical reflection. Photometric calculations determine exact light pole placement, mounting height, and luminaire wattage based on localized site layouts rather than fixed assumptions.

2.4 Dark-Sky Regulations and Shielding Requirements

Municipalities increasingly enforce dark-sky ordinances to prevent light trespass onto adjacent properties and reduce night-sky glow. Facilities utilize full-cutoff luminaires certified under DarkSky International guidelines. Optics with low BUG (Backlight, Uplight, Glare) ratings direct lumen output strictly toward task areas and internal service roads. Zero-uplight optics direct light downward, eliminating wasted upward lumens. Proper shielding protects neighboring communities from obtrusive spill light while maintaining full operational visibility across modern Water Treatment Plants.

Technical Note: Shielded outdoor luminaires combined with zero-degree tilt mounting brackets ensure compliance with strict municipal perimeter trespass regulations while preserving critical operational clarity.

Part 3: Luminaire Selection for Water Treatment Plants

Selecting high-performance luminaires ensures operational security and long-term durability across municipal facilities. Engineering teams must evaluate optical distributions, IP ratings, thermal management, and smart control capabilities. Proper luminaire selection reduces total energy consumption and minimizes physical maintenance across harsh operating environments.

3.1 Industrial LED Street Lights for Facility Roads

Roadways inside Water Treatment Plants demand heavy-duty lighting systems to assist vehicle operators during night shifts. Standard commercial fixtures degrade quickly due to atmospheric humidity and continuous vibration. Facilities deploy industrial-grade LED street lights to maintain clear sightlines along internal access routes.

Modern road fixtures utilize specific engineering metrics to optimize visual performance:

• Efficacy and Energy Savings: High-efficiency LED engines deliver standard luminous efficacy reaching 160–170 lm/W. This efficiency provides 50–65% lower energy consumption relative to legacy discharge fixtures.
• Long-Term Reliability: L80B20 lumen retention ratings guarantee extended operational lifetimes. Integrated 10KV surge protection modules defend internal electronics against electrical transient spikes.
• Optical Distribution Patterns: Optics conform to IES distribution classifications from Type I through Type V. These options tailor beam spreads precisely for straight driveways, broad turns, and complex intersections.
• Uniformity and Spacing Ratios: Engineered optics establish precise Spacing-to-Height (SHR) ratios. Strict Average-to-Minimum and Maximum-to-Minimum illuminance ratios eliminate dark patches between light pole structures.

3.2 Explosion-Proof and Hazardous-Rated Fixtures

Process units releasing volatile gases require heavy-duty hazardous location luminaires. Chemical dosing rooms, anaerobic digesters, and sludge dewatering buildings produce methane, hydrogen sulfide, and organic solvent vapors. Standard fixtures risk causing catastrophic ignitions.

Engineers specify hazardous-rated luminaires tested to rigorous international standards such as UL 844 and IECEx. Heavy copper-free aluminum housings prevent physical impact damage and resist chemical corrosion. Sealed tempered glass lenses withstand thermal shock during cold water washdowns.

3.3 Perimeter Security Lighting and Smart Controls

Perimeter security illumination protects critical infrastructure against unauthorized intrusion. Modern facility designs integrate smart control systems directly into exterior luminaire networks.

Control Tip: Utilizing standardized 7-pin ANSI C136.41 NEMA or Zhaga receptacles enables plug-and-play installation of photocells, motion sensors, and central management nodes.

Centralized control software allows operators to dim perimeter lighting during low-activity hours. Integrated microwave sensors increase light output instantly when detecting movement near boundary fences. Wireless mesh networks transmit real-time diagnostic data to facility automation platforms. LeapPole provides comprehensive photometric modeling to help engineers select correct luminaire configurations and smart control integration strategies.

3.4 Solar Street Light Systems for Remote Pumping Stations

Remote raw water intakes and booster pumping stations often lack direct access to main utility grids. Extending electrical distribution lines to isolated locations increases capital expenditure significantly. Municipalities install off-grid solar lighting solutions to provide reliable continuous lighting without trenching or cabling costs.

For compact sites, engineers specify integrated solar street lights that combine high-efficiency photovoltaic panels, long-life LiFePO4 batteries, and smart MPPT charge controllers within a single housing. Advanced charge controllers adjust luminaire power output dynamically based on battery state-of-charge, ensuring multi-day autonomy during extended rainy weather. Dynamic solar sizing tools dictate panel power capacities and battery storage capacities based on localized solar irradiance data and regional weather patterns.

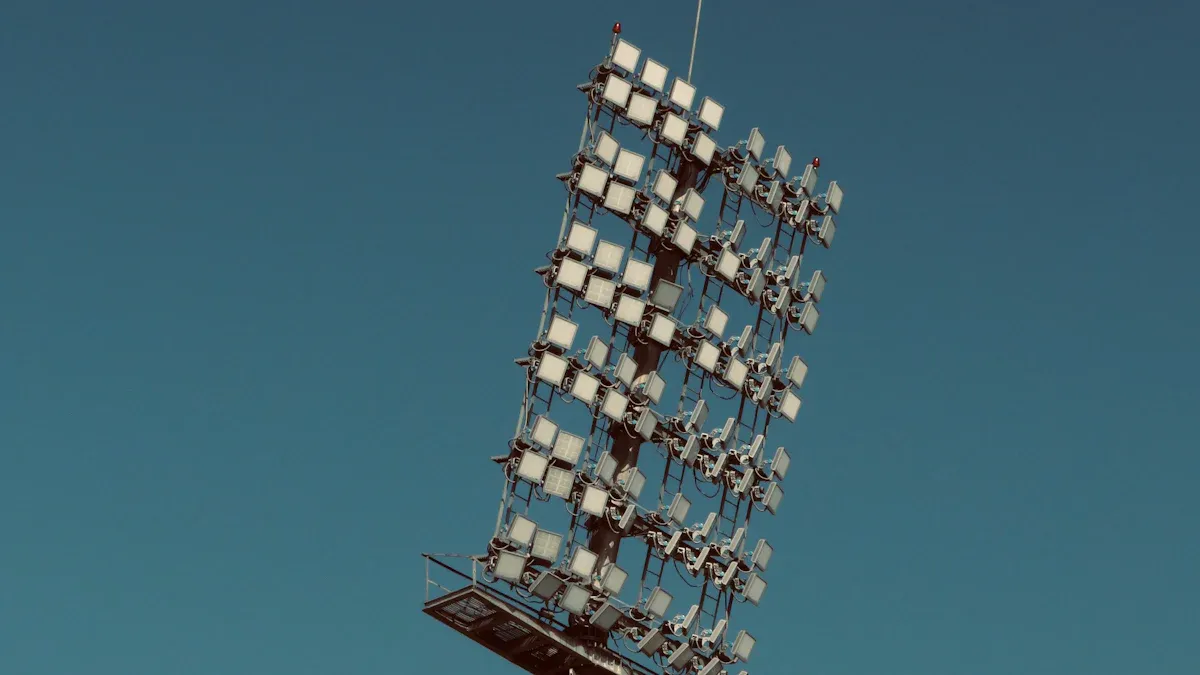

Part 4: Pole Engineering and Configurations

Physical mounting infrastructure must withstand relentless moisture, chemical vapors, and high wind forces. Structural engineers configure specialized light poles and enclosures to ensure long-term stability and simple maintenance routines.

4.1 Hinged Aluminum Poles for Low-Maintenance Basins

Wet process zones present tight spaces around clarification basins and aeration tanks. Service trucks cannot easily navigate narrow walkways around open water structures. Installing intermediate hinged poles with internal winches solves accessibility challenges. Maintenance crews lower the upper shaft safely down to ground level using a hand-crank winch. Technicians replace luminaires and inspect wiring without operating heavy boom lifts or elevated platforms. Corrosion-resistant marine-grade aluminum alloys reduce structural weight and simplify ground-level servicing.

4.2 Structural Calculations for Wind Load and Foundations

Engineers cannot rely on static mounting templates for industrial facilities. Local soil load-bearing capacities, luminaire weight, and regional wind standards determine safe light pole design parameters. Structural calculations rely on precise physical formulas to evaluate wind force ($F$):

• Wind Load Calculation: $F = A \times P \times Cd$
• Wind Pressure ($P$): $P = v^2 imes 0.00256$ (where $v$ represents local design wind speed in mph)
• Surface Variables: $A$ defines the total Effective Projected Area (EPA), while $Cd$ represents the drag coefficient based on geometric shape.

Engineers multiply cumulative fixture EPA values by site wind pressures according to AASHTO LTS-6 guidelines. LeapPole provides custom structural calculations and engineering drawings to ensure anchor bolts, base plates, and concrete foundations withstand localized gust conditions.

4.3 Corrosion-Resistant Materials and Surface Coatings

Hydrogen sulfide gas and atmospheric humidity rapidly degrade standard steel infrastructure. Facilities deploy hot-dip galvanized steel light poles treated with specialized chemical barrier coatings to halt metal oxidation.

• High Velocity Thermal Spray (HVTS®) NiCrMo alloy cladding
• Polymeric acid-resistant powder coatings
• Chemical vapor deposition (CVD) surface treatments
• Multi-layered epoxy barrier coatings

4.4 Ingress Protection (IP66+) and NEMA Enclosure Ratings

Electrical junction boxes and terminal enclosures require robust environmental sealing. Facility managers evaluate protective enclosure ratings based on specific environmental threats:

Selecting NEMA 4X rated pole accessories and foundation parts guarantees maximum defense against chemical corrosion, salt air, and freezing weather conditions.

Part 5: Procurement and TCO Management

Procurement officers and municipal engineers evaluate total lifecycle cost during project planning. Specifying durable components reduces emergency repairs and lowers long-term utility expenses across utility facilities.

5.1 Technical Bidding and Material Certifications

Bidding documents require rigorous technical validation to prevent early structural failures. Engineering teams specify certified materials to withstand aggressive atmospheric conditions. Municipal buyers must demand verifiable documentation from manufacturers before approving equipment bids.

5.2 Custom Engineering Support with LeapPole Manufacturing

Standard off-the-shelf equipment rarely satisfies complex site conditions. Facility planners consult LeapPole to request a custom street lighting solution tailored to exact operational challenges. Custom engineered pole solutions address site-specific structural load requirements by analyzing critical environmental and physical parameters prior to manufacturing:

• Wind Resistance Assessment: Evaluating local wind speed ratings alongside the Effective Projected Area (EPA) to ensure the light pole withstands regional weather patterns.
• Physical Dimensioning: Tailoring pole height, diameter, luminaire weight, and mounting bracket dimensions to balance the overall load.
• Structural Integrity & Anchoring: Designing custom foundations and anchor bolts complemented by static load and structural strength testing.
• Compliance: Aligning engineering specifications with local installation standards to mitigate long-term risks like bending, vibration, or structural failure.

5.3 Maintenance Automation and Total Cost of Ownership

Smart control systems transform routine facility maintenance. Automated diagnostics send real-time alerts to central operators when a luminaire experiences voltage fluctuations or driver failures. Early fault detection eliminates unnecessary night patrols across broad Water Treatment Plants. Upfront investments in high-efficiency LED drivers and corrosion-resistant alloys reduce Total Cost of Ownership (TCO) through extended operating lifetimes and lower maintenance labor expenses.

Designing compliant outdoor lighting for Water Treatment Plants requires strict alignment with safety standards, atmospheric zone classifications, and visual performance needs. Facility managers cannot rely on standard hardware templates. Instead, engineering teams must customize hardware parameters—including LED street light wattages, light pole materials, hinged mechanisms, and protective coatings—based on site-specific wind loads, localized soil conditions, and photometric demands.

Engineering Support: Consult the technical specialists at LeapPole to receive custom structural calculations, detailed photometric layouts, and complete project compliance documentation for your facility upgrade.

FAQ

How do engineers select luminaires for hazardous chemical or wastewater zones?

The first step is to classify each area according to the gases, vapors, dusts, ventilation conditions, and likelihood of an ignitable atmosphere. Not every treatment-plant area requires an explosion-proof luminaire. Equipment must be listed or approved for the specific Class and Division or Zone, material group, and temperature class identified by the project engineer.

NFPA 820 addresses fire protection in wastewater treatment and collection facilities, while NFPA 70 or the applicable local electrical code governs equipment and wiring in hazardous locations. OSHA also states that equipment must be approved for both the classified location and the specific ignitable material present. Corrosion resistance, ingress protection, optical performance, and maintenance access should be evaluated separately. OSHA hazardous-location requirements

When are hinged or lowering light poles appropriate near process basins?

Hinged poles or lowering mechanisms may be useful where narrow walkways, tanks, barriers, or process equipment prevent access by an elevated work platform. They allow luminaires to be serviced closer to ground or walkway level, potentially reducing work-at-height exposure and operational disruption.

The lowering method must be compatible with the available clearance, pole weight, electrical connections, fall-prevention procedures, and structural design. Standard street light poles should only be described as hinged or lowering poles when that feature is specifically included in the project configuration.

How are pole foundations and wind ratings determined?

Engineers determine pole and foundation requirements using the applicable structural code, design wind speed, terrain and exposure category, pole geometry, luminaire effective projected area, equipment weight, and geotechnical information. Soil bearing capacity, groundwater, drainage, overturning resistance, anchor bolts, and corrosion exposure also affect the foundation design.

A standard foundation detail should not be reused without confirming that its loads and soil assumptions match the new site. Pole dimensions and foundation drawings should be reviewed by the responsible local engineer.

Can solar street lights support remote raw-water intake or pumping stations?

They can be suitable for access roads, perimeter zones, parking areas, and remote operating points where extending grid power would require substantial trenching or cabling. The design must account for local solar irradiation, shading, operating schedule, required illumination, seasonal temperature, battery autonomy, panel wattage, and maintenance access.

Solar lighting should not automatically be treated as emergency or safety-critical illumination. Where uninterrupted lighting is required, the project team should evaluate redundancy, backup power, monitoring, and the consequences of system failure. Explore LeapPole’s solar lighting solutions for site-specific configurations.

How can LeapPole support a water treatment lighting project?

LeapPole can help evaluate outdoor functional zones and recommend suitable poles, luminaires, solar configurations, surface treatments, and mounting arrangements. Project support may include photometric layouts, pole and foundation interface information, technical documentation, packing plans, and quotation preparation based on the confirmed scope.

Submit your site layout, environmental conditions, hazardous-area schedule, design wind speed, geotechnical information, lighting requirements, quantities, and tender documents through the LeapPole contact page for a project-specific evaluation.
