Perimeter Lighting for Correctional Facilities and Secure Compounds

Quick Answer

Perimeter lighting for correctional facilities and secure compounds must provide continuous visibility, controlled glare, vandal resistance, and reliable operation during power failures. A complete system may combine LED luminaires, high-security light poles, emergency backup, cameras, access control, and centralized monitoring. Product selection should be based on security zones, required illumination, pole placement, environmental conditions, and applicable regulations.

Perimeter lighting helps correctional facilities, detention centers, border compounds, and other high-security sites maintain visibility around fences, entrances, patrol roads, and restricted zones. A properly engineered system supports surveillance, discourages unauthorized access, and helps security personnel respond quickly to incidents.

These projects require more than standard outdoor lighting. Fixtures and street light poles must resist vandalism, corrosion, severe weather, and unauthorized interference. LED street lights can improve energy efficiency, while smart controls, cameras, and access-control integration support centralized security management.

Key Takeaways

• Perimeter lighting helps keep places safe. It lights up the edges and stops people from sneaking in. It also helps staff and cameras see better. LED lighting uses less energy. It can last up to 20 years. It can save up to 85% on energy bills. This makes it a good choice for correctional facilities. Good lighting design cuts down on shadows and dark spots. This makes sure every area is bright and easy to watch. Checking the lights often and following safety rules is important. This keeps the lights working well and safe. Custom lighting can be made for each place. This helps make things safer and work better.

Part1: Facility Zones and Lighting Needs

1.1 Perimeter Fences and Walls

Perimeter Lighting on fences and walls is the first defense. Engineers pick bright LED floodlights or linear fixtures for even light. Tamper-resistant housings and strong mounts stop vandalism. Lighting designers say to keep lights on to avoid shadows and blind spots. Cameras work better with good lighting. Site conditions like fence height and soil type affect pole choices and spacing.

1.2 Entry and Exit Points

Entry and exit points need careful lighting for security checks. Facilities use motion-activated fixtures and neutral white color for clear tasks. OSHA says 20 to 30 foot-candles are best, but many places have less. LED corridor lighting saves up to 70% energy and lowers accidents by 40% to 60%. The table below shows important lighting features for these areas:

1.3 Internal Security Areas

Internal security areas like corridors, common rooms, and sally ports need strong and tamper-resistant fixtures. Corridors need 10–20 foot-candles and IK09 or IK10 impact resistance. Common rooms need 30–50 foot-candles and IP65 protection. Shower areas must meet IP65 or IP66 standards. Sally ports need tough fixtures and at least 20 foot-candles for checks. CCTV needs 50–200 lux for clear faces. Engineers use site calculations and local rules for technical choices.

• Corridors: 10–20 foot-candles, tamper-resistant fixtures
• Common Areas: 30–50 foot-candles, commercial-grade fixtures
• Shower Areas: IP65/IP66, IK10
• Sally Ports: 20 foot-candles minimum, robust construction
• CCTV: 50–200 lux for facial recognition

1.4 Adjacent Parking and Service Areas

Parking and service areas need even lighting to stop dark spots and keep people safe. Minimum light levels are 0.2 to 1.0 foot-candles, with uniformity ratios from 15:1 to 4:1. Emergency lighting must give at least 1 foot-candle for 90 minutes during outages, as NFPA 101 says. ADA rules need glare-free fixtures. Full cutoff designs help stop light pollution. Curfew and light trespass rules control dimming and spill. Color temperature limits help lower blue light effects.

Tip: Engineers should always do site lighting calculations and check local rules before picking products.

Part2: Perimeter Lighting Requirements

2.1 Security and Visibility

Security and visibility are very important for perimeter lighting. Engineers pick lighting that covers all important areas. Lights stay on all the time to keep the perimeter bright. Standby and emergency lights turn on if power goes out or there is trouble. Bright fixtures help staff and cameras see well. Perimeter fences need 0.5 to 2.0 footcandles. The brightest and darkest spots should not be more than four times apart. Fixtures should not be spaced more than three or four times their height. Lights should be aimed between 60 and 75 degrees from straight up. This helps cover the ground and lowers glare. Wall lights aimed down at 15 degrees help see faces better by 40% at 50 feet. These rules match standards like IESNA RP-8-21 for outdoor lighting.

Note: Lighting needs depend on site conditions, calculations, and local rules. Engineers must check each site before picking final setups.

2.2 Deterrence and Detection

Perimeter lighting helps stop people from getting in without permission. It also helps find intruders. Good lighting makes it hard for people to sneak in. Security teams can watch the perimeter better when everything is lit up. Alarm lights turn on extra fixtures when sensors find movement. This lights up escape paths and shows hiding places. These steps help teams respond fast and record what happens. Main benefits are:

• Better visibility scares off intruders.
• Good monitoring finds unauthorized access faster.
• Alarm lights turn on right away during breaches.

Lighting must work well with security plans and camera systems.

2.3 Minimizing Shadows and Blind Spots

Stopping shadows and blind spots keeps the perimeter safe. Engineers place fixtures smartly to remove dark spots. Overlapping light patterns make sure all areas are covered. Balanced light stops problems from big changes in brightness. LED fixtures with adjustable optics send light where it is needed. At least 30% overlap between fixtures keeps coverage even. Good pole placement and small down-tilt help spread light and lower glare. Custom lighting works with new security tech to boost performance and cut camera noise. Targeted beams help cameras get clear footage and make security stronger.

• Smart fixture placement removes dark spots.
• Overlapping light patterns keep visibility.
• Balanced light stops big brightness changes.
• Adjustable optics send light exactly where needed.
• 30% overlap between fixtures keeps coverage steady.
• Good pole placement and down-tilt help spread light.
• Custom lighting works with security tech for better results.

2.4 Integration with Cameras

Perimeter lighting works with cameras to make monitoring better. Lights turn on automatically so cameras can see clearly. This helps get good video and makes facial recognition easier. Alarm systems turn on lights during breaches, lighting up escape routes and showing hiding spots. The table below shows main features and benefits:

Engineers must pick lights that work with cameras and alarms.

Tip: Always check that lights and cameras work together to get the best security.

Part3: Lighting Solutions and Product Selection

3.1 LED Perimeter Lighting

LED perimeter lighting works well for secure compounds and correctional facilities. Engineers pick LED luminaires because they last a long time, up to 20 years. This means workers do not have to fix them often. It keeps crews safer in risky places. These LED lights are tough and can handle rough treatment. LED systems save up to 85% energy compared to old lights. This helps with budgets and is better for the environment. Good lighting helps people feel better and act better. LEDs are like sunlight and help mental health. Fewer bulb changes mean less chance for security problems during repairs. LeapPole can make LED lighting fit each site’s needs and local rules.

Tip: LED luminaires work well and give good light control. They are great for perimeter security and work with cameras.

• Long life means less fixing.
• Tough build stands up to damage.
• Saves up to 85% energy.
• Better mood and behavior.

3.2 High-Mast Lighting

High-mast lighting is used for big secure compounds and correctional facilities. These lights cover large areas with fewer poles. Engineers use high-mast lights for even and bright light everywhere. Fewer lights make projects easier and cost less to install. High-mast fixtures stop dark spots and help people see better. Good lighting helps security teams spot trouble and act fast. LeapPole has high-mast lighting for different site needs, like pole height and wind.

• Covers big areas with fewer poles.
• Even light stops dark spots.
• Helps security teams watch and respond.

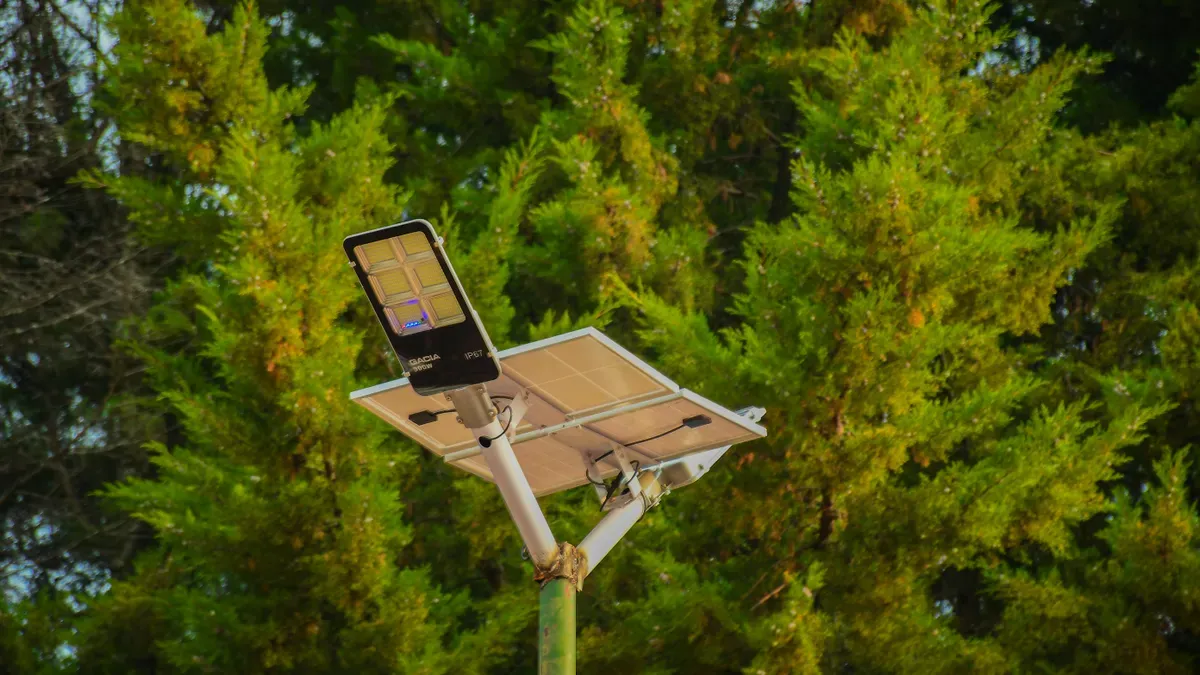

3.3 Solar Street Lights

Solar street lights give energy-saving perimeter lighting for secure compounds. They use sunlight, so there are no electric bills and less harm to the planet. Dusk-to-dawn sensors turn lights on and off by themselves. This makes sure the area is always lit at night. Solar street lights need little fixing, which saves money over time. They are easy to put in, so they work well in faraway places. Bright lights scare off crime and help keep people safe. LeapPole has solar street lights made for each site.

• Solar LED lights use sunlight.
• Easy to install and save money.
• Bright lights help stop crime.

3.4 Vandal-Resistant Fixtures

Vandal-resistant fixtures are important in correctional facilities. Engineers choose products made with strong materials and steel for protection. Tamper-resistant designs hide screws and have no pry points, stopping people from hiding things or getting inside. Strong covers and tough lenses keep lights working in risky places. Ligature-resistant designs lower the chance of tying things to the lights, keeping people safe in cells and dayrooms. Stainless steel makes these lights last longer and need less fixing.

• Tough lights keep working.
• Good light control helps security.

3.5 Light Poles and Accessories

Light poles and accessories are very important for perimeter lighting. Engineers pick pole types based on the site and project needs. Aluminum poles are light and do not rust, so they work in many places. Steel poles need rust protection, like special coatings. Fiberglass poles are strong and do not break easily. They also handle sun and temperature changes well. Accessories like brackets, base plates, and bolts help install poles safely and meet rules. LeapPole has many poles and accessories for different projects.

Note: Lighting products, poles, and accessories must match the site, calculations, and local rules.

Part4: Engineering and Configuration

4.1 Pole Height and Spacing

Engineers pick pole height and spacing by looking at the site and rules. Taller poles can be spaced farther apart. This spreads light better and stops dark spots. If poles are too close, it wastes energy and makes things too bright. The best spacing is about 2.5 to 3 times the pole’s height. This keeps the light even and helps cameras work well. The ground and things in the way also change where poles go.

4.2 Power and Battery Sizing

Getting the right power and battery size keeps lights working, even for solar or backup systems. Engineers need to:

• Figure out how much energy is used each day in kilowatt-hours (kWh).
• Find out which devices need backup power.
• Guess how long batteries must last during blackouts.
• Add up all the energy needed in watt-hours (Wh).
• Work out battery size in amp-hours (Ah) with this formula: Battery Capacity (Ah) = Energy Requirement (Wh) / Battery Voltage (V).
• Check how well solar panels and batteries work.
• Look at total power use to handle busy times.
• Think about how temperature and battery use affect reliability.
• Use good parts and put solar panels where they get the most sun.
• Change system size if sunlight changes with the seasons.

Each site is different, so engineers must check carefully.

4.3 Foundation and Wind Load

Foundation and wind load checks are very important for strong perimeter lighting. They help pick the right materials and design. This keeps the lighting safe from wind and weather for a long time.

Wind load tells how strong the pole needs to be. Places with lots of wind may need steel poles and thicker bases. The shape and thickness of the pole must match wind load numbers. This stops swaying and metal getting weak. The right foundation size keeps the pole steady and working well. The type of soil and local building rules also change the foundation design.

4.4 Lighting Simulation

Lighting simulation lets engineers see how light will cover the area. They use computer programs to test pole height, spacing, and fixture type. This helps stop shadows and blind spots. Simulations also help meet local rules and what clients want. Engineers should always do lighting math before putting in lights. This helps pick the right products and follow the rules.

Tip: Always use site checks, math, and local rules for technical choices. This makes sure the lighting works well and follows the law.

Part5: Installation and Standards

5.1 Site Preparation

Site preparation is the first step for good lighting installation. Engineers check the site carefully. They look at the soil, drainage, utilities, and how people can get in. They pick the best way to install lights based on what they find. Sometimes they use direct burial. Other times they use anchor-based systems. Professional teams work with structural engineers and electricians. This makes sure everything is safe and follows the rules. These steps help stop delays and lower risks during building.

• Site checks include soil, drainage, utilities, and access.
• How lights are installed depends on the site.
• Professional teams make sure things are safe.

Tip: Checking the site early helps find problems and makes the project go faster.

5.2 Regulatory Compliance

Regulatory compliance means lights follow laws and safety rules. The 8th Amendment says correctional facilities must have safe lighting. Cells need at least 20 footcandles of light. There is no maximum limit, but lights cannot be used as punishment. Facility managers check local codes and national standards like IESNA RP-8-21. This makes sure all lights meet the rules. LeapPole gives help with standards and paperwork.

• Cells must have at least 20 footcandles.
• Lights cannot be used to punish.
• Managers check codes and standards.

5.3 Acceptance Testing

Acceptance testing checks if lights work as planned. Engineers watch the lights during tuning. They measure how bright the lights are. They set controls so lights work best. They make sure brightness or power does not drop more than 85%. For lights already tuned, teams measure again and reset controls. They check if the reduction is 85% or less. These steps make sure lights are safe and work well.

1. Watch lights during tuning and measure brightness.
2. Set limits and check reduction.
3. For tuned lights, measure and reset controls.
4. Make sure reduction is 85% or less.

Note: Acceptance testing makes sure lights work the same and meet project needs.

5.4 LeapPole Support

LeapPole gives engineering help for installation and standards. Their team helps with site checks, rule reviews, and testing. Facility managers get advice on picking products and paperwork. LeapPole makes projects easier and helps lights meet all rules.

• Engineering help for site checks and rules.
• Advice and paperwork support.
• Help with acceptance testing.

Part6: Procurement and Maintenance

6.1 Vendor Selection

Picking the right vendor helps meet security needs. Engineers use clear rules to check vendors. The table below shows what matters most:

LeapPole helps engineers with checking products and paperwork.

6.2 Maintenance Routines

Regular maintenance keeps lights safe and working. Teams do these steps:

• Keep records of lamp changes and repairs.
• Train staff on basic maintenance steps.
• Update emergency plans often.
• Test and change bulbs regularly.
• Check ballasts and drivers for damage or heat.
• Make sure switches and controls work right.
• Test emergency lights during power loss.
• Clean outside fixtures to stop dirt buildup.

Engineers check the system, make a schedule, and plan resources. LeapPole gives advice for maintenance and upgrades.

Tip: Regular maintenance stops problems and makes fixtures last longer.

6.3 Energy Efficiency

Energy-efficient lights save money and help the planet. Solar lighting can cut costs by up to 70%. Facility managers use solar systems to keep areas bright and lower power use. These systems also need less fixing.

6.4 Spare Parts and Warranty

Warranty and spare parts protect your investment. The table below shows common warranty times:

To claim a warranty, you need proof of purchase. Follow the maker’s rules. Products must be sent back for checking. Not following install instructions can cancel the warranty.

6.5 Customization

Lighting systems change to fit each facility’s needs. The Utah State Correctional Facility used tough, tamper-resistant luminaires for safety. Custom setups had exact light levels for each area and night lighting. Mixing artificial and natural light made things easier to see and improved wellbeing. LeapPole helps engineers make custom lighting for secure places.

Note: Technical details depend on site, math, and local rules.

Perimeter Lighting is very important in secure compounds and correctional facilities. Facility managers like energy-saving and tough lighting that follows the rules. They need to check their systems and plan upgrades to make things safer and spend less money. Every project needs a technical check based on the site and local rules. LeapPole gives engineering help and custom lighting for different projects.

Facility managers can make places safer and work better by asking experts for lighting designs that fit their needs.

FAQ

How should engineers select perimeter lighting for secure compounds?

Engineers should begin with a site and security assessment covering fence lines, entrances, patrol roads, surveillance zones, emergency routes, and restricted areas. Fixture output, optical distribution, durability, glare control, and energy consumption should then be evaluated through project-specific lighting calculations. LED street lights can be configured for different security zones and operating requirements.

What factors influence lighting configuration and pole placement?

Site geometry, fence height, camera locations, access roads, terrain, and potential obstructions all influence the lighting layout. Engineers should use photometric simulations to identify shadows, excessive glare, and insufficient coverage. Pole height and spacing must be determined according to the security objectives, environmental conditions, applicable lighting standards, and surveillance requirements.

Which installation methods ensure compliance and reliability?

Installation planning should consider soil conditions, drainage, wind load, underground utilities, and maintenance access. Direct-burial or anchor-base street light poles should be selected according to the structural design. After installation, teams should verify pole alignment, electrical connections, grounding, illumination, uniformity, and emergency operation.

Can perimeter lighting systems be customized for unique security requirements?

Yes. Facilities can specify pole materials, mounting heights, optical distributions, corrosion protection, emergency backup, smart controls, and camera-mounting provisions. LeapPole can customize poles and lighting configurations according to project drawings, site conditions, wind-load requirements, and applicable standards.

What information is required for a perimeter lighting project evaluation?

Clients should provide site drawings, fence and access-point locations, required security zones, camera layouts, environmental conditions, quantities, and tender specifications. They should also establish inspection schedules and maintain records of faults, repairs, energy use, and warranty coverage. To receive a project-specific recommendation, submit your requirements to LeapPole for technical evaluation and quotation.
