You want the best lighting for your street or pathway. Double-arm poles usually give you broader lighting coverage, higher brightness, and more uniform light across wide roads. Single-arm street lamp poles work best for smaller spaces or narrow roads where focused light matters most. Each type has strengths and weaknesses. Your choice depends on the area you need to light and the effect you want.
Key Takeaways
- Single-arm street lamp poles give focused light. They are good for narrow roads and small paths. Placing them right helps make areas safer. This is because it lowers the number of dark spots.
- Double-arm street lamp poles light up a bigger area. They are brighter and work well on busy roads and at intersections. These poles help get rid of dark spots. They also make it easier to see at night.
- Think about what the area needs before picking a pole type. Single-arm poles are best for small places. Double-arm poles are better for big areas with lots of cars.
- Plan how far apart and how tall the poles should be. Good setup gives even light everywhere. This helps keep drivers and people walking safe.
- Both types of poles need regular care. Check for loose parts and damage every six months. This keeps the streets safe and bright.
Single-arm street lamp poles
Lighting coverage
Single-arm street lamp poles give focused light. They work well for narrow roads and small paths. When you walk or drive at night, you notice the difference. The light shines under and next to the pole. This helps you see things in your way and move safely.
Tip: Putting single-arm street lamp poles in the right spot helps you stay safe and keeps dark areas away.
- Put poles 1.5 to 3 meters from the edge of the road for better sight.
- Pick an arm length from 1 to 3 meters. Use longer arms for wide roads. Use shorter arms for small streets.
- Line up the overhang with the middle of the road to stop shadows.
- Set the tilt angle from 0° to 15° to point the light where you want.
- Space poles 30 to 50 meters apart on city streets for even light.
Brightness and uniformity
Single-arm street lamp poles give good brightness and even light. This works best when you install them the right way. The light spreads across the road. You do not see strong shadows or bright spots. This helps drivers and people walking see better. The design also cuts down glare. This keeps your eyes comfortable at night.
Best use cases
Single-arm street lamp poles are best when you need light in one spot. You see them used in these places:
| Type | Pattern Type | Applications | Fixture Placement | Ideal Mounting Height |
|---|---|---|---|---|
| Type IV | 60° semicircular distribution | wide roadways, sides of walls or buildings | at the side | Road width should not surpass 3.7 times mounting height |
| Type V | 360° circular distribution | roadways, parkway islands, intersections | at or near the center | Equal light distribution at all angles |
| Type VS | 360° square distribution | roadways, parkway islands, intersections | at or near the center | Equal light, defined edge |
You can use single-arm street lamp poles on both sides of rivers, ramps, or wide roads to help people see better. They also work in parks, homes, and walkways. Their design lets you make a lighting plan that fits each place.
Double-arm street lamp poles
Lighting coverage
Double-arm street lamp poles give you wide and even lighting. You can use them on large roads, highways, and busy intersections. Each pole has two arms, so you get light on both sides of the street. This design helps you cover more ground with fewer poles.
- A double-arm street lamp usually lights up an area between 20 and 40 meters in diameter.
- If you use a 7-meter pole, you can expect it to cover about 20 to 30 meters in diameter.
- A 9-meter pole can reach up to 40 meters or more.
- Most city streets use poles between 8 and 10 meters tall for the best coverage.
- Highways often need taller poles, up to 12 meters, to light wider spaces.
You can see how this setup works well for places with heavy traffic or wide lanes. You do not need to worry about dark spots between the lights.
Brightness and uniformity
Double-arm poles give you bright and steady light. The two arms hold two light fixtures, so you get more even lighting across the whole street. This setup helps you see better at night. Drivers, cyclists, and people walking all feel safer because the light spreads out smoothly. You do not get harsh shadows or bright spots. The dual-arm design also lets you use different types of bulbs, like LED, sodium, or xenon. You can pick the best one for your needs.
Tip: Double-arm poles help you avoid glare and keep the light balanced, which makes night driving easier.
Best use cases
You should use double-arm street lamp poles in places that need strong and wide lighting. These poles work best for:
- Main roads and highways
- Commercial districts and shopping areas
- Large intersections
- Parking lots and public squares
Double-arm poles also have strong wind resistance. You can trust them in open areas where the wind blows hard. Their design fits well with modern city planning. You get better lighting, safer streets, and a look that matches busy urban spaces.

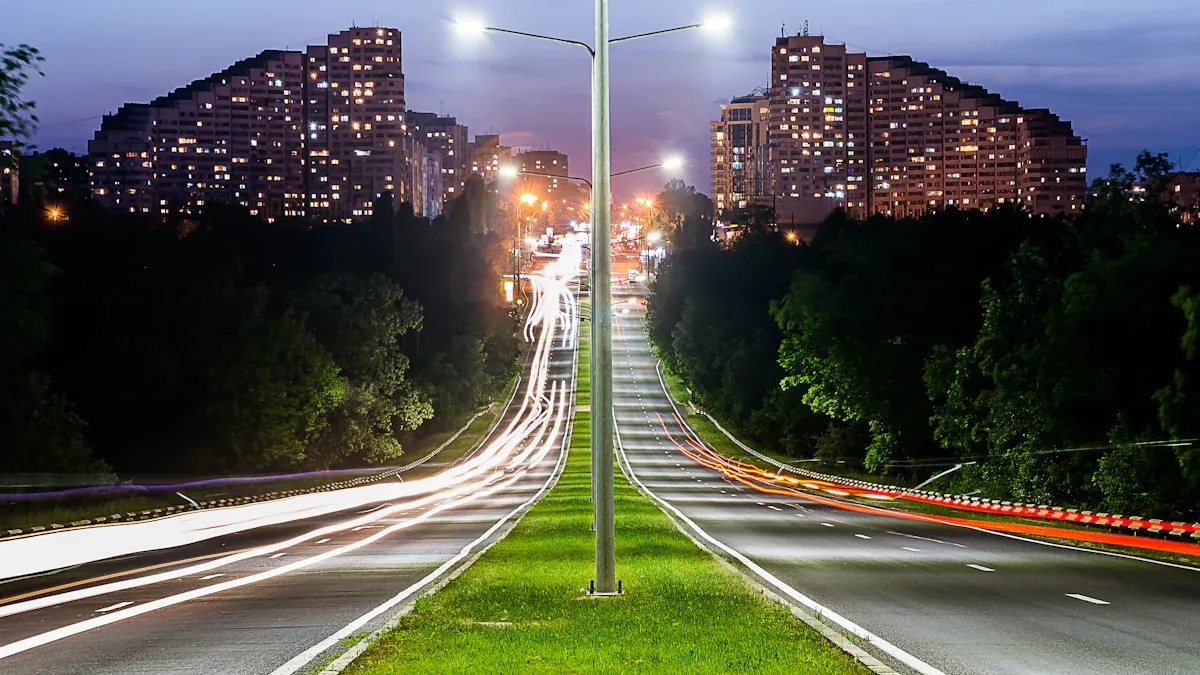

Comparison
Coverage
You want to light up your street or area with the best coverage. Double-arm street lamp poles give you wider coverage. Each pole lights both sides of the road. You see fewer dark spots and more even light across wide streets. This works well for highways, big intersections, and busy city roads.
Single-arm street lamp poles focus light on one side. You get good coverage for narrow roads, small paths, or walkways. If you use them on both sides of a street, you can still cover a wide area, but you may need more poles. You should choose single-arm poles for places where you want to control the light direction or avoid lighting up private property.
Note: Double-arm poles help you save space and reduce the number of poles needed for large areas.
| Feature | Single-arm Poles | Double-arm Poles |
|---|---|---|
| Coverage Area | Narrow to medium | Wide |
| Best for | Small roads, pathways | Highways, large roads |
| Number of poles needed | More for wide coverage | Fewer for same coverage |
Brightness and uniformity
You need bright and even light to see clearly at night. Double-arm street lamp poles give you higher brightness and better uniformity. Two lamps on each pole spread light evenly across the road. You do not see harsh shadows or bright spots. This helps drivers, cyclists, and people walking feel safe.
Single-arm street lamp poles also give good brightness, but the light focuses on one side. You may notice some areas are brighter than others, especially if you do not space the poles well. You can improve uniformity by placing the poles on both sides of the street and adjusting the angle of the lamps.
- Double-arm poles: Best for wide, busy roads where you want even light everywhere.
- Single-arm poles: Good for smaller spaces or where you want to light only one side.
Tip: For the best results, always plan your pole placement and lamp angle to avoid dark spots.
Energy efficiency and cost
You want to save energy and money. Double-arm street lamp poles use two lamps per pole, so they may use more energy than single-arm poles. However, you need fewer double-arm poles to light a large area. This can lower installation and maintenance costs.
Single-arm street lamp poles use less energy per pole. You may need more poles to cover the same area, which can raise the total cost for large projects. For small roads or paths, single-arm poles often cost less and use less energy.
| Factor | Single-arm Poles | Double-arm Poles |
|---|---|---|
| Energy use per pole | Lower | Higher |
| Total poles needed | More | Fewer |
| Installation cost | Lower for small projects | Lower for large projects |
| Maintenance | Easier, fewer parts | More complex |
You should also think about wind resistance and lamp types. Double-arm poles often have stronger wind resistance. You can use different lamp types, like LED or sodium, with both pole types. Choose the one that fits your street layout and local weather.
Choosing the right pole
Factors to consider
You need to look at several important factors before you choose a street lamp pole. Each area has different needs. The right pole type helps you get the best lighting and safety.
| Factor | Influence on Street Lamp Pole Type |
|---|---|
| Street Width | The height of poles is correlated with road width; different types are needed for rural vs. urban settings. |
| Traffic Volume | Higher poles are required in areas with larger vehicles, while lower poles can suffice in zones with smaller vehicles. |
| Environmental Conditions | Installation areas, such as coastal regions, require poles with special finishes to prevent corrosion from salt water. |
You should also think about these points:
- Start with lighting requirements. Decide how much light you need and where you need it.
- Check the mounting height. Taller poles work better for wide roads. Shorter poles fit narrow streets.
- Think about wind load and local soil. Strong winds or soft ground need stronger poles.
- Pick the right material. Steel and aluminum last longer and need less care.
- Plan the spacing. Good spacing gives you even light and keeps people safe.
- Follow proper installation steps. This helps your poles last longer and work better.
Note: Research shows that well-lit areas lower the risk of accidents and crime. Good lighting makes your community safer.
You should pick single-arm street lamp poles for small roads or walkways. They also work well near rivers. Double-arm poles are better for wide streets and busy crossings. Local rules are important when you choose. Safety and the environment also matter. Both types need regular care to stay safe and look nice. Look at the table below for a quick comparison:
| Feature | Single-Arm Pole | Double-Arm Pole |
|---|---|---|
| Best Use | Narrow roads, pathways | Wide roads, intersections |
| Light Pollution | Lower if well-directed | Lower with solar options |
| Maintenance | Needs regular checks | Needs regular checks |
Think about what your area needs. Always follow local rules for the best results.
FAQ
What type of street lamp pole gives you the best lighting for wide roads?
Double-arm street lamp poles give you better lighting for wide roads. You get more coverage and fewer dark spots.
Tip: Use double-arm poles for highways and busy intersections.
Can you use single-arm street lamp poles for large areas?
You can use single-arm poles for large areas, but you need more poles. Double-arm poles cover more space with fewer poles.
| Pole Type | Coverage Area | Number Needed |
|---|---|---|
| Single-arm | Small | More |
| Double-arm | Large | Fewer |
Which pole type costs less to install?
Single-arm street lamp poles usually cost less to install for small projects. Double-arm poles save money for big roads because you need fewer poles.
- Small roads: Single-arm poles
- Wide roads: Double-arm poles
How often should you check and maintain street lamp poles?
You should check street lamp poles every six months. Look for loose bolts, rust, and broken lights.
Regular checks help you keep your streets safe and well-lit.
