You want reliable lighting for your parking lot that cuts costs and supports sustainability. Solar Street Lighting offers a practical solution for your facility. With this technology, you avoid expensive trenching and eliminate the need for grid electricity. Many municipalities save money every year and see a real drop in carbon emissions by switching to solar-powered systems. You can use these strategies to make installation easier and improve safety for everyone on your property.
Key Takeaways
- Assess your parking lot’s unique lighting needs to ensure effective illumination and safety.
- Choose the right pole height based on the size of your lot to maximize coverage and minimize dark spots.
- Select quality batteries with sufficient capacity to ensure reliable operation during cloudy days.
- Follow best practices for installation to enhance performance and reduce maintenance costs.
- Regular maintenance checks are essential for keeping your solar street lighting system reliable and efficient.
Part 1: Solar Street Lighting Layout
1.1 Assess Lighting Needs
You need to start by evaluating the unique requirements of your parking lot. The size, traffic patterns, and safety concerns all play a role in determining the right Solar Street Lighting solution. Use the following table to guide your assessment:
| Factor | Description |
|---|---|
| Lighting Requirements | Calculate the number of solar panels needed for effective lighting. |
| Size of the Parking Lot | Larger lots require more lighting systems for full coverage. |
| Safety and Security | Identify high-traffic or potentially dangerous areas to ensure proper illumination. |
| Active Hours | Plan lighting schedules based on operating hours and sunlight availability. |
You should identify areas that need light, such as walkways, entrances, and parking spaces. Each area may require a different level of brightness. Evaluate safety and security by focusing on high-traffic zones and places where visibility is critical. Plan your lighting schedule according to the hours your lot operates and the amount of sunlight available. This approach helps you maximize efficiency and safety.
Tip: For industrial parks, consider solar street lights for industrial parks to address large-scale lighting needs.
1.2 Light Placement Strategy
Proper placement of Solar Street Lighting ensures uniform coverage and minimizes dark spots. You should plan the arrangement based on the distribution of parking spaces, lane widths, entrances, exits, and pedestrian paths. Follow these best practices:
- Space poles 2.5 to 3.5 times the pole height apart. This prevents dark areas and excessive overlap.
- Adjust spacing for larger vehicles, which may require greater distances between poles.
- Use taller poles for larger lots to extend coverage.
- Aim for a minimum average illumination of 1 foot-candle for safety and visibility.
- Choose LED fixtures for efficiency and longevity. Mount them at heights between 15 and 30 feet.
- Select NEMA Type V distribution for central poles and Type III for perimeter lighting.
A well-designed layout improves visibility for drivers and pedestrians. It also supports security cameras by providing uniform light. Poor spacing leads to bright spots under poles and dark areas between them, increasing risks of trips and collisions.
1.3 Preventing Shadows
You want to eliminate shadows and dark corners in your parking lot. Solar Street Lighting casts consistent, bright light, which enhances safety and reduces potential hiding spots for threats. This lighting makes it easier for drivers to spot curbs, vehicles, and pedestrians. It also improves visibility for security personnel and cameras.
- Solar street lights provide substantial illumination, reducing shadows and dark spots.
- Consistent lighting helps prevent accidents and supports a safer environment.
- Uniform coverage makes your lot more welcoming and secure for visitors.
Financial and Infrastructure Benefits
Solar Street Lighting layouts offer several advantages:
- Cost savings: You avoid trenching and wiring, which reduces installation costs and minimizes disruptions.
- Reduced maintenance: These systems require minimal upkeep, lowering labor and replacement expenses.
- Sustainability: Using renewable energy helps you cut utility costs and reduce carbon emissions, supporting your environmental goals.
Facility managers, property owners, and installers benefit from these advantages. You gain reliable lighting, lower costs, and a sustainable solution for your parking lot.

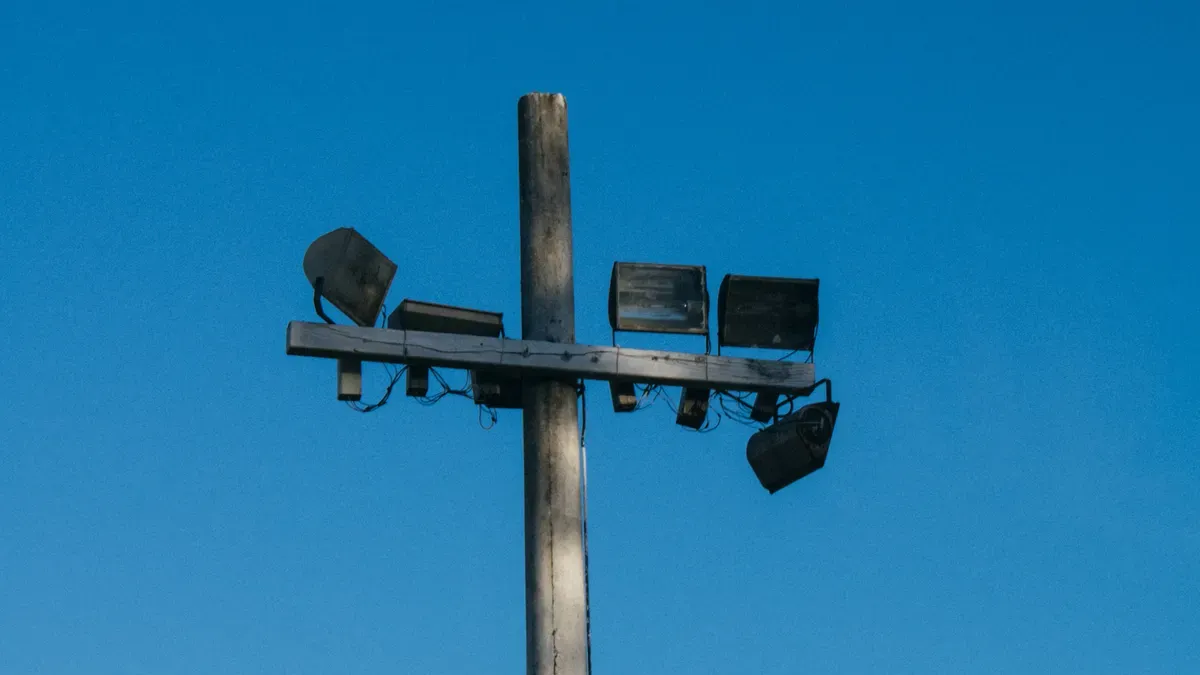

Part 2: Pole Height Selection
2.1 Height Factors
You need to consider several factors when selecting the right pole height for your parking lot. The width of the road or parking area, lighting requirements, environmental conditions, and aesthetics all play a role. Taller poles may be necessary in windy or snowy regions, while shorter poles suit narrow lanes. The right height balances safety and visual appeal, preventing damage and minimizing light spill.
| Factor | Description |
|---|---|
| Road Width | Determines pole height based on the width of the road; narrower roads require shorter poles. |
| Lighting Requirements | Varies by area; different lux levels dictate the need for taller poles in high-traffic areas. |
| Environmental Factors | Weather conditions and obstructions affect pole height; taller poles may be needed in windy or snowy areas. |
| Aesthetics and Safety | Balances functionality and visual appeal; height must prevent damage and minimize light spill. |
Tip: When choosing poles, review street light poles for options that match your site’s needs.
2.2 Recommended Heights
You should select pole heights based on the size and type of your parking lot. Small retail lots and pedestrian-heavy areas benefit from shorter poles, while larger lots require taller poles for broader coverage. The diameter and shape of the pole also affect stability and performance. Galvanized steel poles offer durability and resist corrosion, making them ideal for outdoor environments.
| Parking Lot Type | Recommended Pole Height (feet) |
|---|---|
| Small retail lots, small apartments | 12 to 15 |
| Shopping centers, restaurants | 16 to 25 |
| Large retail centers, stadiums | 25 to 40 |
- 12 to 15 feet: Ideal for small retail lots and areas with heavy pedestrian traffic.
- 16 to 25 feet: Common for shopping centers and medical offices.
- 25 to 40 feet: Suitable for large retail centers and industrial sites.
For most commercial parking lots, pole heights range from 15 to 30 feet. LED fixtures used can deliver 12,000 to 30,000+ lumens, providing strong illumination. You can explore LED street lights for efficient lighting solutions. If you need poles that withstand harsh weather, consider galvanized steel light poles for long-lasting performance.
2.3 Light Distribution Impact
Pole height directly affects how light spreads and how well your parking lot stays illuminated. As pole height increases, light intensity decreases due to the inverse-square law. Taller poles cover larger areas, reducing the number of fixtures needed, but may create dark spots if spaced too far apart. Lower poles provide more uniform light but require more fixtures.
| Pole Height (feet) | Coverage | Uniformity |
|---|---|---|
| 20-30 | Large | Risk of dark spots if spaced too far apart. |
| Lower poles | Smaller | More uniform light but requires more fixtures. |
| Pole Height (feet) | Effect on Lighting | Notes |
|---|---|---|
| 10-30 | Varies | Height affects area coverage and light intensity. |
| 20-30 | Larger area coverage | Reduces number of fixtures needed but may increase light pollution. |
| 14-30 | Adequate illumination | Recommended for safety in parking lots. |
- Recommended pole heights range from 10 to 30 feet.
- Taller poles can illuminate larger areas, reducing dark spots.
- Proper spacing is crucial to avoid creating areas with insufficient light.
Improper pole height selection can lead to safety concerns, visibility problems, and energy inefficiency. Spacing poles too far apart creates dark areas that hide hazards. Placing poles too close wastes energy and can cause harsh lighting. Poor spacing can result in glare and uneven illumination.
Note: Solar Street Lighting systems with the right pole height improve safety and visibility for drivers and pedestrians. You create a secure environment and reduce risks of accidents.
Part 3: Battery Backup Essentials
3.1 Sizing Battery Capacity
You need to size the battery correctly to ensure reliable operation of your Solar Street Lighting system. Start by considering the wattage of your LED fixtures and the expected nightly runtime. Lower wattage fixtures with high lumens reduce battery requirements and help you save on costs. Calculate battery capacity based on the number of backup days needed, usually at least three consecutive days without sunlight. Northern climates require larger batteries to handle extended cloudy periods. Most parking lot streetlights use batteries ranging from 100 to 200 amp-hours, depending on fixture output and backup needs.
- Geographic location and climate affect battery sizing.
- Usage patterns and seasonal sunlight variations play a role.
- Local solar irradiance and programmed runtime modes influence capacity.
3.2 Battery Types & Lifespan
You have several battery options for Solar Street Lighting. LiFePO4 batteries offer long service life and perform well in cold weather. Lithium-ion batteries also provide good longevity. Lead-acid batteries cost less but require more maintenance and have shorter lifespans.
| Battery Type | Typical Lifespan |
|---|---|
| Lead-acid | 3–5 years |
| Lithium-ion | 5–8 years |
| LiFePO4 | 8–10 years |
| Battery Type | Maintenance Requirements | Replacement Cycle |
|---|---|---|
| Lead-Acid | Requires periodic watering, inspections, and equalization charging; more frequent maintenance needed. | Shorter lifespan, more frequent replacements. |
| Lithium (LiFePO4) | Generally maintenance-free with integrated BMS; minimal hands-on intervention required. | Longer lifespan, less frequent replacements. |
3.3 Backup for Cloudy Days
You must plan for cloudy days to keep your parking lot safe and well-lit. Choose batteries with enough capacity to store surplus energy. Advanced battery storage systems help maintain operation during extended cloudy periods. High-quality solar panels and efficient charge controllers maximize energy capture and storage. Energy-saving features like dimming and motion sensors extend battery backup. Motion sensors can save up to 80% of energy compared to constant full illumination. Lights with motion sensors dim or turn off when no activity is detected, conserving energy and extending battery life.
- Store excess energy on sunny days for use during cloudy weather.
- Use motion sensors to reduce unnecessary energy consumption.
- Dimming after sunset balances energy use and increases backup duration.
Solar Street Lighting with proper battery backup ensures consistent performance, even in challenging weather. You create a safer environment and reduce maintenance costs for your facility.
Part 4: Installation Tips
4.1 Site Preparation
You need to prepare your parking lot carefully before installing Solar Street Lighting. Start by understanding the layout of your lot and decide which areas need the most light. Choose the right pole height for your application and estimate the best spacing for coverage. Plan the arrangement pattern and match fixture output to the pole height and area size. Check that your battery capacity supports full-night operation and confirm your solar panel can handle the design. Focus on entry, exit, and pedestrian zones for safety. Evaluate the pole structure and foundation needs, and consider the control mode before installation. Always follow a practical installation sequence.
A solid foundation ensures stability and long-term performance. Verify pole locations for proper light distribution. Inspect the foundation curing to prevent future issues and confirm anchor bolt alignment. These steps maximize solar energy absorption, ensure consistent illumination, and extend the lifespan of batteries and fixtures. You also reduce maintenance costs and improve safety.
4.2 Mounting & Wiring
You must follow best practices when mounting and wiring your solar street lights. Consider the system fit by evaluating lot size, traffic, and visibility needs. Match pole height to the area you want to light. Ensure your battery capacity supports all-night operation. Select solar panels that recharge batteries efficiently based on your local conditions. Optimize the beam angle and light distribution to minimize dark spots. Assess pole structure for wind resistance and check the IP rating for outdoor durability.
Avoid common installation errors. For example, reversed polarity in solar panel connections can cause the light to fail. Improper controller settings may result in flickering or daytime illumination. Battery issues, aging wiring, or damaged solar panels can disrupt performance. Always inspect and test connections, review the installation manual, and replace faulty components as needed.
| Common Installation Error | Description | Solution |
|---|---|---|
| Reversed Polarity of Solar Panel Connections | Causes the light to illuminate briefly and then remain off. | Reverse the positive and negative terminals of the solar panel. |
| Improper Controller Configuration | Results in flickering LEDs or daytime illumination. | Review the installation manual and reset or replace the controller. |
| Battery Issues | Poor contact or damaged batteries lead to insufficient illumination. | Verify battery polarity and test battery integrity. |
| Aging or Disconnected Wiring | Degraded wiring affects performance and causes LED lights to fail. | Inspect and reconnect or replace aged wiring. |
| Solar Panel Damage | Reduced operational duration or failure to operate normally. | Test the open-circuit voltage and replace the damaged solar panel if necessary. |
4.3 Maintenance & Safety
You should set a regular maintenance schedule to keep your Solar Street Lighting system reliable. Inspect all components visually for signs of damage or wear. Clean solar panels to remove dirt and debris, which improves energy conversion. Check battery charge levels and connections to preserve battery life. Test and calibrate controllers for energy savings and accurate operation. Inspect cables and wiring for potential issues. Monitor system performance to catch problems early.
| Maintenance Task | Importance |
|---|---|
| Regular visual inspections | Identify signs of damage or wear, ensuring all components are functioning properly. |
| Cleaning solar panels | Removes dirt and debris, enhancing the efficiency of sunlight conversion into electricity. |
| Battery maintenance | Ensures proper operation by checking charge levels and connections, preserving battery lifespan. |
| Testing and calibrating controllers | Optimizes settings for energy savings and ensures accurate operation of the lighting system. |
| Inspecting cables and wiring | Identifies potential issues that could disrupt operation or pose safety risks. |
| Performance monitoring | Detects deviations from normal operation, allowing for timely maintenance interventions. |
You also need to perform safety checks. Clean panels regularly and inspect for physical damage. Confirm that your battery meets autonomy and temperature requirements. Make sure your poles comply with wind-load standards to prevent failures during storms.
Note: Reliable maintenance and safety checks help you maximize system lifespan and ensure consistent lighting for your parking lot.
You can achieve reliable and sustainable parking lot illumination by following these key steps:
- Identify high-priority areas and select quality Solar Street Lighting solutions.
- Secure funding and pilot your project before expanding.
- Focus on proper layout, pole height, battery backup, and installation for best results.
| Factor | Contribution to Success |
|---|---|
| Proper Layout | Delivers even light and boosts safety. |
| Pole Height | Improves coverage and reduces light pollution. |
| Battery Backup | Extends system life and performance. |
| Installation | Ensures long-term reliability and lower maintenance costs. |
You gain energy efficiency, lower costs, and environmental benefits. For tailored solutions or expert advice, consult LeapPole’s custom solar street light solution team.
FAQ
How long do solar street lights last?
You can expect solar street lights to last 8–10 years. LED fixtures and LiFePO4 batteries offer long service life. Regular maintenance extends the lifespan and keeps your parking lot well-lit.
What maintenance do solar street lights require?
You should clean solar panels, check battery levels, and inspect wiring every few months. Routine maintenance prevents performance issues and ensures reliable lighting for your parking lot.
Can solar street lights operate during cloudy days?
Solar street lights store extra energy in batteries. You get backup for several cloudy days. Motion sensors and dimming features help conserve battery power and maintain illumination.
How do I choose the right pole height?
Select pole height based on parking lot size and lighting needs. Taller poles cover larger areas. Shorter poles provide more uniform light. Review site requirements before making your decision.
Are solar street lights suitable for large commercial lots?
Solar street lights work well for large commercial lots. You avoid trenching and reduce installation costs. Proper layout and battery backup ensure consistent lighting and safety for your property. Need a solar street lighting solution for your parking lot? Share your parking lot size, pole height, lighting hours, backup-day requirements, and project location. LeapPole can help you choose the right solar panel, LiFePO4 battery, LED fixture, pole structure, and lighting layout for reliable parking lot illumination.
