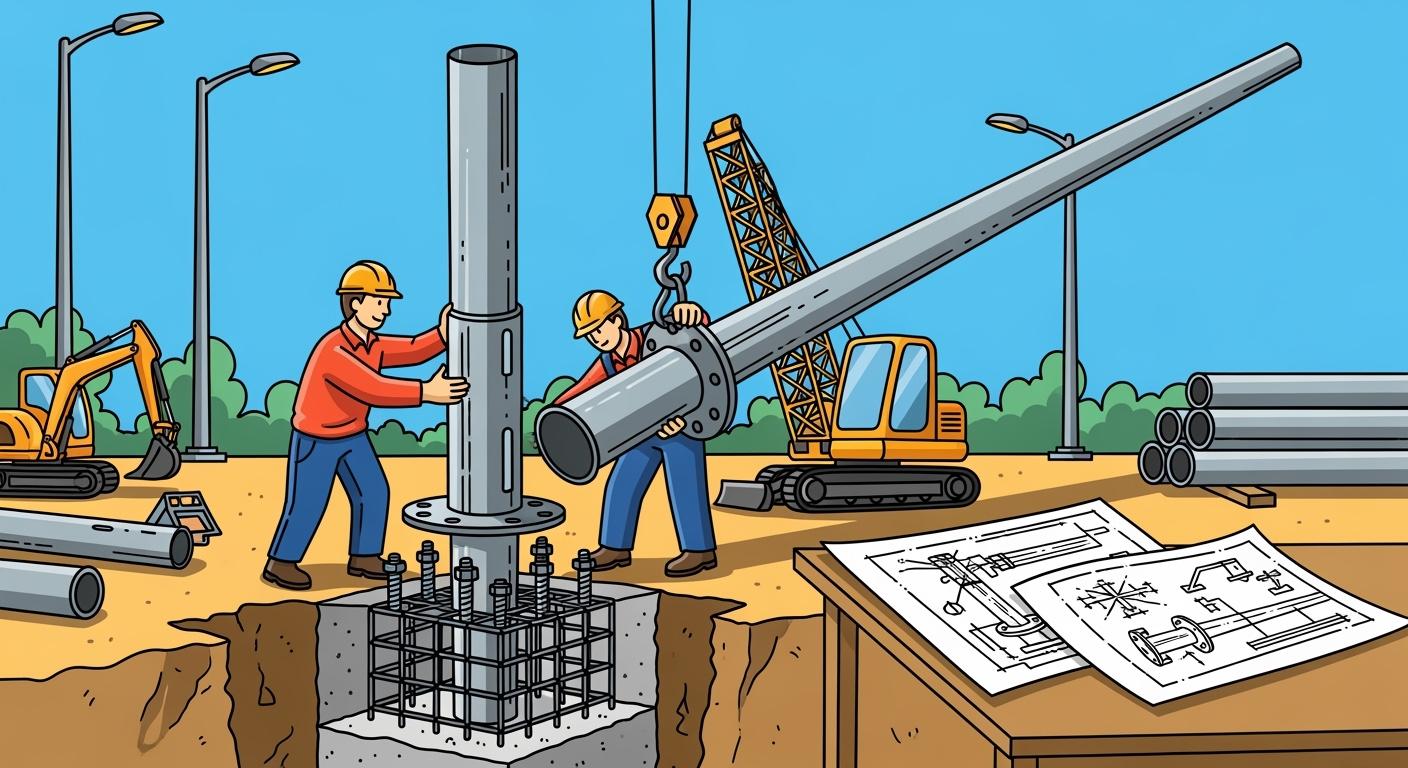

You need to specify anchor bolts, flanges, and foundation cages based on the street light pole’s height, wind load, and soil conditions. Correct specification helps you meet safety standards, comply with local codes, and extend the system’s lifespan. Two main installation methods exist: flange connection and direct burial. LeapPole applies proven engineering practices to ensure each project meets strict quality requirements.
Tip: Always consult site data before selecting anchor bolts or foundation cages.
Key Takeaways
- Specify anchor bolts based on pole height, wind load, and soil conditions to ensure safety and compliance.
- Choose between flange connection and direct burial methods based on site conditions and project requirements.
- Use corrosion-resistant materials for anchor bolts to enhance durability and reduce maintenance costs.
- Conduct a thorough site assessment to identify risks and select the appropriate foundation system.
- Follow a detailed checklist during installation to ensure quality and compliance with local codes.
Part1: Installation Methods
Street light pole projects rely on two main installation methods: flange connection and direct burial. You must understand these methods to ensure structural integrity and compliance with local codes.
1.1 Flange Connection
Flange connection uses a base plate welded to the bottom of the pole. You secure the pole to a concrete foundation with Anchor Bolts. This method suits projects where you need precise height alignment and easy maintenance. Flange connections work best for tall poles, urban settings, and areas with high wind loads. You can achieve a clean appearance and consistent installation quality.
Note: Flange systems allow you to replace or adjust poles without disturbing the foundation.
The choice between flange connection and direct burial depends on several site conditions. The table below summarizes key factors:
| Condition | Description |
|---|---|
| Pole Height | Steel poles over twenty feet tall typically require flange connections for stability. |
| Wind Loads | Sites exposed to hurricane-force winds necessitate flange connections for safety. |
| Soil Type | Expansive clay soils can exert pressure on direct-bury poles, making flange connections preferable. |
| Local Climate | Coastal areas may require stainless steel for flange systems due to salt corrosion. |
| Urban Settings | Flange systems provide a clean look and precise height alignment, important for urban lighting. |
1.2 Direct Burial
Direct burial involves placing the pole directly into the ground, usually with a concrete backfill. You use this method for shorter poles and locations with stable soil. Direct burial reduces installation time and material costs. You avoid the need for Anchor Bolts and base plates, but you must ensure the soil can support the pole and resist environmental forces.
Direct burial works well in rural areas or places with minimal wind exposure. You must assess soil type and drainage to prevent corrosion and instability. This method offers simplicity but limits future adjustments or replacements.
Tip: Always evaluate site conditions before choosing an installation method. Proper selection improves safety and project longevity.
Part2: Anchor Bolts & Key Components
2.1 Anchor Bolts: Types and Sizes
You must select the right anchor bolts for your street light pole project. The type and size of anchor bolts directly affect the structural integrity and safety of the installation. Most projects use straight rods, L-shaped bent bolts, fully threaded rods, or headed anchor bolts. Each type offers unique benefits for different applications.
| Type of Anchor Bolt | Description |
|---|---|
| Straight Rods | Threads on each end, usually require six nuts and six washers per rod. |
| L-Shaped Bent Bolts | Bent design, need two nuts and two washers each. |
| Fully Threaded Rods | Similar to straight rods but fully threaded, also require six nuts and washers. |
| Headed Anchor Bolts | Rarely used, require two nuts and two washers. |
| Templates | Used for alignment, match bolt circle diameter. |
| Corrosion Resistance | Hot-dip galvanized for durability against natural elements. |
You should match the anchor bolts to the pole height, wind load, and soil conditions. High-quality steel and protective zinc coatings help resist moisture and corrosion. Custom sizes and shapes are available to meet specific project needs.
| Characteristic | Description |
|---|---|
| Strength and Durability | Withstand significant forces. |
| Protective Zinc Coating | Shields steel from moisture and corrosion. |
| High Tensile Strength | Resists forces that pull apart the pole. |
| Shear Strength | Endures sideways forces like wind or impacts. |
| Resistance to Fatigue | Prevents cracking and wear over time. |
| Custom Sizes and Shapes | Available for various project requirements. |
Tip: Always use corrosion-resistant anchor bolts for outdoor installations.
2.2 Flange and Bolt Circle Specs
Flange size, bolt circle diameter, and base plate thickness must match the pole’s height and application. You need to verify these specifications to ensure proper fit and stability. The bolt circle diameter increases with pole height and wind load. Most commercial poles use four anchor bolts, but taller poles may require six or eight.
| Pole Height | Bolt Diameter | Bolt Circle Diameter | Bolt Count | Notes |
|---|---|---|---|---|
| 10-15 ft | 3/4″ | 8.5-10″ | 4 | Decorative, pedestrian-scale poles. |
| 15-20 ft | 3/4″ | 8.5-11″ | 4 | Standard commercial parking lot poles. |
| 20-30 ft | 1″ | 10-13″ | 4 | Taller parking lot and roadway poles. |
| 30-40 ft | 1″ to 1-1/4″ | 13-17″ | 4-6 | Large area and highway poles. |
| 40+ ft | 1-1/4″ to 1-1/2″ | 17-25″ | 6-8 | High-mast poles. |
You should always check the manufacturer’s specifications for flange and bolt circle details.
Note: Use standoff nuts to maintain an 80mm gap between the base plate and concrete for drainage and protection.
2.3 Foundation Cage Design
A well-designed foundation cage keeps your street light pole upright and stable. You must consider local environmental conditions, such as heavy snowfall or soil shifts, when designing the cage. Reinforcements like rebar distribute stress and prevent cracks, especially in areas with freeze-thaw cycles.
- Stable foundations ensure consistent lighting and safety.
- Design must account for environmental factors to enhance durability.
- Reinforcement with rebar prevents cracks and distributes stress.
- Follow manufacturer specifications and local codes for installation.
- Use concrete mixes designed for weather resistance.
- Select corrosion-resistant anchor bolts for secure pole attachment.
- Schedule regular maintenance checks to address issues early.
Reminder: Proper foundation cage design improves long-term stability and compliance.
Part3: Method Comparison
3.1 Flange vs. Direct Burial
You must compare flange connection and direct burial methods before starting your street light pole project. Flange connection uses a base plate and anchor bolts to secure the pole to a concrete foundation. Direct burial places the pole directly in the ground, often with concrete backfill. Each method affects installation time, cost, and long-term maintenance.
| Method | Pros | Cons |
|---|---|---|
| Flange Connection | Very stable, easy to maintain, strong anchor | More complex, higher cost, needs concrete |
| Direct Burial | Simple, fast, low cost | Less stable, not for steel poles, soil limits |
You achieve greater stability and easier maintenance with flange connection. Direct burial offers faster installation and lower costs, but it limits future adjustments.
3.2 Pros and Cons
Flange connection provides strong anchoring and supports tall poles in urban or high-wind areas. You can replace or adjust poles without disturbing the foundation. However, flange systems require more materials and skilled labor.
Direct burial works best for shorter poles in stable soil. You save time and reduce costs, but you sacrifice flexibility and long-term durability. Soil conditions and drainage play a major role in the success of direct burial.
Tip: Flange connection suits steel poles and high-wind regions. Direct burial fits rural sites with stable soil.
3.3 Suitability Guide
You must select the installation method based on project requirements and site conditions. Use this checklist to guide your decision:
- Choose flange connection for tall poles, urban settings, or high-wind zones.
- Select direct burial for short poles, rural areas, or projects with limited budgets.
- Assess soil stability and drainage before finalizing your method.
- Use anchor bolts for flange systems to ensure compliance and safety.
- Confirm material specifications and local code requirements.
Steel poles offer reliability in high-wind and seismic zones. Hot-dip galvanized steel resists corrosion for decades. Heavier poles need stronger foundations, making flange connection the preferred choice. Direct burial provides a secure foundation but works best in stable environments.
Reminder: Always match your installation method to site conditions and project goals. Proper selection improves safety and reduces maintenance costs.

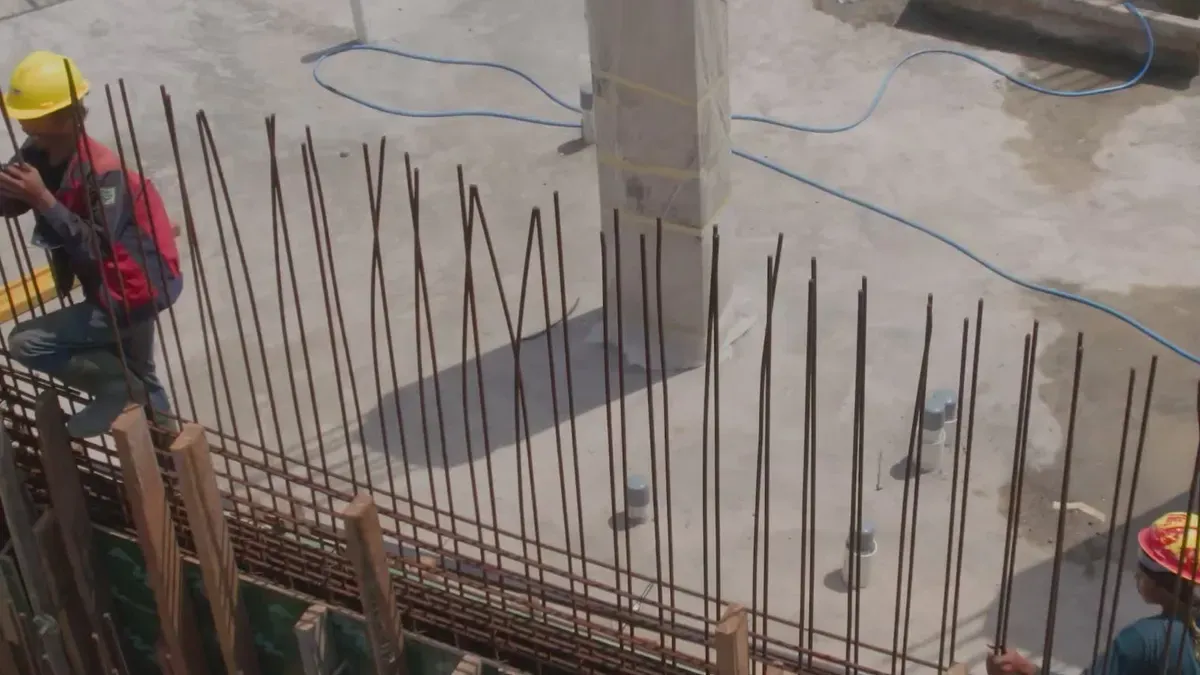

Part4: Specification & Installation Steps
4.1 Site Assessment
You must start every street light pole project with a thorough site assessment. This step helps you identify risks and select the right foundation system. Key factors to evaluate include:
- Analyze soil type and bearing capacity. Sandy soil needs deeper foundations due to low load-bearing strength. Clay soil swells when wet and can shift, which affects anchor bolt selection. Rocky soil may require special drilling or anchoring techniques.
- Inspect the condition of existing anchor bolts. Clean any rust or debris to ensure a solid connection.
- Measure the bolt pattern using both bolt circle and bolt square methods. This ensures compatibility with your selected pole.
- Confirm the diameter and projection of anchor bolts. The bolts must match the pole base and provide enough length for secure attachment.
- Check for underground utilities and obstacles before excavation.
- Assess wind exposure and local climate. High-wind zones require stronger foundations and larger anchor bolts.
- Review local building codes and permit requirements. Compliance prevents costly delays.
Tip: Always consult with a structural engineer for foundation design and soil analysis. For more details on pole options, see LeapPole’s street light poles.
4.2 Specifying Anchor Bolts
You must specify anchor bolts that match the pole height, wind load, and soil conditions. Follow these steps to ensure compliance and safety:
- Verify the required anchor bolt projection. The bolts must extend far enough above the foundation to secure the pole and allow for proper nut tightening.
- Ensure a qualified engineer designs the concrete foundation. The design must consider local soil conditions and expected wind loads.
- Assemble the pole and all components on the ground before raising the pole. This step helps you check fit and alignment.
- Level and plumb the pole during installation. Use a spirit level to confirm vertical alignment.
- Tighten anchor bolt nuts to the specified torque values. This prevents loosening over time.
- Confirm that all electrical installations meet NEC and local codes. Proper grounding is essential, but do not use anchor bolts as grounding points.
You should always confirm the bolt circle and bolt square dimensions in all communications. Set the anchor bolt template level and plumb before pouring concrete. After pouring, verify the bolt projection immediately.
| Material/Method | Description |
|---|---|
| Hot-dip Galvanization | Provides long-lasting corrosion protection for anchor bolts. |
| Zinc Plating | Not acceptable for pole foundations due to limited service life. |
| Stainless Steel Hardware | Recommended for high durability and corrosion resistance. |
| Powder Coating/Epoxy | Adds extra protection in highly corrosive environments. |
Note: Hot-dip galvanization is the industry standard for anchor bolt protection. For accessories and hardware, visit LeapPole’s pole accessories.
4.3 Flange and Cage Installation
Proper installation of flanges and foundation cages ensures the stability and safety of your street light poles. Follow these best practices:
- Excavate the foundation hole to at least 1.5 meters deep for stability. Choose a location with maximum sunlight and clear of obstacles.
- Compact the soil base to at least 95% compaction. A level base prevents uneven settling.
- Place the anchor bolt template accurately. Install the electrical conduit stub-up before pouring concrete.
- Position reinforcement steel as specified in the design. This step increases the foundation’s strength.
- Pour reinforced concrete with a minimum strength of 3000 PSI. Use a vibrator to remove air pockets and ensure solid curing for 7–14 days.
- Verify the position and projection of anchor bolts before the concrete sets. Protect and cure the concrete to prevent cracks.
- Align the flange plate and secure the pole vertically. Tighten bolts in a crisscross pattern to distribute pressure evenly.
- For screw pile or precast bases, check vertical alignment and ensure proper fit with anchor bolts.
Reminder: Always follow local codes and manufacturer specifications for installation.
4.4 Checklist for Project Managers
Use this checklist to manage your street light pole foundation project efficiently:
- Clarify the installation and maintenance scope with all stakeholders.
- Include detailed foundation specifications (concrete base, portable base, or direct burial).
- Specify anchor bolts, mounting hardware, and corrosion protection methods.
- Detail battery enclosure and charge controller requirements for solar lighting projects.
- List LED fixture and solar panel assembly steps if applicable.
- Ensure all wiring and connections are weather-sealed.
- Confirm commissioning and performance verification processes.
- Assess pole verticality and fixture orientation for proper light distribution.
- Verify secure connections and torque specifications.
- Perform voltage checks at all terminals.
- Activate and observe system functionality at dusk.
- Check illumination uniformity and adjust fixtures as needed.
- File a commissioning report documenting inspections and final acceptance.
- Conduct a professional site assessment, including soil analysis and utility location.
- Follow installation methods based on site conditions and foundation type.
- Ensure compliance with local building codes and wind load calculations.
- Consult with structural engineers for foundation design.
- Verify permits with local authorities before starting work.
- Implement a systematic inspection and quality control process from material receipt to final installation.
Tip: Full-process quality control and traceability management help you deliver reliable, code-compliant street light pole projects. For solar lighting solutions, explore LeapPole’s solar lighting systems.
You improve safety and durability when you specify anchor bolts, flanges, and foundation cages with precision. Always confirm bolt patterns, follow industry standards for alignment, and use the decision checklist for each project. Correct method selection leads to stable, long-lasting installations and reduces maintenance costs.
“The most common challenge is confusion between bolt circle and bolt square—always verify your measurements.”
For tailored guidance and custom solar street light solutions, consult LeapPole’s expert team to ensure your project meets every technical and compliance requirement.
FAQ
What is the minimum embedment depth for anchor bolts?
You should follow the engineer’s design and local codes. Most projects require anchor bolts to embed at least 12 times the bolt diameter. This ensures strong anchoring and prevents pullout under wind or seismic loads.
How do you prevent corrosion on anchor bolts and flanges?
Use hot-dip galvanized or stainless steel hardware. Apply protective coatings as needed. Regular inspections help you spot early signs of rust or damage.
Can you reuse anchor bolts when replacing a street light pole?
You should not reuse anchor bolts unless a structural engineer confirms their integrity. Old bolts may have hidden damage or corrosion that weakens the new installation.
What is the recommended bolt tightening sequence?
Tighten anchor bolts in a crisscross pattern. This distributes pressure evenly across the flange and prevents warping. Always use a calibrated torque wrench for accuracy.
How do you verify bolt circle and bolt square measurements?
- Measure from the center of one bolt to the center of the opposite bolt for bolt circle.
- For bolt square, measure between adjacent bolts.
- Double-check all measurements before ordering or installing poles.
