Street lighting for airports covers access roads, parking areas, service roads, loading zones, perimeter roads, and security areas. Reliable LED street lights help improve visibility, support traffic safety, and reduce maintenance pressure across airport infrastructure.
Airport lighting projects require careful coordination with local aviation, electrical, and safety requirements. Lighting systems should support clear visibility during night operations, rain, fog, and other challenging outdoor conditions. Proper pole height, fixture output, beam angle, glare control, and foundation design are essential for safe and compliant installation.
For different airport zones, project teams may need a combination of street light poles, LED luminaires, smart controls, and corrosion-resistant finishes. In wider areas such as parking lots, apron support zones, or logistics yards, high mast lighting systems may also be used to provide broader coverage.
Tailored lighting solutions help airports improve safety, reduce energy consumption, simplify maintenance, and integrate outdoor lighting with security and facility management systems.
Key Takeaways
- LED street lighting enhances safety and visibility on airport access roads, especially during adverse weather.
- Proper lighting design in parking areas reduces accidents and improves security for pedestrians and vehicles.
- Uniform illumination along perimeter zones is crucial for effective security monitoring and incident response.
- Smart controls and LED technology can significantly lower energy costs and maintenance needs for airport lighting.
- Compliance with IES RP-37 and FAA standards ensures safe and efficient airport operations.
Part1: Airport Lighting Zones and Needs
1.1 Access Roads and Circulation Areas
You must prioritize high visibility and uniform illumination on airport access roads. These routes handle continuous vehicle flow, including staff, passengers, and service vehicles. LED street lighting for airports provides reliable coverage, especially during nighttime or adverse weather. Quality LED floodlights ensure even light distribution, which helps drivers detect obstacles and navigate safely. Proper light pole spacing supports consistent lighting and reduces shadowed areas. When you design lighting for airport access roads, always consider compliance with IES RP-37 and FAA standards. This approach improves both safety and operational efficiency.
- High visibility is crucial for airport access roads, especially at night.
- LED lighting improves traffic flow and enhances safety.
- Uniform light distribution aids in obstacle detection.
- Light pole spacing must be determined by site-specific calculations.
1.2 Parking Areas and Pedestrian Safety
Parking areas present unique challenges for street lighting at airports. Effective parking lot lighting increases visibility, which lowers the risk of accidents and injuries. Insufficient lighting can lead to vehicle collisions, pedestrian injuries, and falls caused by hidden obstacles. Good lighting is essential for both security and visibility. Local zoning regulations often influence lighting design to minimize sky glow and disturbances to neighboring properties. Uniformity is critical; bright spots can create misleading perceptions of darkness in adjacent areas. Surveys show that while lighting is vital for the safety of pedestrians and cyclists, it is not always a direct factor in accidents. You must carefully plan parking lot lighting, considering light pole spacing and compliance with standards.
1.3 Perimeter Security Lighting
Perimeter lighting forms a key part of the airport’s security strategy. You need to ensure that perimeter routes and boundaries have adequate illumination for monitoring and rapid emergency response. Effective perimeter lighting increases visibility, which helps security teams detect unauthorized access and respond quickly to incidents. Well-designed lighting systems prevent breaches and support overall airport safety and visibility. Coverage and uniformity are essential, and you must select LED luminaires that meet both operational and regulatory requirements.
Part2: LED Street Lighting Solutions for Airports
2.1 LED Street Lighting for Access Roads
You need reliable street lighting for airports to ensure safe and efficient vehicle movement on access roads. LED street lighting offers several advantages over traditional high-pressure sodium or metal halide lamps:
- Improved color rendering helps drivers see road markings and signs clearly. LED lights have a Color Rendering Index (CRI) of 70–85+, while HPS lamps only reach 20–30.
- Energy-efficient performance reduces power consumption and supports sustainability goals.
- LEDs last much longer, with lifespans of 50,000–100,000 hours, compared to 15,000–24,000 hours for HPS lamps.
- Maintenance costs drop by 60–80% because you replace LEDs less often.
- The broader spectrum of LED lighting improves visibility, which lowers accident rates and increases confidence for both pedestrians and cyclists.
When you select street lights for aviation projects, consider the type of luminaire, mounting height, and light pole spacing. You must also evaluate the integration of smart controls, such as adaptive dimming and remote monitoring, to optimize energy use and maintenance. Site-specific calculations and compliance with IES RP-37 and FAA standards guide your choices. For access roads, uniform light distribution and proper coverage are essential to minimize shadows and blind spots. You should also assess the suitability of solar street lights in areas with limited grid access, but always verify that they meet aviation lighting systems requirements.
2.2 LED Luminaires for Parking Areas
Parking areas at airports require careful attention to lighting design considerations. You must balance safety, efficiency, and regulatory compliance. The right LED luminaires improve visibility, reduce operational costs, and support security efforts. When you evaluate products for parking lot lighting, focus on the following features:
| Feature | Description | Recommendation |
|---|---|---|
| Luminous Flux | Determines the right brightness level | Professional photometric study recommended |
| Color Temperature | Affects clarity and comfort | Recommended range: 4000K – 5000K |
| Color Rendering Index | Important for visibility of colors and details | Higher values for security zones recommended |
| Thermal Management | Critical for LED lifespan | Choose fixtures with excellent heat dissipation |
| Protection Rating | Necessary for durability in outdoor conditions | IP65 or higher recommended |
| Anti-Glare Design | Enhances driver comfort | Use anti-glare lenses or diffusers |
| Driver Quality | Influences stability and efficiency | Select drivers with low harmonic distortion |
| Smart Functionality | Improves adaptability to traffic | Implement sensor controls and dimming capabilities |
You should also consider centralized management systems for parking areas. These systems allow you to monitor and control all luminaires remotely, which streamlines operations and reduces downtime. The following table highlights key benefits:
| Benefit | Description |
|---|---|
| Faster Maintenance | Rapid response to faults and outages with data-rich alerts, reducing downtime. |
| Centralized Management | Remote management of all light points, streamlining operations and reducing costs. |
| Energy Reduction | Lower energy use, contributing to reduced operational costs and sustainability efforts. |
You must determine light pole spacing based on site-specific calculations and standards. Uniform lighting across the parking area prevents dark spots and improves both safety and security. Always ensure that your lighting choices comply with local codes and airport regulations.
2.3 Perimeter LED Lighting and Security
Perimeter lighting plays a vital role in airport security. You need to provide even, consistent illumination along the entire perimeter fence line to support surveillance and rapid response. Uniform light distribution is more important than simply increasing brightness.
Uniformity of light is far more important than the amount of light falling on the ground. Even, consistent light distribution across an entire perimeter fence line is critical to avoid eye fatigue, eye strain, and quality night camera images. Avoiding contrasting brightness levels, especially total darkness to full brightness, is paramount for security personnel and camera systems.
Uneven coverage can leave shadows or dark spots, creating potential security vulnerabilities. To avoid this, guidelines often recommend keeping the ratio between the brightest and darkest areas below 4:1.
When you design perimeter lighting, select LED luminaires that offer precise optical control and high durability. Choose poles and mounting systems that withstand environmental stresses, such as wind and corrosion. Integrate smart controls for remote monitoring and adaptive lighting, which enhances both security and energy efficiency. You must also coordinate with security teams to ensure that lighting supports surveillance camera performance and does not create glare or blind spots.
Street lighting for airports requires a holistic approach. You must address the unique needs of access roads, parking, and perimeter zones. By focusing on technical selection, product suitability, and integration with smart controls, you can achieve reliable, energy-efficient performance and compliance with all relevant standards.
Part3: Engineering, Standards, and Installation
3.1 Lighting Design and Calculations
You must approach lighting design for airport projects with precision. Start by analyzing each area—access roads, parking, and perimeter zones—using site-specific calculations. Consider illuminance, uniformity, and light pole spacing to achieve optimal coverage and safety. The following table outlines typical illuminance and uniformity targets for key airport areas:

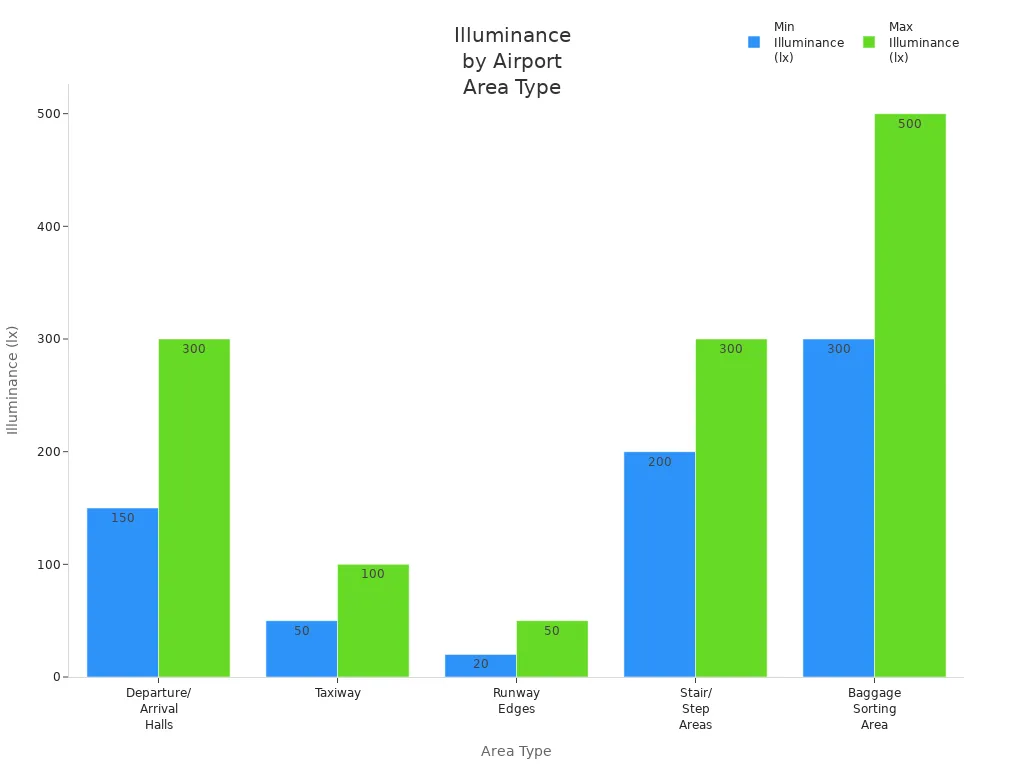

| Area Type | International Standard Illuminance Range | Uniformity (Uo) |
|---|---|---|
| Departure/Arrival Halls | 150-300 lx | ≥0.4 |
| Taxiway | 50-100 lx | ≥0.6 |
| Runway Edges | 20-50 lx | ≥0.7 |
| Stair/Step Areas | 200-300 lx | ≥0.5 |
| Baggage Sorting Area | 300-500 lx | ≥0.6 |
When selecting LED street lighting, choose fixtures with high luminous efficacy and appropriate color temperature for each zone. For example, use 5000-6000K for taxiways and 4000K for terminal interiors. Calculate total luminous flux based on area and target illuminance, adjusting for maintenance factors. Select pole heights and materials according to the function—hot-dip galvanized steel or aluminum alloy poles offer durability for outdoor environments. Always tailor your design to the unique requirements of each airport site.
3.2 Compliance with IES RP-37 & FAA
You must ensure all lighting installations comply with IES RP-37 and FAA standards. These standards define requirements for illuminance, uniformity, and safety in airport environments. Compliance supports safe navigation and operational efficiency. Documentation is essential—record all calculations, product specifications, and installation details. LeapPole provides engineering support and documentation templates to help you meet regulatory requirements. Regularly review updates to standards and coordinate with project stakeholders to maintain compliance throughout the project lifecycle.
3.3 Installation Environment and Quality Control
Environmental considerations play a major role in installation. Assess local climate, such as fog or heavy precipitation, which can impact visibility and lighting performance. Evaluate topography and surrounding infrastructure to ensure effective coverage and minimize light pollution. During installation, follow best practices for foundation design, wind load analysis, and soil assessment.
Quality control ensures long-term reliability. Use redundancy and fail-safe mechanisms to maintain lighting during outages. The table below highlights key quality measures:
| Quality Control Measure | Description |
|---|---|
| Redundancy | Dual power feeds and backup circuits maintain function during failures. |
| Fail-safe mechanisms | Prevent lighting failures from affecting airport operations or pilot safety. |
You should schedule routine inspections and cleaning for all parking and roadway lighting fixtures. Address any issues promptly and follow manufacturer and regulatory guidelines. LeapPole offers quality assurance support to help you document and verify installation quality, ensuring your airport lighting system delivers consistent performance and efficiency.
Part4: Procurement, Maintenance, and Smart Controls
4.1 Procurement Considerations for Airport Projects
You need a structured approach when procuring lighting systems for airport projects. Start by defining the requirements for each zone, such as access roads, parking, and perimeter areas. Evaluate products based on compliance with IES RP-37 and FAA standards. Always consider site-specific factors like light pole spacing, environmental conditions, and integration with security systems. Customization is often necessary to match the unique needs of each airport. LeapPole offers engineering support to help you select the right fixtures and controls.
Tip: Develop a procurement checklist to streamline your process and ensure all technical and regulatory needs are met.
| Procurement Step | Description |
|---|---|
| Needs Assessment | Identify lighting requirements for each area |
| Standards Compliance | Verify products meet IES RP-37 and FAA standards |
| Product Evaluation | Assess LED performance, durability, and controls |
| Customization | Adapt solutions to site-specific conditions |
| Supplier Support | Request engineering and documentation assistance |
4.2 Maintenance and Lifecycle Costs
You must plan for long-term maintenance and operational costs. LED street lighting reduces both energy use and maintenance compared to traditional systems. LEDs provide superior color control and enhance safety in airport operations. Built-in diagnostics and remote monitoring further reduce operational costs.
| Attribute | Incandescent/Halogen | LED (Solid-State) |
|---|---|---|
| Maintenance | Frequent | Minimal |
- LEDs require less frequent maintenance.
- They help you lower lifecycle costs.
- Remote monitoring allows quick detection of faults.
Schedule regular inspections for parking and access lighting. Use centralized management systems to track performance and plan maintenance efficiently.
4.3 Smart Controls and Energy Management
Smart controls play a key role in modern airport lighting. Switching to LED lighting can reduce energy consumption by up to 70%. Dimming capabilities allow you to save energy during low-activity periods. Adaptive lighting systems use sensors to adjust levels based on ambient light, weather, and aircraft movement. Modern systems integrate real-time monitoring and remote management, letting you adjust lighting for parking, access, or perimeter zones as needed.
- Implementing smart controls can lead to energy savings of 50-80%.
- Adaptive systems respond to changing conditions for optimal efficiency.
- Centralized controls improve reliability and reduce manual intervention.
You can request customization and engineering support from LeapPole to ensure your lighting system meets all operational and regulatory requirements.
You play a vital role in creating safe and efficient airport environments. Tailored LED street lighting solutions deliver the right illumination for each zone, improving visibility and supporting safety. The table below highlights the main benefits:
| Aspect | Description |
|---|---|
| Safety | Airfield lighting is crucial for safe aircraft movement in low visibility conditions. |
| Operational Continuity | Luminaires must be reliable and withstand environmental challenges for continuous operation. |
| Energy and Cost Efficiency | LEDs reduce energy use and maintenance costs, supporting airport operations. |
| Compliance | Meeting international standards ensures operational eligibility and reliability. |
| Passenger Experience | Quality lighting enhances comfort and security for travelers. |
- Energy-efficient LEDs and smart controls can cut energy use by up to 80%.
- Experienced suppliers offer advanced design tools and support for your project needs.
- Prioritize compliant lighting systems to ensure long-term success.
You should consult with trusted partners like Leap for engineering support and always base your decisions on site-specific calculations and standards.
FAQ
How do you select the right LED street lighting for airport zones?
You should assess each zone separately, including access roads, parking areas, service roads, perimeter roads, and logistics areas. Product selection should be based on lighting calculations, required illumination levels, glare control, pole height, and local aviation or municipal requirements. LeapPole can support selection for LED street lights, street light poles, and related outdoor lighting systems.
What factors influence the configuration of airport street lighting systems?
You need to consider traffic patterns, road width, mounting height, pole spacing, beam angle, wind load, soil conditions, corrosion resistance, and security integration. Configuration should be confirmed through site-specific calculations and project standards. For wide outdoor areas, high mast lighting systems may also be suitable.
How do you ensure proper installation and compliance with standards?
You should follow documented installation procedures, conduct wind load and soil analysis, verify foundation design, and confirm lighting performance through inspection or testing. Airport projects may need to reference aviation, electrical, and local engineering standards. Quality control should include material documentation, installation records, and final acceptance checks.
Can you customize lighting solutions for unique airport projects?
Yes. You can request tailored designs based on site surveys, operational demands, security requirements, and regulatory needs. Customization may include pole height, pole material, surface treatment, luminaire output, optical distribution, smart controls, and mounting options. Parameters should always be determined through project calculations and applicable standards.
What are the best practices for maintenance and lifecycle management?
You should schedule routine inspections, clean fixtures when needed, check pole bases and fasteners, monitor electrical components, and record performance data. LED systems reduce fixture replacement frequency, while smart controls and centralized monitoring can help detect faults earlier and reduce downtime.
How can you get a project evaluation or technical support from LeapPole?
You can submit your airport project drawings, site conditions, quantities, lighting requirements, or tender specifications to LeapPole. Our team can review your requirements and recommend suitable lighting products, pole structures, high mast options, and installation solutions. Start your project assessment through our custom lighting solution page.
