Street Lighting for Bridge Decks, Approaches, and Viaducts

Street lighting for bridge decks, approaches, and viaducts requires coordinated photometric, structural, electrical, and maintenance planning. The lighting system must provide continuous visual guidance as drivers move between approach roads, bridge sections, ramps, and surrounding road networks.

Unlike conventional roadway projects, bridge lighting must account for limited mounting positions, wind exposure, structural vibration, corrosive environments, restricted foundation options, and difficult maintenance access. Fixture output, optical distribution, mounting height, pole spacing, glare control, and lighting uniformity should therefore be determined through project-specific calculations.

Properly selected LED street lights can improve visibility while reducing energy consumption and maintenance frequency. The supporting street light poles and brackets must also be engineered for local wind loads, vibration, mounting interfaces, and environmental exposure.

Architectural lighting may be incorporated to highlight bridge structures and support the surrounding urban landscape. However, decorative objectives should remain secondary to road safety, glare control, environmental requirements, and long-term maintainability. A coordinated design helps contractors and infrastructure authorities achieve reliable performance, regulatory compliance, and consistent illumination throughout the bridge corridor.

Key Takeaways

• Prioritize safety and visibility in street lighting design to reduce nighttime accidents by up to 42%.
• Use LED fixtures for energy efficiency and long lifespan, saving up to 75% in energy costs compared to traditional lighting.
• Ensure uniform lighting levels to enhance visibility and comfort for both drivers and pedestrians.
• Integrate lighting with bridge structures to prevent corrosion and ensure durability against environmental factors.
• Develop a maintenance plan with regular inspections to extend the lifespan and reliability of your lighting system.

Part1: Functional Zones and Lighting Needs

1.1 Bridge Decks Street Lighting

You must prioritize safety and visibility when designing street lighting for bridge decks. Bridge decks present unique challenges due to their exposure to wind, vibration, and environmental factors. You should select lighting systems that withstand these conditions and deliver consistent illumination. Modern bridge lighting systems have demonstrated a 36% reduction in nighttime accidents, according to the International Association of Lighting Designers. The U.S. Federal Highway Administration reports that upgraded LED roadway lighting on bridges can reduce vehicle incidents by up to 50% compared to poorly lit structures. In Copenhagen, dedicated low-glare bridge lighting increased nighttime bicycle usage by 42% in 2023.

You should focus on glare control and uniformity. Curb-mounted or buried spotlights often provide effective results, but you must confirm suitability through lighting calculations and site analysis. Compliance with IES RP-8 and CIE 115 standards ensures that your design meets recommended illumination levels and safety requirements. You should also consider architectural integration, using fixtures that complement the bridge’s structure and enhance its visual impact at night.

1.2 Approaches and Transition Lighting

Approach zones require careful planning to ensure a seamless transition between roadways and bridge decks. You must address both vehicular and pedestrian needs, adjusting lighting levels to match the specific area. The following table summarizes key differences between bridge decks and approaches:

You should ensure uniformity in lighting to provide consistent visibility. Reducing glare enhances driver comfort and safety. Gradual transitions from dark to light prevent sudden changes in brightness, which can confuse drivers. You must conduct careful photometric planning to avoid abrupt shifts from bright to dark areas. LED street lighting offers targeted illumination and helps maintain a uniformity ratio of 3:1 or better, as recommended by IES RP-8.

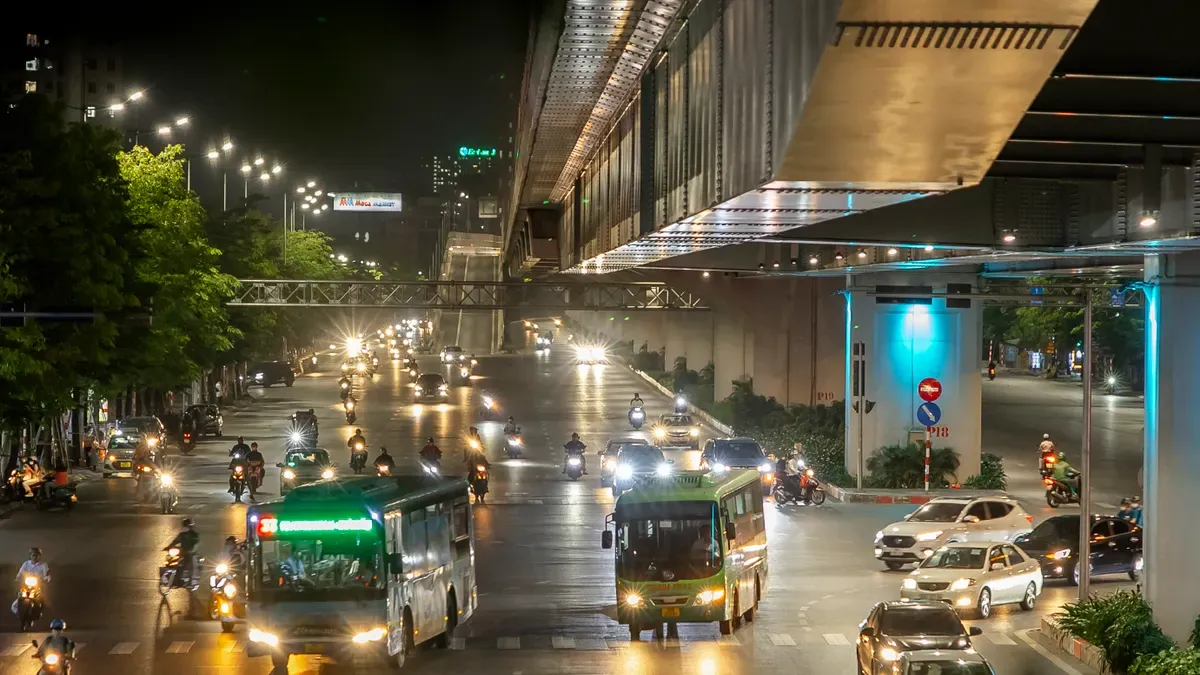

1.3 Viaducts and Underdeck Illumination

Viaducts and underdeck areas often face security and maintenance challenges. You should use motion-sensor lights to detect unusual activity and integrate lighting with surveillance cameras for enhanced monitoring. Bright, but not blinding, lights improve safety in high-risk zones. Proper light distribution prevents dark areas and reduces glare, supporting both safety and crime deterrence.

You must select fixtures that resist corrosion and environmental stress. Placement should allow for easy access during maintenance. For underdeck areas, consider using wall-mounted or ceiling-mounted luminaires that provide broad coverage. You should always verify that your design aligns with local standards and site-specific requirements.

1.4 Walkways and Landscape Lighting

Walkways and landscape features require dedicated lighting to ensure accessibility and safety for pedestrians. Properly illuminated paths reduce accidents and enhance security after dark. IES RP-8 recommends specific lux levels for roadway and walkway lighting, which you can achieve effectively with LED street lighting. These fixtures minimize glare for drivers and highlight pathways for pedestrians, ensuring safe crossings.

Bridges over waterways need lighting for safe navigation of boats and maritime traffic. Color-coded lights can indicate safe passages and clearance heights, improving safety for waterway users. You should position fixtures to allow maintenance vehicles easy access. Quick-release mounts and tool-free access panels simplify servicing and reduce downtime.

Tip: Always tailor your lighting design to the unique conditions of each project. Consider wind load, soil, climate, and local standards before finalizing specifications.

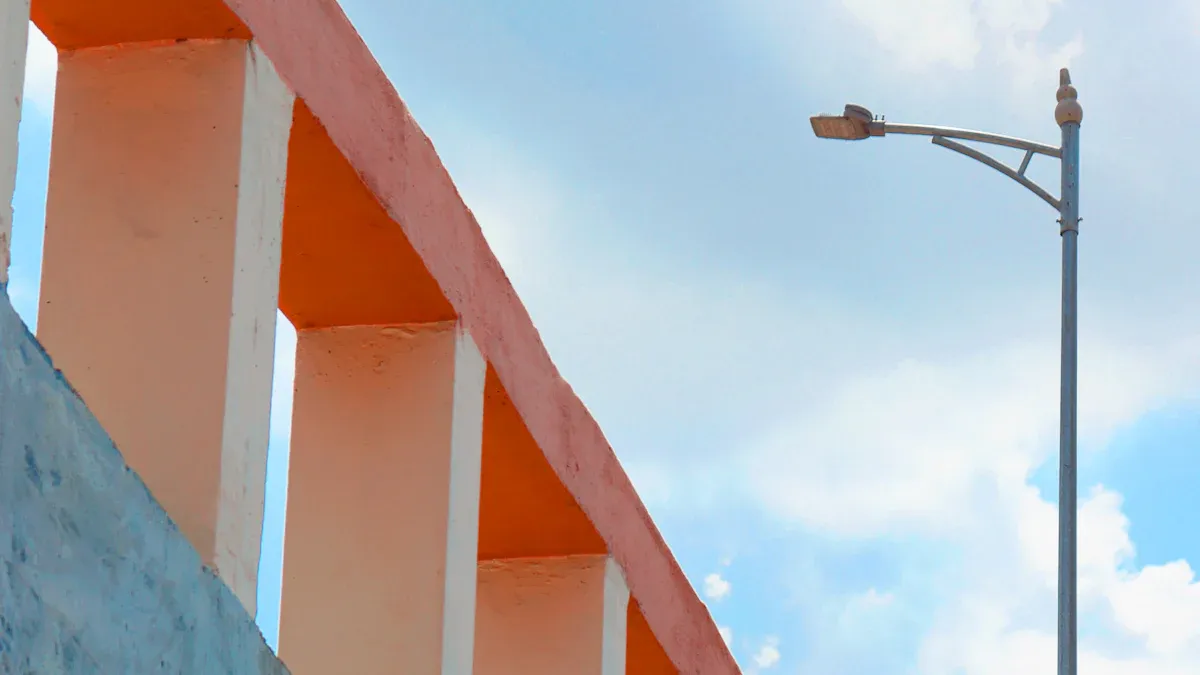

Part2: Product Selection and Configuration

Selecting the right products and configurations for bridge decks, approaches, and viaducts ensures your street lighting system delivers safety, efficiency, and long-term reliability. You must consider the unique challenges of each zone, including exposure to wind, vibration, and environmental stress. LeapPole offers engineering customization and technical support to help you match products to your project’s requirements.

2.1 LED Street Lighting Fixtures

You should choose LED street lights for bridge and viaduct projects because they offer high energy efficiency, long lifespan, and low maintenance. LED fixtures outperform traditional lighting technologies in almost every key metric. The table below compares LED fixtures to traditional lighting:

You can expect LED street lights to save up to 75% in energy consumption, which significantly reduces electricity bills. Luminous efficiency ranges from 120lm/W to 140lm/W, providing high brightness for visibility. Output lumens can range from 12,000 to 225,000, ensuring visibility even from great distances. Look for fixtures with an IP67 waterproof rating for durability against harsh weather. Most reputable products offer a 5-year warranty for quality assurance.

Tip: Always confirm that your selected LED street light meets local standards and project-specific lighting calculations.

2.2 Light Pole Placement and Mounting

Proper light pole placement and mounting are critical for achieving uniform illumination and structural safety. You must select mounting hardware that matches the bridge’s structural constraints and environmental exposure. The table below outlines common mounting options:

You should space light poles to maintain consistent lighting levels and avoid dark spots. Minimum placement distances depend on the fixture’s beam angle, mounting height, and site geometry. Always perform lighting calculations to determine the best configuration. LeapPole can assist with engineering customization and supply of street light poles tailored to your project’s wind load and soil conditions.

Note: Use corrosion-resistant materials for all mounting hardware to extend service life, especially in coastal or high-humidity environments.

2.3 RGBW and Decorative Lighting Options

You can enhance both safety and aesthetics by integrating RGBW and decorative lighting. Properly lit walkways and roadways help reduce accidents and improve security for pedestrians and vehicles at night. LED lighting reduces glare for drivers and highlights pathways for pedestrians. You can use focused LED lighting to emphasize unique bridge features, which aligns with IES DG-23 guidelines for landscape lighting design.

• Programmable LEDs can indicate safe passages and clearance heights for maritime traffic.
• Decorative lighting can transform a bridge into a community landmark, supporting both safety and visual appeal.

Tip: Always coordinate decorative lighting with functional lighting to avoid glare and maintain compliance with IES RP-8 recommendations.

2.4 Solar Street Lighting Solutions

Solar street lighting offers a sustainable solution for bridges and viaducts, especially where grid access is limited. The El Viaducto de la Paz project installed 400 solar lights in 2018, resulting in enhanced safety, reduced accident risk, and improved comfort for users. Solar street lights align with sustainable development goals and reduce long-term operational costs.

Solar street lighting systems are designed to handle environmental challenges, such as inconsistent sunlight exposure. You should select high-quality solar panels that perform well in low-light conditions and position them to maximize sun exposure. Weather-resistant materials and regular maintenance extend the lifespan of these systems. Advanced energy management systems can monitor performance and adjust lighting based on traffic flow.

Remember: Always determine technical parameters based on site conditions, lighting calculations, wind load, soil, climate, and local standards. Consult with LeapPole for engineering customization and technical support.

Part3: Installation, Standards, and Maintenance

3.1 Lighting Levels and Uniformity

You must ensure proper lighting levels and uniformity for bridge decks, approaches, and viaducts. Uniform illumination helps drivers and pedestrians see hazards and navigate safely. You should follow standards like IES RP-8, CIE 115, and AASHTO guidelines for recommended lux levels and uniformity ratios. Use photometric calculations to determine fixture placement and beam angles. LeapPole provides engineering support and documentation to help you meet these requirements. Consistent lighting reduces glare and prevents dark spots, which improves safety and comfort.

3.2 Structural Integration and Corrosion Protection

You need to integrate lighting systems with bridge structures to prevent corrosion and ensure durability. Choose corrosion-resistant materials such as stainless steel, aluminum alloys, or fiberglass conduit. Apply protective coatings like powder coating or anodizing to extend service life. Sealed enclosures with high ingress protection ratings (IP65 or higher) protect electrical components from moisture and dust. Regular inspection schedules, cleaning routines for fixture lenses and gaskets, and quick-response strategies for outages help maintain performance.

Tip: Schedule annual inspections to identify issues early and maintain optimal performance.

3.3 Street Lighting Standards and Codes

You must comply with relevant standards and codes for street lighting installations. These standards ensure safety, reliability, and environmental protection. Reference authoritative sources such as IEC IEC 60598-2-3, ISO ISO 9001, CIE CIE 115, IES IES RP-8, AASHTO AASHTO Lighting Guide, FHWA FHWA Lighting Handbook, DOE DOE SSL, and NREL NREL Solar Lighting. The table below summarizes compliance requirements for bridges:

Note: Always determine technical parameters based on site conditions, lighting calculations, wind load, soil, climate, and local standards.

3.4 Maintenance and Inspection Planning

You must develop a maintenance and inspection plan for street lighting systems. Establish regular inspection schedules, typically annual, to identify potential issues early. Implement cleaning routines for fixture lenses and gaskets to maintain optimal performance. Respond quickly to outages or equipment faults to minimize downtime. LeapPole offers engineering support and documentation for maintenance planning. Use a checklist to track inspection dates, cleaning tasks, and repairs.

• Schedule annual inspections.
• Clean fixture lenses and gaskets regularly.
• Respond quickly to outages and faults.

🛠️ Proper maintenance extends the lifespan of your lighting system and ensures reliable operation.

You can achieve effective street lighting for bridge decks, approaches, and viaducts by focusing on safety, visibility, and aesthetics. The table below highlights how integration benefits your project:

To ensure long-term success:

• Develop a structured maintenance plan with regular inspections.
• Choose high-quality LED street lights and light poles.
• Define your project goals and request technical walkthroughs.
• Communicate clearly with all stakeholders.

For a custom street lighting solution, submit your project details for expert support.

FAQ

What factors should you consider when selecting LED street lights for bridge projects?

Evaluate the required illuminance, uniformity, glare control, optical distribution, ingress protection, corrosion resistance, vibration resistance, and maintenance access. The design should also account for local wind conditions and the structural limitations of the bridge. Compare suitable LED street lights using project-specific photometric calculations rather than nominal wattage alone.

How do you determine the best light pole placement on a viaduct?

Pole placement depends on the bridge geometry, carriageway width, mounting restrictions, pole height, bracket outreach, fixture optics, expansion joints, barriers, and maintenance access. Photometric simulations should be coordinated with the bridge’s structural design to achieve uniform coverage without interfering with other infrastructure. LeapPole’s street light poles can be configured for different mounting and structural requirements.

Which standards apply to street lighting on bridges and approaches?

IES RP-8, CIE 115, EN 13201, and applicable AASHTO guidance may be relevant, depending on the project location and scope. Local road-lighting, structural, electrical, environmental, and navigation requirements must also be reviewed. The project engineer should identify the governing standards and acceptance criteria before finalizing the design.

Can street lighting systems be customized for unique bridge conditions?

Yes. Pole dimensions, materials, brackets, base connections, fixture optics, surface treatments, and control systems can be customized. The configuration should reflect local wind conditions, structural vibration, corrosion exposure, mounting limitations, and required lighting performance. Approach roads may also use solar lighting solutions when grid access and site conditions make them suitable.

How should you plan maintenance for lighting on bridge decks?

Establish inspection intervals based on traffic conditions, environmental exposure, fixture accessibility, and local maintenance requirements. Inspections should cover luminaires, brackets, poles, fasteners, wiring, protective coatings, and control equipment. Remote monitoring, modular components, and accessible mounting arrangements can reduce lane closures and simplify fault response.

How can you request a bridge-lighting project evaluation?

Submit the bridge drawings, road geometry, mounting restrictions, environmental conditions, required lighting class, quantities, and tender specifications through the LeapPole contact page. LeapPole can review the requirements and recommend a project-specific combination of poles, brackets, luminaires, and controls.
