Common Street Lamp Pole Heights and Selection Guide

Quick Answer

Common street lamp pole height depends on road width, lighting target, fixture output, spacing, and project standards. Small paths may use shorter poles, while roads, highways, and large areas need taller poles with stronger foundations. Leappole can help match pole height, lighting layout, wind-load requirements, material, finish, and installation needs for municipal and commercial projects.

You often see street lamp poles with a common height that matches the needs of different areas. The table below shows the typical height ranges:

These heights help keep streets safe and well-lit. You get better visibility and energy efficiency because of these choices. Factors like the location, weather conditions, light fixture design, and safety standards all play a part in deciding the right pole height.

Key Takeaways

• Street lamp pole heights are different in each place. Cities usually have poles that are 15 to 30 feet tall. Homes and neighborhoods use poles that are 10 to 20 feet tall.
• Picking the right pole height helps people stay safe. It also helps people see better at night. High poles on highways help drivers see far ahead. Short poles in neighborhoods stop bright lights from hurting your eyes.
• Rules in your area and the environment affect pole height choices. You should always look at local rules before picking a pole height. This makes sure you follow the rules and the poles work well.

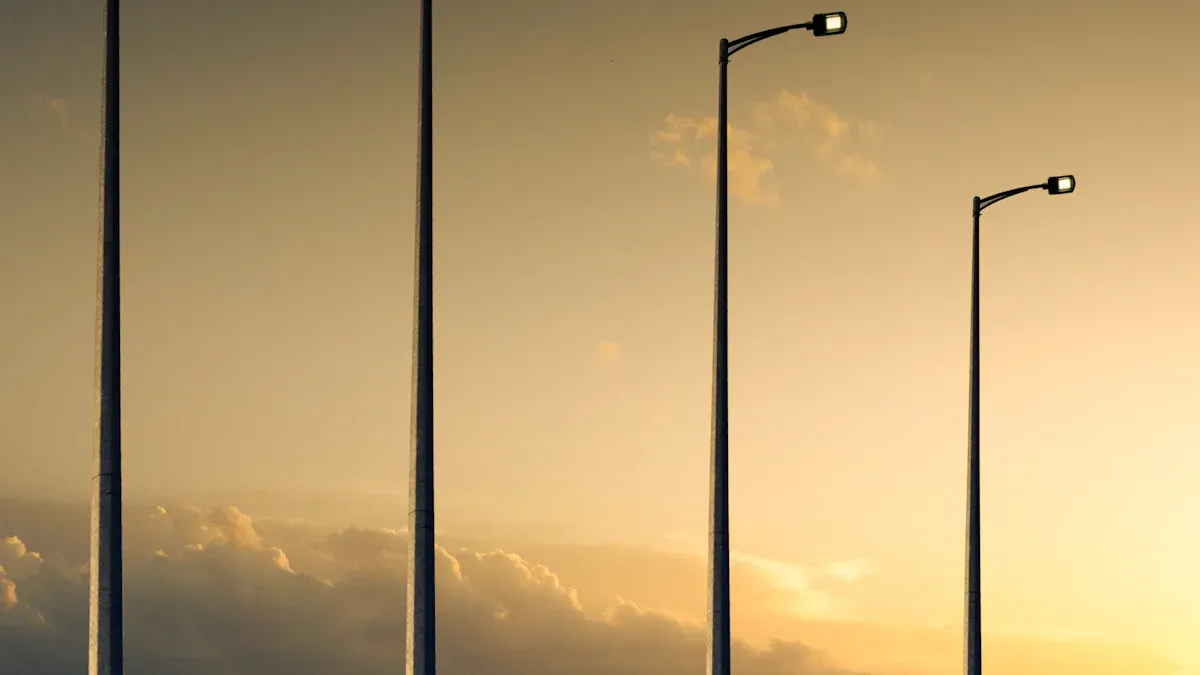

Common Height Range

Residential Areas

You see street lamp poles in residential areas with a common height that fits the needs of neighborhoods. Most poles measure between 3 and 6 meters (10 to 20 feet). Some smaller streets use poles as short as 2 meters (6 feet), while wider roads may need poles up to 8 meters (26 feet). The table below shows the typical heights you might find:

You notice these heights work well for lighting small roads and keeping glare low for drivers and pedestrians. The common height in residential areas depends on several factors. The width of the road, the type of light source, and the amount of traffic all play a role. If you live on a quiet street, you probably see shorter poles. On busier roads, taller poles help light up wider spaces. Local standards and municipal guidelines also influence the final choice. You should always check these rules before installing new lights.

Tip: Shorter poles in residential zones help prevent light from shining into bedroom windows, making your neighborhood more comfortable at night.

Urban Roads

Urban roads need street lamp poles with a common height that balances coverage and cost. Most urban poles stand between 4.5 and 9 meters (15 to 30 feet). This range gives you enough light for busy streets and sidewalks. The height must meet lighting standards like EN13201 and RP-8-22, which set rules for brightness and uniformity. If poles are too short, you get uneven lighting. If they are too tall, you risk light pollution and higher costs.

You see taller poles on wider roads, while narrow streets use shorter ones. The right height helps you avoid installing too many poles, saving money and energy. Modern LED fixtures allow cities to use lower poles without losing brightness. Smart technology also lets you control lighting more efficiently, improving safety and reducing costs.

Note: The common height for urban street lamps helps cities keep roads safe and well-lit while controlling expenses.

Highways

Highways require street lamp poles with a common height that ensures wide coverage and safety for fast-moving vehicles. Most highway poles measure between 7.6 and 12.2 meters (25 to 40 feet). Some highways use even taller poles to cover more lanes and reduce the number of fixtures needed. The table below shows the standard range:

You benefit from taller poles on highways because they provide uniform brightness across all lanes. Drivers can see farther ahead, which helps prevent accidents. Fewer poles mean lower installation and maintenance costs. Taller poles also reduce glare and clear median barriers, making the road safer for everyone. Engineers design these poles to withstand harsh weather and avoid overhead obstacles.

Safety Alert: The common height for highway street lamps helps drivers judge distances and spot hazards quickly, especially at night.

Sidewalks And Bike Paths

Sidewalks and bike paths use street lamp poles with a common height that matches the width of the area. Most poles measure between 3 and 6 meters (10 to 20 feet). Narrow paths often use poles around 4 meters (13 feet), while wider areas may need poles up to 6 meters (20 feet). The table below lists typical heights:

You find these heights work well for lighting walkways without causing glare for drivers or cyclists. Local codes and standards set the minimum and maximum heights to keep everyone safe. The layout of the area also affects the choice. Shopping centers and parks may use taller poles for even light distribution. Energy efficiency matters too. Proper pole height ensures you get enough light without wasting electricity.

Tip: When you plan lighting for sidewalks or bike paths, match the pole height to the width of the area for the best results.

Factors Affecting Height

Road Type

You notice that the type of road plays a big role in choosing the right street lamp pole height. Wider roads need taller poles to spread light across more lanes. Narrow streets use shorter poles for focused lighting. The table below shows how road width matches with pole height:

For narrow residential streets, you often see poles between 15 and 20 feet. Wider roadways use poles from 25 to 50 feet. This helps you get the right coverage and keeps the lighting even. The arrangement of the lamps also matters. On one side of the road, the pole height should match or exceed the effective width.

Environment

The environment around the street affects the common height of lamp poles. In busy urban areas, you need to think about buildings, trees, and utility lines. You want to avoid shadows and make sure the light reaches sidewalks and bike paths. Parks and commercial areas use different heights. Shorter poles work well for walkways, while taller poles light up parking lots and sports fields. You also need to consider weather. Strong winds or storms may require shorter, sturdier poles.

Regulations

Local and international standards guide the height of street lamp poles. These rules help you make sure the lights are safe and effective. The table below lists some important standards:

You must follow these standards to keep lighting safe and reliable. Lighting requirements, safety, and coverage always guide your final choice. The right pole height helps you avoid glare, improve visibility, and keep everyone safe.

Height Variations

Special Cases

Not all street lamp poles are the same height. Some places need different lighting. Large parking lots often use taller poles. These can be as high as 40 feet, or 12 meters. Tall poles help light up big areas with fewer lamps. Near tall buildings, you might see shorter poles. Shorter poles stop shadows and keep walkways bright.

Parks and recreation areas have their own needs. Here, poles are usually 12 to 20 feet tall. Designers pick these heights to make parks feel safe and friendly. Many parks use poles that look nice and match the area. These designs help the lights fit in and make parks more welcoming.

• Poles in parks and recreation areas are 12 to 20 feet tall.
• Designers pick these heights for safety and comfort.
• Decorative poles help the lights match the park’s look.

Exceptions

Sometimes, there are exceptions to normal pole heights. In old city areas, you may see shorter, vintage-style lamps. These match the old buildings. On bridges or near monuments, engineers use special pole heights. This helps show off features or keeps views clear. Some neighborhoods use special poles for festivals or art. These exceptions show lighting can be useful and creative.

Most places use common pole heights. But special cases and exceptions help meet different needs and make your community look better.

Street light pole height should be treated as a coordinated lighting and structural decision. Common ranges are useful for early planning, but the final height must match the road width, lighting target, fixture optics, pole spacing, wind load, foundation, and local regulations.

Common Street Light Pole Height Guide

These ranges are preliminary references rather than universal requirements. A photometric calculation should confirm illumination and uniformity, while structural calculations should verify the proposed street light pole, fixtures, brackets, base plate, anchor bolts, and foundation.

FAQ

How do you choose the right height for a street light pole?

Start with the road or area width, required illumination, fixture optics, target spacing, traffic and pedestrian conditions, glare limits, wind speed, and local standards. Then verify the layout with photometric and structural calculations.

Can the same pole height be used throughout a project?

Sometimes, but intersections, curves, pedestrian zones, parking areas, bridges, and wide road sections may require different heights or fixture arrangements. A consistent appearance should not override lighting performance or safety.

Does a taller pole always provide better lighting?

No. Taller poles may cover a wider area, but they require suitable lumen output, optical distribution, spacing, and structural capacity. An unsuitable combination can create low ground illumination, glare, or poor uniformity.

What information should be included in a street light pole RFQ?

Include the project location, application, road width, pole height, arm configuration, fixture weight and EPA, design wind speed, material, wall thickness or structural requirement, finish, base and anchor details, quantity, drawings, and applicable standards.

When should high-mast lighting be considered?

High-mast lighting may suit interchanges, ports, airports, logistics yards, stadium surroundings, and very large open areas. It requires specialist photometric, structural, foundation, access, and maintenance planning.
