The design relationship between the height of the lamp post and the angle of the solar panel

Imagine you want to light a park with solar lamps. You need to think about the lamp post height. You also need to think about the solar panel angle. These two things work together. Their design relationship affects energy capture. It also affects lighting coverage. Solar panels need the best angle to get sunlight. This angle is usually between 30 and 45 degrees. The right angle helps the panel make more energy.

Taller poles light up a bigger area. But they have some problems. Higher poles cost more to build. They need stronger bases, especially if it is windy. It is hard to fix tall poles. Fixing a 14-meter pole is not easy. Tall poles can make too much light. This can cause light pollution. Light pollution can bother animals or people.

You need to balance bright lights and strong solar power. Good choices help you reach both goals.

Key Takeaways

• Pick the right lamp post height for good lighting and solar power. Taller poles light up bigger spaces but cost more and need more care.
• Set the solar panel angle by where you live. If you are in the north, add 5 degrees. If you are in the south, take away 5 degrees. This helps the panel get more sunlight.
• Change the solar panel angle with the seasons. This can help get 10-15% more energy. Lower the angle in summer. Raise it in winter for better results.
• Keep the solar panel away from shade from trees or buildings. Check often for things blocking the sun. Trim trees if you need to.
• Take care of your solar lamp posts by cleaning the panels every six months. Check for any damage. Doing this helps them last longer.

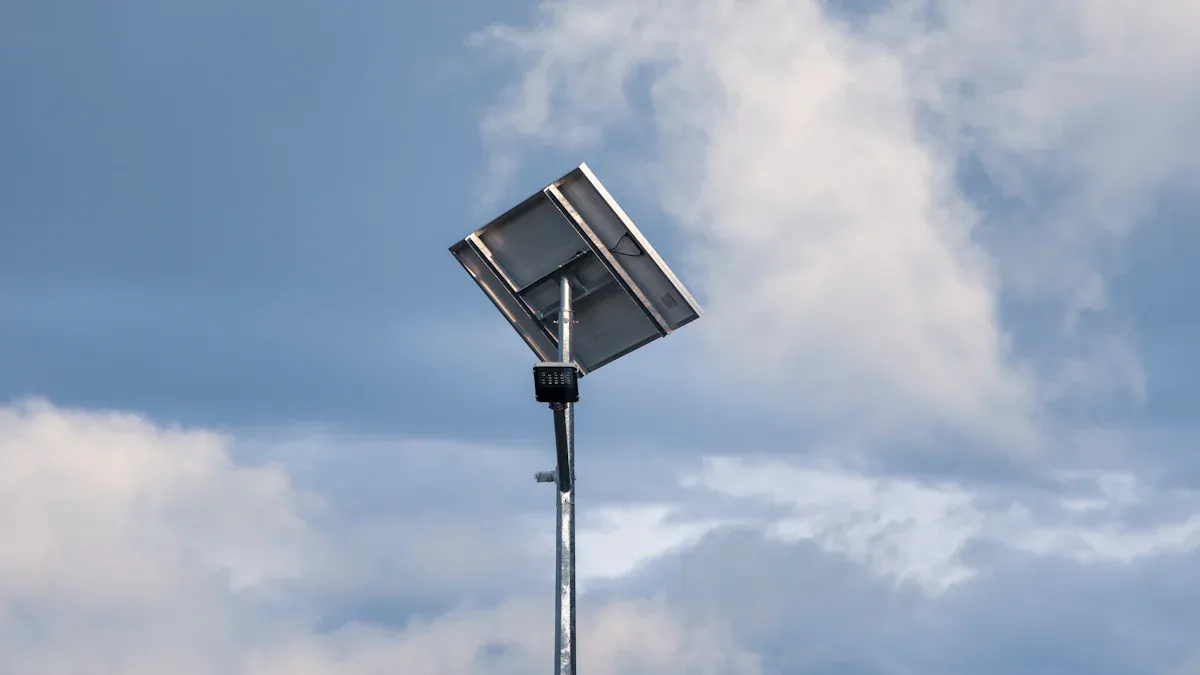

Design Relationship: Height and Angle

Height Impact on Solar Panel Angle

You need to understand how the height of the lamp post changes the way you set the solar panel angle. When you use a taller lamp post, you must think about how shadows and obstructions can block sunlight. If you place the solar panel too flat, it may not catch enough sunlight, especially in the morning or evening. If you tilt the panel too much, it might miss the midday sun.

The design relationship between lamp post height and solar panel angle depends on your location. You should use the local latitude to find the best tilt angle. For northern regions, you can add 5 degrees to your latitude. For southern regions, you subtract 5 degrees. This method helps you get the most sunlight during the year.

• The optimal tilt angle is related to your local latitude.
• For northern regions: Tilt angle = Latitude + 5°
• For southern regions: Tilt angle = Latitude – 5°

You should always face the solar panel toward the south if you live in the northern hemisphere. If you live in the southern hemisphere, you should face it north. This orientation helps you maximize sunlight exposure.

You can use a simple formula to calculate the height difference between the front and rear of the solar panel. This formula helps you set the correct angle, especially when you mount the panel on a tall lamp post.

This table shows you how to use math to set the solar panel angle. You can adjust the angle based on the lamp post height and the length of the panel.

Tip: When you install solar panels on tall lamp posts, check for trees, buildings, or other objects that might block sunlight. You want a clear path for the sun all day.

Sunlight Exposure and Efficiency

You can improve energy capture by setting the solar panel at the right angle. If you use the wrong angle, you may lose up to 25% of solar charging efficiency. This loss means your lamp post will not get enough power, and the light may not work well at night.

You can make seasonal adjustments to the solar panel angle. These changes can increase energy harvesting by 10-15%. You should check the angle in summer and winter to keep the panel facing the sun as much as possible.

• Incorrect orientation can reduce solar charging efficiency by up to 25%.
• Seasonal adjustments can boost energy harvesting by 10-15%.
• In the northern hemisphere, face panels south. In the southern hemisphere, face panels north.

Testing shows that changing the tilt angle by 20 degrees can change the solar panel output by 10-15%. The best results come when the panel is perpendicular to the sunlight. If you match the angle with the storage medium, you can gain 30% or more in energy output.

The design relationship between lamp post height and solar panel angle helps you get the most energy from the sun. You need to balance the height for good lighting and the angle for strong energy capture. When you use the right combination, you get better performance and longer-lasting lights.

Calculating Optimal Height and Angle

Latitude and Seasonal Adjustments

You need to match the solar panel tilt angle with your location’s latitude. This helps you capture the most sunlight all year. For example, if you live at 40° latitude, set your panel tilt to about 40°. As you move farther from the equator, increase the tilt angle. This adjustment lets your solar lamp post work better in different seasons.

You can boost energy capture by changing the tilt angle during the year. In summer, lower the angle by 15°. In winter, raise it by 15°. This method helps your solar panels face the sun more directly.

Here is a simple table to guide you:

For example, in Chicago (41.8°N), set the panel to 26.8° in summer and 56.8° in winter. Adjusting the angle can increase winter power generation by over 40%. This shows how the design relationship between lamp post height and solar panel angle affects performance.

Avoiding Obstructions and Shading

You must keep your solar panels free from shade. Trees, buildings, and even other lamp posts can block sunlight. Shading reduces the energy your solar panel can make. Even a small shadow can lower the output of the whole system.

Follow these steps to avoid obstructions:

1. Check the area for shade using tools or apps.
2. Place your solar panel where it faces the sun, usually south in the Northern Hemisphere.
3. Adjust the tilt to match your latitude and the season.
4. Make sure nothing blocks the sun during the day.
5. If trees cause shade, trim them if possible.
6. Think about future changes, like new buildings or growing trees.

Tip: Raise the lamp post or solar panel if you cannot avoid shade at ground level.

You need to plan carefully. Good placement and angle choices will help your solar lamp post work well for many years.

Installation and Performance Best Practices

Spacing and Coverage

You can get good lighting and solar panel power by using smart spacing. First, check where sunlight shines in your area each day. Pick places that get six to eight hours of sun. Put lamp posts 10 to 15 feet apart along driveways for even light. For security, like parking lots or paths, space lights 39 to 49 feet apart. This stops dark spots from forming. In parks or gardens, you can space lights 59 to 65 feet apart for a softer look.

A helpful rule is to space lamp posts 1.5 to 2 times the lamp post height. For example, if your lamp post is 10 feet tall, put the next one 15 to 20 feet away. This helps the light areas overlap and means you need fewer lamp posts. Always tilt the solar panel toward true south if you live in the northern hemisphere. Make sure posts are deep in the ground or use heavy bases so they do not fall over in wind. Do not put lamp posts where water collects, because water can hurt the lamp post.

Tip: Check your site for sunlight and shade before you install lamp posts. This helps you avoid shade and makes the lamp post height and solar panel angle work better together.

Maintenance and Accessibility

You need to keep your solar lamp posts working for a long time. Clean the solar panels every six months. If you live in a dusty or coastal place, clean them more often. In cities with lots of dust, clean the panels every month. In industrial areas, clean them every three months. Check and change batteries every year to keep the lights bright. Look at the lamp posts for damage after storms or bad weather.

Test sensors, LEDs, and timers often. Change the solar panel angle each season to match the sun. Protect the lights during storms to stop damage. If you put lamp posts in far away places, pick ones that are easy to fix. Work with experts if you have problems with soil or things underground. Check the site for shade to help place the panels in the best spot.

Note: Cleaning and checking your lamp posts often helps keep the lamp post height and solar panel angle working well, so your lights stay bright all year.

You can make solar lighting work well by matching lamp post height and solar panel angle. First, look at the area and measure it. Use easy math to pick the best height and spacing. Check for things that block the sun. Set the panel tilt for your location. Use smart tools like sensors to save power. The table below lists important steps for your project:

Keep learning about new ideas to help your solar lighting stay strong.

FAQ

What is the best angle for my solar panel?

You should set your solar panel angle close to your local latitude. For example, if you live at 35°, tilt your panel about 35°. Adjust the angle in summer and winter for better sunlight.

How tall should my lamp post be?

Pick a lamp post height based on your lighting needs. For walkways, use 10 to 15 feet. For parking lots, use 20 to 30 feet. Taller posts cover more area but cost more and need stronger bases.

Can trees or buildings affect my solar lamp post?

Yes! Shade from trees or buildings can block sunlight. You should place your solar lamp post where it gets full sun all day. Trim trees if needed.

How often should I clean my solar panels?

You should clean your panels more often if you see dust or dirt.
