MPPT controllers use the highest power voltage from solar panels. This means you get more energy from them. PWM controllers use battery voltage instead. They are easier to use. Both types help control solar charging. But they are different in how much energy you get, how much they cost, and which systems they fit best.
- In 2024, MPPT controllers made up about 67.9% of all controller shipments. This shows they are popular for bigger solar systems.
- PWM controllers still make the most money for small systems. They had 45.7% of the revenue share in 2024.
- MPPT controllers often work at 95-97% efficiency. PWM controllers do not reach these high levels.
You can use this information to help pick the best controller for your solar system.
Key Takeaways
- MPPT controllers get the most energy from solar panels. They do this by changing voltage and current. This makes them best for bigger systems.
- PWM controllers are easier to use and cost less. They are good for small setups like RVs and cabins.
- Pick MPPT controllers if you want high efficiency. They work well when the weather changes. In cold places, they can make up to 35% more energy.
- Think about how big your system is and what you might need later. MPPT is better if you want to add more later. PWM is good if you want to save money and have a small system.
- Always make sure your controller works with your battery type. This helps keep charging safe and works well, especially with advanced batteries like lithium.

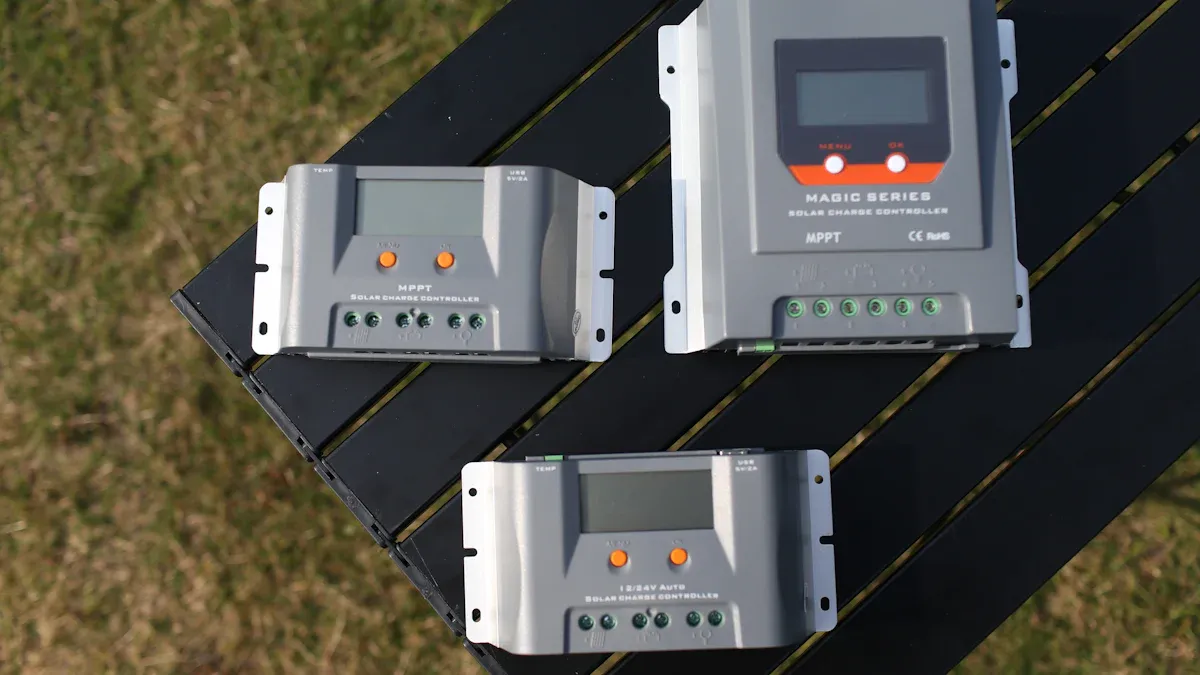

MPPT Controllers
What Are MPPT Controllers
MPPT controllers help you get the most energy from solar panels. They make your solar system work better by finding the best voltage and current. MPPT stands for Maximum Power Point Tracking. This means the controller always looks for the spot where your panels make the most power. You can see how MPPT controllers are different from other types in the table below:
| Feature | MPPT Controllers | Other Controllers (e.g., PWM) |
|---|---|---|
| Power Extraction | Changes voltage and current for more power | Uses set voltage and current |
| Control Method | Uses a power converter, sometimes with PWM | Simple on and off control |
| Efficiency | Stays high, even when sunlight changes | Lower, especially with shade |
| Load Matching | Finds the best match for solar cells | Does not match load |
How MPPT Controllers Work
MPPT controllers use smart tools to find the best spot for your solar panels. You get more energy because the controller checks voltage and current all the time. It changes these numbers to get the most power. The controller works like a DC-to-DC converter. It changes the panel voltage to fit your battery. You get better efficiency, even when sunlight or temperature changes. The table below shows how MPPT controllers do their job:
| Aspect | Description |
|---|---|
| Operating Principle | Changes panel output for more power |
| Mechanism | Watches voltage and current all the time |
| Optimization Process | Keeps looking for the best power spot |
| Function | Changes voltage for good battery charging |
| Continuous Monitoring | Checks inputs and changes for best results |
When to Use MPPT Controllers
You should use MPPT controllers if you want high efficiency and better results. These controllers work best in big solar systems, over 400W. They help most when weather or temperature changes a lot. MPPT controllers let you watch your energy and battery health. You can use them with new batteries like lithium, which need careful charging. People who build pro solar systems often pick MPPT controllers for their smart features and trustworthiness.
Tip: If you want to get the most from your solar panels and need smart tracking, MPPT controllers are the best pick.
PWM Controllers
What Are PWM Controllers
PWM controllers help control how solar panels charge batteries. PWM means Pulse Width Modulation. These controllers use quick bursts of energy to move power. They give you a simple way to keep batteries safe.
Here are some main features of PWM controllers:
| Characteristic | Description |
|---|---|
| Multi-stage charging | Charges batteries in steps to make them last longer. |
| Battery selection option | Lets you choose the battery type for good charging. |
| Temperature sensor | Changes charging for hot or cold days. |
| LCD screen | Shows battery voltage, charging, and errors. |
| Overcharge protection | Stops charging when the battery is full. |
| Over-discharge protection | Turns off the load if the battery is too low. |
| Short-circuit protection | Shuts down if wires touch by mistake. |
| Reverse polarity protection | Blocks power if wires are connected wrong. |
You can find PWM controllers in many small solar systems. They are easy to use and cost less than other types.
How PWM Controllers Work
PWM controllers turn the solar panel on and off very fast. The controller checks the battery voltage and sends power when needed. This keeps your battery from getting too full or too empty.
PWM controllers lower the solar panel voltage to match the battery. This means the solar panel does not always give its best power. You get less energy than with MPPT controllers.
| Controller Type | Efficiency | Operation Method |
|---|---|---|
| PWM | 75-80% | Turns solar panel on and off, matches battery voltage |
| MPPT | 94-98% | Uses the best power point, changes extra voltage to charging |
PWM controllers work best when the solar panel voltage is just above the battery voltage.
Note: PWM controllers use Pulse Width Modulation to control voltage and current. This helps keep your battery safe and makes it last longer.
When to Use PWM Controllers
Pick a PWM controller if you have a small solar system. These controllers are good for cabins, RVs, or small off-grid setups. You save money because PWM controllers cost less and are easy to use.
- PWM controllers are best for simple systems.
- They work with 12V, 24V, or 48V battery banks.
- Make sure your controller can handle your solar panel’s current.
- PWM controllers help you save money if you do not want to spend a lot.
If you want an easy and cheap way to manage solar charging, a PWM controller is a good choice for small systems.
Key Differences
Efficiency and Performance
You want your solar system to work well all the time. MPPT controllers help you get more energy from solar panels. They change how they work when sunlight or temperature changes. In tests, MPPT controllers reached 94-96% efficiency. PWM controllers only got 74-81%, depending on voltage differences. Over a whole day, MPPT controllers made 28% more energy from a 400-watt solar array than PWM controllers. In cold places, MPPT controllers made 35% more energy each day than PWM controllers when it was below freezing.
MPPT controllers also do better when sunlight is weak. This happens on cloudy days or in winter. They can give up to 30% more energy than PWM controllers in these times. MPPT controllers keep changing to get the most energy. PWM controllers stay at one voltage and can waste power.
If you live where weather changes or winters are cold, MPPT controllers will help you get more energy from your solar panels.
Compatibility
You need to match your controller with your solar panels and batteries. MPPT controllers work with many kinds of panels and batteries. But you must check the voltage range. Make sure your MPPT controller supports your battery’s voltage. If you use lithium batteries, check that the controller works with the battery management system (BMS). If you set up the controller wrong, you could overcharge or undercharge your battery. This can damage your battery.
| Compatibility Issue | Description |
|---|---|
| Voltage Compatibility | The MPPT controller must support the voltage range of the battery being used. |
| Battery Management System (BMS) | Make sure the MPPT controller works with the BMS, especially for lithium batteries. |
| Overcharging and Undercharging | Wrong settings can overcharge or undercharge and hurt the battery. |
PWM controllers are simpler. They work best when the solar panel voltage matches the battery voltage. You do not need to worry as much about special settings. But you still need to check that the controller can handle your system’s current and voltage.
Cost and Value
You want to get good value for your money. PWM controllers cost less. Most PWM controllers cost between $20 and $90. The total cost is usually under $150. MPPT controllers start at about $120 for small ones. Some cost more than $600 for advanced models. MPPT controllers cost more, but you get more energy. Many people get their extra money back in 24-36 months because of the extra energy.
- PWM controllers: $20-$90, low total cost
- MPPT controllers: $120-$600+, higher first cost, better value later
MPPT controllers can help you save money over time. They charge batteries better and can make lead-acid batteries last 30-50% longer. This means you spend less on new batteries.
Installation and Maintenance
You want your solar system to be easy to set up and take care of. PWM controllers are simple to install. You only need to set the voltage and current. MPPT controllers need more setup. You must pick the battery type and set charging profiles for best results.
- MPPT controllers need careful setup for best results.
- You need to set battery type and charging profiles.
- PWM controllers are easier to install with fewer steps.
- Both types need the right voltage and current settings.
MPPT controllers cost more at first, but they save you money later. They help your batteries last longer and give you more energy. You spend less on fixing and replacing things.
Tip: If you want a simple and cheap system, pick PWM controllers. If you want high efficiency and longer battery life, MPPT controllers are the better choice.
Choosing the Right Controller
For Small Systems
If your solar setup is small, you need a controller that fits your needs and budget. PWM controllers are good for small systems. They cost less and keep your batteries safe. You can use them for cabins, RVs, or small off-grid projects. Many people pick PWM controllers because they are easy and work well.
Here are some important things to think about when you pick a controller for a small system:
| Factor | Description |
|---|---|
| Solar Array Capacity | Look at the total watts of your solar panels. |
| Battery Bank Voltage | Make sure the controller matches your battery voltage (12V, 24V, or 48V). |
| Daily Power Consumption | Find out how much energy you use each day. |
| Temperature | Get a controller with temperature help if you live in hot or cold places. |
| Efficiency | Think about how much energy you want from your panels. |
| Future Expansion | Pick a controller that can handle more panels if you want to add later. |
| Controller Type | PWM is good for small setups. MPPT is better for bigger systems. |
Tip: If you want to save money and have a small system, a PWM controller is a smart choice.
For Large or Advanced Systems
Big solar systems need more power and better energy control. MPPT controllers are best for these setups. They find the best power spot and change when sunlight or shade changes. You get more energy, especially when the weather changes or your batteries are low.
- MPPT controllers get more energy in low light or shade.
- They use extra voltage from your panels in cold weather.
- They charge batteries faster when they are empty.
- MPPT controllers work well with high-voltage panels and big battery banks.
If you want to build a big or advanced solar system, you should pick an MPPT controller. You will get more energy and your batteries will last longer.
Climate and Other Considerations
Climate changes how your controller works. In cold weather, MPPT controllers do much better than PWM controllers. They use higher voltage from your panels to charge batteries faster. PWM controllers cannot do this, so you lose energy in cold places.
| Controller Type | Cold Weather Performance | Why? |
|---|---|---|
| MPPT | Big Gain | Uses extra voltage from panels in cold conditions. |
| PWM | Small Gain | Stays at battery voltage, less efficient. |
You should also think about what you might need later. If you want to add more panels or better batteries, pick a controller that can grow with your system. Always check the manual and make sure your controller matches your solar setup.
You can pick between two main types of solar charge controllers. MPPT controllers use smart technology to get more energy. They work well when it is cold or cloudy. MPPT controllers are good for big or growing solar systems. PWM controllers cost less money. They are best for small setups like RVs or cabins. Look at the table below to compare them:
| Feature | MPPT | PWM |
|---|---|---|
| Best For | Large systems | Small systems |
| Efficiency | High | Moderate |
| Cost | Higher | Lower |
Think about how big your system is, how much you want to spend, and what you might need later before you pick one.
FAQ
What is the main difference between MPPT and PWM controllers?
MPPT controllers give you more energy because they change voltage for the best power. PWM controllers use a simple way and make the panel voltage match the battery. MPPT controllers are better for big solar systems.
Can you use MPPT controllers with any battery type?
Yes, MPPT controllers work with most batteries like lithium, AGM, and gel. Always look at your controller’s manual to pick the right battery type. This helps you charge your battery safely.
Do PWM controllers waste solar energy?
PWM controllers can waste energy if your solar panel voltage is much higher than your battery voltage. You get less power because the controller lowers the panel voltage to match the battery.
Which controller should you pick for cold climates?
You should use an MPPT controller in cold places. MPPT controllers use higher panel voltage in cold weather. This helps charge batteries faster and better.
