Intelligent traffic signal poles have a strong steel column. They have a vertical shaft and a cantilever arm. These poles use high-quality steel like Q235 or Q345. The design holds advanced devices like cameras and sensors. It also supports smart lighting. Inside, a computer controls energy and data. It also manages connectivity. Some common features are:
- Wi-Fi access point
- Camera
- Weather station
- Emergency call button
- AC charger for electric vehicles
This structure keeps people safe. It lets you add more functions for busy city streets.
Key Takeaways
- Intelligent traffic signal poles use strong steel like Q235 and Q345. This makes them tough and able to handle bad weather.
- These poles have cameras and sensors with advanced technology. They watch traffic and help keep people safe at intersections.
- Adaptive control systems change traffic signals right away. This helps stop traffic jams and lets cars move better for everyone.
- Emergency prioritization helps first responders get through traffic faster. This keeps people safer during emergencies.
- Smart poles help eco-driving by guiding electric vehicles. They help drivers use the best speed and save energy. This helps make cities cleaner.

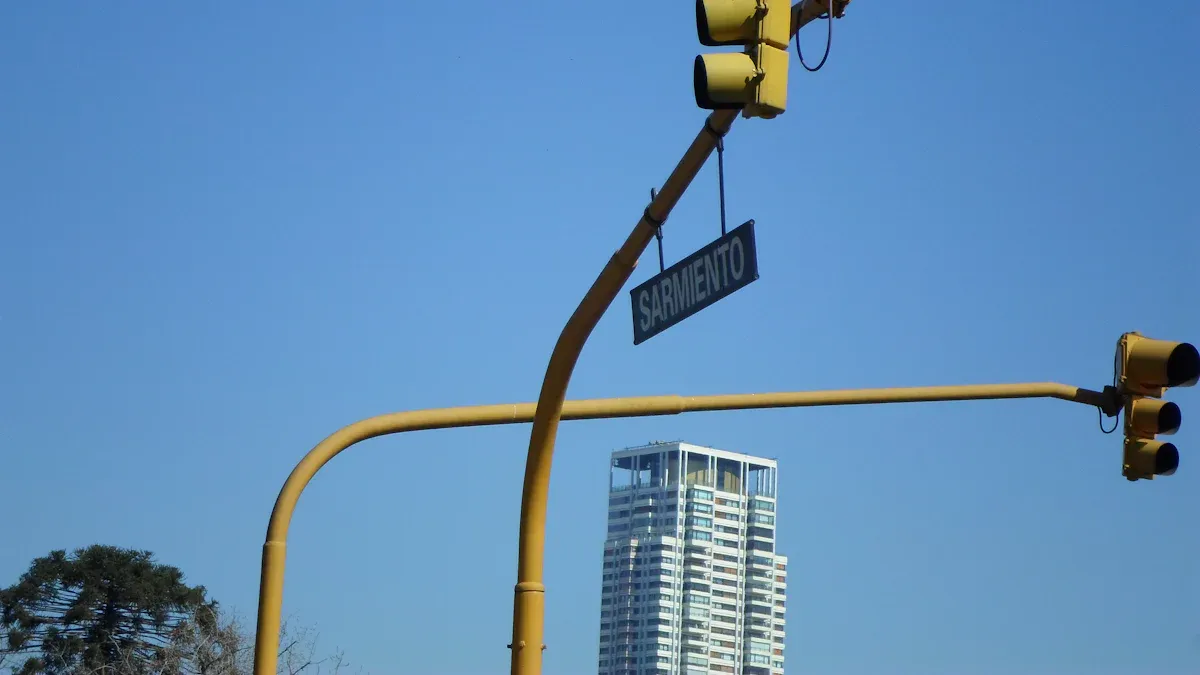

Structure of intelligent traffic signal poles

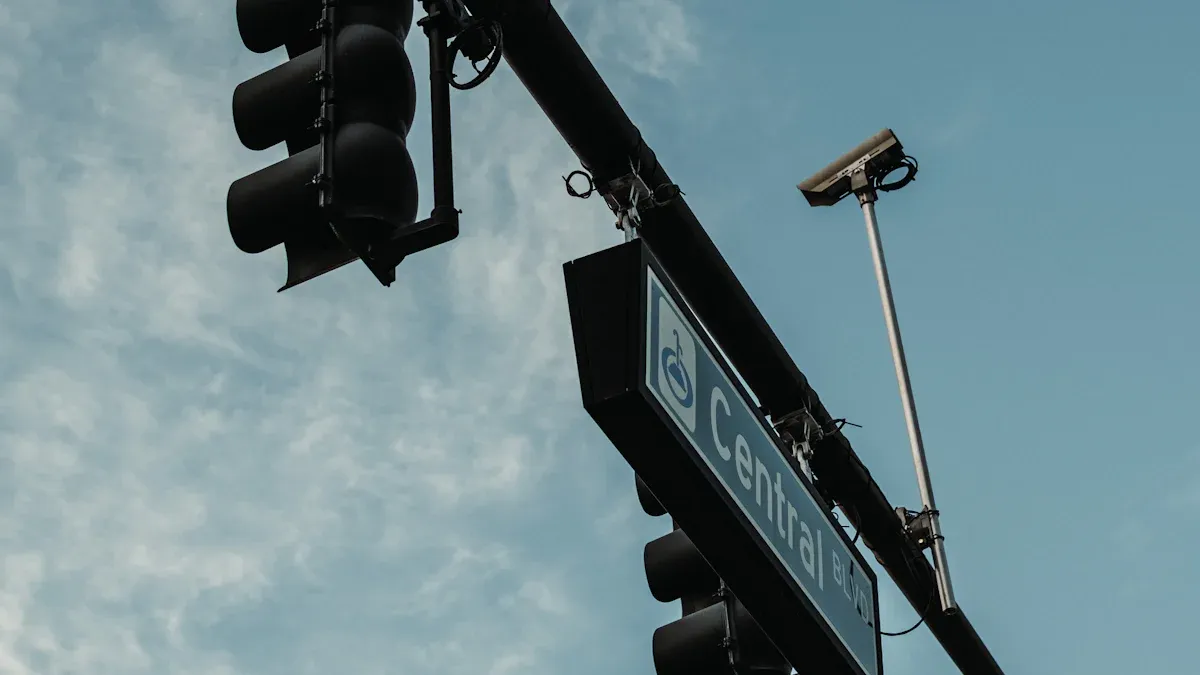

Vertical shaft and cantilever arm
Intelligent traffic signal poles are tall and strong. Each pole has a vertical shaft for height and strength. The cantilever arm sticks out over the road. It holds traffic signals and devices. Cantilever arms can be 3 to 15 meters long. Some poles are up to 14 meters tall in one piece. Shafts can be polygonal or conical. These shapes follow strict rules for safety and stability.
Tip: The vertical shaft and cantilever arm help place cameras, sensors, and signals where they are needed. This makes signals easy to see for drivers and people walking.
Here is how each part helps the pole work well:
| Feature | Contribution to Stability and Functionality |
|---|---|
| Vertical Shaft | Gives height and strength for signals. Signals are easy to see. |
| Cantilever Arms | Puts signals in the best spot for the road. |
| Material Specifications | Makes the pole strong against wind and bad weather. |
| Structural Analysis | Checks if the pole can handle strong winds and heavy things. |
Material and durability
Intelligent traffic signal poles should last a long time. Most poles use steel like Q235 or Q345. These steels fight rust and damage. Q235 works well almost everywhere. Q345 is better for tough places like near the ocean.
| Steel Grade | Corrosion Resistance | Suitability for Environments |
|---|---|---|
| Q235 | Very good | Most places |
| Q345 | Even better | Hard places like coastal areas |
Some poles use aluminum. Aluminum is light and does not rust easily. It is good for wet or coastal places.
| Material | Advantages | Suitable Climate Conditions |
|---|---|---|
| Steel | Strong and needs little care | Handles bad weather |
| Aluminum | Light and fights rust | Good for wet or coastal areas |
These materials keep the pole safe and strong in all kinds of weather.
Suspension and mounting
Poles need to be mounted safely. The suspension system keeps the pole steady. It helps the pole stand up in storms and strong winds. The mounting base holds the pole to the ground. Engineers use strong bolts and deep bases. This lets you add cameras, sensors, and cables. The mounting system makes it easy to add new devices later.
- Cantilever arms hold signals and cameras.
- Suspension systems keep poles steady.
- Mounting bases let you attach cables and trolley lines.
If you want smart poles for your city, choose trusted makers. Leappole is a top smart street light pole factory in China. Leappole offers custom services and big supply. They have finished many projects. You can see their products at Leappole’s product page or visit their official website for more information.

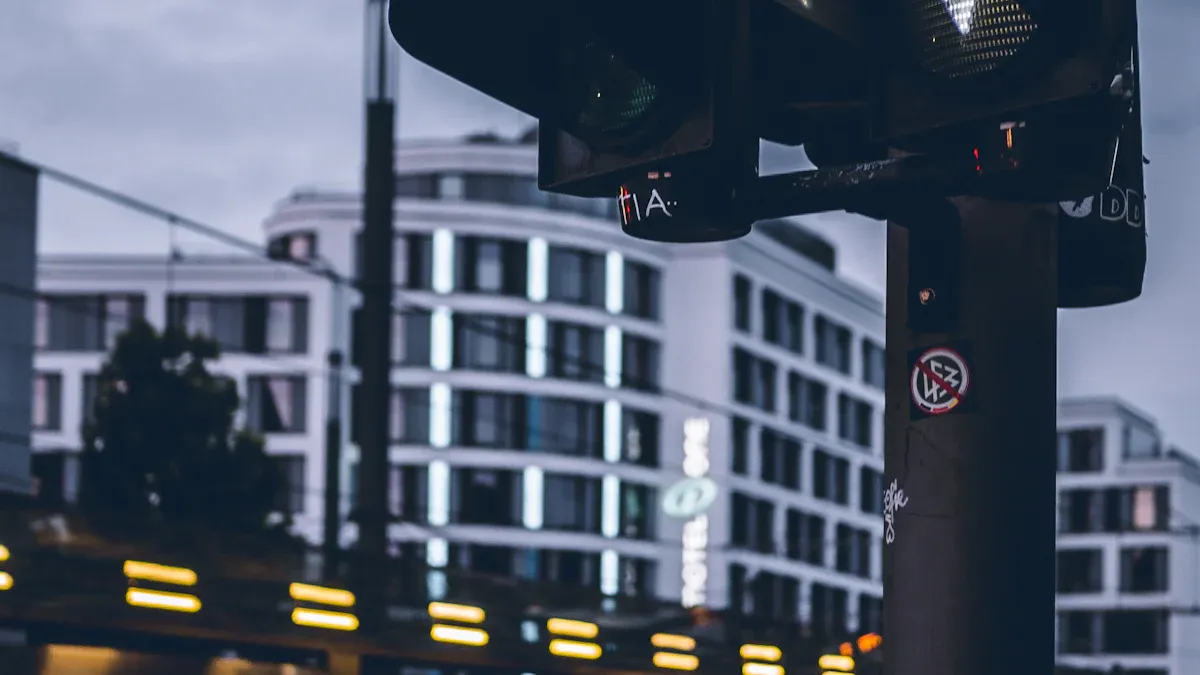

Components
Signal lights
Signal lights are easy to see on traffic signal poles. Most new systems use LED lights. LEDs use much less energy than old lights. They save up to 80% energy. LEDs last for more than 10 years. They do not need much fixing. Some poles have 100 mm traffic signal lights. These lights are strong and last long. They do not break from sun or water. They also keep out dust.
| Type of Signal Light | Energy Consumption Rate | Notes |
|---|---|---|
| LED Technology | Up to 80% savings | Long lifespan, low maintenance |
| 100 mm Traffic Signal Light | High power efficiency | Durable, UV-resistant, waterproof, dustproof |
Better signal lights help people see signals. They help control traffic better. You can change how signals look for different needs. Some parts like backplates make signals easier to see. Retroreflective pieces help in dark places.
The Federal Highway Administration says backplates can lower crashes by 15%. Drivers see signals faster. This keeps crossings safer.
Cameras and sensors
Traffic signal poles use cameras and sensors. They collect live data about traffic. You can check how fast cars go. You can find out if someone breaks the rules. You can see how many cars are on the road. Some systems read license plates for safety. Others check what kind of cars are driving.
| Type of Camera/Sensor | Function |
|---|---|
| Speed Detection | Monitors vehicle speeds in real time |
| Traffic Violation Detection | Identifies red light running and illegal parking |
| Traffic Flow Analysis | Tracks vehicle movement and density |
| Automatic Number Plate Recognition (ANPR) | Reads license plates for identification and security |
| Vehicle Attribute Analysis | Assesses vehicle characteristics for planning |
These tools help stop traffic jams. They make roads safer by giving good information.
Communication modules
Communication modules link traffic signal poles to control centers. You can use 5G or 4G LTE for fast video and data. LoRa and NB-IoT work with sensors that use little power. Fiber optic cables move lots of data in busy cities.
| Communication Technology | Purpose |
|---|---|
| 5G or 4G LTE | Real-time video and data transfer |
| LoRa/NB-IoT | Low-power sensors (air quality, pedestrian counters) |
| Fiber Optic Networks | High-volume data in dense urban areas |
- NTCIP protocol helps devices share data easily.
- V2I systems send safe messages to cars.
- LTE routers use firewalls and codes to protect data.
Power supply
Good power keeps traffic signals working all the time. Most poles use UPS and battery backup. These keep signals on during blackouts or emergencies.
| Product Name | Description |
|---|---|
| APC Smart UPS 1300VA/2000VA | Keeps traffic signals operational during power outages |
| APC Service Bypass Unit | Allows maintenance without stopping power supply |
| Reno 206L Power Supply | Provides stable power for signal systems |
| MMU2 – 1600 GE | Manages power for intelligent traffic systems |
Battery backup can run signals for hours if power goes out. This keeps roads safe and traffic moving, even in storms.
Control units
Control units are the brains of traffic signal poles. They run signals and use sensor data. They change lights quickly to help traffic move. There are different kinds of control units:
| Control Unit Type | Functions |
|---|---|
| Traffic Signal Controller (TSC) | Connects to sensors, manages signal displays, monitors safety |
| Central Processor Unit (CPU) | Controls operations, performs real-time safety checks, allows configuration changes |
| Programmable Read Only Memory | Stores custom software for signal operation |
| Connectivity Modules | Enables data exchange with vehicles and platforms |
| Onboard Computer | Processes traffic data, executes adaptive controls |
| Preemption and Priority Control | Alters signals for emergency and transit vehicles |
| Driver Alerts and Warnings | Provides alerts for red signals and speed warnings |
| Pedestrian Signal Actuation | Requests crossing phases, alerts drivers to pedestrians |
- Adaptive control units change signals every second for better flow.
- These systems work with other intersections and help buses and bikes.
- You can use these systems in small or big cities. They are good for places that are growing.
Integration
Data flow
Advanced systems help manage data in intelligent traffic signal poles. These poles gather information like how many cars pass, how fast they go, and if there are traffic jams. Smart technology connects quickly to these poles. You can set up new devices with cellular LTE in about 20 minutes. Each pole sends its data to the Traffic Management Center, or TMC. Experts at the TMC look at the data to help control traffic better.
| Aspect | Description |
|---|---|
| Data Collection | Traffic signals gather car counts, speed, and jam reports. |
| Integration Ease | Smart tech connects fast using cellular LTE. |
| Centralized Management | Data goes to the TMC for review and choices. |
You get safe and fast data flow with these systems. They use strong rules to keep information safe.
- Security, privacy, and trust are important in every network.
- Good management uses data but also protects privacy rights.
- Cybersecurity keeps out hackers and stops data leaks.
Connectivity
Smart traffic management needs strong connections. Intelligent traffic signal poles use many tools to move data quickly and safely.
- 5G wireless lets you control streetlights from far away. You can change how bright they are and get alerts if something is wrong.
- WiFi gives public internet and helps send data without problems.
- Fiber optics move lots of data very fast for the main network.
Fiber optic networks help you use smart traffic signals. These signals change based on live traffic. This helps traffic move better and stops jams.
Emergency response also gets better. Smart traffic systems help emergency vehicles get through faster. This means help arrives sooner and keeps people safe. Local networks watch cars and make roads safer. Special cameras spot emergency vehicles and change signals fast.
Safety analysis
You check safety with trusted methods.
- Road Safety Audits look at design, where signals are, and equipment during each project step.
- Regular checks and inspections make sure poles work well and stay strong.
- Adaptive signal control changes light times using live traffic data.
- Real-time monitoring collects data and helps manage traffic as it happens.
Cities using smart traffic see 25–35% fewer road accidents. This is because traffic moves better and signals change in real time. Most crashes happen at intersections, but smart systems help stop risky driving.
Intelligent traffic signal poles: features
Adaptive control
Adaptive control helps traffic move better. Cameras count cars waiting in each lane. The system changes lights right away to match traffic. Busy lanes get more green light time. Empty lanes get less green time. This means fewer stops and less waiting. Travel times get shorter and traffic jams are smaller.
| Feature | Description |
|---|---|
| Real-time Adaptation | Changes green light times using live traffic. |
| Continuous Adjustment | Updates signal timing as traffic changes. |
| Congestion Reduction | Moves cars through green lights to stop jams. |
Tip: Adaptive control makes roads safer and more dependable for everyone.
Emergency prioritization
Emergency prioritization helps ambulances and fire trucks get through fast. When one comes close, the system gives it a green light. This helps first responders reach people up to 25% faster. Cities like San Diego use this to keep people safe. It also lowers crash risk at intersections by up to 70%.
- Emergency vehicle preemption lets ambulances and fire trucks go quickly.
- Less waiting means faster help and safer streets.
Eco-driving support
Eco-driving support helps cut pollution and save energy. Special signals guide electric vehicles at intersections. The system tells drivers the best speed to catch green lights. Some places even let electric cars charge wirelessly while waiting.
| Eco-Driving Strategy | Description | Impact |
|---|---|---|
| Eco-routing guidance | Gives speed tips based on traffic and EV battery | Saves energy |
| Integrated signal control | Combines eco-driving with smart signals | Makes driving more efficient |
| Wireless charging | Lets EVs charge at intersections | Uses less energy |
Note: Eco-driving features help cities stay green and support clean travel.
Safety enhancements
Safety features protect people walking and biking. AI and sensors watch for people crossing or riding bikes. The system can give more green time to someone waiting to cross. Cyclists may get their own signals to stay safe from cars. In one test, pedestrian accidents dropped by 27%. Cyclists got to work 18% faster.
- AI systems change signals for walkers and bikers.
- Cameras and LiDAR sensors watch movement and keep roads safe.
Safety features make the city better for everyone, not just drivers.
Intelligent traffic signal poles make streets safer and smarter. These poles are made of strong steel. They can handle bad weather for many years. You can put cameras, sensors, and chargers on them. This helps traffic move better and keeps people safe.
- The smart pole market is growing quickly with new tech.
- 5G and connected cars change how cities control roads.
- Governments and companies spend money on smart systems.
- Cheaper options make it easier to set up smart poles.
More cities use smart poles to help people travel safely. Smart poles will help shape how cities work in the future.
FAQ
What materials do intelligent traffic signal poles use?
Most intelligent traffic signal poles use Q235 or Q345 steel. Some poles use aluminum because it is lighter. Aluminum also fights rust better. These materials help poles last longer. They stay strong in bad weather.
How do smart poles improve traffic safety?
Smart poles use cameras and sensors to watch traffic. These devices check how cars move and spot rule breakers. Real-time data helps lower accidents. It keeps crossings safer for drivers and people walking.
Can you customize intelligent traffic signal poles for your city?
You can pick special designs, sizes, and features. Many makers let you choose signal lights, cameras, chargers, and communication modules. Custom poles fit your city’s needs. They are ready for future changes.
What power backup options do these poles offer?
Most smart poles have UPS and battery backup systems. These keep signals working when the power goes out. Reliable power means signals always run. This keeps roads safe all the time.
How do intelligent traffic signal poles support smart city growth?
Smart poles use strong connections and share data. They link with central management systems. They help with adaptive control, eco-driving, and emergency prioritization. These features help cities grow smarter and safer.
