Traffic gantry systems provide permanent structural support for tolling equipment, variable message signs, lane-control signals, cameras, radar, weather sensors, and other highway monitoring devices. These structures help road operators manage traffic, collect operational data, communicate real-time information, and support safer highway operations.
Modern tolling and intelligent transportation projects increasingly combine several technologies on a single full-span or cantilever gantry. This places greater demands on structural capacity, equipment mounting, cable routing, electrical integration, maintenance access, corrosion protection, and provision for future upgrades.
| Technology | Function on a Traffic Gantry |
|---|---|
| Multi-Lane Free-Flow Tolling | Supports barrier-free toll collection across multiple traffic lanes |
| RFID | Identifies registered vehicles and processes electronic toll transactions |
| ANPR Cameras | Capture and recognize vehicle licence plates for tolling, enforcement, and traffic analysis |
| DSRC or C-V2X Equipment | Enables communication between roadside infrastructure and connected vehicles |
| Radar and Vehicle Sensors | Detect vehicle presence, speed, classification, and lane position |
| Variable Message Signs | Communicate congestion, lane closures, incidents, speed restrictions, and safety information |
| Weather and Environmental Sensors | Monitor visibility, wind, rainfall, road-surface conditions, and other operational factors |
| CCTV Cameras | Support traffic monitoring, incident detection, and security operations |
A gantry must be engineered for the combined weight and projected wind area of all installed equipment. The design should also consider road width, required clearance, fatigue and vibration, wind load, foundation conditions, electrical cabinets, cable routes, lightning protection, maintenance platforms, transportation, and installation constraints.
LeapPole supplies customized traffic gantry systems for tolling, VMS, highway monitoring, and intelligent transportation projects. Gantry structures can also be coordinated with LED street lights, smart poles, and other roadside infrastructure where lighting or additional equipment integration is required.
Key Takeaways
- Traffic gantry systems enhance tolling efficiency by integrating technologies like RFID and ANPR, allowing vehicles to pass without stopping.
- Variable message signs (VMS) mounted on gantries provide real-time traffic updates, improving driver awareness and safety.
- Collecting data through gantry systems supports better traffic analysis and planning, leading to optimized urban mobility.
- Choosing energy-efficient lighting, such as solar and LED street lights, reduces maintenance costs and enhances visibility for gantry areas.
- Regular maintenance and inspections are crucial for ensuring the long-term performance and reliability of traffic gantry systems.

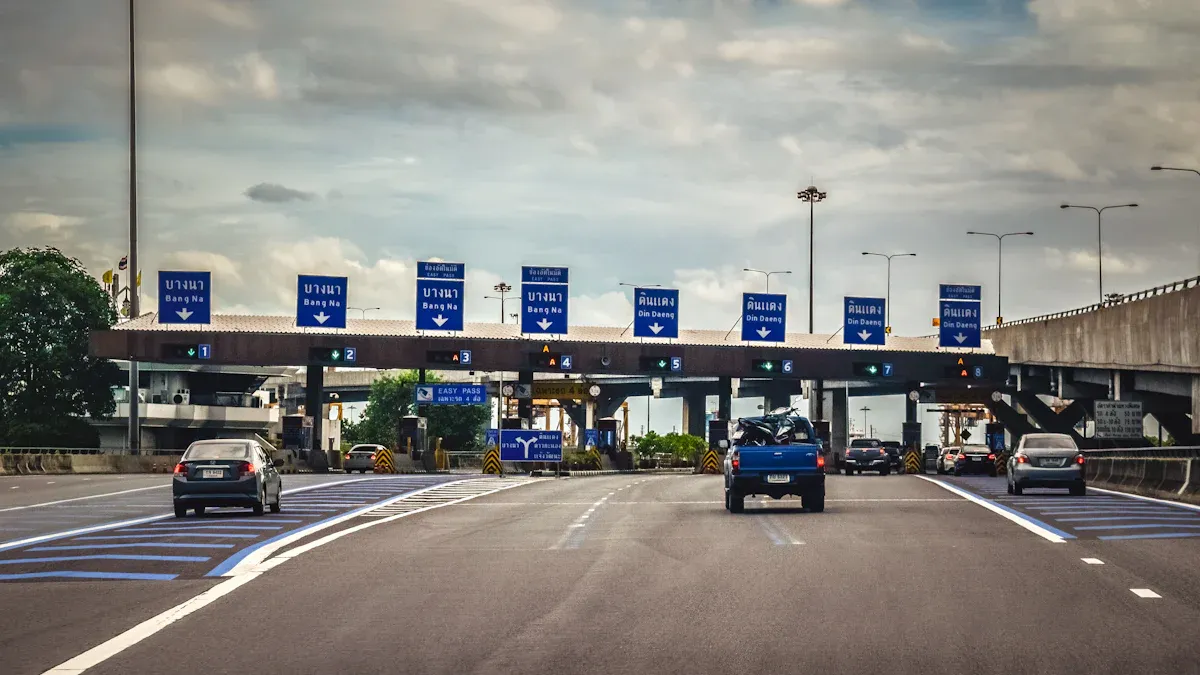

Part1: Traffic Gantry Systems in Project Applications
1.1 Tolling Solutions and ETC Integration
You rely on traffic gantry systems to support modern tolling solutions and electronic toll collection (ETC). These systems use advanced sensors and cameras to identify vehicles, classify them, and process toll transactions efficiently. You can see how ETC integration streamlines operations and reduces congestion by allowing vehicles to pass through toll points without stopping. This approach improves revenue collection and minimizes human error.
| Component | Description |
|---|---|
| Automatic Vehicle Classification | Sensors detect and classify vehicles for proper tolling, using overhead equipment or intelligent loops. |
| Violation Enforcement System | Reduces toll evasion through alarms and camera-based solutions for license plate recognition. |
| Automatic Vehicle Identification | Identifies vehicles to charge tolls, using technologies like RFID and license plate recognition. |
| Transaction Processing | Manages data aggregation, customer service, and violation processing in the back office. |
You can enhance tolling efficiency by integrating RFID, ANPR, and other technologies. These systems also support maintenance strategies, such as device activation logs and malfunction reports, which help you monitor operational status and plan resources. When you select equipment for these applications, consider compatibility with LED street lights and smart poles to ensure proper illumination and system reliability.
1.2 VMS Deployment and Traffic Management
Traffic gantry systems play a vital role in deploying variable message signs (VMS) for real-time traffic management. You mount VMS on gantries to ensure drivers see important information from a distance. This setup helps you communicate updates about congestion, accidents, or road closures quickly and clearly.
Tip: Always position VMS for maximum visibility and connect them to a centralized control system for remote updates.
Best practices for VMS deployment include:
- Ensuring overhead placement for clear visibility.
- Providing real-time updates to guide driver decisions.
- Integrating with traffic management systems for remote control.
You can improve safety and efficiency by combining VMS with smart lighting solutions, such as LED street lights and adaptive lighting controls. These features help drivers read messages in all weather and lighting conditions.
1.3 Highway Monitoring and Data Collection
You use traffic gantry systems to collect valuable data for highway monitoring. Sensors and cameras mounted on gantries gather information about both motorized and non-motorized traffic. This data supports traffic analysis, planning, and adaptive signal control.
| Type of Data | Examples |
|---|---|
| Non-Motorized | Bicycle volumes, Pedestrian volumes, Total volumes of bicycles and pedestrians |
| Motorized | Vehicle volumes, Vehicle classification, Speed, Axle spacing, Vehicle and axle weight, Gap, Headway, Lane occupancy |
Recent advancements in sensor and camera technology have improved the accuracy and scope of data collection. You benefit from miniaturized, cost-effective sensors that provide real-time information for intelligent transportation systems. These innovations help you manage urban mobility and optimize traffic flow.
When you plan a project, consider the latest trends:
- Portable gantries offer flexible deployment for temporary or emergency needs.
- Sustainable designs use local materials and reduce environmental impact.
- Camera-based systems deliver extensive data but may require additional investment for outdoor reliability.
| Technology | Deployment Rate | Effectiveness |
|---|---|---|
| Portable Gantries | 200 structures printed in various projects | Suitable for rapid deployment and disaster relief. |
| Sustainable Designs | Focus on local materials and cost reduction | Minimizes environmental impact and supports eco-friendly goals. |
| Camera-based Systems | Challenges in outdoor deployment | Provides extensive data but faces cost and effectiveness challenges in harsh environments. |
You should evaluate these options based on your project’s technical requirements, site conditions, and long-term maintenance needs. Integrating lighting products, such as solar street lights and smart poles, can further enhance system performance and safety.
Part2: Lighting and Equipment Selection
2.1 Illumination for Gantry Areas
You need reliable illumination for gantry areas to ensure safety, visibility, and accurate operation of cameras and sensors. When you compare lighting technologies, solar streetlights and LED street lights stand out for their energy efficiency and low maintenance. Solar streetlights use renewable energy and can lower energy costs by up to 75%. They require fewer repairs and offer long service life, making them ideal for remote or off-grid locations. LED street lights deliver high brightness and meet IES standards for quality. You can review the table below to compare options for your project:
| Feature | Solar Streetlights | Traditional Streetlights |
|---|---|---|
| Energy Source | Solar energy, zero electricity costs | Grid power, ongoing energy expenses |
| Maintenance Costs | $10–$50/year, fewer repairs | $150–$300/year, more frequent repairs |
| Longevity | Durable, long-lasting | Regular maintenance needed |
| Brightness Efficiency | Over 200 lumens/watt | Meets IES brightness standards |
| Energy Cost Savings | Up to 75% savings | No significant savings |
2.2 Choosing LED Street Lights and Smart Poles
Selecting the right LED street lights and smart poles for Traffic Gantry Systems requires you to consider pole height, material, shape, and surface treatment. You can choose poles from 3 to 40 meters in height, using materials like Q235 steel or aluminum for durability. Hot dip galvanization improves corrosion resistance, which is essential for outdoor environments. The table below outlines key selection criteria:
| Criteria | Details |
|---|---|
| Pole Height | 3–40 meters |
| Material | Q235, Q345, Iron, Steel, Aluminum |
| Shape Options | Round conical, Octagonal tapered, Straight square |
| Surface Treatment | Hot dip galvanization for durability |
| Thickness | 1.8mm–20mm |
2.3 Mounting Cameras, Sensors, and VMS
You must follow best practices when mounting cameras, sensors, and VMS on gantry structures. Place cameras at optimal heights and angles to cover the area of interest and avoid obstructions. Use increased focal length for short-range views and maintain a minimum frame rate of 8fps for reliable analytics. In high-traffic zones, ensure sensor overlap and audit coverage regularly, especially in challenging weather. Common integration challenges include compatibility with legacy systems, network requirements, and environmental factors like cold climates affecting camera performance.
Tip: Regularly inspect all mounted equipment and update firmware to maintain system reliability.
When you plan your next steps, evaluate site conditions, select components that match your technical requirements, and prioritize energy-efficient solutions. This approach will help you achieve long-term performance and cost savings for your Traffic Gantry Systems.
Part3: Engineering and Installation Standards
3.1 Key Parameters: Height, Spacing, Power
When you plan Traffic Gantry Systems, you must determine key parameters based on your project’s unique site conditions. Pole height, spacing, foundation size, power supply, battery capacity, and solar panel wattage all depend on factors like lighting calculations, wind load, soil strength, and local standards. For example, you might need taller poles for wider highways or higher mounting points for cameras and VMS. Spacing between gantries should allow for clear visibility and safe access for maintenance. Power requirements change if you use solar street lights, LED street lights, or smart poles, so you must calculate battery and panel sizes according to local sunlight and energy needs.
Note: Always consult local engineering codes and standards, such as AASHTO or EN 40, to ensure compliance with safety and performance requirements.
3.2 Site Conditions and Compliance
You must assess site conditions before installation. The terrain, soil type, weather, and wind load all affect your engineering choices. Here is a checklist to guide your evaluation:
- Assess terrain type—flat, uneven, or sloped ground changes installation complexity.
- Evaluate soil type and bearing capacity—different soils need different foundation designs.
- Consider flooding risks—poor drainage can weaken foundations over time.
| Condition | Requirement |
|---|---|
| Ground Bearing Capacity | Should be ≥ 2.5 MPa; otherwise, concrete reinforcement is required. |
| Wind Load | Must consider larger windward areas requiring anti-wind devices. |
- Wind load and storm resistance must be addressed in your design.
- Snow, ice, and rain exposure can affect equipment safety and movement.
- Temperature extremes require proper calculations for expansion joints.
You can find more on pole accessories and foundation parts to support your compliance efforts.
3.3 Installation Practices and Acceptance
Proper installation practices ensure long-term durability and safety. Before assembly, confirm site readiness and inspect the foundation for strength and levelness. Align rails and check that access routes and lifting spaces are clear. Make sure your power supply and installation tools are available.
| Key Aspect | Description |
|---|---|
| Foundation Acceptance | Inspect the foundation for concrete strength, rail elevation, and surface levelness before assembly. |
| Rail Alignment | Ensure proper alignment to prevent wheel gnawing and structural stress. |
| Safety Device Verification | Regular checks on safety devices to ensure operational safety. |
| Regular Maintenance | Conduct inspections for corrosion and perform bolt tightening to extend service life. |
Acceptance testing includes a final pre-test inspection, load application tests (static and dynamic), and post-test documentation for compliance. These steps help you verify that your gantry system meets all project and regulatory requirements.
Project Selection Logic and Next Steps:
You should always match your engineering choices to site conditions, technical requirements, and local standards. Review soil, weather, and wind data before finalizing your design. Select lighting and traffic facilities that support your project’s safety and sustainability goals. Document all installation and testing steps for future maintenance and compliance.
Part4: Procurement and Maintenance Considerations
4.1 Product Selection and Documentation
You must take a systematic approach when selecting products for traffic gantry projects. Start by verifying certifications such as CE Marking and EN standards to ensure compliance with European regulations. Assess the engineering capabilities of your supplier to confirm technical expertise. Request transparent manufacturing processes and consider factory audits for quality assurance. Develop a logistics plan that covers shipping, customs, and installation. Evaluate after-sales support, including spare parts availability in your region. Scrutinize the financial stability of your supplier by reviewing contracts and financial health. Prioritize clear communication for effective project management.
Procurement Checklist
| Step | Action Item |
|---|---|
| Certification | Confirm CE Marking, EN standards |
| Engineering Evaluation | Review supplier’s technical expertise |
| Quality Control | Request factory audits, check documentation |
| Logistics | Plan shipping, customs, and installation |
| After-Sales Support | Ensure spare parts and technical assistance |
| Financial Review | Assess supplier’s financial stability |
| Communication | Establish clear project contacts |
LeapPole supports you with detailed structural drawings, packaging plans, and compliance documentation.
4.2 Maintenance Planning and Lifecycle
You should implement a proactive maintenance plan to extend the service life of your gantry systems. Conduct daily checks on the lower track for debris and inspect the top runway beam for loose bolts or damage. Lubricate gears and inspect brake pads regularly to prevent failures. Schedule routine maintenance and inspections to reduce downtime and avoid costly repairs.
Lifecycle Cost Comparison
| Cost Component | LED Traffic Signs | Reflective Sheet Signs |
|---|---|---|
| Main Maintenance Drivers | LED module, power supplies | Retroreflective sheeting, labor |
| Maintenance Frequency | 50,000–100,000 hours | Every 7–12 years |
Tip: Keep a maintenance log and update it after each inspection or repair. This practice helps you track system performance and plan replacements efficiently.
4.3 LeapPole Support and Customization
You can benefit from engineering support and customization services when you work with leading suppliers like LeapPole. Customization allows you to tailor gantry structures for your project’s unique requirements. You can adjust parameters such as size, load capacity, and control features to optimize performance and efficiency.
| Service Type | Description |
|---|---|
| Structure Options | Full-span gantries, cantilever designs, custom overhead supports |
| Engineering Inputs | Road width, clearance height, equipment weight, wind area, soil data |
| Materials & Protection | Hot-dip galvanized steel, optional coatings, corrosion resistance |
| Equipment Integration | Mounting for VMS, cameras, sensors, cabling, and future upgrades |
| Project Support | Drawings, fabrication details, packing, installation guidance |
You can enhance project timelines and outcomes by customizing the length of travel, adding axes, or upgrading precision levels. LeapPole provides consultation, technical drawings, and packaging solutions to support your project from design to installation.
Project Selection Logic and Next Steps
You should match your procurement and maintenance strategies to your technical requirements and site conditions. Confirm all certifications, review supplier qualifications, and document every step for compliance. Plan for routine maintenance and consider customization to achieve the best results for your traffic gantry, lighting, and monitoring projects.
You gain many advantages by using traffic gantry systems for tolling, VMS, and highway monitoring. These systems improve traffic flow and safety. You see shorter, more predictable journeys and fewer incidents at ramps. Sustainable and innovative designs help you reduce emissions and support smart city goals. You also benefit from predictive insights, better emergency response, and lower costs. For best results, select certified products, follow engineering standards, and plan regular maintenance. This approach ensures reliable performance for your lighting, monitoring, and traffic management projects.
FAQ
How do you select the right traffic gantry system for a project?
Evaluate the road width, number of lanes, required vertical clearance, equipment layout, total equipment weight, projected wind area, design wind speed, fatigue loads, soil conditions, and installation constraints. The design should also consider cable routing, electrical cabinets, maintenance access, transportation limits, and capacity for future equipment. Explore LeapPole’s traffic gantry systems for typical project applications.
What standards must traffic gantry systems meet?
The applicable standards depend on the project country, road authority, contracting organization, and type of mounted equipment. AASHTO specifications may apply to structural supports for highway signs, luminaires, and traffic signals in the United States, while European and other international projects may use different structural, steel-fabrication, welding, galvanizing, wind-load, and electrical standards. EN 40 primarily concerns lighting columns and should not automatically be treated as the governing standard for every traffic gantry. CE marking is required only when applicable to the product and target market.
Can lighting products be coordinated with traffic gantries?
Yes, where the project design requires roadway or equipment-area illumination. LED street lights or other luminaires may be mounted on or coordinated with gantry structures, but their weight, wind area, vibration, electrical supply, optics, and maintenance access must be included in the engineering calculations. Separate smart poles may also support cameras, sensors, communication equipment, and lighting alongside the gantry system.
What are the key installation and commissioning steps?
Verify the survey coordinates, foundation dimensions, concrete strength, anchor-bolt position, and embedded components before erection. During installation, inspect structural sections, bolted or welded connections, alignment, clearances, equipment mounts, cable routes, earthing, and lightning protection. Commissioning should include structural inspection, equipment testing, communications checks, electrical safety verification, and complete acceptance documentation.
How can traffic gantry systems be customized?
LeapPole can customize full-span and cantilever structures, span length, clearance height, steel grade, corrosion protection, connection details, maintenance access, and mounting interfaces. Brackets and cable routes can be engineered for VMS displays, lane-control signals, ANPR cameras, RFID readers, radar, CCTV, and weather sensors. Final dimensions and capacity must be based on project drawings and structural calculations.
What maintenance practices support long-term reliability?
Establish inspection intervals for foundations, anchor bolts, structural connections, welds, coatings, equipment brackets, cable systems, access platforms, and mounted devices. Additional inspections should follow vehicle impacts, severe storms, earthquakes, or equipment changes. Keep approved drawings, inspection records, coating-repair procedures, and critical replacement components available throughout the system’s service life.
How do you plan production and delivery for a customized gantry?
Complete structural calculations, drawing approval, equipment-interface confirmation, and transportation planning before production. Large gantries may require segmented fabrication, trial assembly, protective packing, container-loading plans, and coordinated site lifting. Submit your road cross-section, equipment layout, design wind speed, soil information, quantities, destination, and project standards through our project consultation page for a technical review and delivery proposal.
