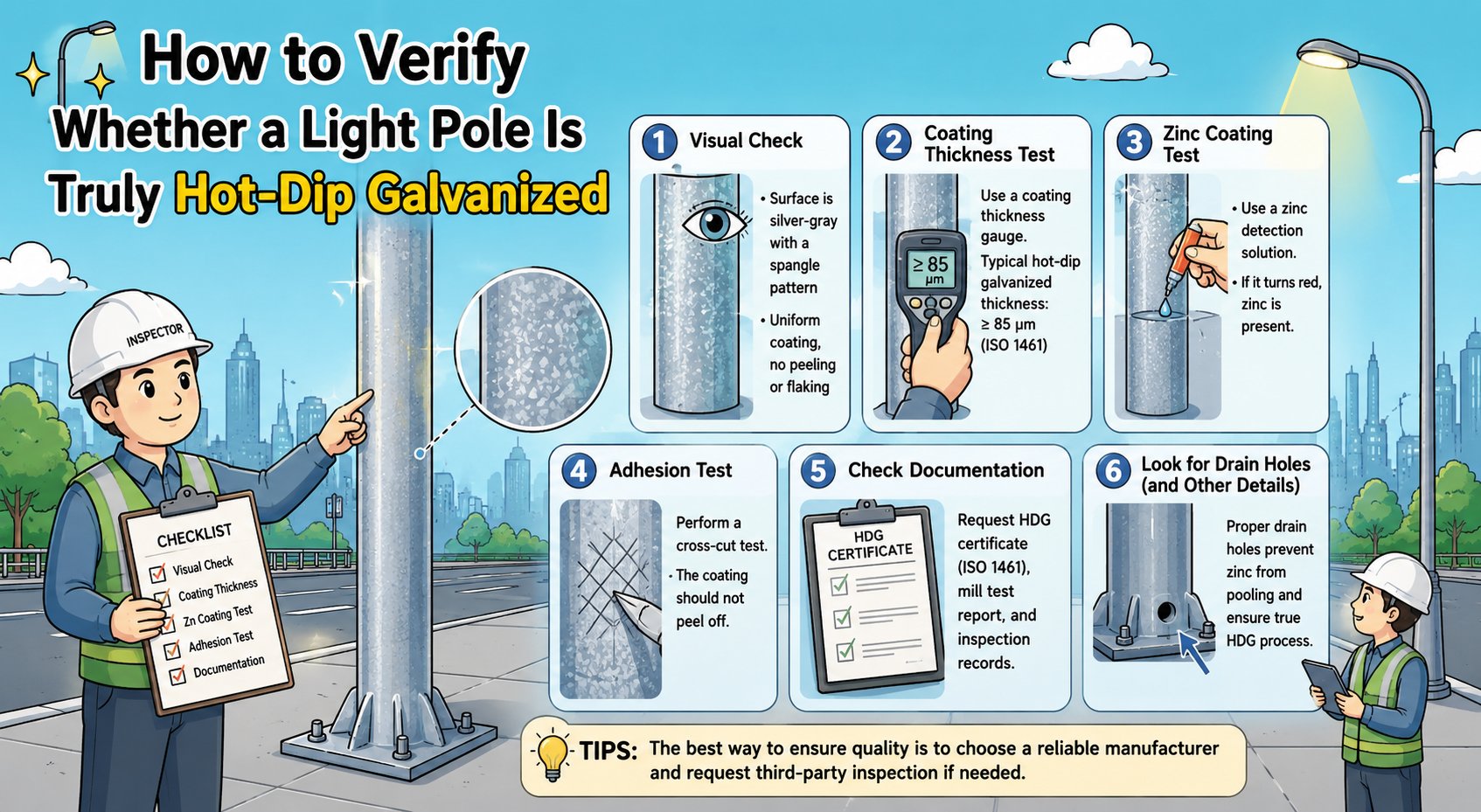

How to Verify Whether a Light Pole Is Truly Hot-Dip Galvanized

You need to verify light pole galvanization because street light poles face harsh outdoor conditions. Hot-dip galvanization coats steel with a thick, durable layer of zinc, while cold galvanization uses paint or spray and offers less protection. Substandard galvanization leads to rust, safety hazards, and costly repairs. If you work in public lighting, you must use reliable methods to check quality.

Hot-dip galvanization protects light poles from corrosion and extends their lifespan.

Key Takeaways

• Inspect the surface of light poles for a grayish-white color and a unique spangle pattern. This indicates proper hot-dip galvanization.
• Check welds for cracks and ensure they are fully covered with zinc. Exposed welds can lead to corrosion and structural issues.
• Use simple tests like the acid bubble test and magnet test to verify the presence of zinc. Bubbles indicate zinc, while a magnet should not stick to a properly galvanized surface.
• Measure zinc coating thickness with a gauge and compare results to ISO 1461 or ASTM A123 standards. This ensures compliance and durability.
• Request galvanization certificates from suppliers to confirm quality. Regular inspections and maintenance help extend the lifespan of light poles.

Part1: Visual Inspection to Verify Light Pole

1.1 Surface Appearance and Color

When you verify light pole galvanization, start by examining the surface. Genuine hot-dip galvanized steel displays a grayish-white color and a uniform finish. You will notice a unique crystalline pattern called “spangle.” This pattern forms during immersion in molten zinc and sets hot-dip galvanization apart from other zinc coatings. Electrogalvanized steel, which does not use immersion, lacks this spangle and often appears smoother or shinier. Galvannealed steel, another process, results in a dull matte surface because zinc alloys with the steel.

Tip: If you see a shiny, paint-like finish or uneven color, the pole may not be hot-dip galvanized. Always look for the spangle pattern and a consistent grayish-white tone.

1.2 Welds and Stress Cracks

Welds are critical points on light poles. You must check welds for cracks and ensure the zinc coating covers them completely. Poor galvanization often leaves welds exposed, which leads to corrosion and structural failure. Field inspection reports show several types of weld defects in improperly galvanized poles.

You should inspect welds for any visible cracks or gaps. Hot cracks form during welding, while cold cracks appear later due to stress. Toe cracks start at the edge of the weld and run parallel to the surface. If you spot any of these, the pole may not meet quality standards.

Note: A continuous zinc coating over welds shows proper hot-dip galvanization. Gaps or exposed steel signal poor protection.

1.3 Signs of Poor Coating

You can use simple field tests to verify light pole coating quality. Try the acid bubble test: apply a drop of dilute hydrochloric acid to the surface. If bubbles form, zinc is present. No reaction means the coating may be paint or another material. The magnet test also helps. Zinc is not magnetic, so a magnet will not stick to a properly galvanized surface. If the magnet sticks, the coating is likely not zinc.

• Look for these signs of poor coating:
  • Flaking or peeling layers
  • Rust spots or discoloration
  • Uneven thickness, especially at edges and welds

Alert: If you find any of these issues, request third-party testing or certification. Reliable suppliers should provide ISO 1461 or ASTM A123 certificates to confirm proper galvanization.

Visual inspection gives you a quick way to verify light pole quality before moving to more advanced tests. Always check surface appearance, welds, and coating integrity to ensure long-lasting performance.

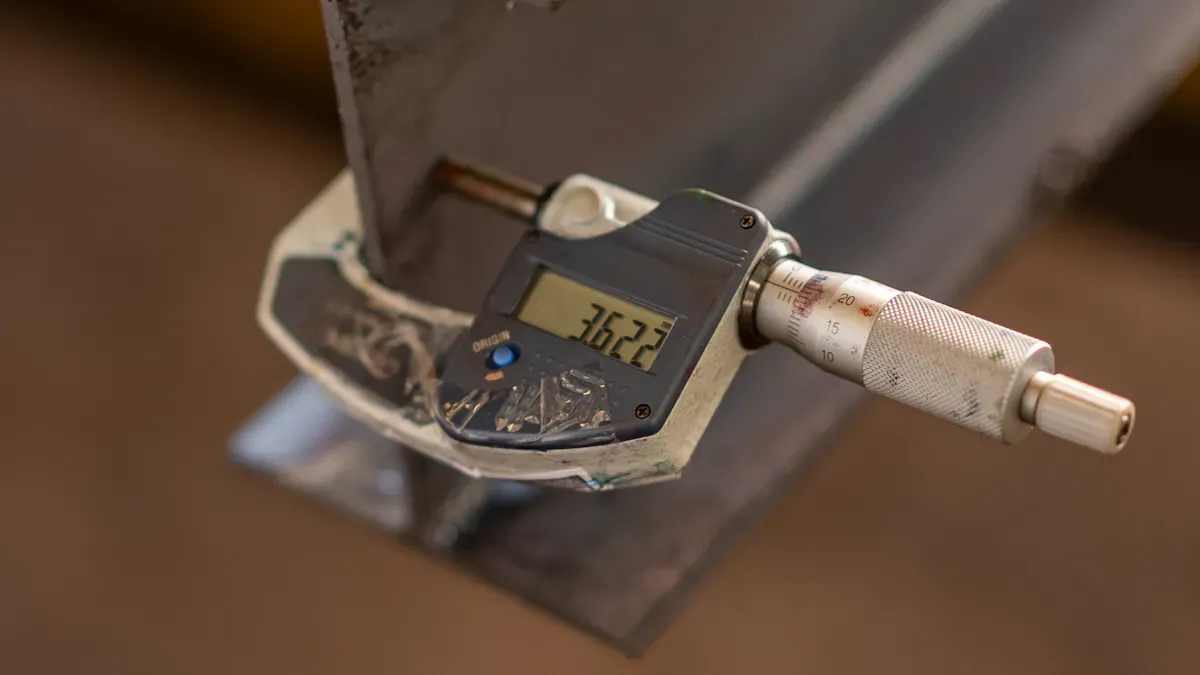

Part2: Measuring Zinc Coating Thickness

2.1 Using a Coating Thickness Gauge

You can measure the zinc layer on a light pole using a coating thickness gauge, such as an Elecometer. This tool helps you check if the galvanization meets industry standards. To get accurate results, you should follow these steps:

1. Verify the accuracy of your gauge with traceable standards from the manufacturer.
2. Check the zero point using an uncoated steel sample.
3. Check the span using coated thickness standards, usually between 2-5 mils.
4. Adjust the gauge if readings do not match the standard values.
5. Place the gauge on a representative uncoated sample and take measurements at 5-10 different spots.
6. If the gauge shows a positive reading on bare metal, use the zero adjustment function.
7. After zeroing, all future measurements will automatically compensate for the substrate.

For mechanical gauges, you should measure uncoated samples at more than 10 locations and calculate the average base metal reading (BMR). Subtract this BMR from each galvanized measurement. Electronic gauges allow you to use either the zero adjustment or manual subtraction method.

Tip: Always measure at several points, especially at welds and edges, to ensure the zinc coating is even across the entire pole.

2.2 Comparing to ISO 1461 and ASTM A123

You need to compare your measurements to international standards to verify light pole compliance. The two main standards are ISO 1461 and ASTM A123. Both set minimum zinc coating thickness requirements for hot-dip galvanized steel, but the values can differ based on steel thickness and product type.

The table below shows how these standards apply to different steel thickness categories:

You should check your gauge readings against these values. If your measurements fall below the minimum required by the relevant standard, the pole does not meet compliance. Always record your results and compare them to the correct category for your pole’s steel thickness.

Note: Meeting or exceeding these standards ensures the pole will resist corrosion and last longer in outdoor environments.

2.3 Field Testing Tips

When you measure zinc coating thickness outdoors, you need to follow best practices to get reliable results. Here are some expert tips:

• Hold the probe flat against the surface. Angled placement can give false readings.
• Use gentle pressure. Too much force can indent the coating and affect the measurement.
• Spring-loaded probes help prevent indentation problems.
• Automated stands can control the speed and pressure when the probe touches the surface.
• Take multiple readings at different spots, especially at welds and edges, to check for even coverage.

Understanding zinc coating thickness helps you make informed decisions about product quality and safety. You can verify light pole durability and ensure it meets project requirements by following these steps.

Alert: Always keep records of your measurements and compare them to ISO 1461 or ASTM A123. This practice protects your investment and supports safe, reliable installations.

Part3: Testing Coating Adhesion

3.1 Simple Adhesion Checks

You can perform basic adhesion tests in the field to check if the zinc coating on a light pole will last. One common method is the tape test. Press a strong adhesive tape onto the galvanized surface, then pull it off quickly. If large flakes or sheets of zinc come off, the coating may not have bonded well. You can also use a knife to gently scrape the surface. A well-adhered coating will resist removal and only show minor marks.

Laboratory studies show several failure modes during adhesion testing:

You should always record the test location and result. Take photos for documentation, especially if you plan to verify light pole quality for a project.

3.2 Identifying Flaking or Peeling

Flaking and peeling are two main signs of poor adhesion. You can spot these defects by looking for changes in the coating’s appearance and texture. The table below helps you tell the difference:

Common causes of flaking or peeling include:

• Excessively thick coatings, which create high stress at the steel-zinc interface.
• Slow cooling rates, which form zinc-iron layers and cause voids.
• Steel chemistry or fabrication issues, which can lead to delamination.

If you see these problems, you should request third-party testing or consult with your supplier.

3.3 Interpreting Results

You need to interpret adhesion test results using clear criteria. Follow these steps:

1. Inspect the coating visually for pinholes, runs, or bare spots.
2. Compare your findings to the project’s coating specification.
3. Document all defects and repairs in your inspection records.
4. Use standard tests like ASTM D4541 (Pull-Off), ASTM D3359 (Tape), or ASTM D6677 (Knife) if required.
5. Consider using witness panels for destructive tests to avoid damaging actual poles.

Other important checks include:

• Measuring coating thickness with a magnetic gauge.
• Performing accelerated corrosion tests, such as salt spray exposure.
• Evaluating surface appearance for roughness or dross inclusions.
• Using advanced tools like scanning electron microscopy for detailed analysis.

Industry standards recommend that you agree on test protocols before inspection. Always document test locations and results with photos. If you find failed adhesion, expand your testing to see how widespread the problem is. This approach helps you verify light pole quality and ensures long-term performance.

Part4: Compliance and Maintenance

4.1 Reviewing Certificates and Standards

You should always ask for galvanization certificates when you buy light poles. These certificates prove that the poles meet ISO 1461 or ASTM A123 standards. To check if a certificate is real, use these methods:

Third-party testing plays a key role in verifying galvanization quality. You should request independent tests if you see signs of poor coating, inconsistent thickness, or questionable certificates. Third-party inspectors use industry standards and unbiased methods, which help you avoid costly mistakes and ensure safety.

Tip: Always keep records of certificates and test results. This practice protects your project and helps you meet legal requirements.

4.2 Manufacturer Reputation and Warranty

You need to check the reputation of the manufacturer before you buy light poles. Industry surveys show that these factors matter most:

1. Quality of raw materials
2. Zinc coating thickness
3. Coating adhesion
4. Surface finish
5. Weight-bearing capacity
6. Standards compliance
7. Warranty and support

A strong warranty shows that the manufacturer trusts their product. Good customer support helps you solve problems quickly. You should also look for reviews and ask for references from other clients.

Alert: If a supplier cannot provide certificates or a clear warranty, you should consider other options.

4.3 Regular Inspection and Maintenance

You must inspect and maintain light poles to keep them safe and durable. Cleaning and checking for corrosion are important steps. Use this table to plan your cleaning schedule:

Follow these steps for maintenance:

• Inspect the inside of the pole with a flashlight.
• Use a power washer to remove loose dirt.
• Scrub tough spots with 600 grit sandpaper.
• Check for corrosion with an ultrasonic thickness gauge.
• Make sure the interior is dry before sealing the pole.

Routine maintenance, including corrosion checks and grounding inspections, keeps poles safe and extends their lifespan. Environmental factors, such as harsh weather, can speed up wear and tear. Regular care helps you catch problems early and avoid expensive repairs.

Note: Maintenance is not just about cleaning. You should also check anchor bolts, electrical connections, and grounding to prevent failures.

You can ensure the safety and durability of light poles by following clear verification steps. Always inspect the surface, measure zinc thickness, and test adhesion. Use these methods for every purchase or inspection. Work with reputable suppliers who provide proper documentation. Reliable records help you track quality and trace each pole:

For complex cases, consult industry experts or third-party inspectors.

FAQ

What is the difference between hot-dip and cold galvanization?

Hot-dip galvanization dips steel into molten zinc, creating a thick, durable layer. Cold galvanization uses zinc-rich paint or spray. You get better corrosion protection with hot-dip. Cold galvanization offers less durability and is not suitable for outdoor light poles.

How thick should the zinc coating be on a light pole?

You should look for a zinc coating thickness of at least 80 microns for most outdoor light poles. This meets common standards and ensures long-term corrosion resistance.

What does ISO 1461 mean for galvanized light poles?

ISO 1461 sets international rules for hot-dip galvanizing steel. You can use it to check if your light pole meets minimum zinc thickness and quality requirements. Always ask for ISO 1461 certificates from your supplier.

How does ASTM A123 differ from ISO 1461?

ASTM A123 is an American standard for hot-dip galvanizing. It gives specific coating thickness values for different steel types. ISO 1461 is an international standard. Both help you verify quality, but you should check which one your project requires.

Why should you use third-party testing for galvanization?

Third-party testing gives you unbiased results. You can trust these tests to confirm zinc thickness, adhesion, and overall quality. This protects your investment and ensures safety for public lighting projects.
